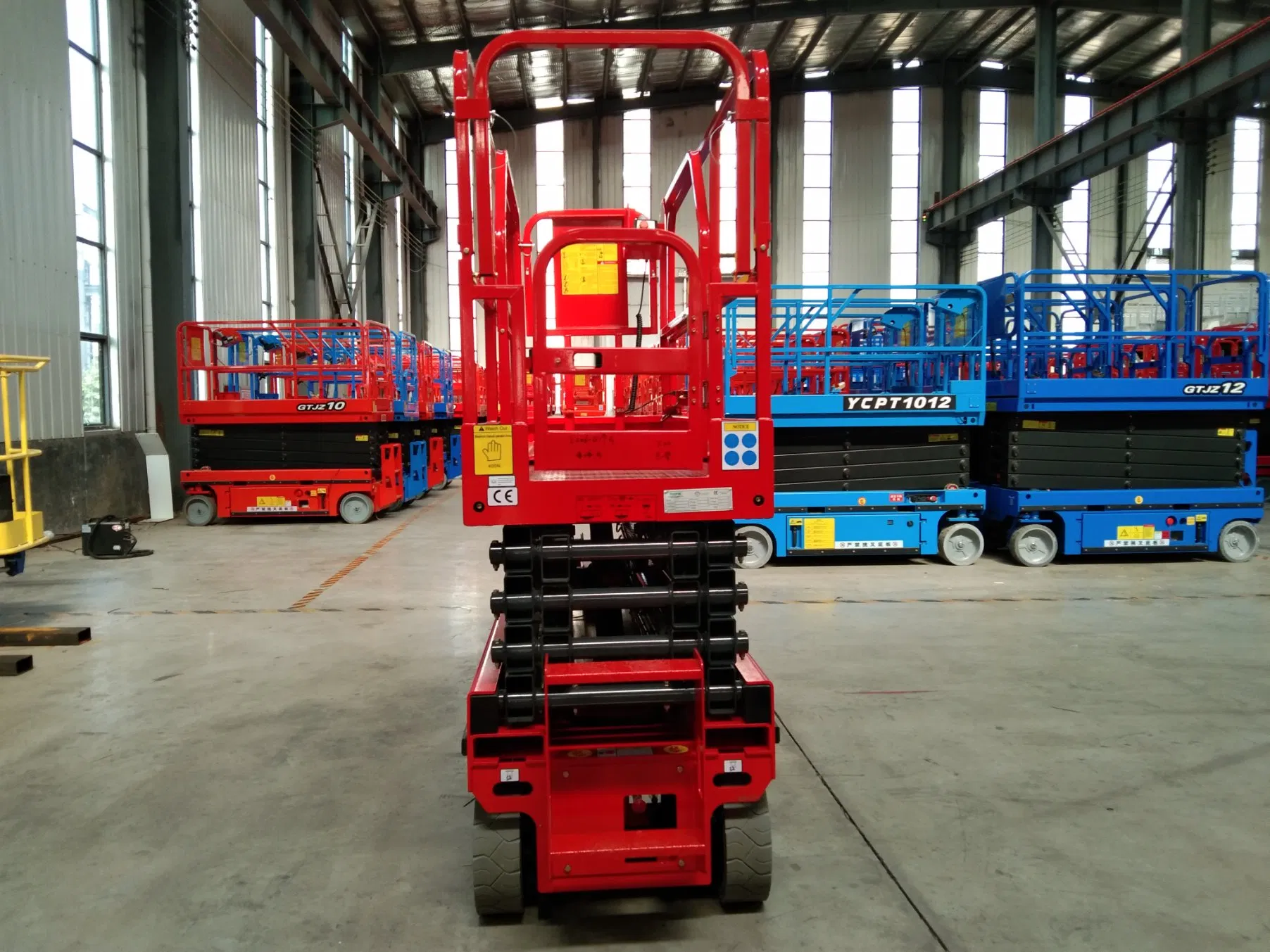

Rise 8 Meters Load 230kg Mobile Scissor Lift Platform with CE Certificate

1 / 5

Rise 8 Meters Load 230kg Mobile Scissor Lift Platform with CE Certificate

Customization:	Available
Warranty:	12 Months Apart From Man-Made Faults
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

GTJZ08A

Lift Mechanism

Scissor Lift

Carrying Capacity

Middle-Level

Moves

Moving

Driven Type

Hydraulic

Running Mode

Moving

Certification

CE, ISO 9001

Rated Loading Capacity

230kg

Max. Lifting Height

Platform Size (M)

2.26×0.81×1.1

Origin

China

Production Capacity

200 Units Per Month

🏗️ Product Description

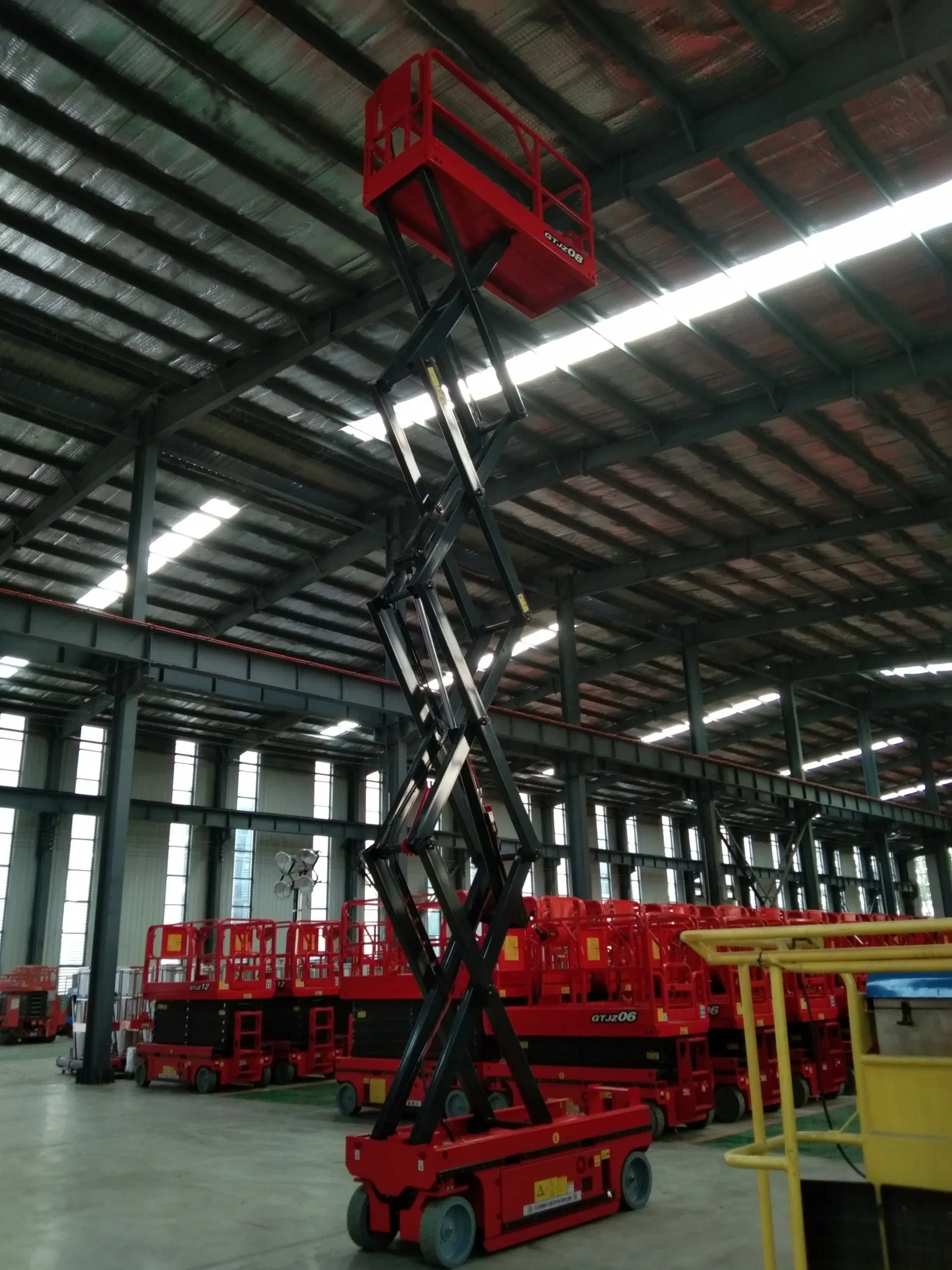

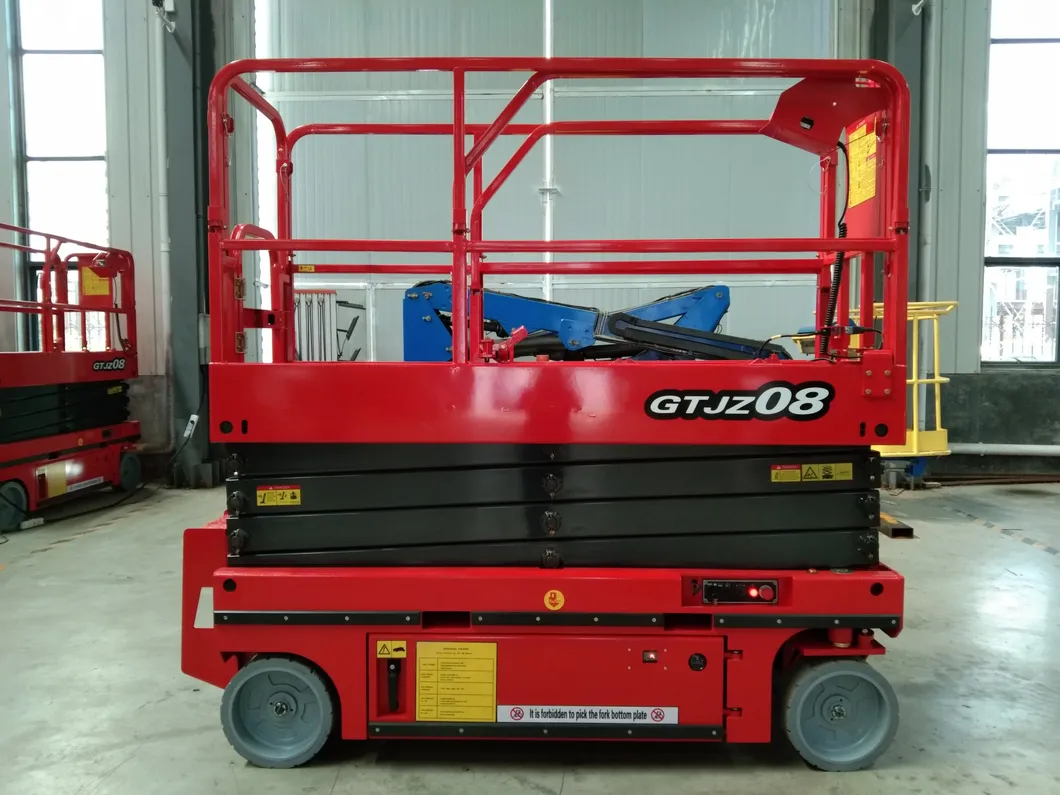

Rise 8 meters load 230KG Mobile scissor lift platform with CE Certificate

Application: It is widely used for aerial installation and maintenance of working sites such as hotels, grand halls, sport stadiums, large factories, workshops, warehouses, granaries, bus or railway stations, airports, gas stations, and aerial pipelines.

Repairing street lamp / Height Work / Outdoor

Large factory / Exhibition hall / Aerodrome

📊 Technical Parameters

Models	GTJZ06A	GTJZ08A	GTJZ10	GTJZ12	GTJZ14
Platform height maximum	6.00m	8.00m	10.00m	12.00m	14.00m
Platform size outside(m)	2.26×0.81×1.1	2.26×0.81×1.1	2.26×1.13×1.1	2.26×1.13×1.1	2.26×1.13×1.1
Capacity	380kg	230kg	320kg	320kg	320kg
Drive speed - stowed	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Gradeability-stowed	25%	25%	25%	25%	25%
Weight	1850kg	1980kg	2430kg	2960kg	3390kg

✅ Key Features

Standard Features

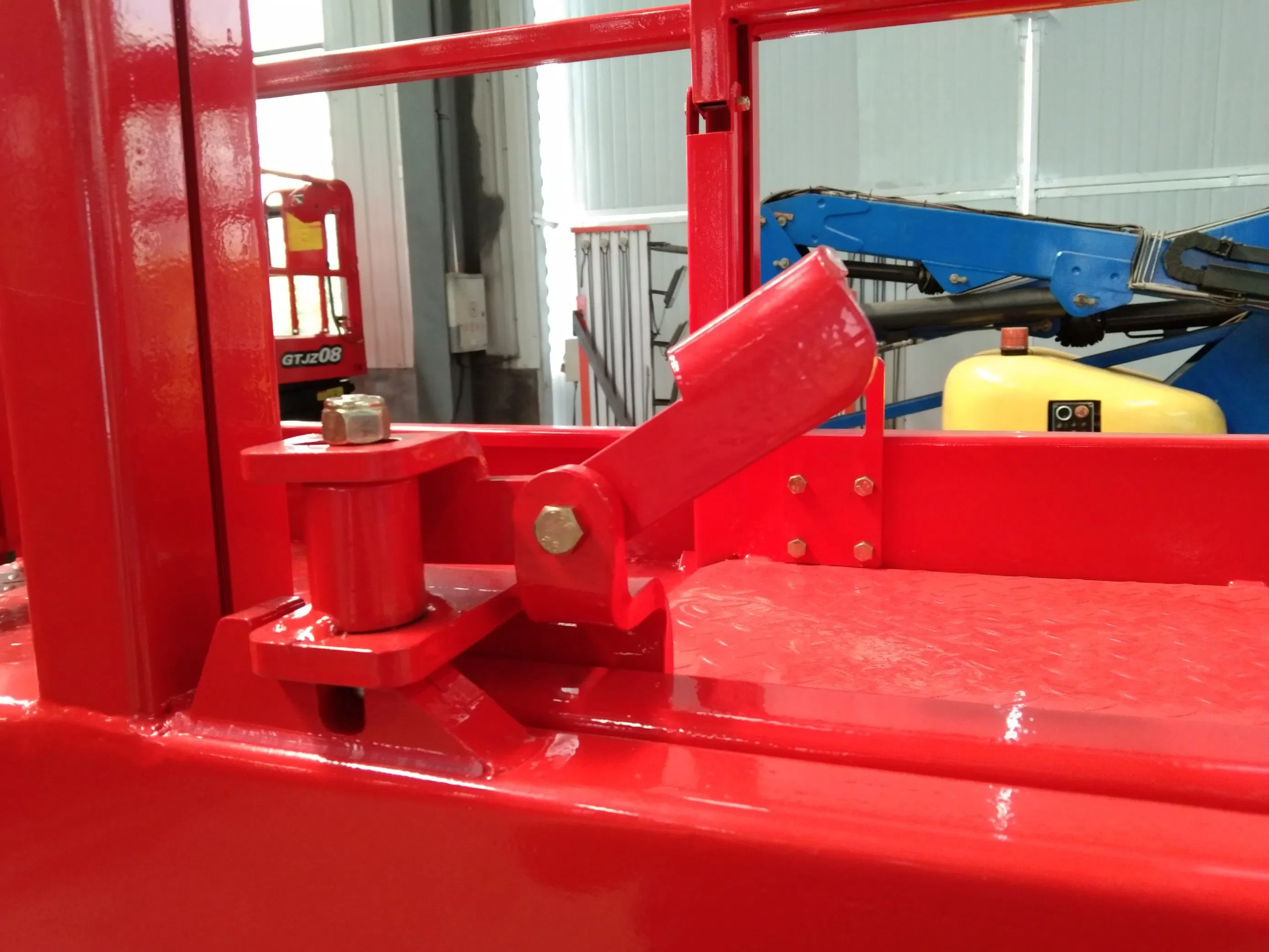

Folding rails with half-height swing gate
Platform control with battery charge indicator
Manual platform lowering valve
Tubing explosion protection system
Emergency stop at both platform and ground
Fault diagnosis system
Front wheel hydraulic dynamic braking
Tilt level sensor with audible alarm
Pothole guards and Descent alarm
Electronic horn and Hour meter

Options & Accessories

Certified load sensor

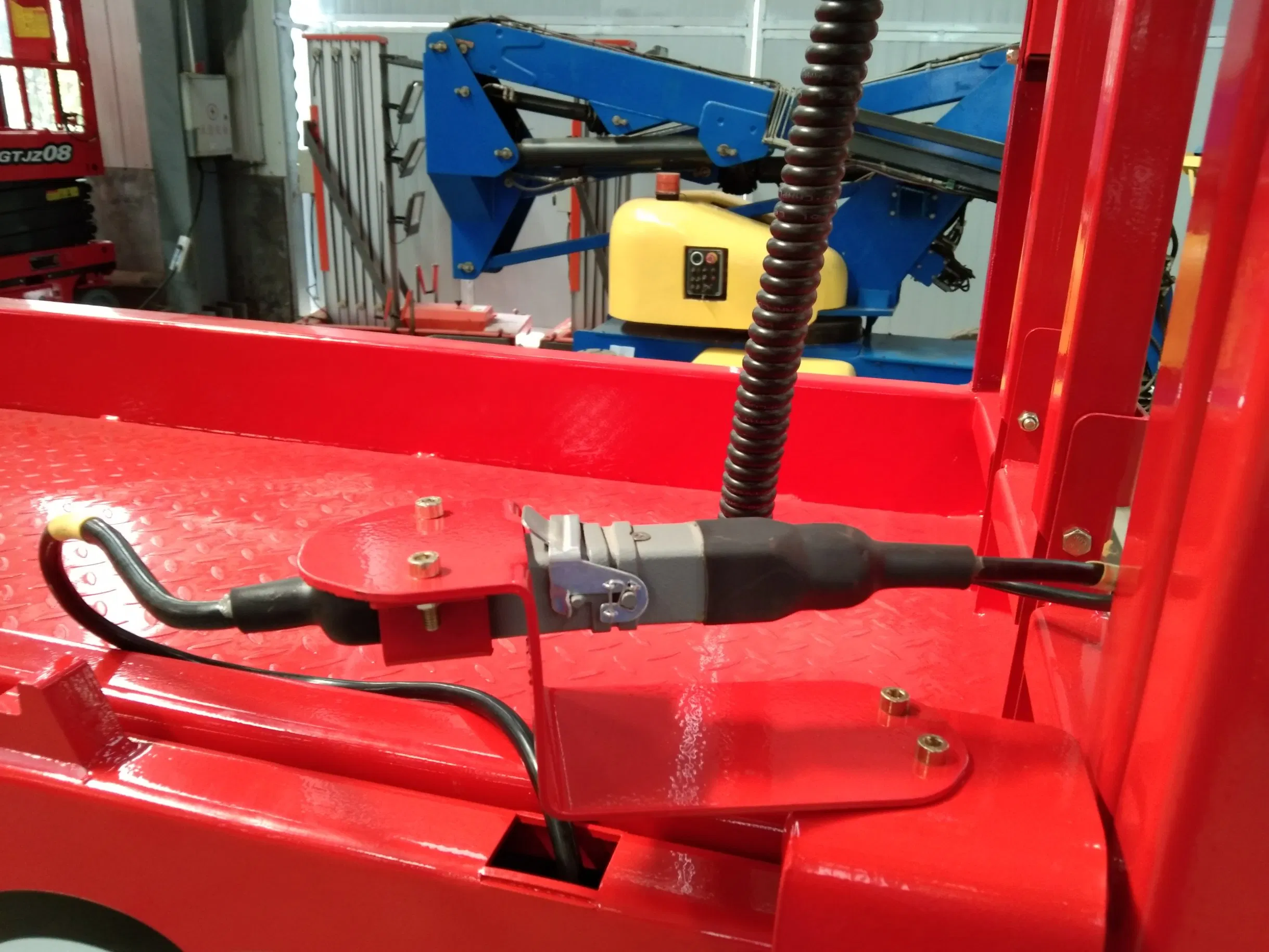

AC power to platform
Air line to platform

⚙️ Production & Quality

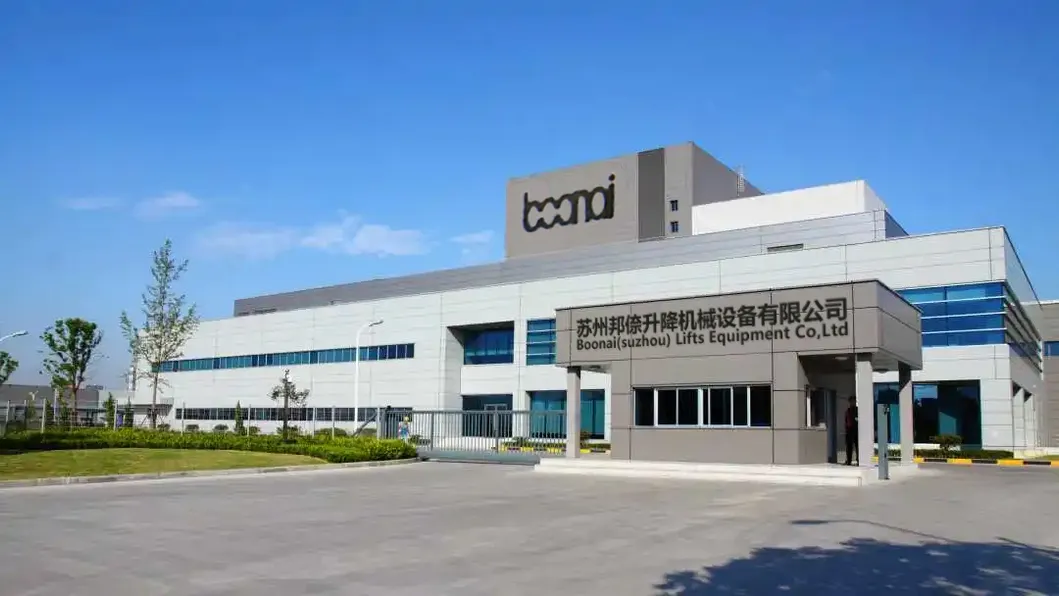

Production Facility

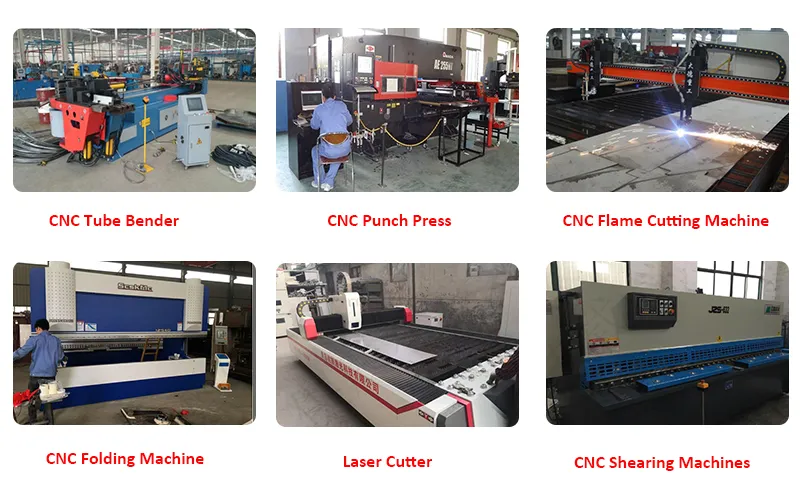

Advanced Equipment

Quality Certificates

Global Customers

Professional Packaging

🛡️ Warranty & Support

1. User-friendly English manual for machine using and maintenance.

2. One year warranty for whole machine without man-made fault.

3. Free replacement parts for non-human factor problems during warranty.

4. 24-hours technical support via email or online communication.

5. Rapid response within 2 hours, even on weekends and holidays.

❓ Frequently Asked Questions

What is the maximum working height of model GTJZ08A?

The maximum platform height is 8 meters, providing a working height of approximately 10 meters depending on the operator's reach.

What safety features are included as standard?

Standard safety features include an emergency stop button, tilt level sensor with alarm, pothole guards, tubing explosion protection, and a manual lowering valve for emergencies.

Can the platform be extended for more space?

Yes, the platform features an extension capability of 0.9 meters to provide extra reach over obstacles.

What kind of tires does this scissor lift use?

It is equipped with solid non-marking tires (Φ381×127mm), which are perfect for protecting indoor flooring in hotels or warehouses.

What is the power source for this mobile lift?

The lift is powered by a 24V/4.5kw system using four high-capacity 6V/225ah batteries.

Is the equipment certified for international markets?

Yes, the product is CE and ISO 9001 certified, meeting international safety and quality standards for aerial work platforms.
