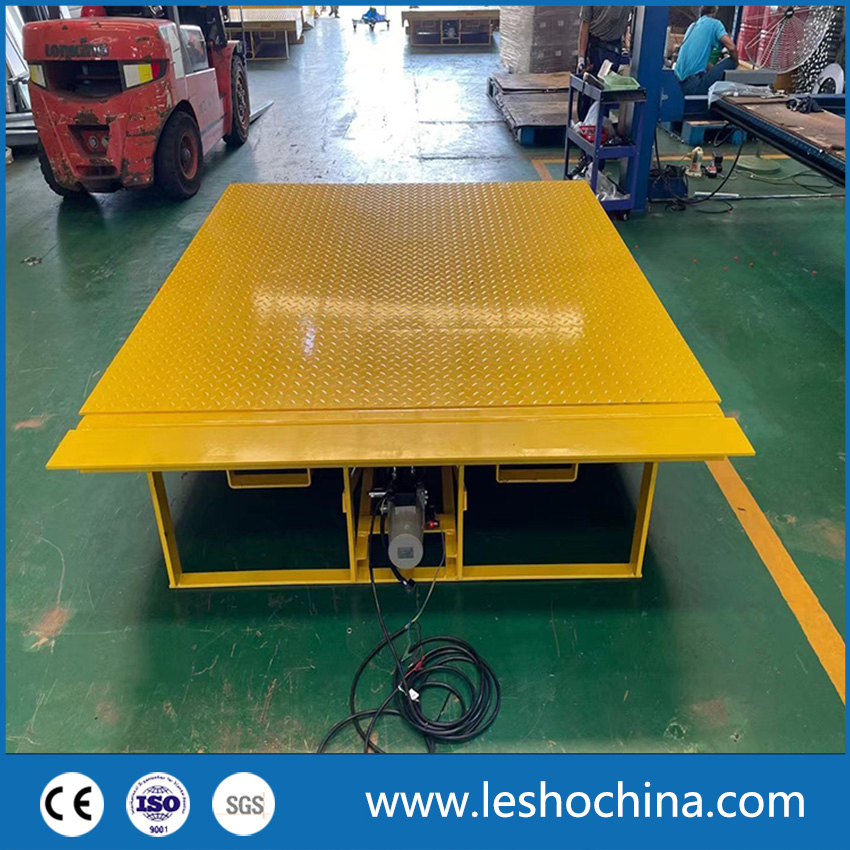

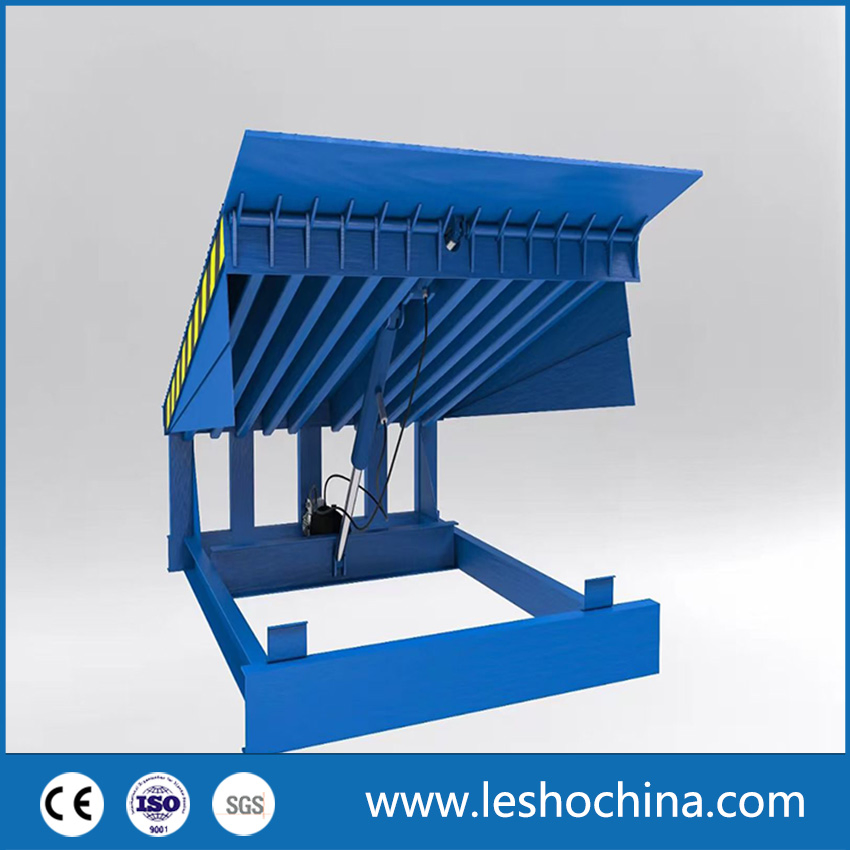

6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
1 / 5
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp
6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp

6t /8t /10t Turn-Over Lifting Equipment Loading and Unloading Ramp Leveler Yard Ramp

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model
Hydraulic-Leveler
Application
Warehouse Crane / Loading Bay
Lift Mechanism
Hydraulic Power
Carrying Capacity
6t, 8t, 10t, 15t
Driven Type
Hydraulic
Standard Size
L2000*W2000*H600mm (Customized Available)
Power Supply
220V 50Hz / 380V 50Hz
Protection Class
IP55
Working Temp
-35 to 65 Celsius Degree
Certification
CE, ISO 9001
📦

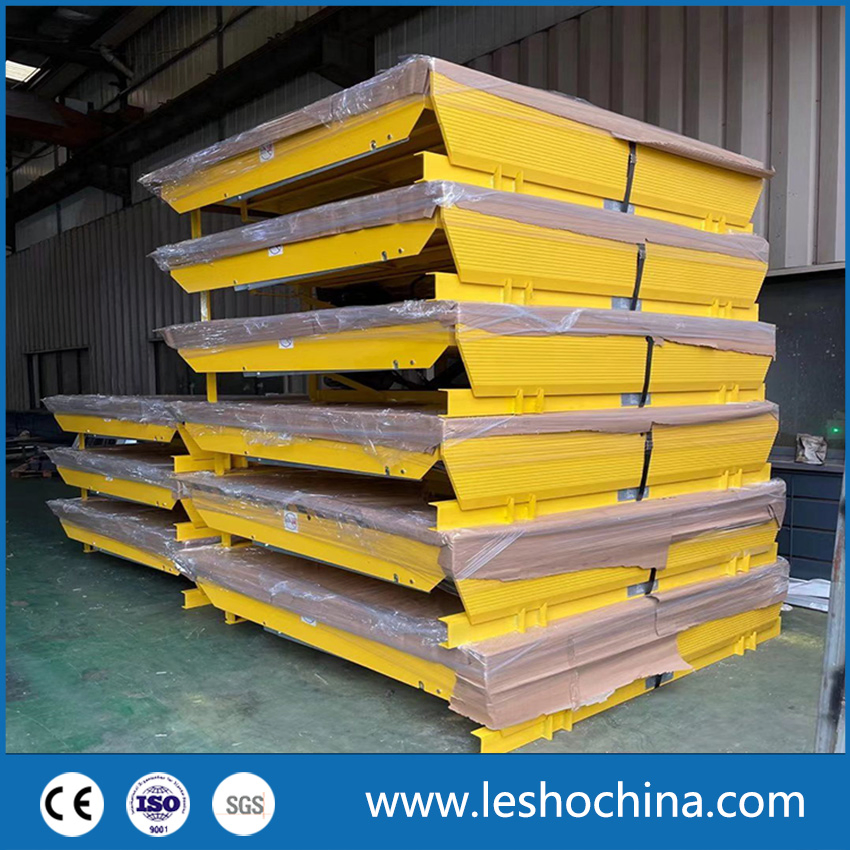

Packaging & Delivery

Package Size
300.00cm * 80.00cm * 80.00cm
Gross Weight
300.000kg
Transport Package
Wooden Package
🚀

Product Description

Automatic Stationary Fixed Hydraulic Dock Leveler

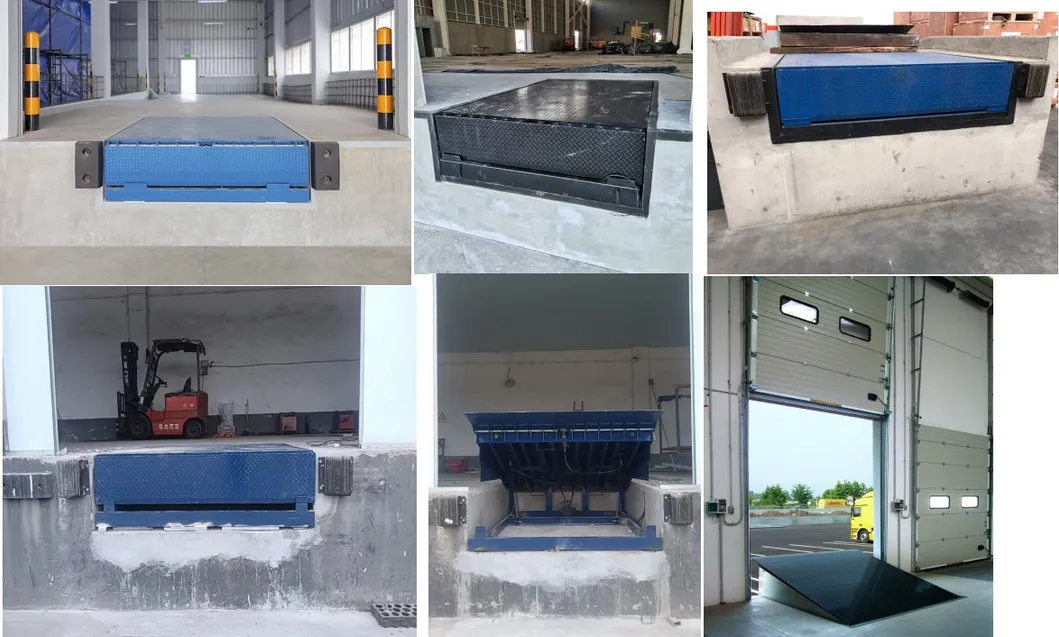

Dock Leveler Main View

Application:

The dock leveler is the best solution to adjust the height difference between the loading platform and the container truck. The height can be adjusted arbitrarily, providing a large range that improves loading efficiency and saves manpower.

Widely used for large enterprises, warehouses, stations, docks, logistics bases, postal transportation, and distribution centers.

📊

Loading Capacity & Type Selection

Dynamic Load Panel Thickness Panel Reinforcement Lip Thickness Base Frame Static Load Forklift Range
5 tons6mm4mm L steel12mm60 channel8 tons2.5 tons
8 tons8mm4mm L steel16mm100 channel11 tons3.5 tons
10 tons8mm14# I-beam16mm100 channel13 tons5 tons
14 tons10mm16# I-beam16mm100 channel17 tons6 tons
📐

Technical Design & CAD Drawings

Accurate shop drawings show pit dimensions clearly, ensuring precise construction and seamless installation.

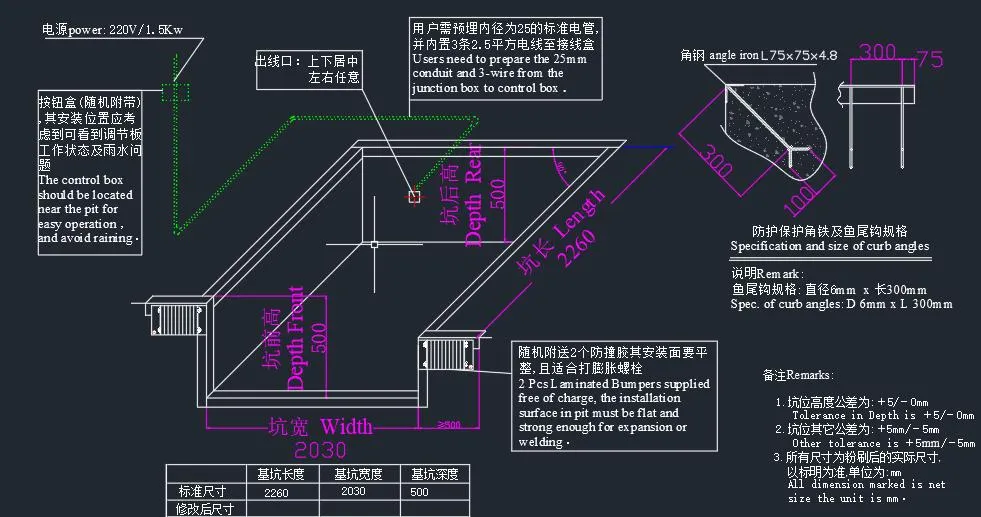

CAD Drawing 1

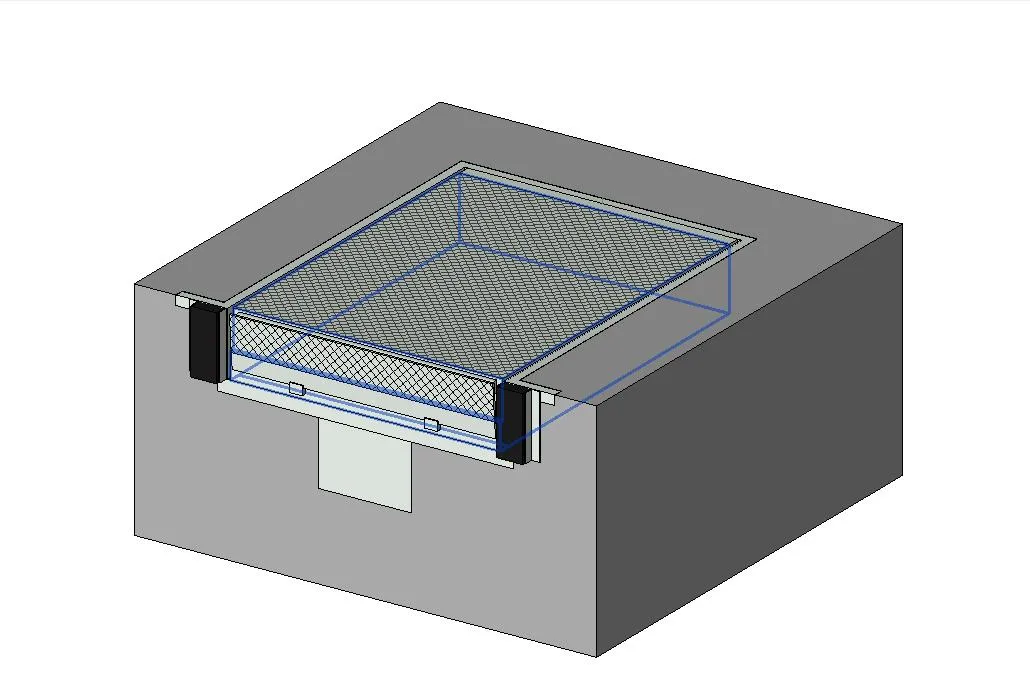

CAD Drawing 2

Standard Sizes Available:

  • Width=1830mm, Length=2000mm, Height=500mm
  • Width=2000mm, Length=2000mm, Height=500mm
  • Width=2000mm, Length=2500mm, Height=500mm

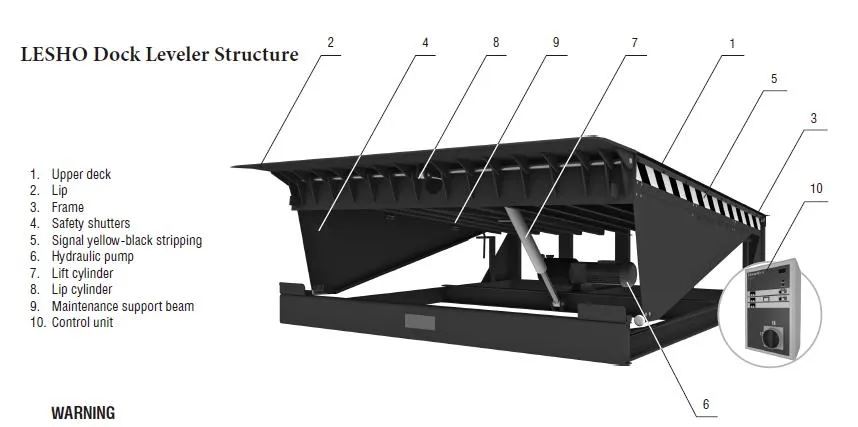

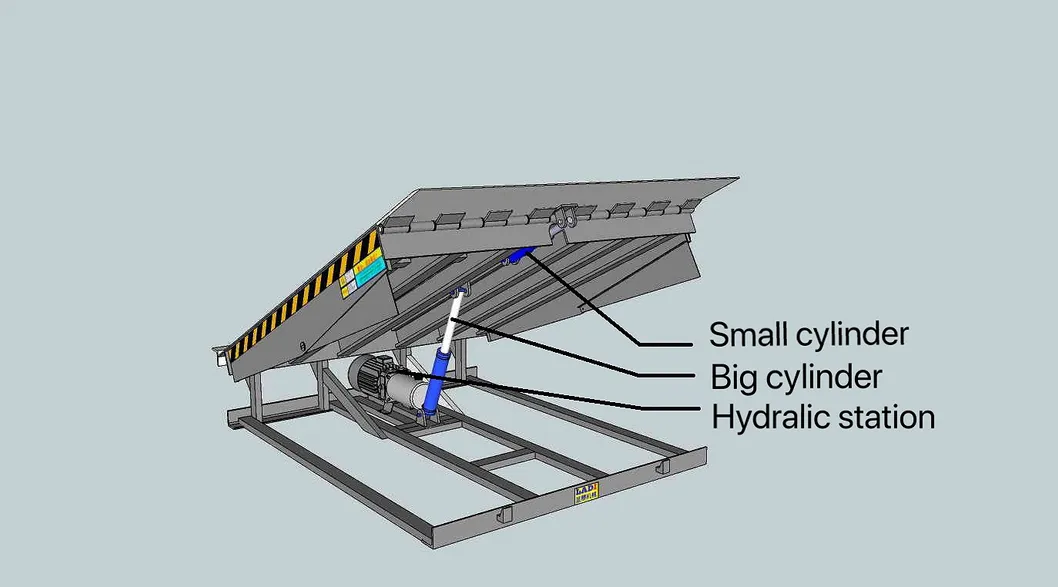

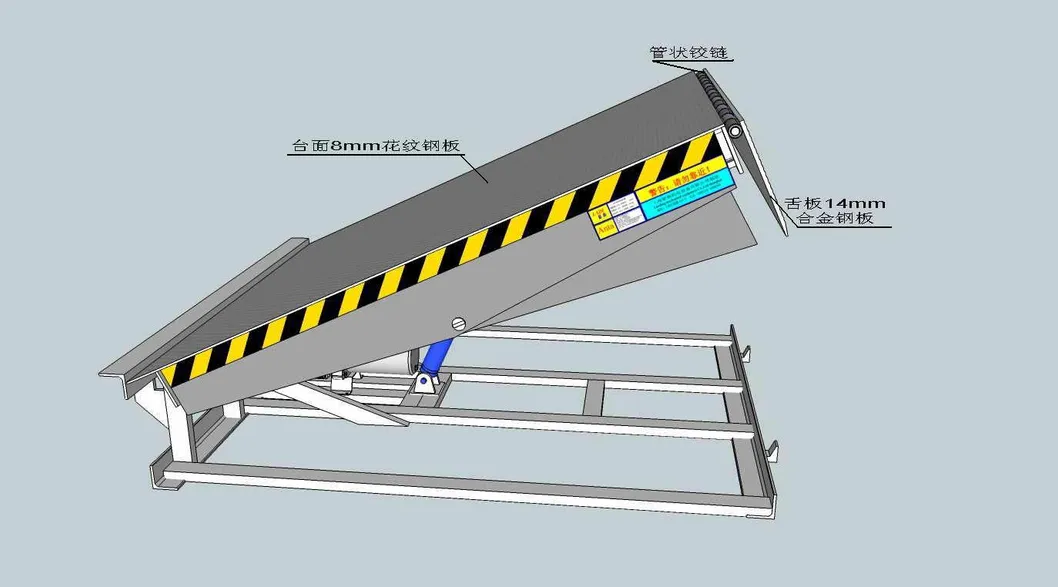

Product Size View Product Angle View Installation View
🛠️

Main Components & Features

Main Platform:

  • 6mm-8mm thick whole set steel plate based on capacity.
  • Whole-piece sheet design for higher strength.
  • High-density steel tube or C-channel underneath support.
  • Blasting and powder coating for rust proofing.

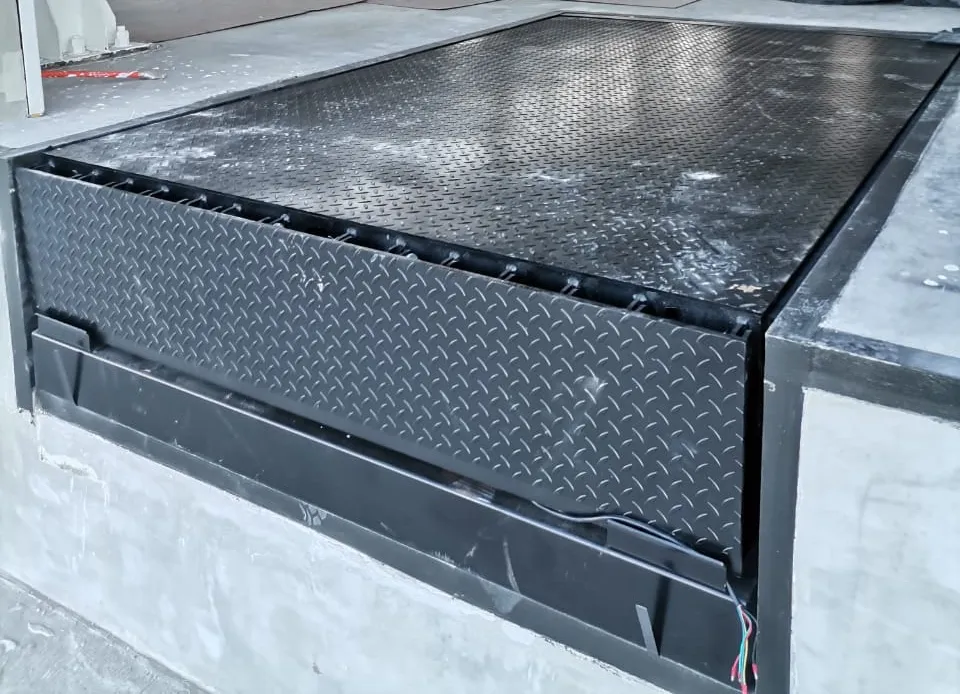

Top Lip Detail

Hydraulic Motor:

  • Power: 3-phase 380V/50Hz; 0.75KW-1.5KW.
  • Overheating self-protection function.

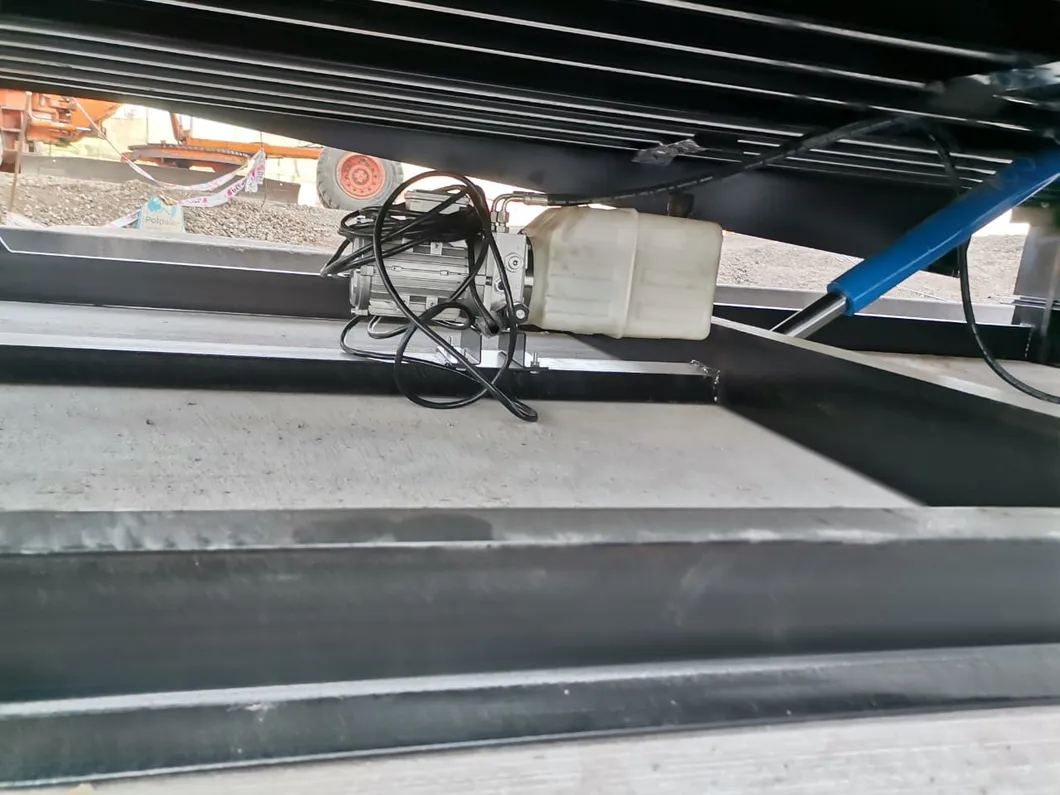

Hydraulic System

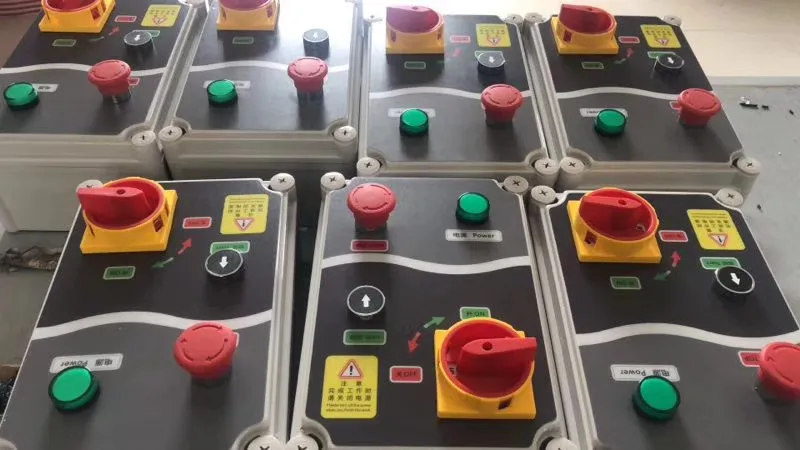

Control Panel:

Control System

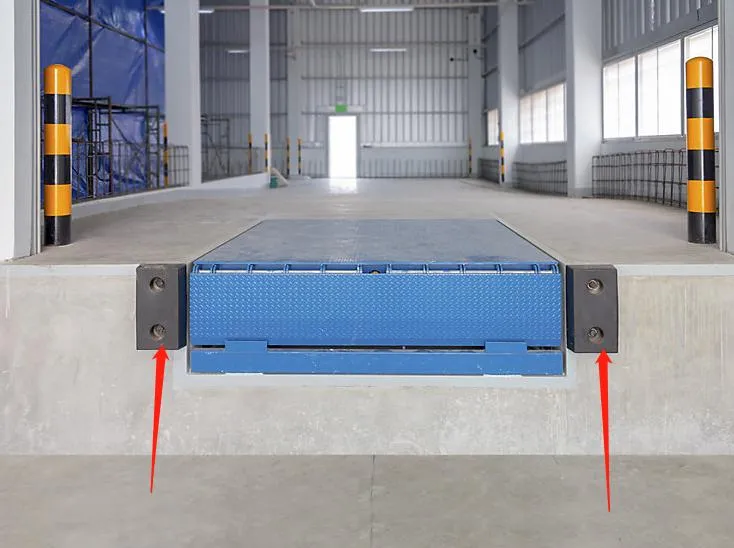

Dock Bumper:

Dock Bumper
🤖

Advanced Manufacturing

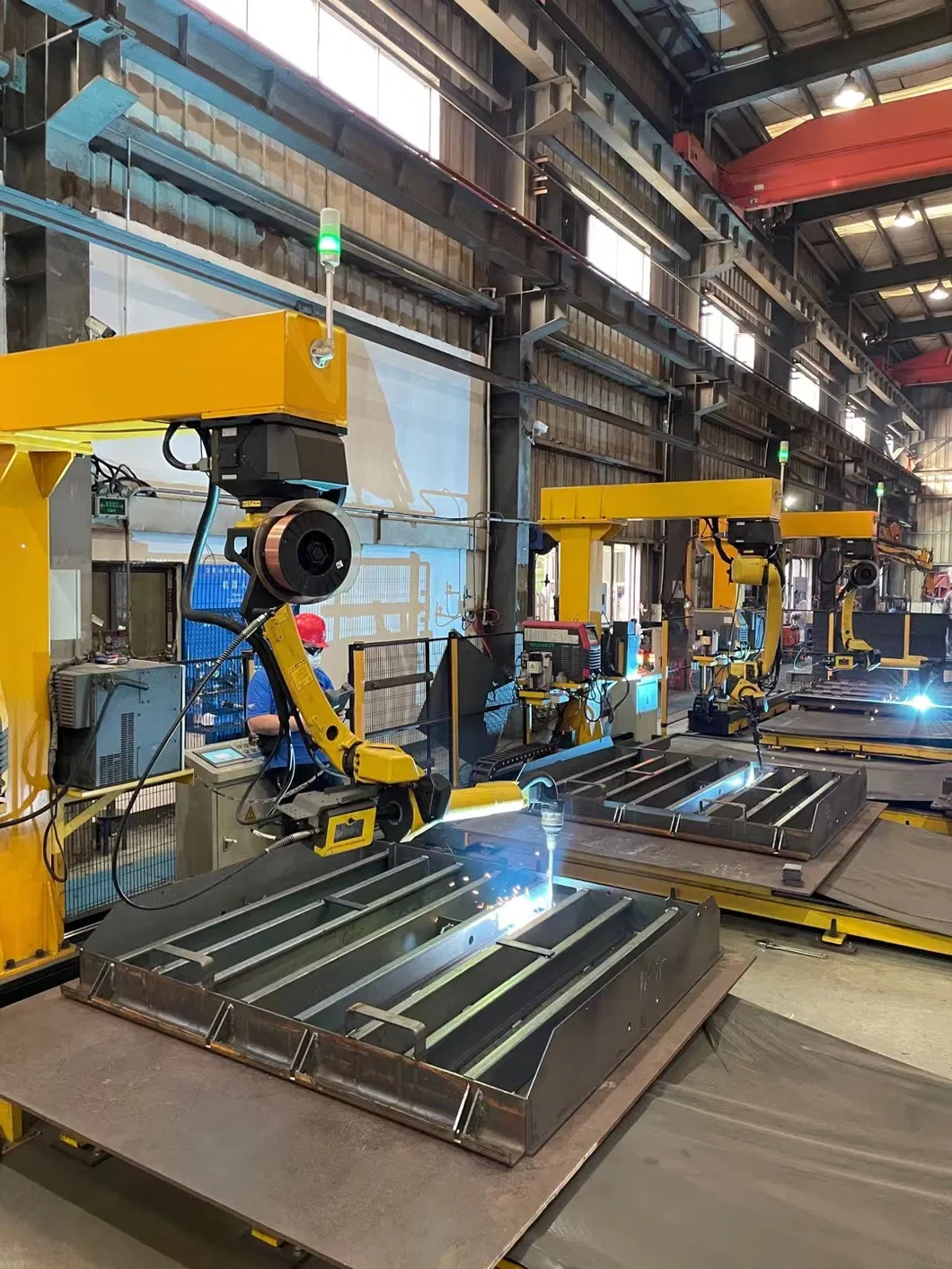

Welding Robot for High Accuracy:

Welding Robot

Key Features:

  • Assembly bears 120% of nominal load capacity.
  • Anti-skid milling surface on high-strength steel plate.
  • Heat-treated Hinge and Shaft to reduce deformation.
  • Imported hydraulic drive station with stable power output.
  • Epoxy resin paint for durable anti-corrosive finish.
🏗️

Complete Loading Bay Solutions

We supply a complete assembly including Overhead Door, Dock Leveler, and Dock Shelter/Seal.

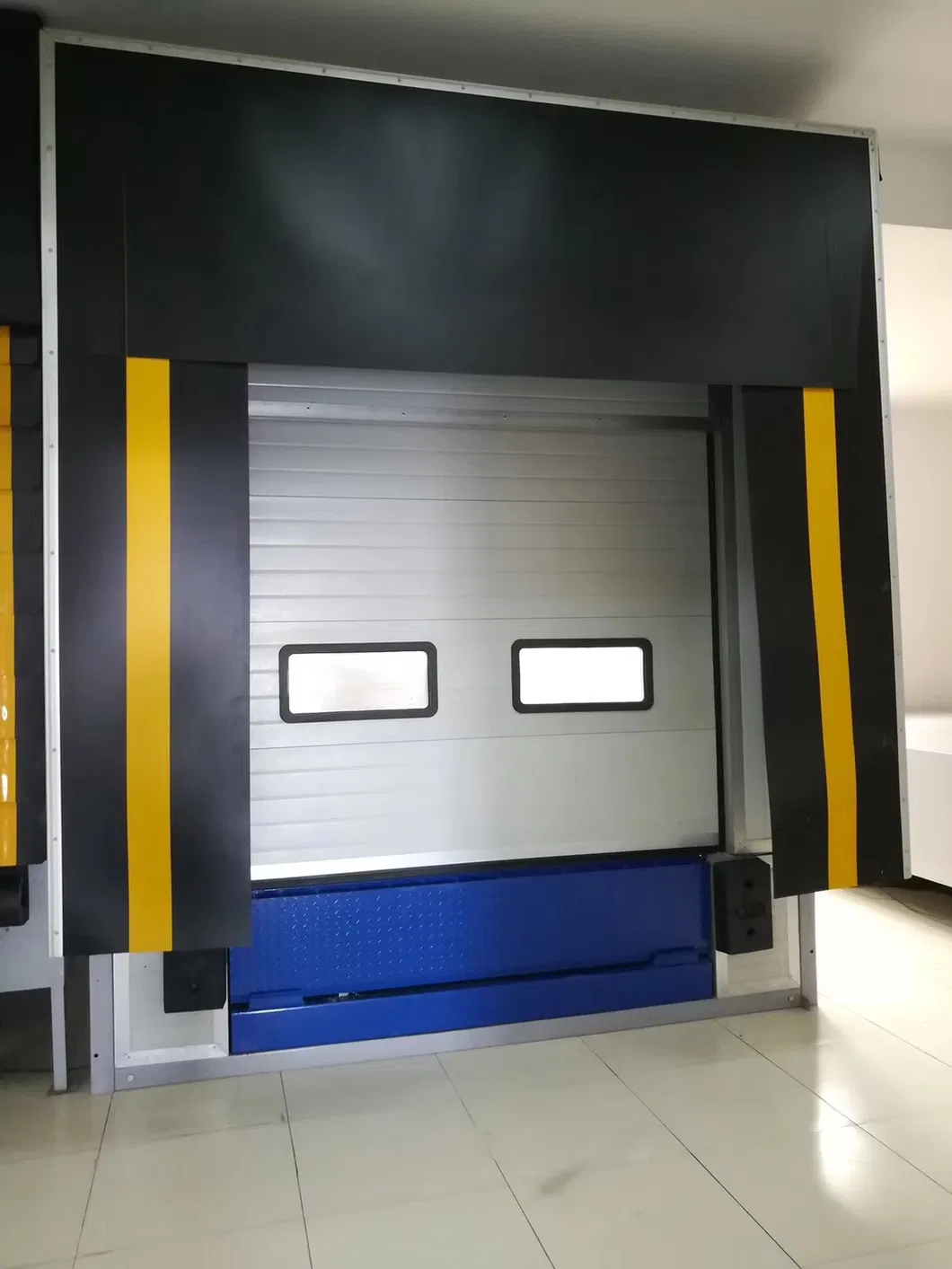

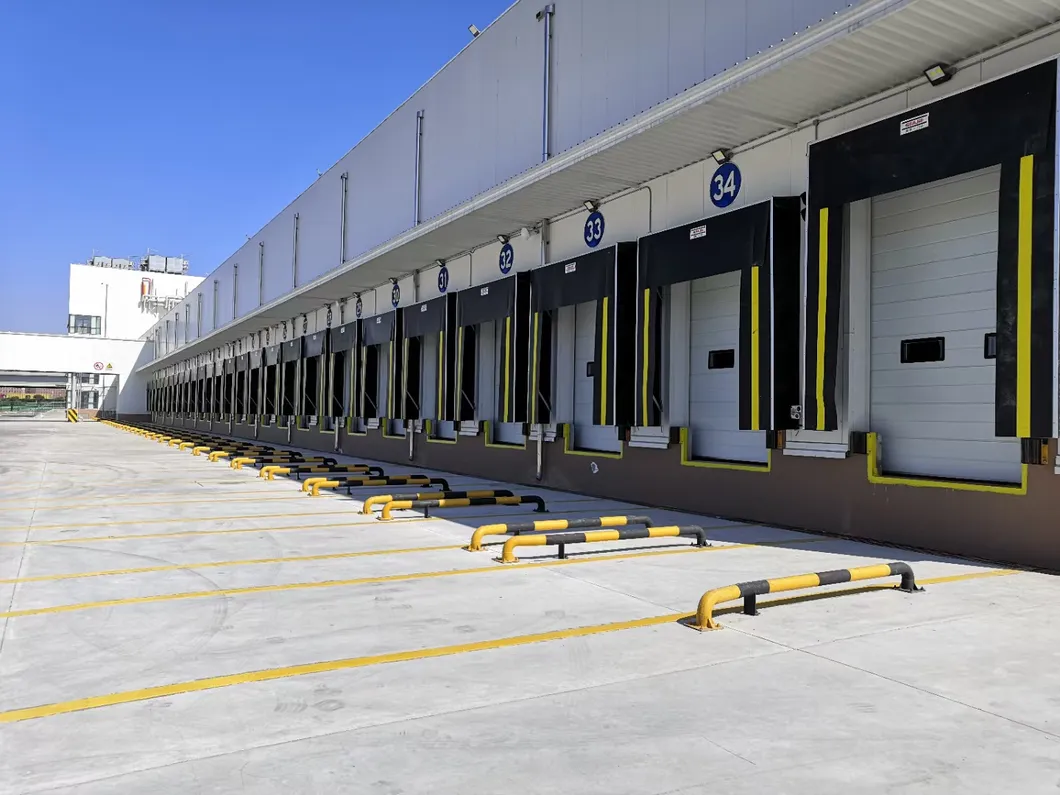

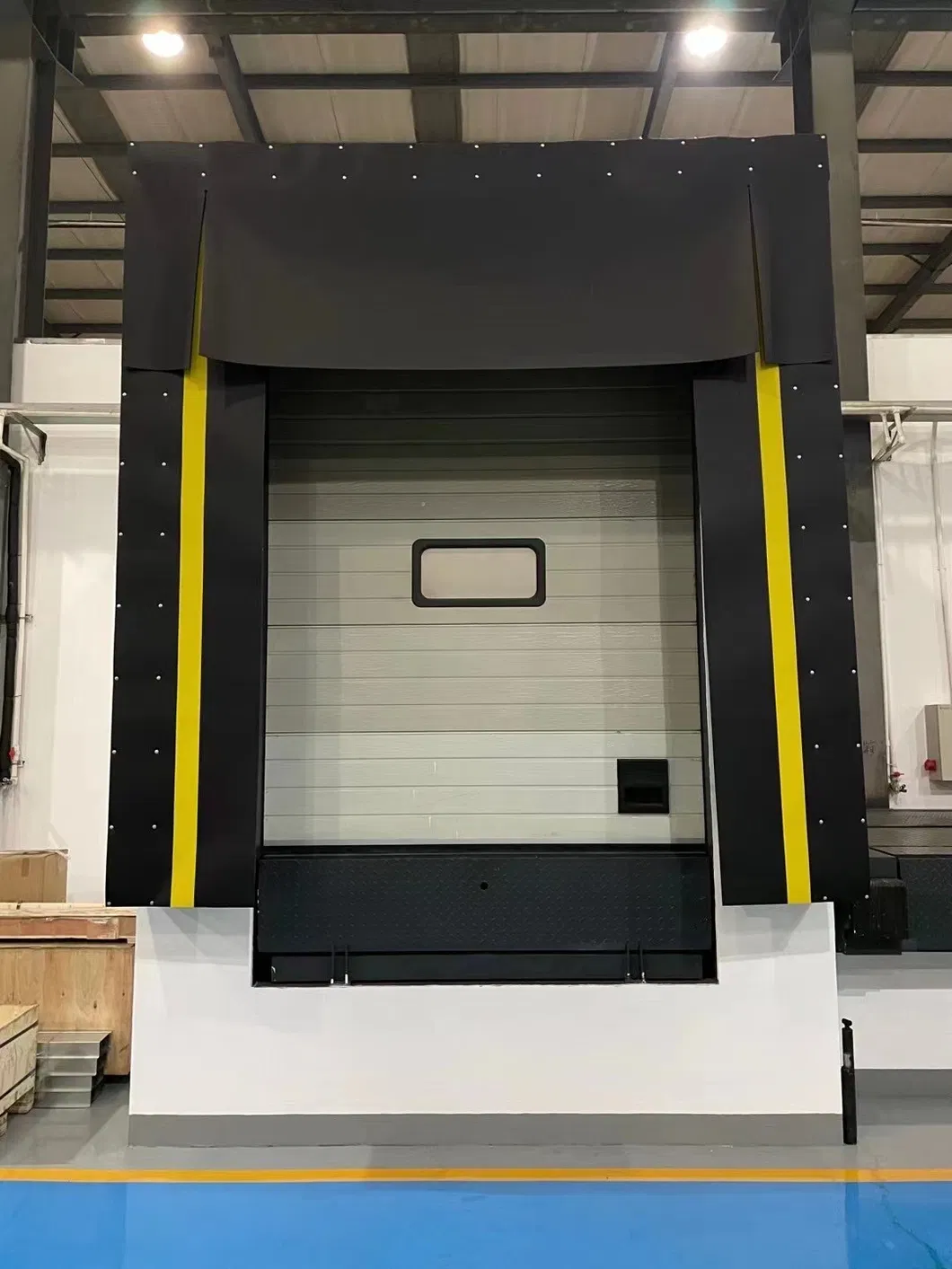

Dock Solution 1 Dock Solution 2 Dock Solution 3

Container Loading Capacity:

  • One 40ft HQ container can load 20 sets of dock levelers.
  • One 20ft container can load 8 sets of dock levelers.

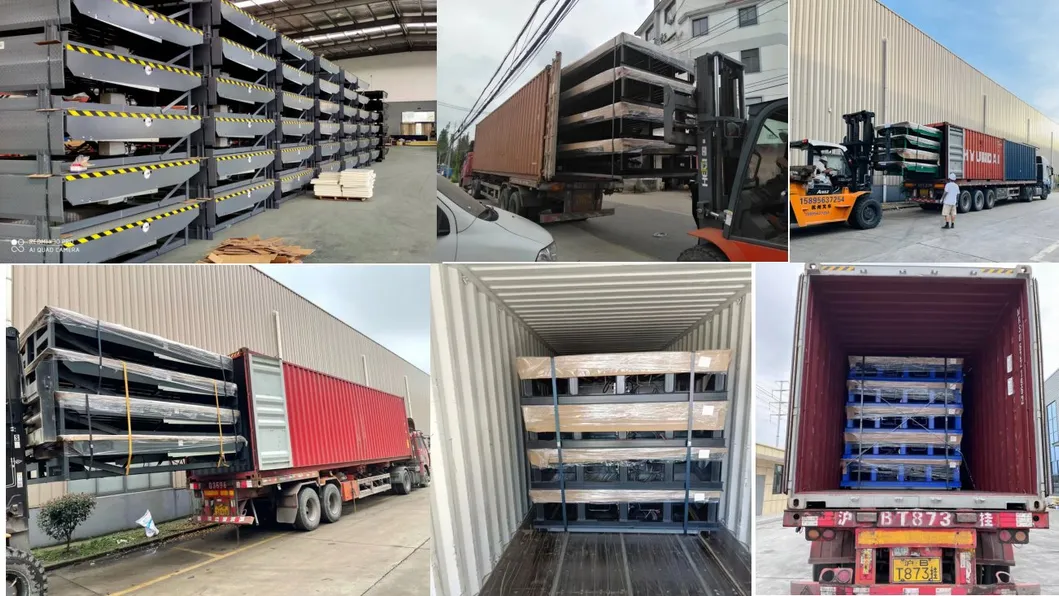

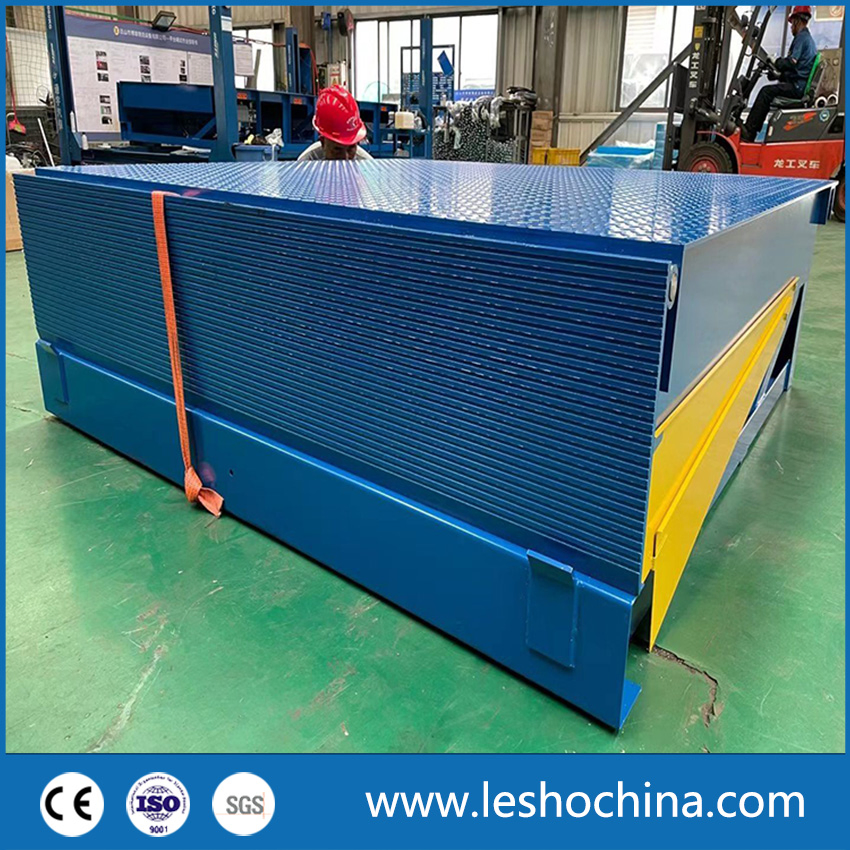

Loading Process
📜

Quality Assurance

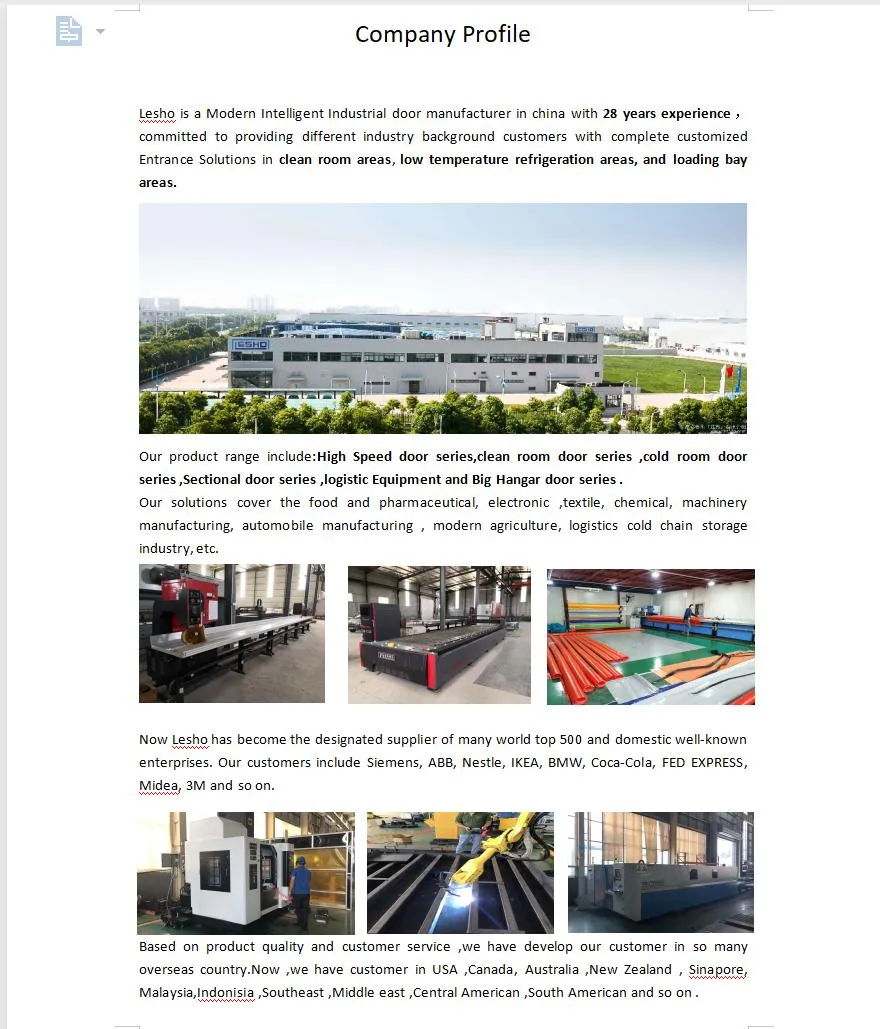

Facility Certifications

Exhibition:

Exhibition
❓

Frequently Asked Questions

Why choose this hydraulic dock leveler?
We offer the most cost-effective products with stable quality, backed by over 20 years of production and 10 years of export experience.
What information is needed to start a project?
We only need your basic background information and project site details. If you have site plan drawings, that would be ideal for providing a complete solution.
Is the installation difficult?
We provide clear installation manuals, videos, and precaution documents. For complex large projects, we can send engineers for site guidance.
What are the accepted payment terms?
We usually accept T/T in advance, L/C for large sums, and Western Union. Other terms can be discussed upon request.
What is the standard production lead time?
Standard production typically takes 7-10 days, depending on the order quantity and customization requirements.
How is after-sales service handled?
Spare parts are dispatched within 24 hours via international couriers like DHL, UPS, or TNT to ensure minimal downtime.
