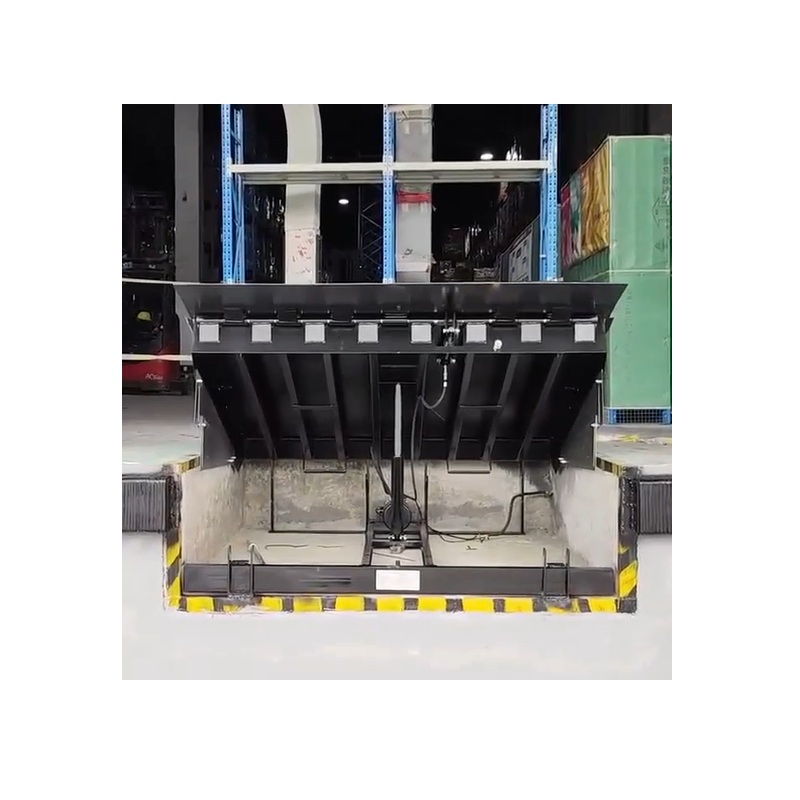

Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
1 / 5
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler
Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler

Hydraulic Lifting Table Loading Bay Forklift Unloading Truck Container Pit Logistic Warehouse Work Platform Adjustable Telescoping Ramp Lifter Lift Dock Leveler

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Specification
2000*2000*600 mm
HS Code
84254290

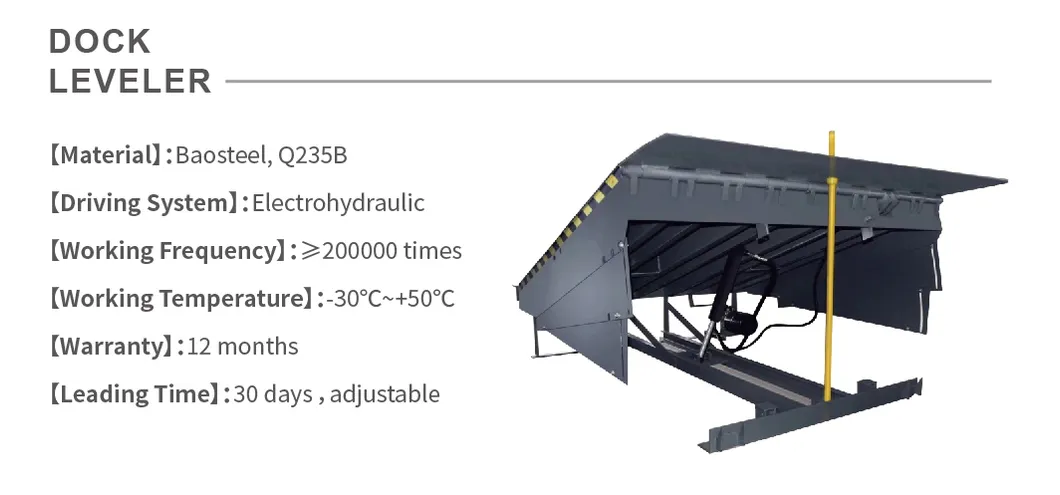

Hydraulic Lifting Table

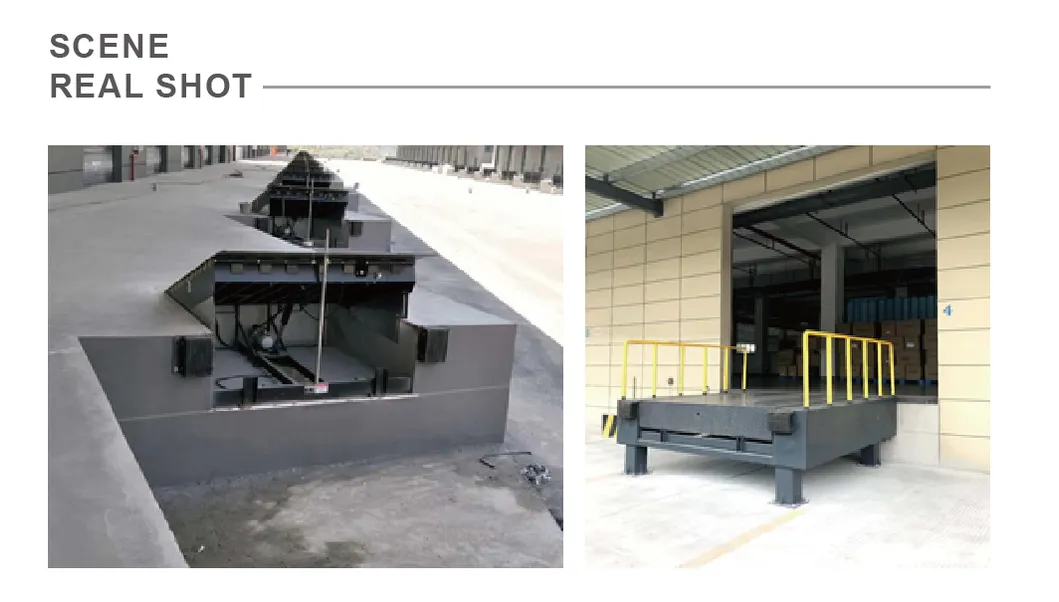

Loading Bay Equipment

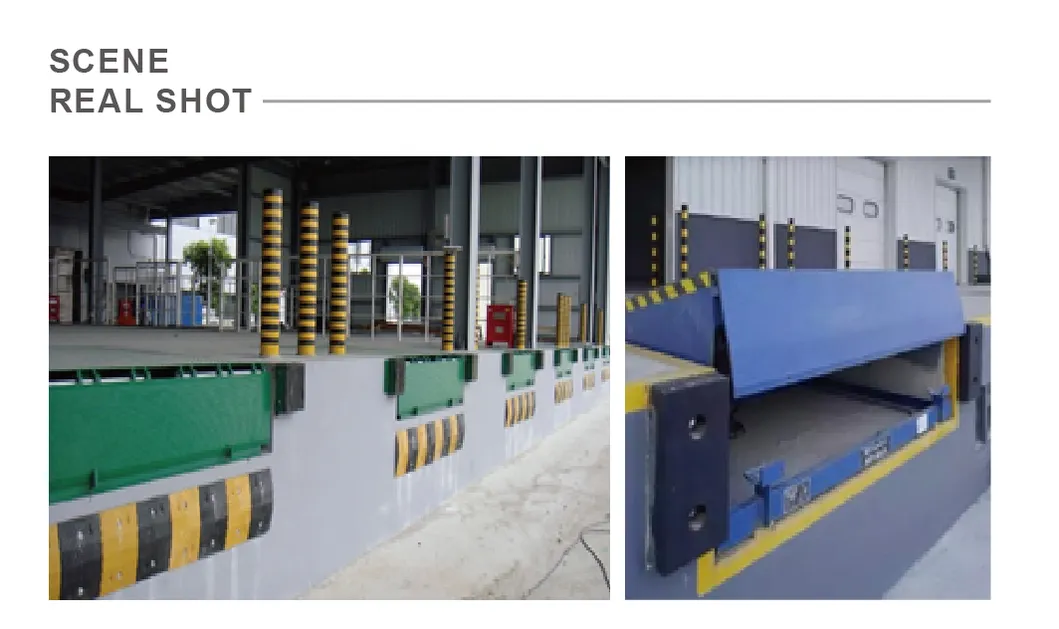

Warehouse Logistic Platform

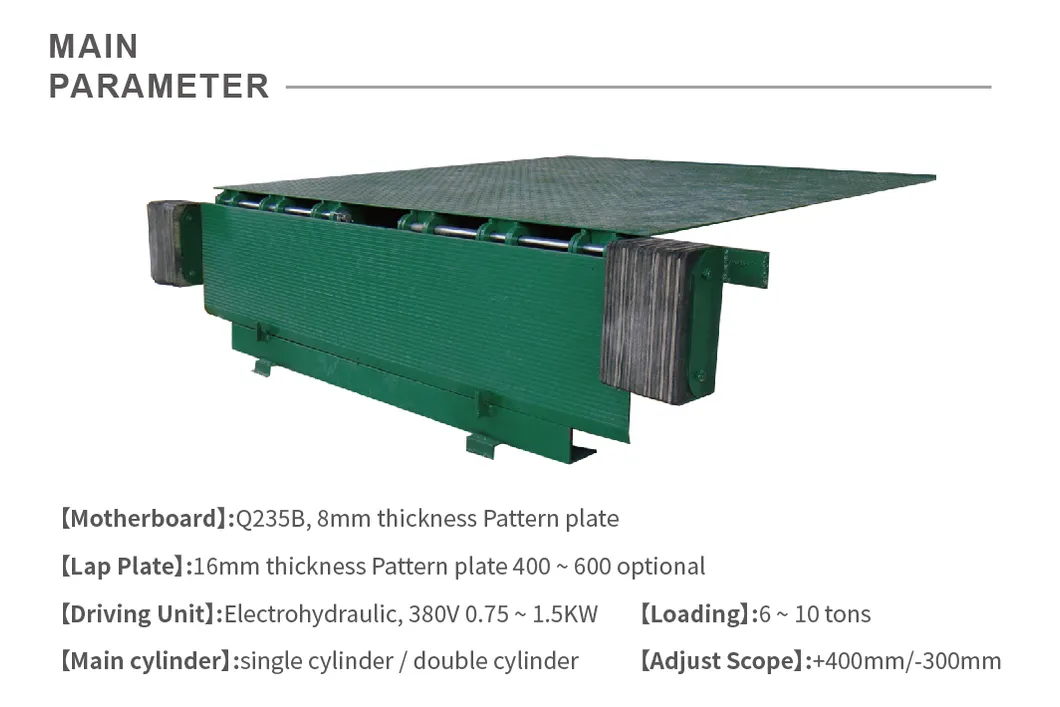

Adjustable Ramp Lifter

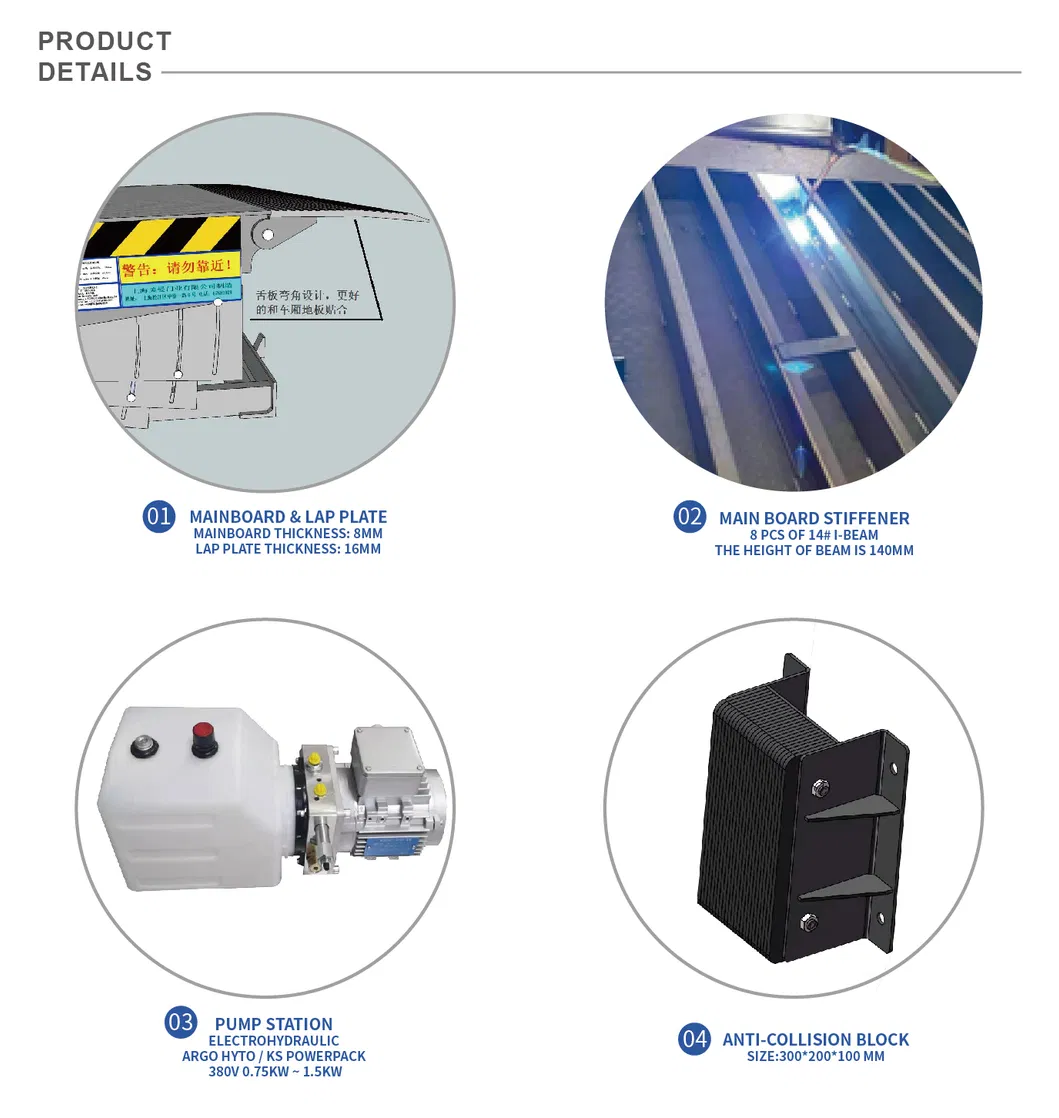

Dock Leveler Detail

Detailed Parameters

Core Technical Data
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
Driving SystemElectrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main Board Stiffener8 pcs of 14# I-Beam, height 140mm
High Pressure Oil PipeT3683-2001; 60mpa
Working Temperature-30ºC ~ +50ºC
Safety FeaturesExplosion proof valve, Side Baffles (automatic retraction)
Working Frequency≥ 200,000 times

Packaging & Logistics

Package Size
200.00cm * 200.00cm * 60.00cm
Package Gross Weight
1000.000kg
Transport Package
Wrapping Film
Hydraulic System Detail
Product Structure

Frequently Asked Questions

What is the maximum carrying capacity of this hydraulic lift table?
The dynamic load capacity ranges from 6 tons to 15 tons, specifically available in 6T, 8T, 10T, 12T, and 15T variants.
What materials are used for the main board?
The main board is constructed from Q235B steel plate with an anti-slide pattern, featuring a thickness of 6mm or 8mm and treated with powder coating.
Can this equipment operate in extreme temperatures?
Yes, the working temperature range is -30ºC to +50ºC, making it suitable for both cold storage and high-heat environments.
What kind of safety features are included?
It is equipped with explosion-proof valves, automatic retraction side baffles for safety, and high-pressure oil pipes rated at 60mpa.
What is the adjustment range for the dock leveler?
The adjustment scope is +400mm upwards and -300mm downwards to accommodate various truck heights.
What are the electrical requirements?
The system supports both 220V 50Hz and 380V 50Hz power supplies with power options of 0.75Kw or 1.5Kw.
