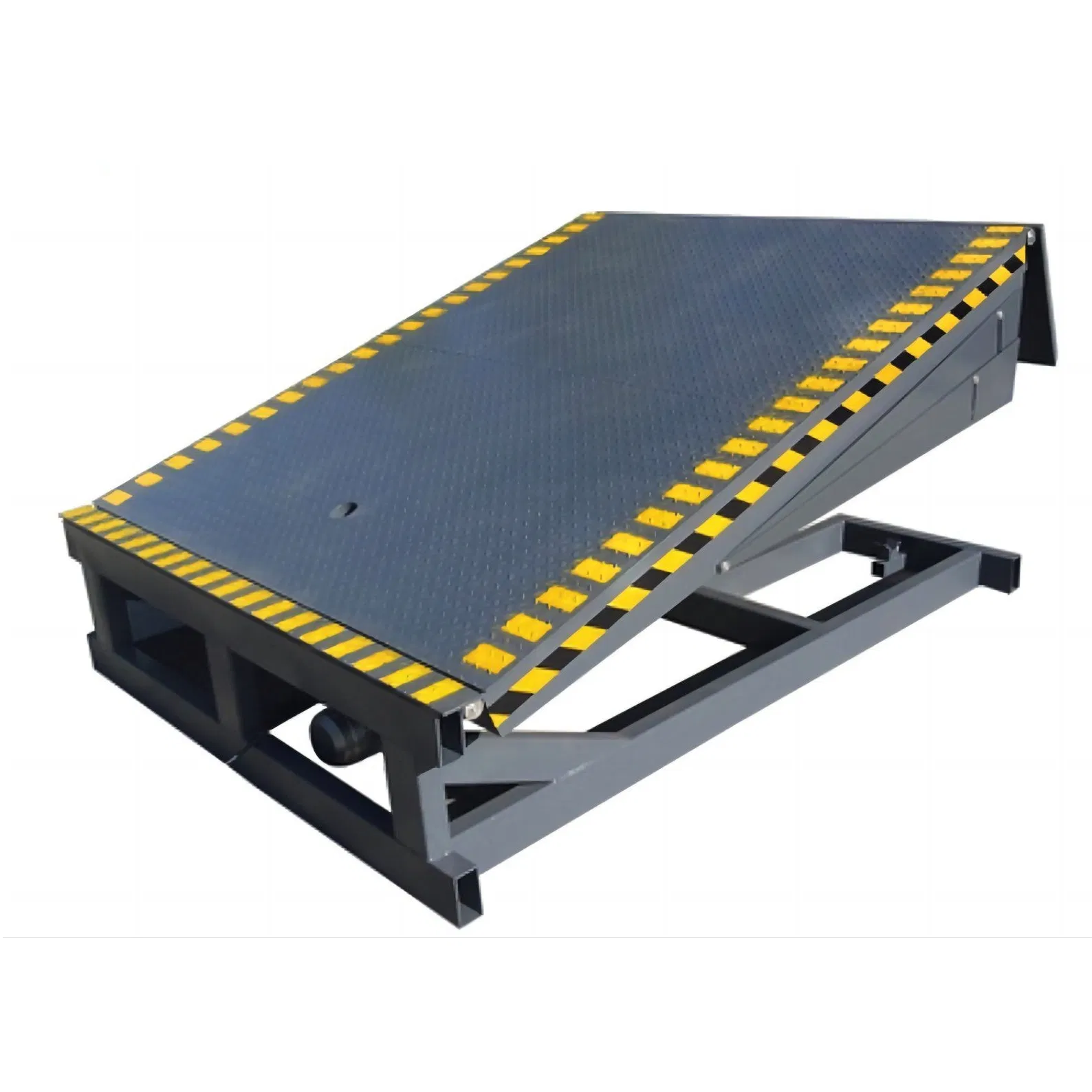

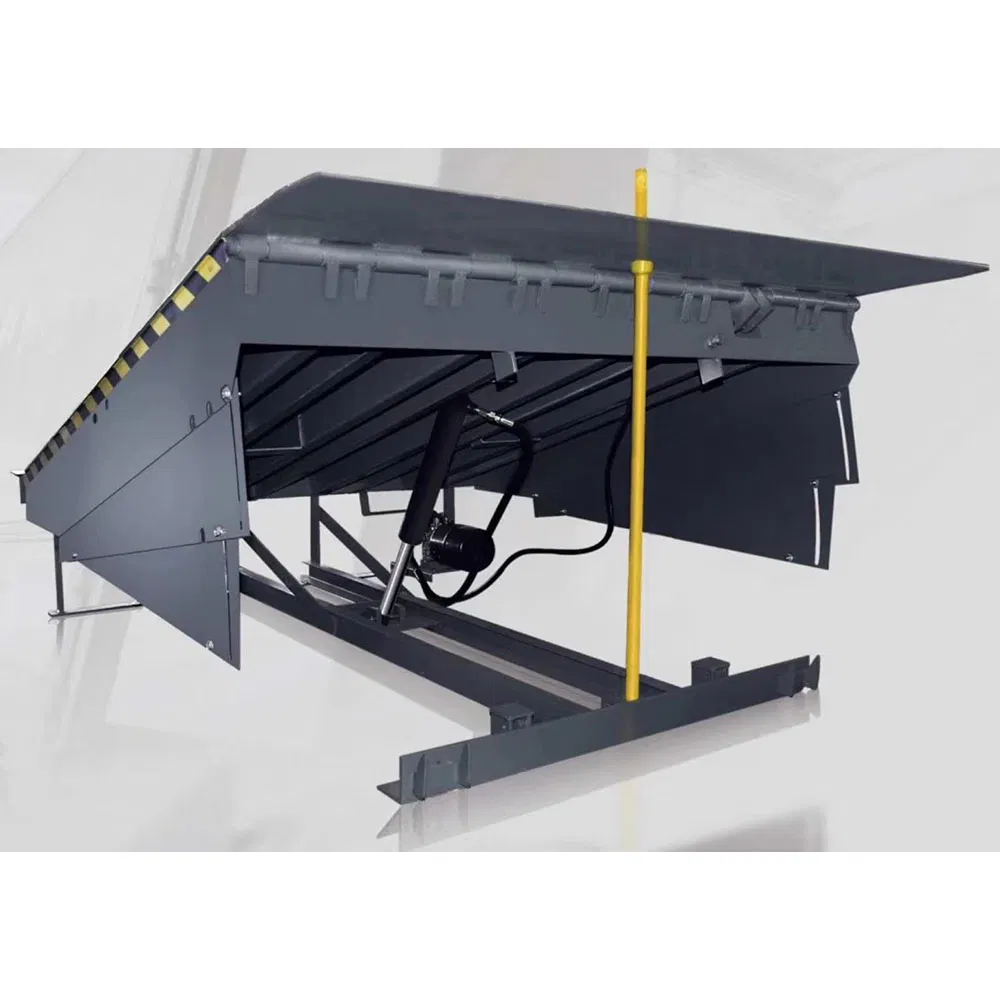

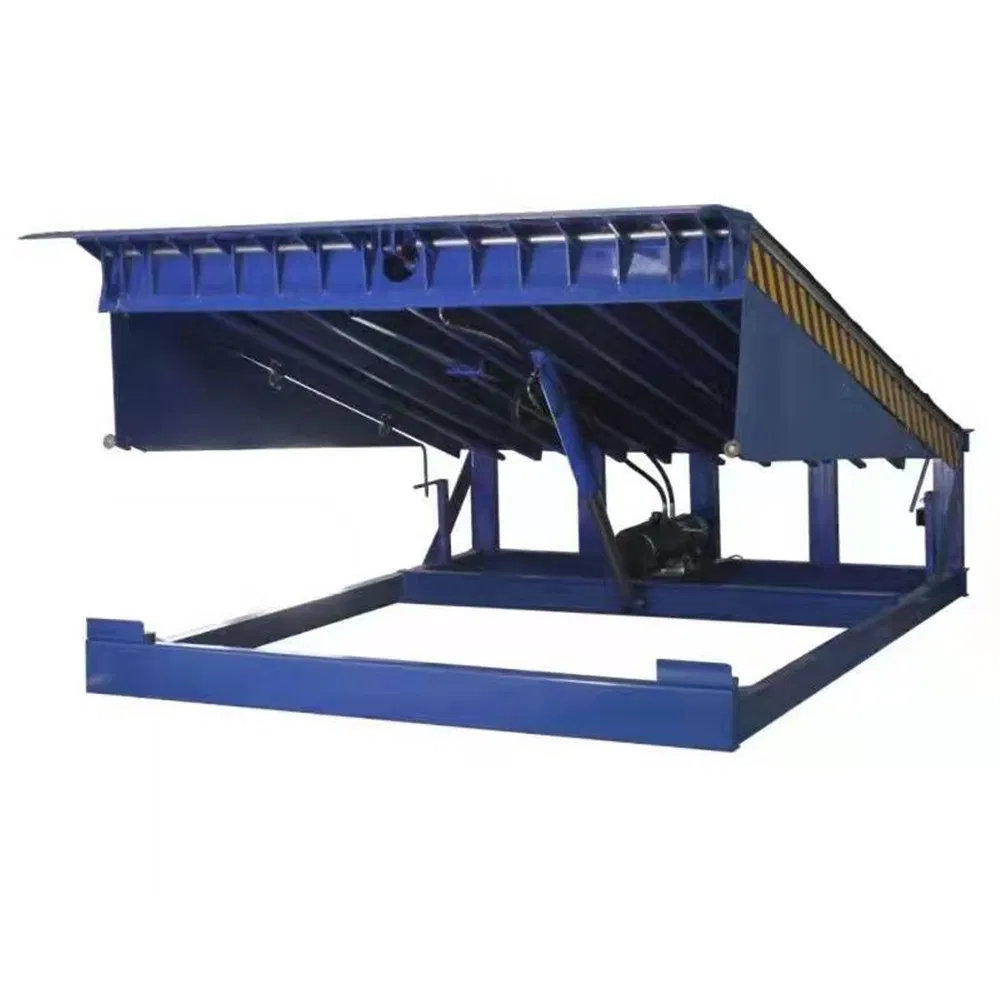

Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
1 / 5
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler

Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

📋Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Feature
Explosion-Proof
Specification
2000*2000*600 mm

📦Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
Transport Package
Wrapping Film

🖼️Product Display

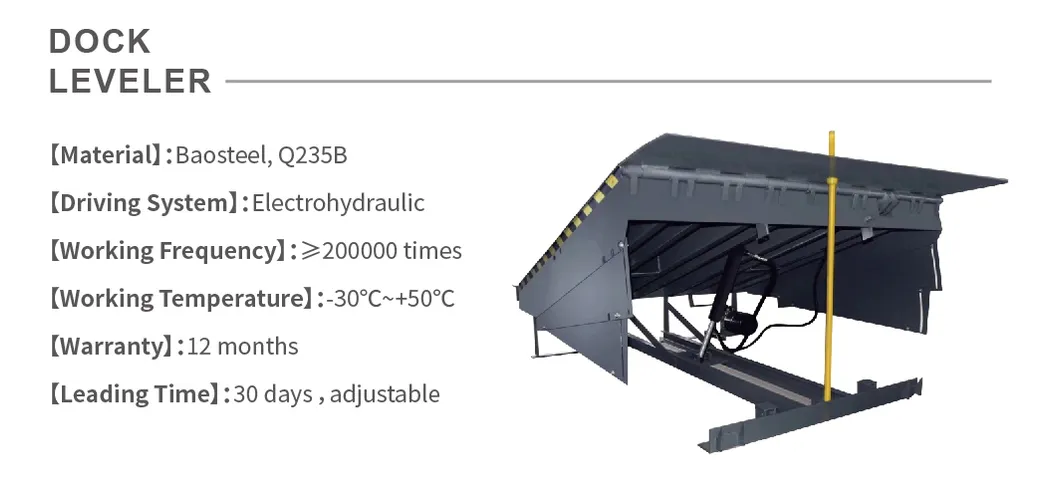

Hydraulic Dock Leveler Overview

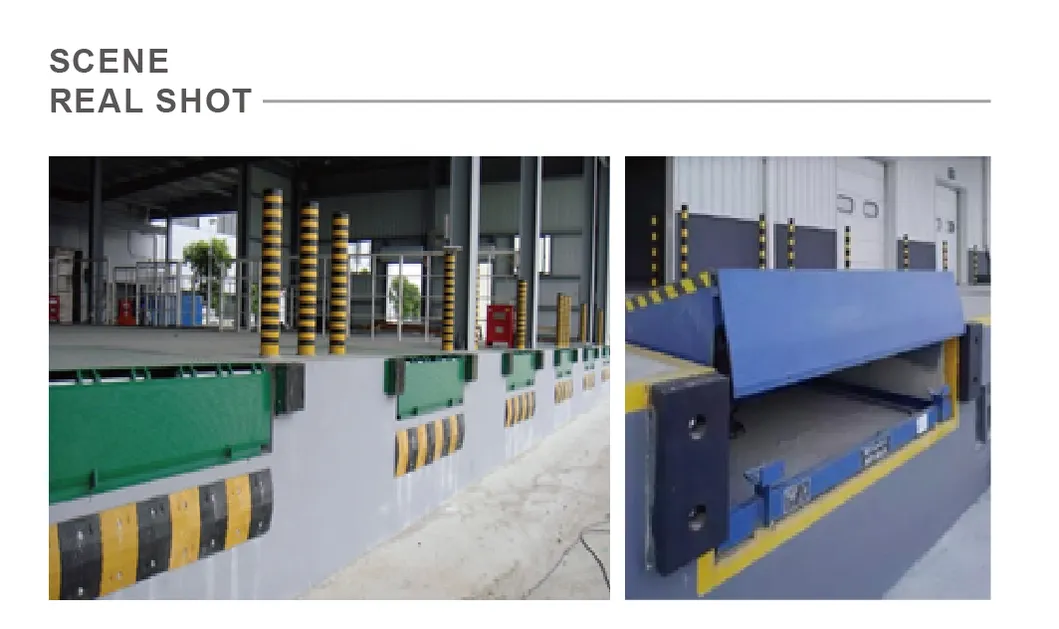

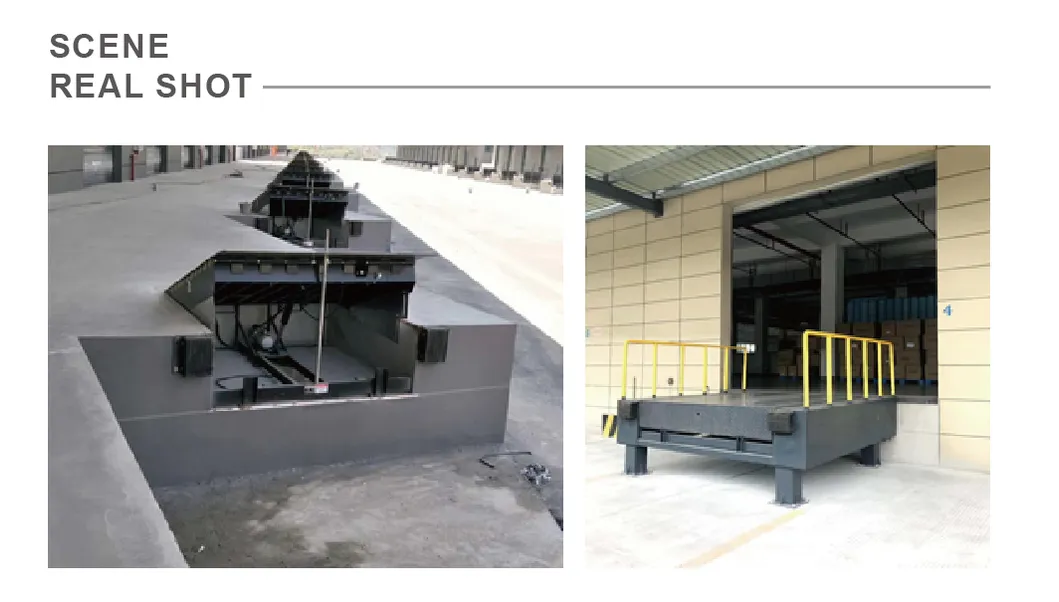

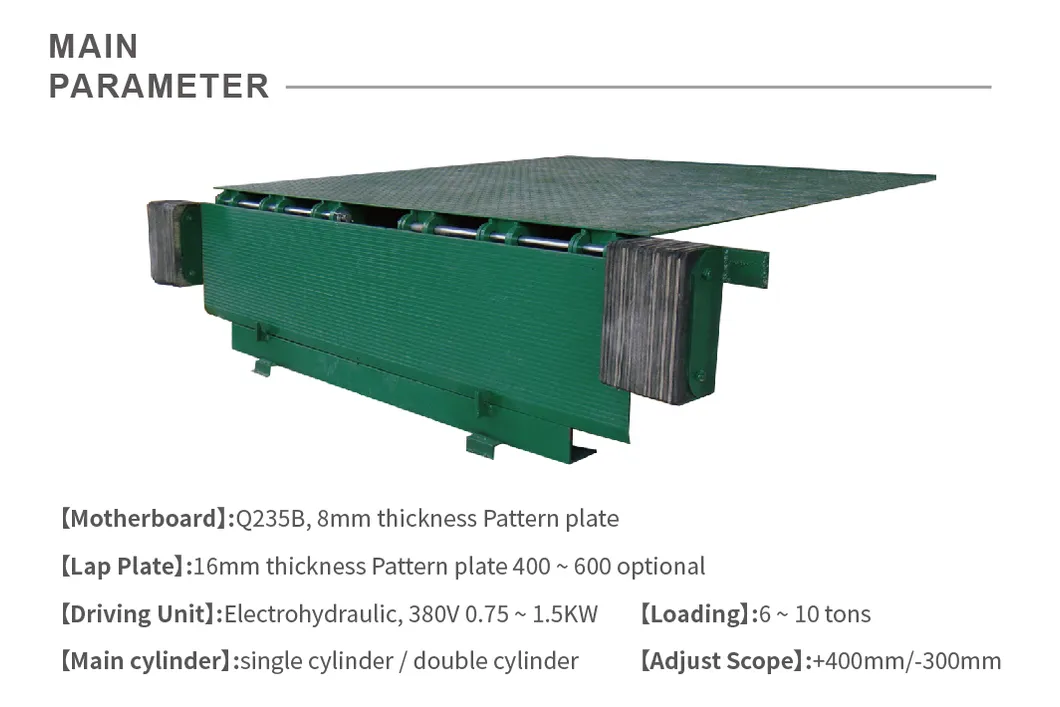

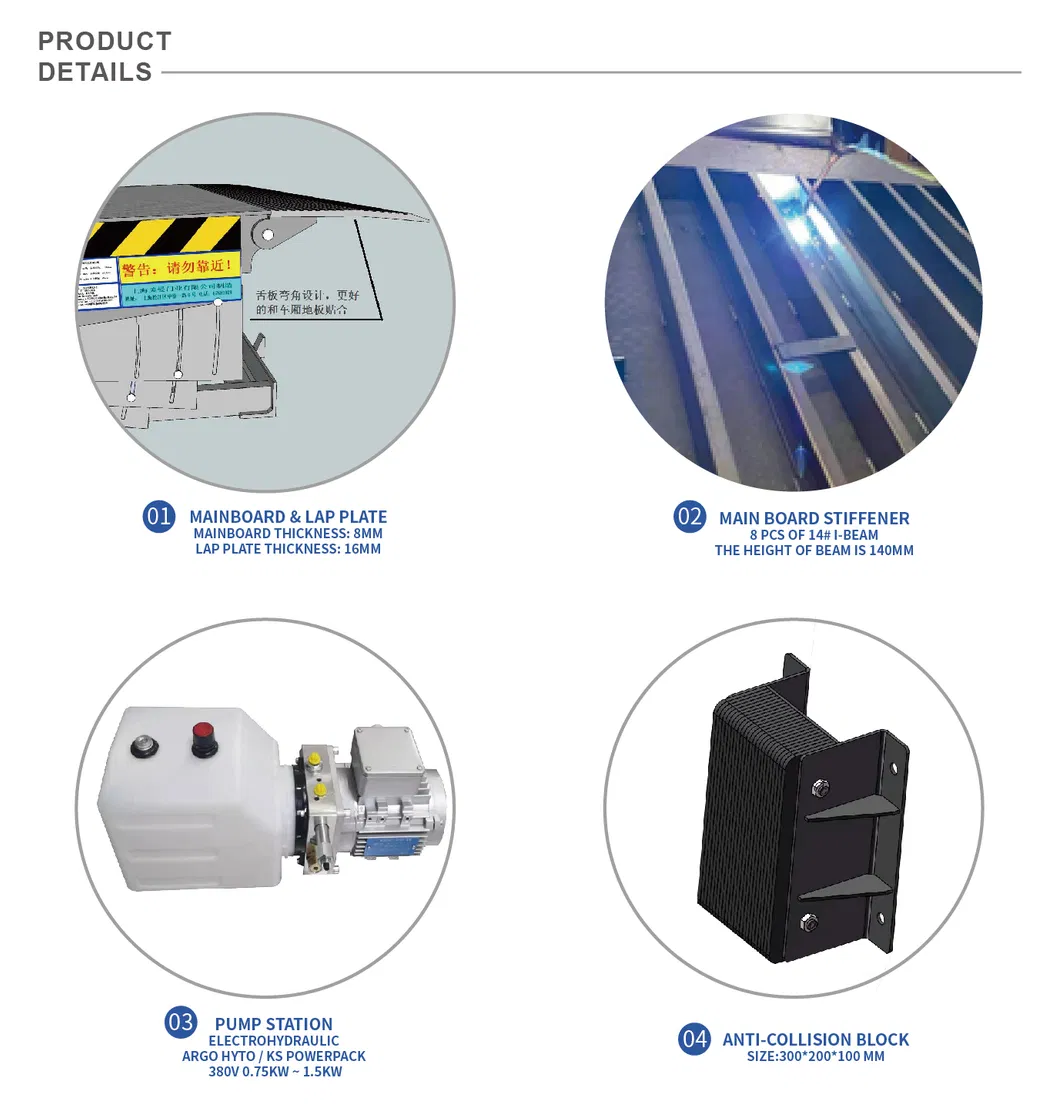

Dock Leveler Detail 1 Dock Leveler Detail 2 Dock Leveler Detail 3 Dock Leveler Dimensions

⚙️Technical Parameters

DETAILED SPECIFICATIONS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; surface treatment is blasting and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
Driving SystemElectrohydraulic, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Safety PartExplosion proof valve

🛠️Features & Certifications

Working Mechanism Certification Showcase
  • Professional Enterprise Quality Standard
  • ISO9001: 2000 Management Certification
  • CE Certification for Global Safety Compliance
  • High-quality Q235B Steel Construction

❓Frequently Asked Questions

1. What is the maximum loading capacity for this dock leveler? The dynamic load capacity ranges from 6 tons to 15 tons, depending on the specific model and configuration chosen.
2. Can this equipment operate in extreme weather conditions? Yes, it is designed to operate efficiently within a temperature range of -30ºC to +50ºC.
3. What safety features are integrated into the system? The unit includes automatic retraction side baffles, explosion-proof valves, and an anti-slide pattern on the main board for operator safety.
4. What is the vertical adjustment range of the platform? The platform has an adjustment scope of +400mm upwards and -300mm downwards to accommodate various truck heights.
5. What materials are used for the main structure? We use high-grade Q235B steel plate with powder coating and 14# I-Beam stiffeners to ensure long-term durability and structural integrity.
6. Is the hydraulic system reliable? The system features high-quality NOK A505 sealing parts and a high-pressure oil pipe rated for 60mpa, designed for a working frequency of over 200,000 cycles.
