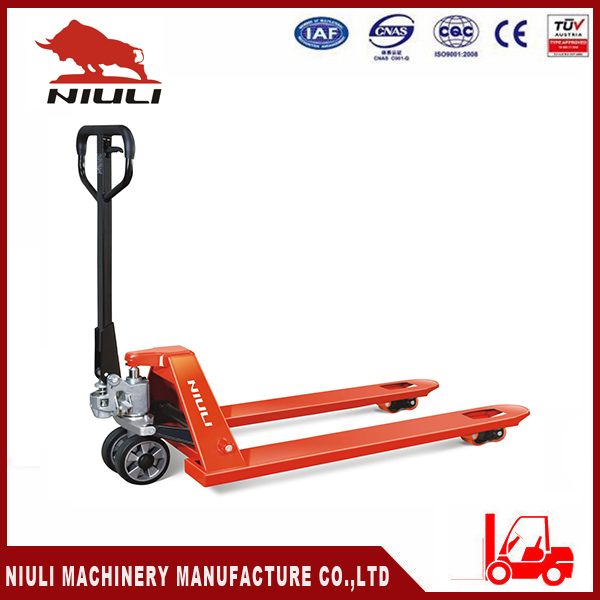

Niuli AC Hydraulic Hand Pallet Truck with Ce

1 / 5

Niuli AC Hydraulic Hand Pallet Truck with Ce

After-sales Service:	Online Service
Warranty:	1 Year
Cab Location:	Not Adjustable

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO.

CBY-AC hand pallet truck

Type

Manual Pallet Truck

Power

Hand

Load Capacity

1T - 5T

Fuel

Not

Load center

>500mm

Lift height

195mm

Condition

New

Certificates

Customized

Material

Steel

Size

550X1150mm

Entry Type

2-Way

Style

Wing

Transport Package

Iron Pallet

Specification

550*1150

HS Code

8427900000

Production Capacity

50000PCS/Moths

📋 Product Description

Key Specifications for Hand Pallet Truck:

Capacity: 2000kg, 2500kg, 3000kg, 5000kg
Lowered Fork Height: 85mm, 75mm, 140mm
Total Lift Height: 195mm / 185mm
Fork Length: 1150mm / 1220mm
Width Over The Forks: 550mm / 685mm
Steering Wheel Size: 180X50mm
Front Wheel Size: 80mm / 70mm
Self Weight: 73-92kg
20ft Container Load: 180 / 144 PCS

Model	CBY-AC2.5	CBY-AC3.0
Capacity (kg)	2500	3000
Min. Fork height (mm)	85/75	85/75
Max. Fork height (mm)	195/185	195/185
Lifting height (mm)	110	110
Fork length (mm)	1150/1220	1150/1220
Single fork width (mm)	160	160
Width overall forks (mm)	550/685	550/685

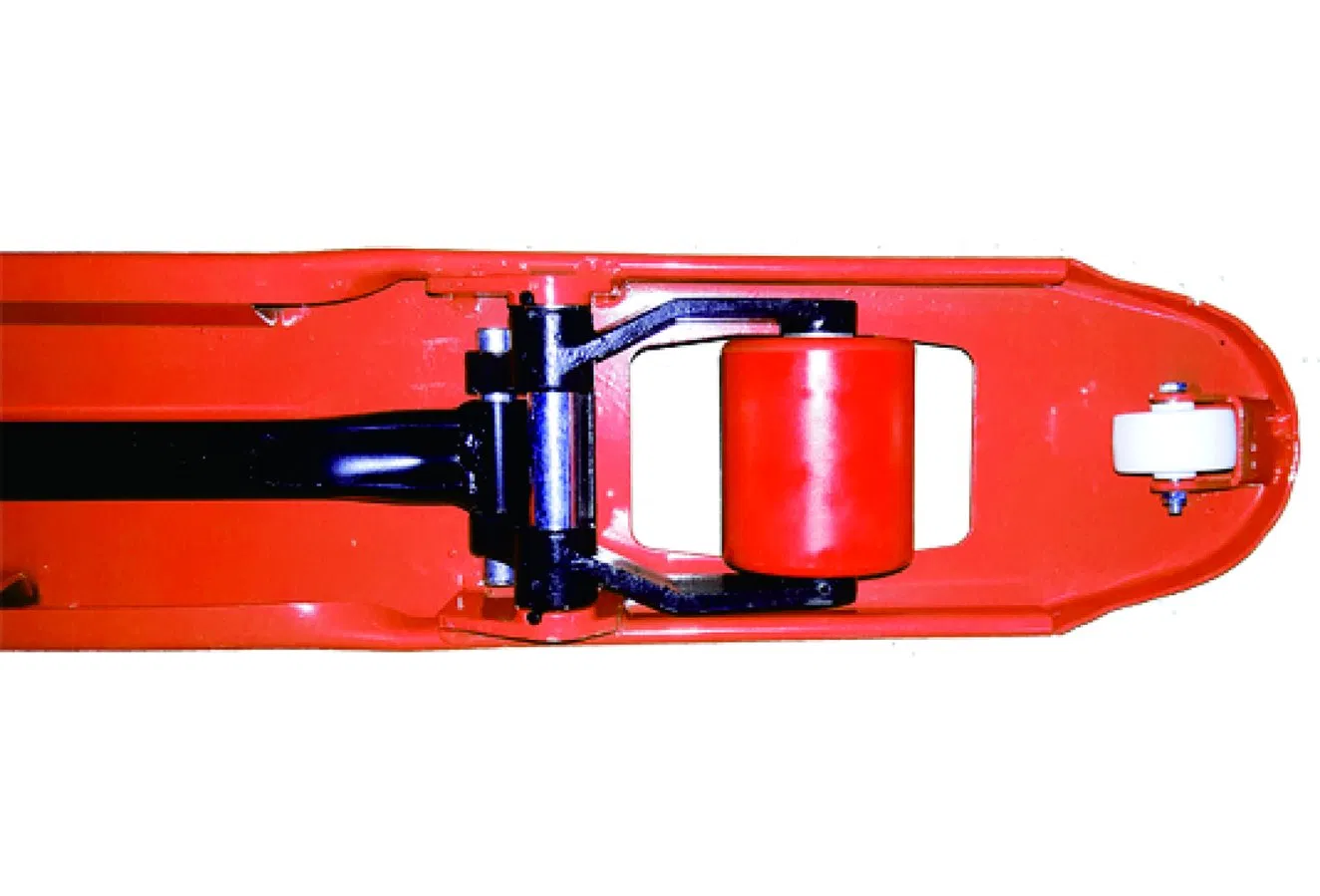

Fork wheel-single (mm)	80×93/74×93	80×93/74×93

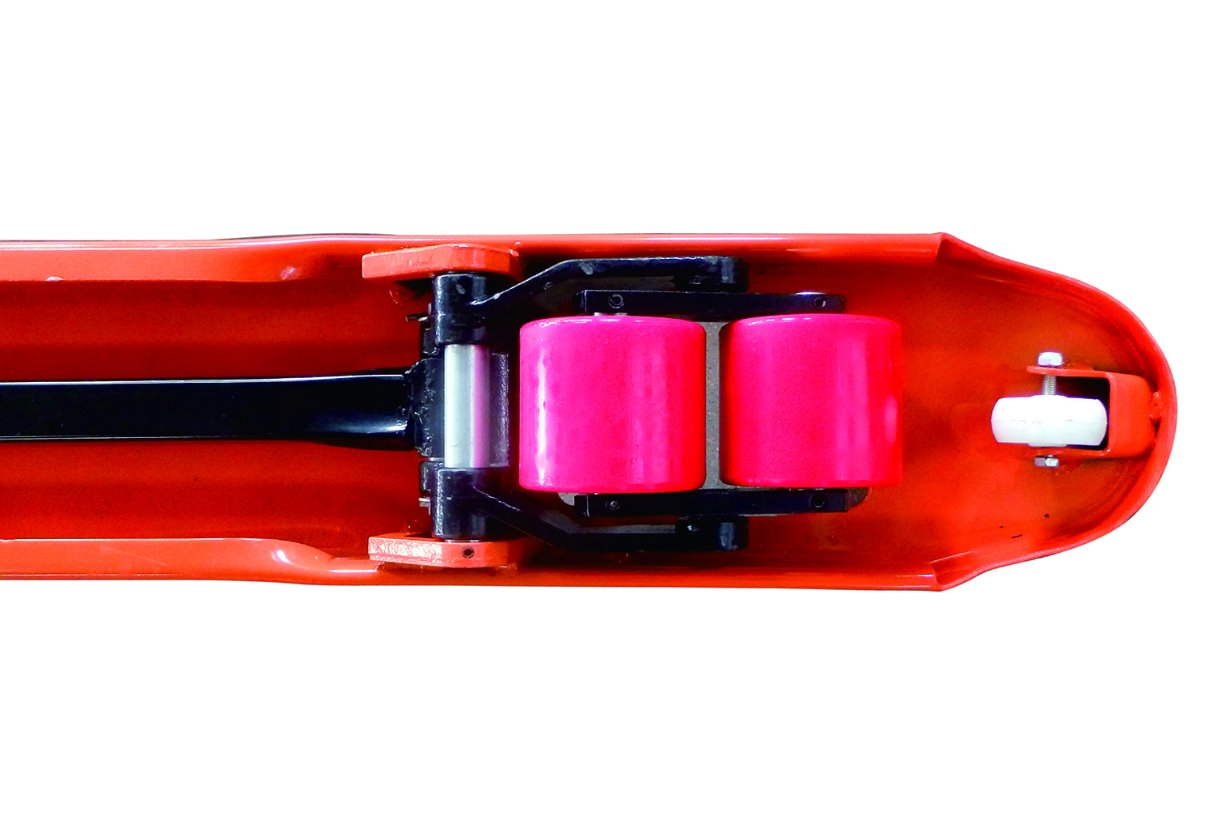

Fork wheel-tandem (mm)	80×70	80×70
Steering wheel (mm)	180×50	180×50
Self weight (kg)	73-92
Qty/20 feet container (PCS)	180/144	180/144

❓ Frequently Asked Questions

1. What is the load capacity range of the CBY-AC series?

The CBY-AC series hand pallet trucks offer a versatile load capacity ranging from 1 ton up to 5 tons, making them suitable for various warehouse tasks.

2. Are different fork dimensions available?

Yes, we provide standard fork widths of 550mm and 685mm, with lengths available in 1150mm or 1220mm to fit different pallet types.

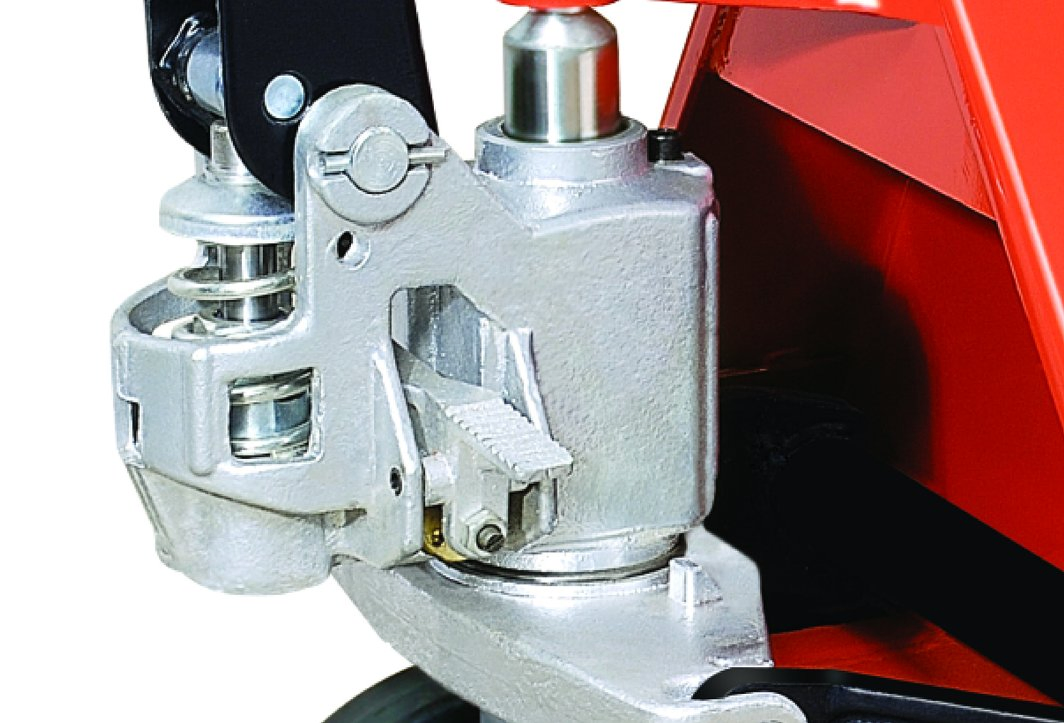

3. What type of pump system is used in these pallet trucks?

The trucks are equipped with a high-quality AC hydraulic pump system designed for durability and easy manual operation.

4. What is the minimum and maximum lifting height?

The minimum lowered fork height is 75mm to 85mm, and the maximum total lift height reaches up to 195mm.

5. How many units can fit in a standard 20ft container?

Depending on the specific configuration and packing method, a 20ft container can accommodate between 144 to 180 units.

6. Is the material durable for heavy industrial use?

Absolutely. These pallet trucks are constructed from high-grade reinforced steel to ensure longevity and reliability in demanding environments.
