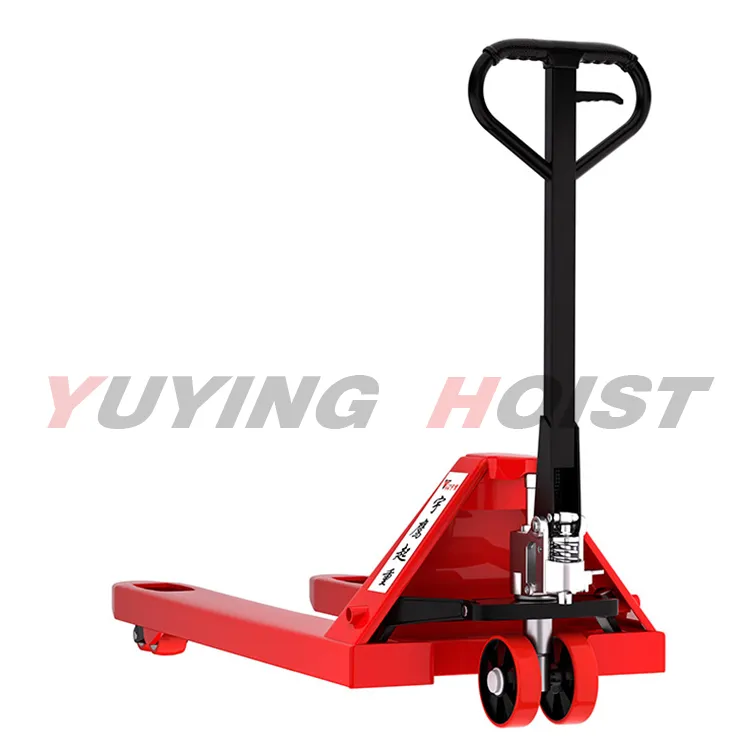

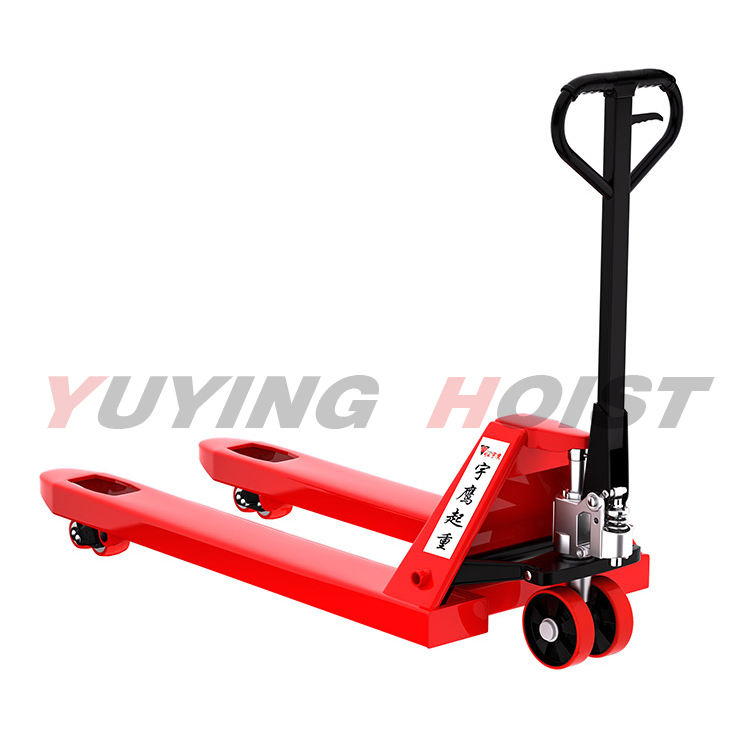

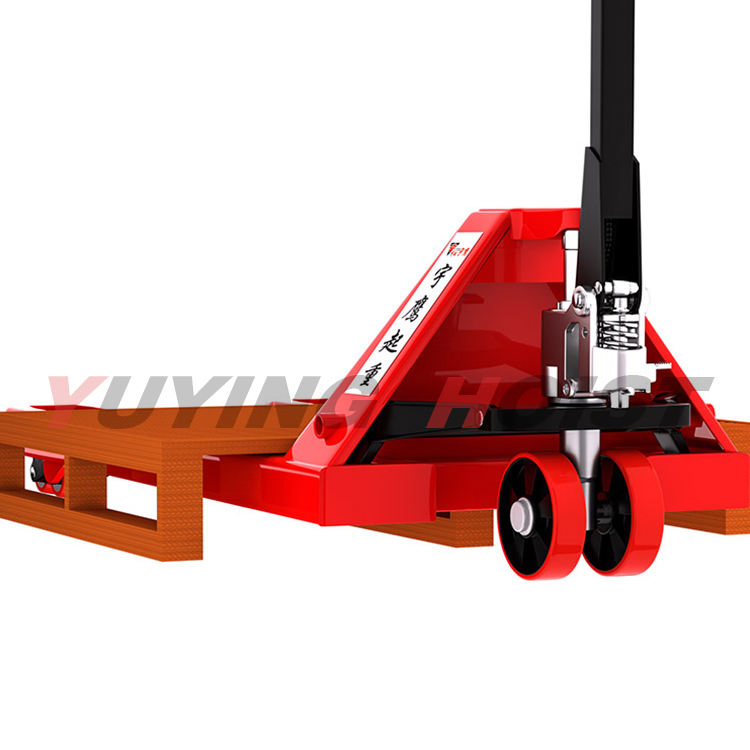

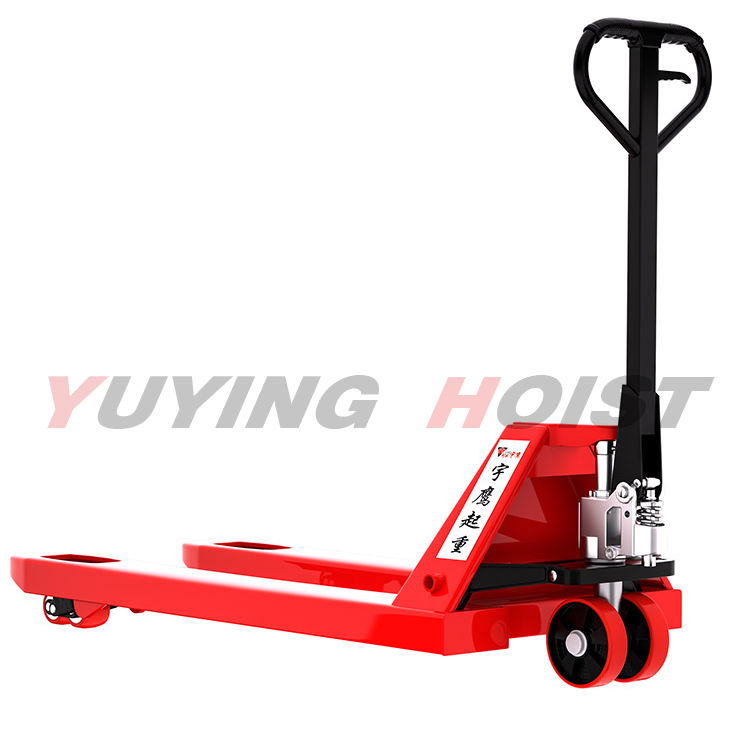

2000kg 2500kg 3000kg 3ton Hand Pallet /Hydraulic Manual Jack Hydraulic Pallet Truck

1 / 5

2000kg 2500kg 3000kg 3ton Hand Pallet /Hydraulic Manual Jack Hydraulic Pallet Truck

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Manual Hydraulic Pallet truck

Type

Hydraulic

Load Capacity

1T - 5T

Load center

>500mm

Condition

New

Weight (Kg)

2000 Kg

Wheels

Nylon PU

Product Name

Hand Pallet Jack

Min. Lifting Height

85mm

Overall Dimensions

550-1200

Fork Width

550/685mm

Core Components

Oil Cylinder

Product Type

Hydraulic Hand Trolley

Fork Length

1200mm

Power Source

Manual

Net Weight

61.8-69.2kg

Application

Material Handling Equipment

Production Capacity

8000 Piece/Pieces Per Month

Product Specifications

Model	2T 550	2T 685	2.5T 550	2.5T 685	3T 550	3T 685	5T 685
Rated load (kg)	2000	2000	2500	2500	3000	3000	5000
Min. fork height	80mm	80mm	80mm	80mm	80mm	80mm	90mm
Max. fork height	200mm	200mm	200mm	200mm	200mm	200mm	195mm
Steel thickness	4mm	4mm	4mm	4mm	4mm	4mm	6mm

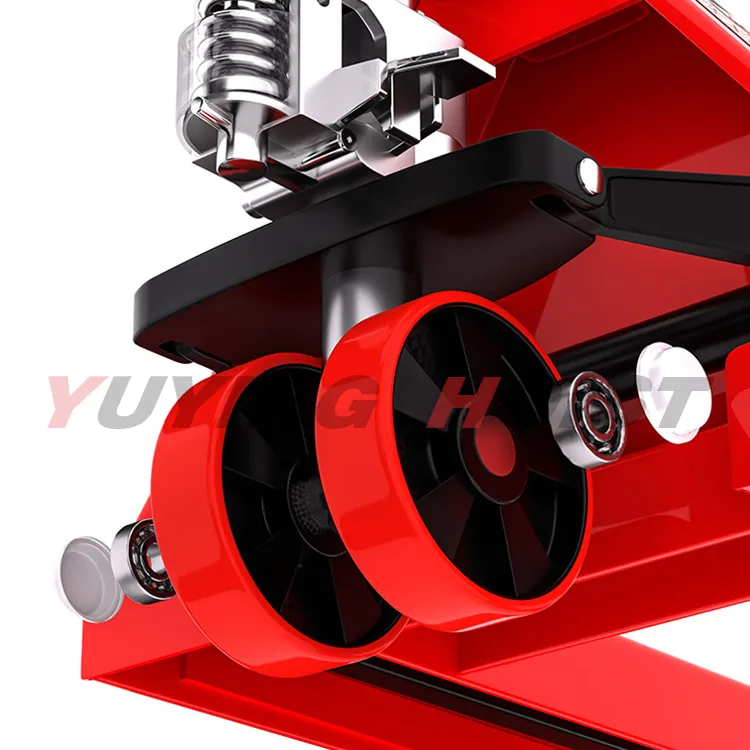

Turn Wheel	180*50	180*50	180*50	180*50	180*50	180*50	180*50
Load Wheel	80*70	80*70	80*70	80*70	80*70	80*70	80*70
Fork Width (h14)	550mm	685mm	550mm	685mm	550mm	685mm	685mm
Fork Length (Ast)	1200mm	1200mm	1200mm	1200mm	1200mm	1200mm	1200mm
Oil cylinder	Monolithic cylinder

Frequently Asked Questions

What is the maximum load capacity of this pallet truck?

The manual hydraulic pallet truck series offers a wide range of load capacities, from 1 Ton (1000kg) up to 5 Tons (5000kg), suitable for various material handling needs.

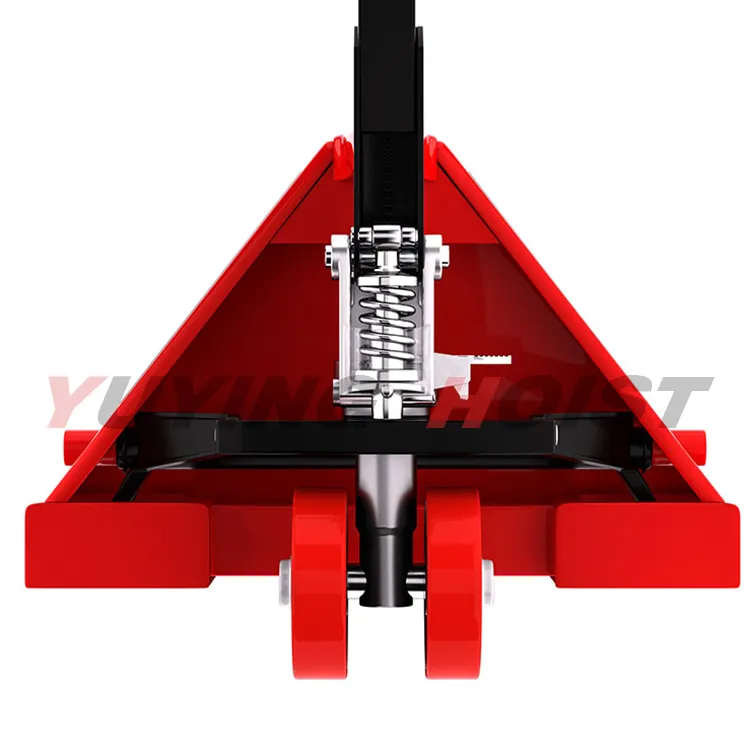

What types of wheels are available?

We provide high-quality Nylon and PU (Polyurethane) wheels. Nylon wheels are ideal for hard floors and heavy loads, while PU wheels offer quieter operation and better floor protection.

What are the standard fork dimensions?

The standard fork widths are 550mm and 685mm, with a standard fork length of 1200mm, designed to accommodate most standard pallet sizes.

What is the minimum and maximum lifting height?

The minimum lifting height is approximately 80mm to 90mm (depending on the model), and the maximum lifting height reaches up to 200mm.

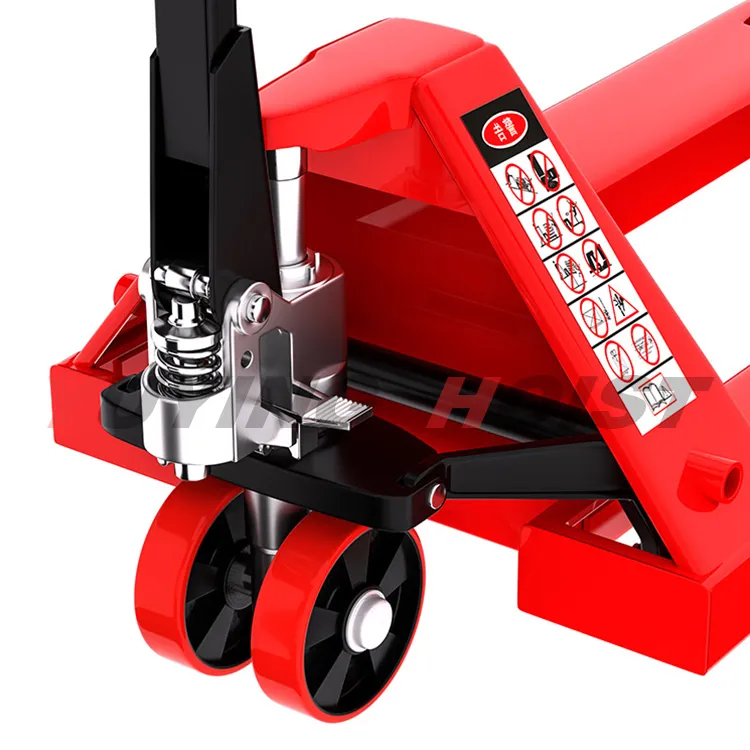

What makes the hydraulic system reliable?

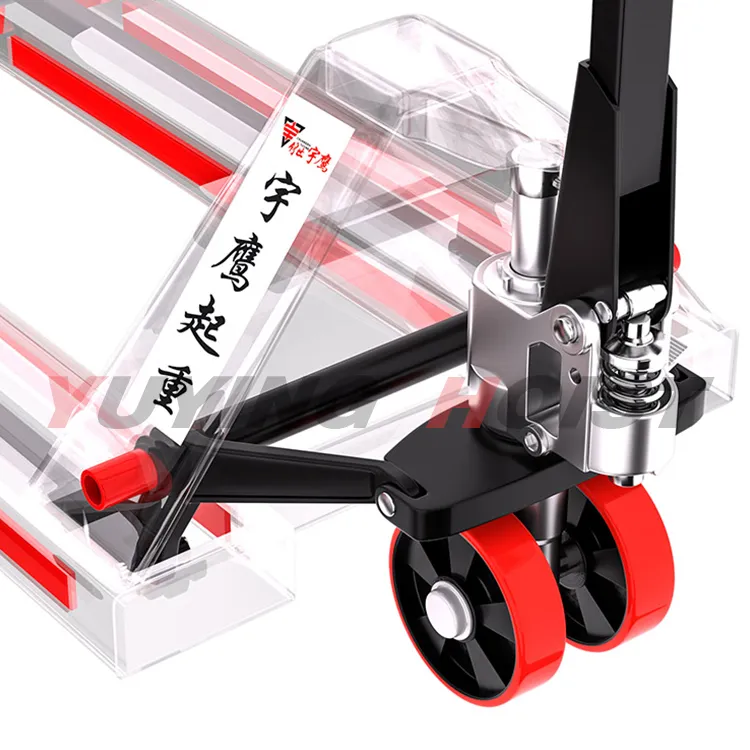

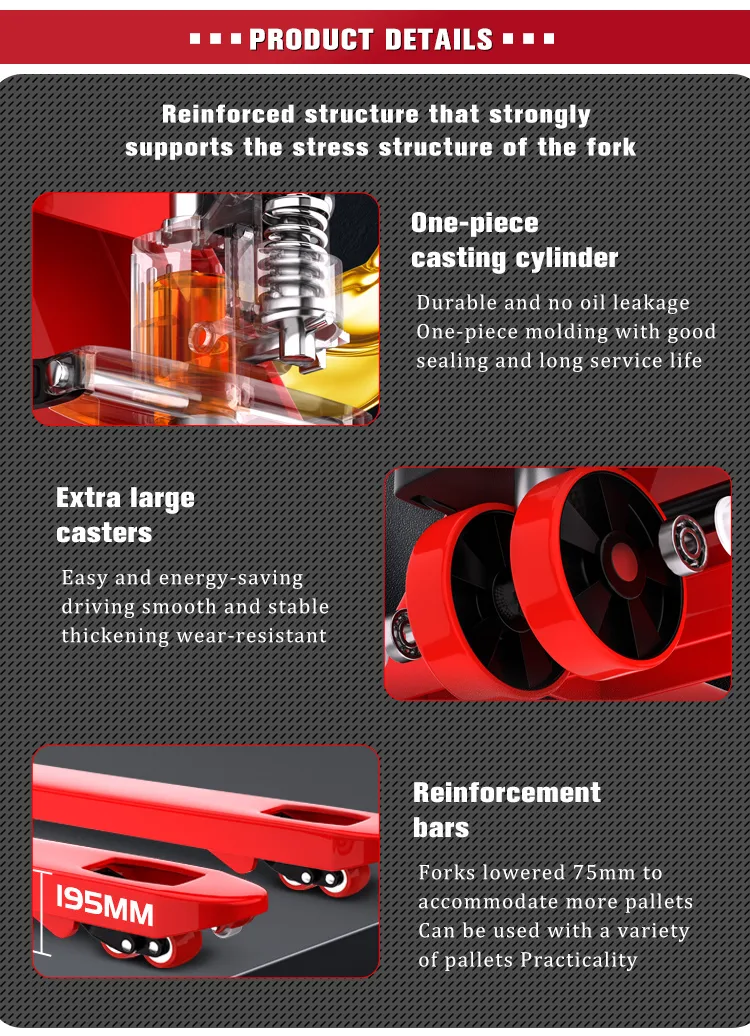

The truck utilizes a monolithic oil cylinder as its core component, ensuring a leak-proof design, smooth lifting, and long-term durability under heavy industrial use.

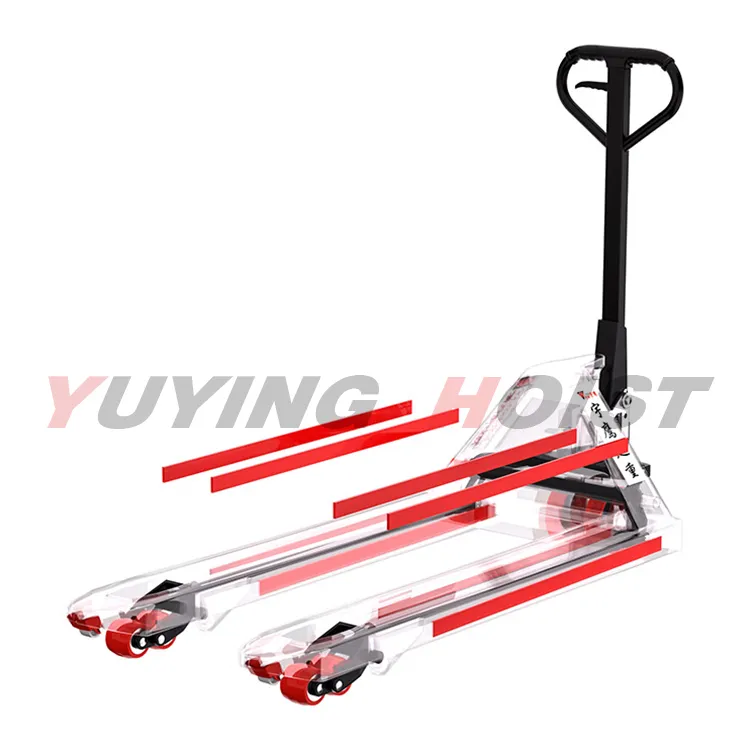

Is the steel frame durable enough for heavy-duty work?

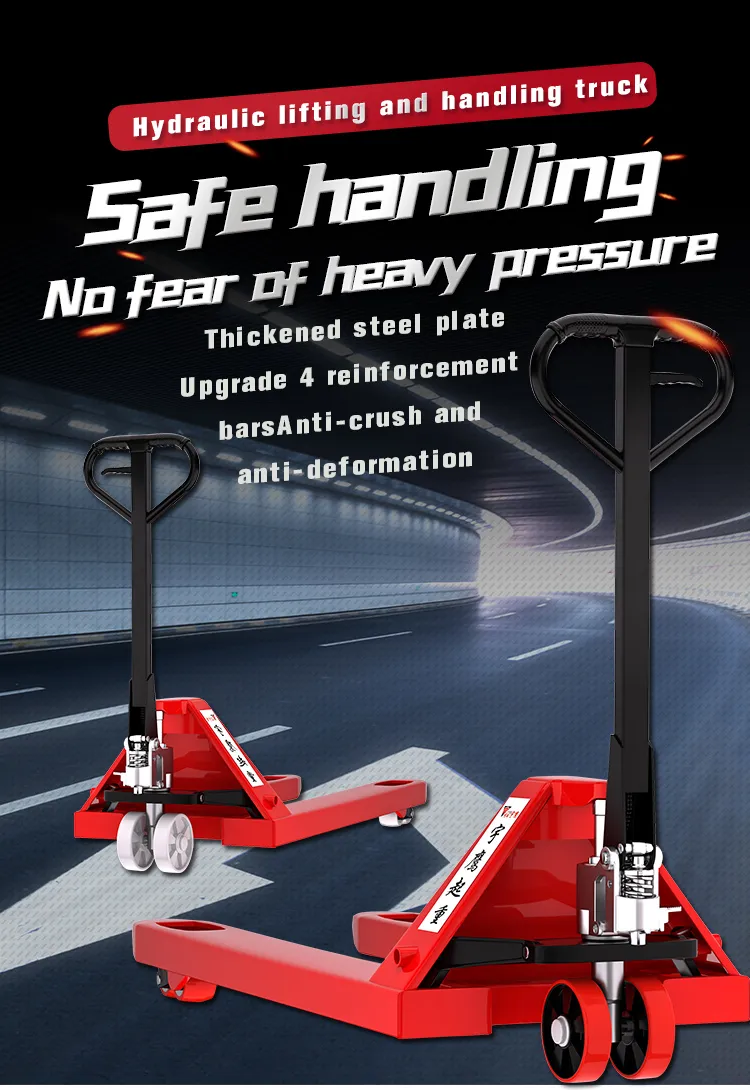

Yes, the frame is constructed with high-strength steel plates. The 2T-3T models use 4mm thick steel, while the 5T heavy-duty model is reinforced with 6mm thick steel for maximum structural integrity.
