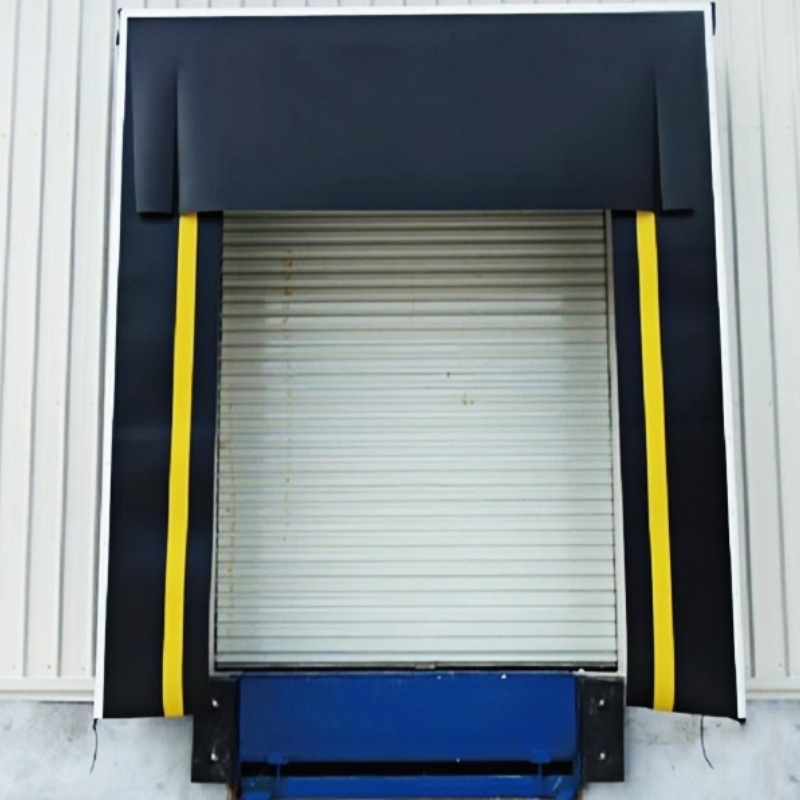

Mechanical or Retractable PVC Fabric Curtain Loading Dock Door Seal or Dock Shelter for Logistics Warehouse Loading Bays

1 / 5

Mechanical or Retractable PVC Fabric Curtain Loading Dock Door Seal or Dock Shelter for Logistics Warehouse Loading Bays

Customization:	Available
After-sales Service:	Spare Parts for Direct Replacement
Warranty:	18 Month Since Shipping Date, 18 Month Since Shipping Date

Send Inquiry

Product Description

Basic Specifications

Model NO.

Material

Steel

Type

Air Tight

Open Style

Mechanical, Retractable

Opening Type

Mechanical

Special Function

Airtight

Color

Black, Black with Yellow Caution Strip

Certification

ISO9001, RoHS, CE

Position

Industrial, Exterior

Surface Finishing

Finished

Standard Size

2500mm*3000mm (Customized Available)

Frame Material

Aluminum Alloy

Transport Package

Wood Box Package

Specification

PVC fabric

Production Capacity

10000 PCS/Year

📦

Packaging & Delivery

Package Size

350.00cm * 40.00cm * 40.00cm

Package Gross Weight

100.000kg

★

Product Description

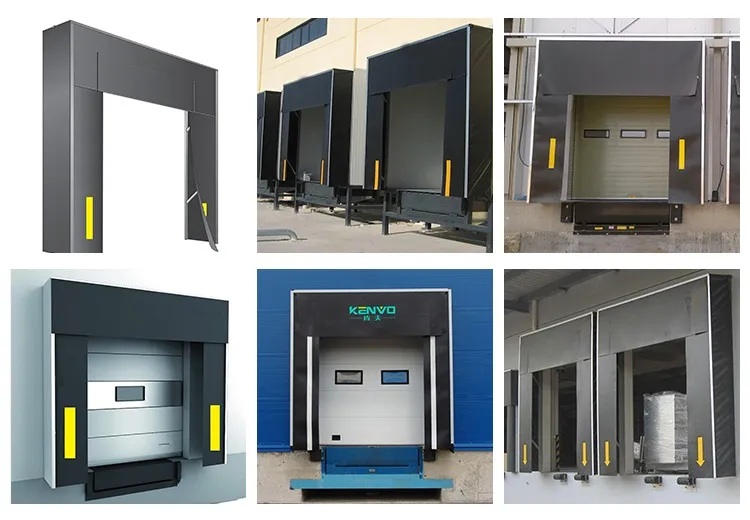

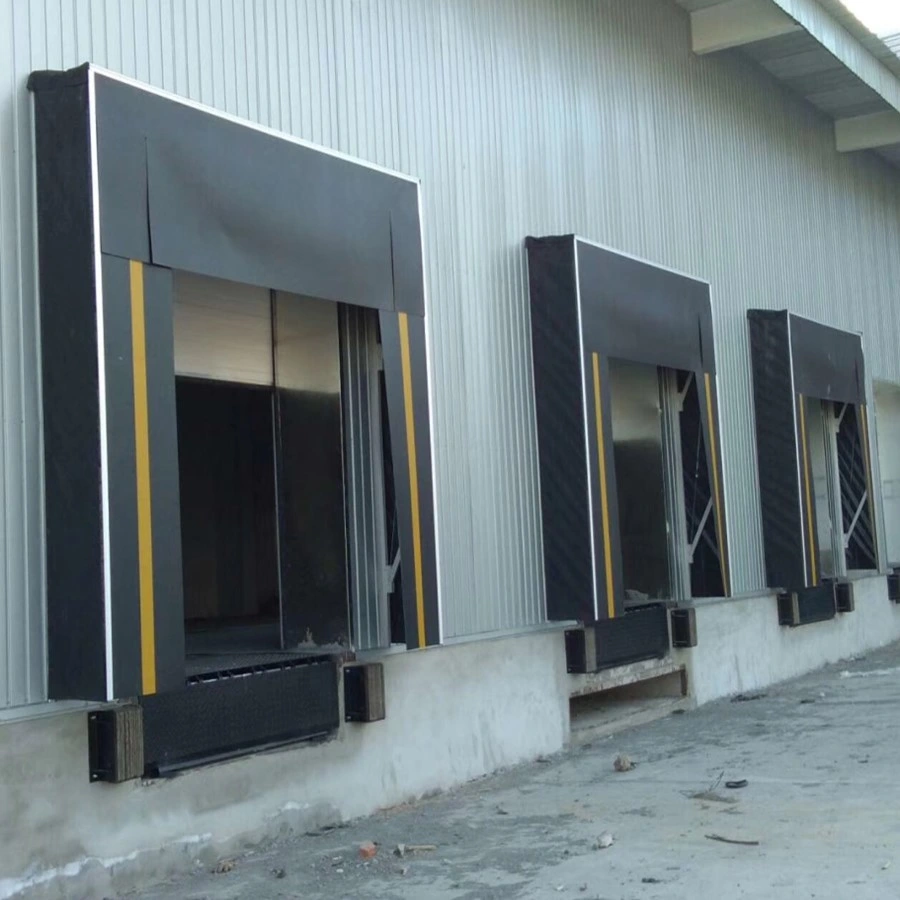

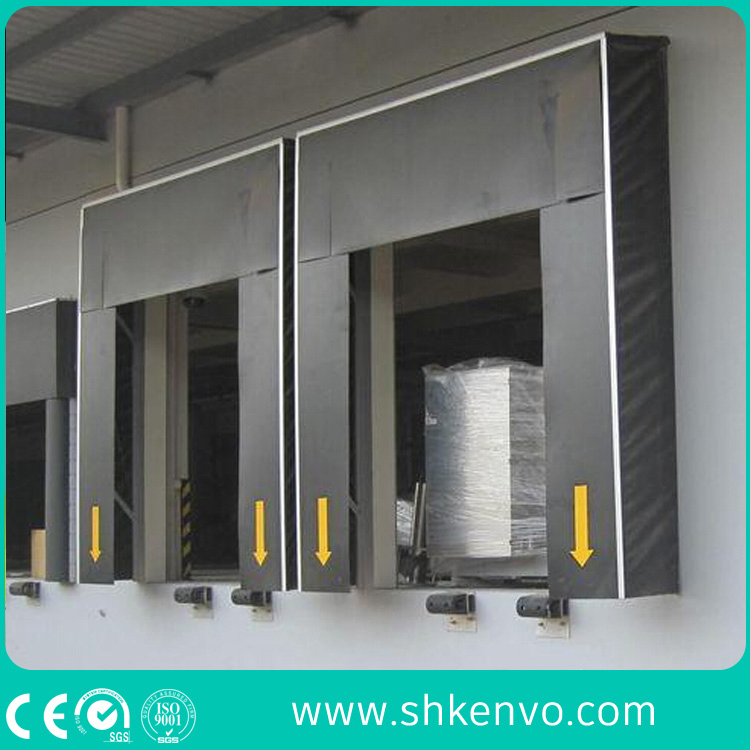

1. Mechanical Dock Seal or Shelter

Dock seal or Dock shelter is used for seal between dock and truck containers. It can protect goods and avoid exterior air and dust entering the room during the loading and unloading process. Mechanical Dock Shelter or Dock Seal, also called Retractable Dock Shelter or Dock Seal, is the most widely used type in all loading bays or docks. It can work for trucks with various container sizes.

Description:

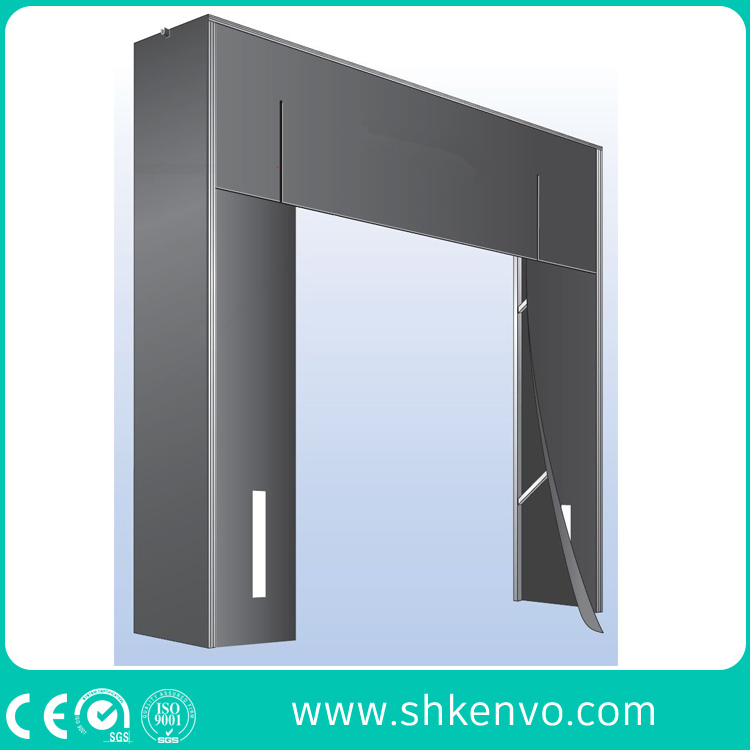

Retractable Mechanical Loading Dock Shelter fits for docks working with different types of trucks. It is a retractable design. Two parallel steel tubes form the main skeleton. When trucks touch the shelter, it will retract flexibly and join closely with trucks of different types. After trucks leave, it will recover automatically under self-weight effect. Thus, it is a good choice if your truck containers are in different sizes.

Applications:

Loading bays, Loading docks, Logistics, Warehouse, Factories.

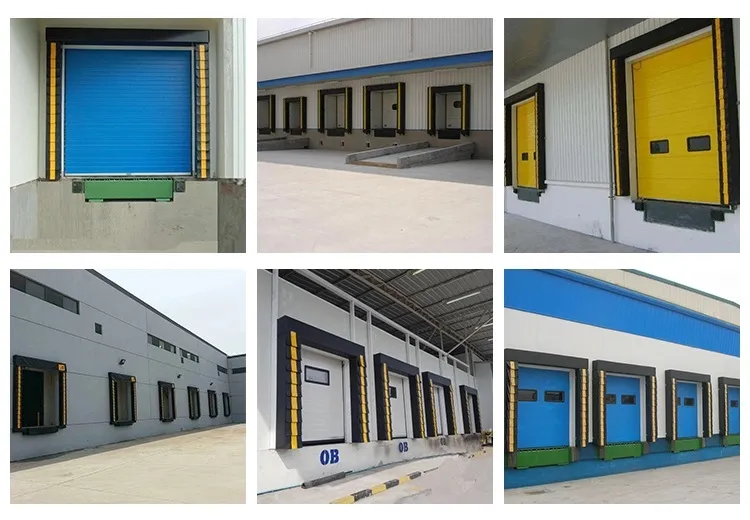

2. Insulated Sponge Dock Seal or Shelter

Insulated Warehouse Sponge Loading Dock Seal fits for docks working with uniform trucks with same or quite similar sizes. It can realize effective seal and thermal insulation.

Description:

1. The back structure is made from galvanized steel plate or anti-corrosive solid wood, touching with the wall closely. Inside is filled with highly compressed sponge, with density of 30KG/m3. Special pressure-relief design can reduce the friction with dock and trucks. This will prolong work life of surface fabric.
2. Surface fabric: Made from PVC fabric with self-extinguishing function. Weight: 800g/sqm. There are fabric shutter folds on top beam and two side columns. Thus it can endure long-time friction and squeezing.

Applications:

Loading bays, Loading docks, Logistics, Cold rooms, Warehouse, Factories.

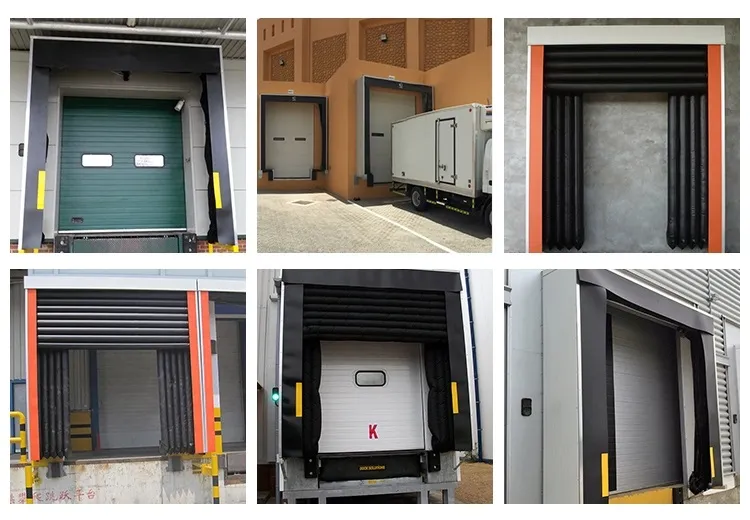

3. Inflatable Dock Seal or Shelter

Inflatable Dock Shelter or Dock Seal is the most advanced and most high-end dock seal. It can work for trucks with various container sizes with high air-tightness and thermal insulation.

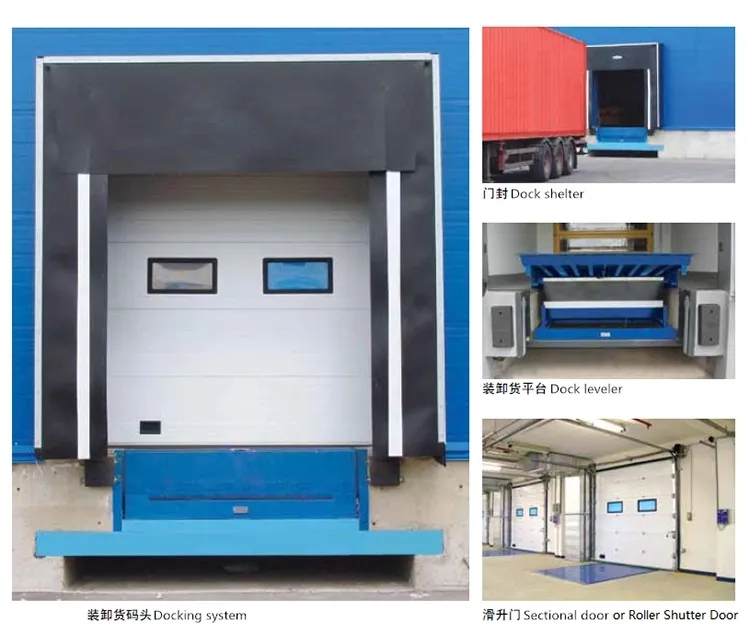

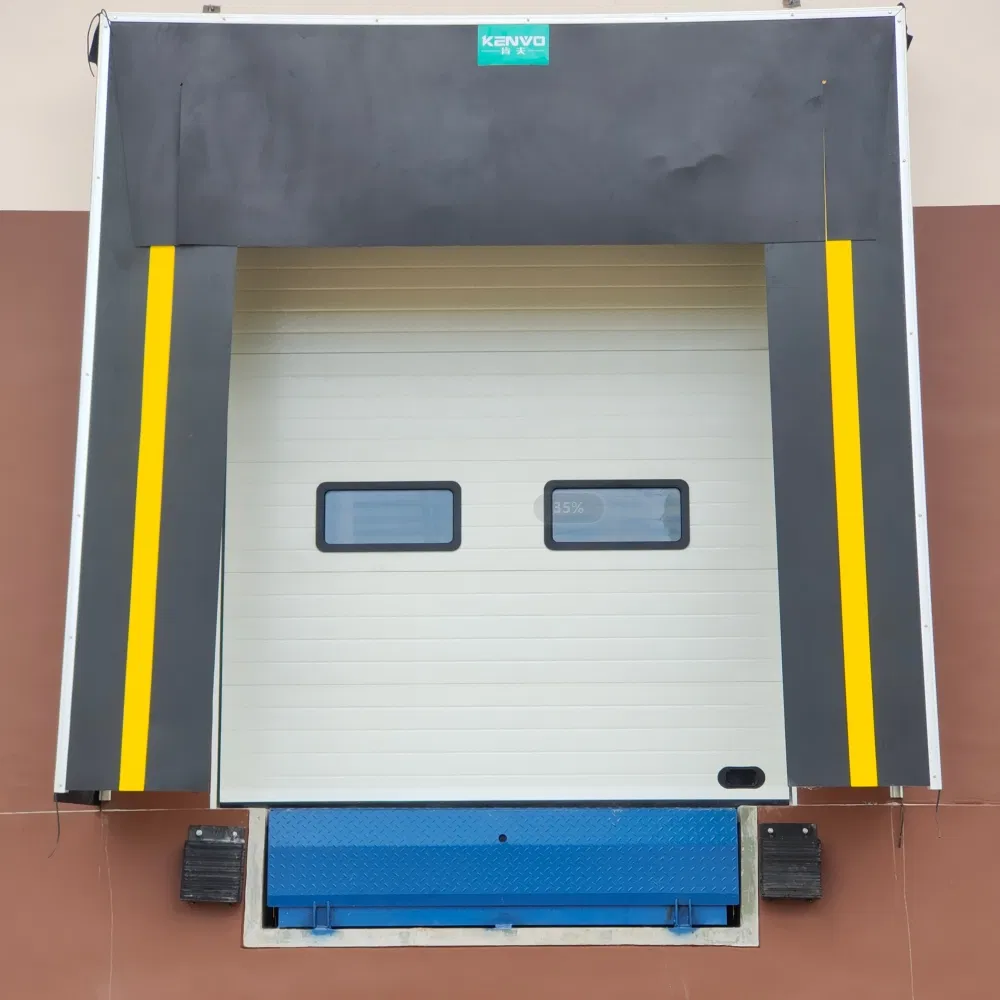

Complete Loading Bay or Dock System

Loading Bay is a complete assembly of Overhead Door, Dock Leveler and Dock Shelter & Seal. It is widely seen in warehouse, factory, and logistics industry. These three parts work together to improve loading efficiency and protect indoor environment.

Frequently Asked Questions

What is the primary function of a dock seal or shelter?

It provides a seal between the loading dock and truck containers to protect goods and prevent exterior air, dust, and insects from entering the facility during loading and unloading.

How does a mechanical retractable dock shelter work?

It features a flexible steel skeleton that retracts when a truck makes contact and automatically recovers its shape after the truck leaves, making it ideal for various truck sizes.

What makes the insulated sponge dock seal efficient for cold storage?

It is filled with high-density compressed sponge (30KG/m3) and covered with durable PVC fabric, providing excellent thermal insulation and a tight seal for uniform truck sizes.

What are the benefits of an inflatable dock seal?

Inflatable seals are the most advanced option, offering superior air-tightness and thermal insulation, specifically designed for high-end facilities requiring strict climate control.

Are the dock seals customizable?

Yes, while the standard size is 2500mm*3000mm, customized sizes are available to meet specific industrial and warehouse requirements.

What materials are used for the outer fabric?

The surface is typically made from high-quality PVC fabric (approx. 800g/sqm) featuring self-extinguishing properties and high resistance to friction and squeezing.
