Mechanical Dock Shelter

Customization:	Available
After-sales Service:	1.5 Years
Warranty:	1.5 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

YO-Dock seal

Material

Aluminum Alloy Frame

Type

Air Tight

Open Style

Swing

Opening Type

Power Driven

Special Function

Security

Color

Black

Certification

ISO9001, CE

Position

Industrial

Application

Warehouse, Cold Storage, Loading Bay

Options

Sponge/Inflatable/Mechanical

Profile Color

Aluminum (Ral9006)

Fixed

Galvanized Steel Liner

Specification

3000*2500 (Customized)

Package Size

350.00cm * 500.00cm * 500.00cm

Gross Weight

300.000kg

Product Description

Dock shelter is widely used in dock areas. It seals the gap between the truck and the warehouse, providing a clean and airtight loading environment.

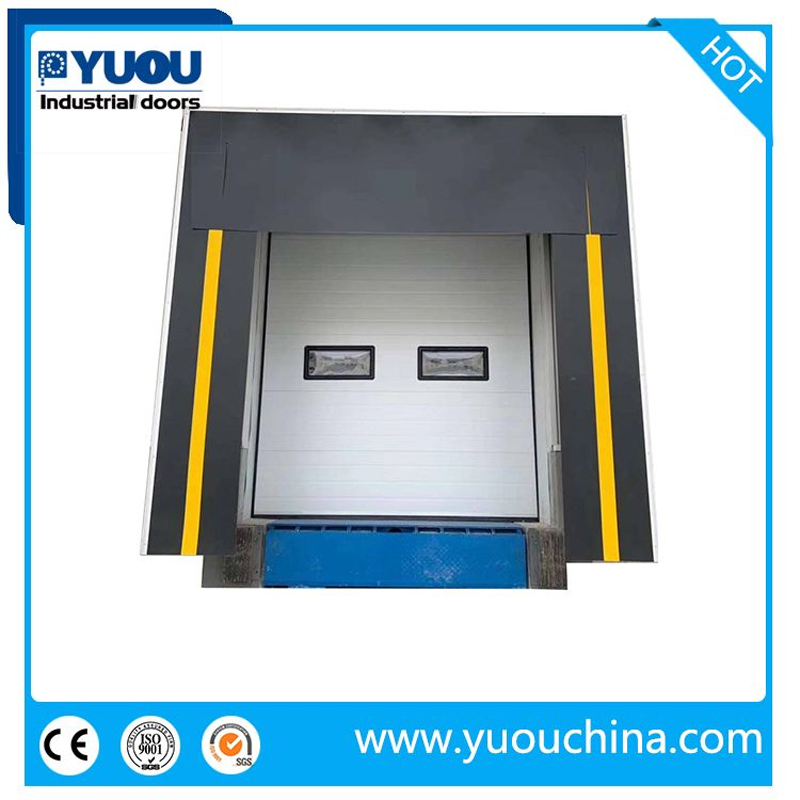

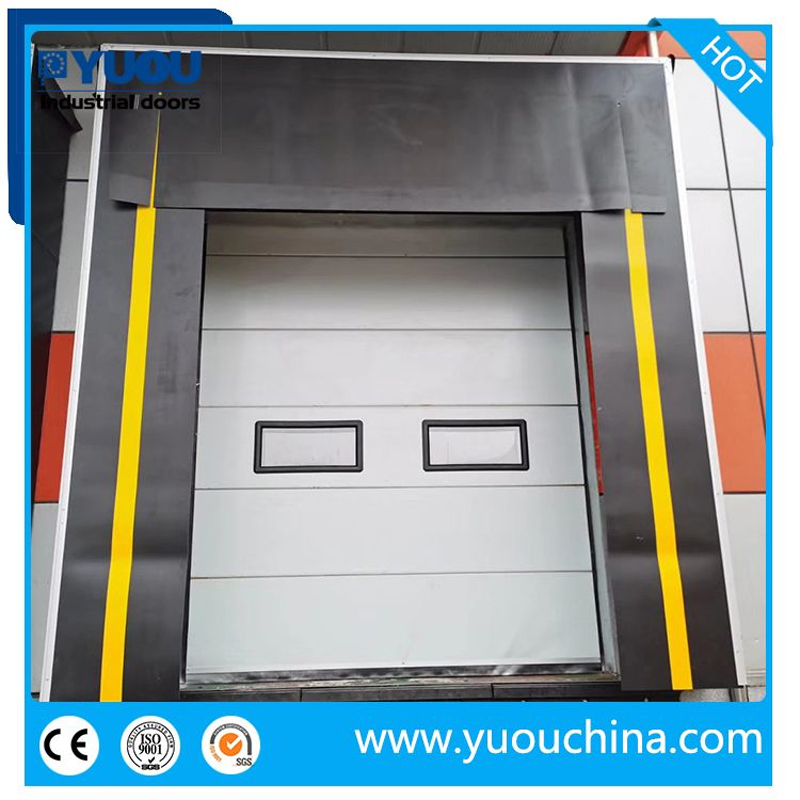

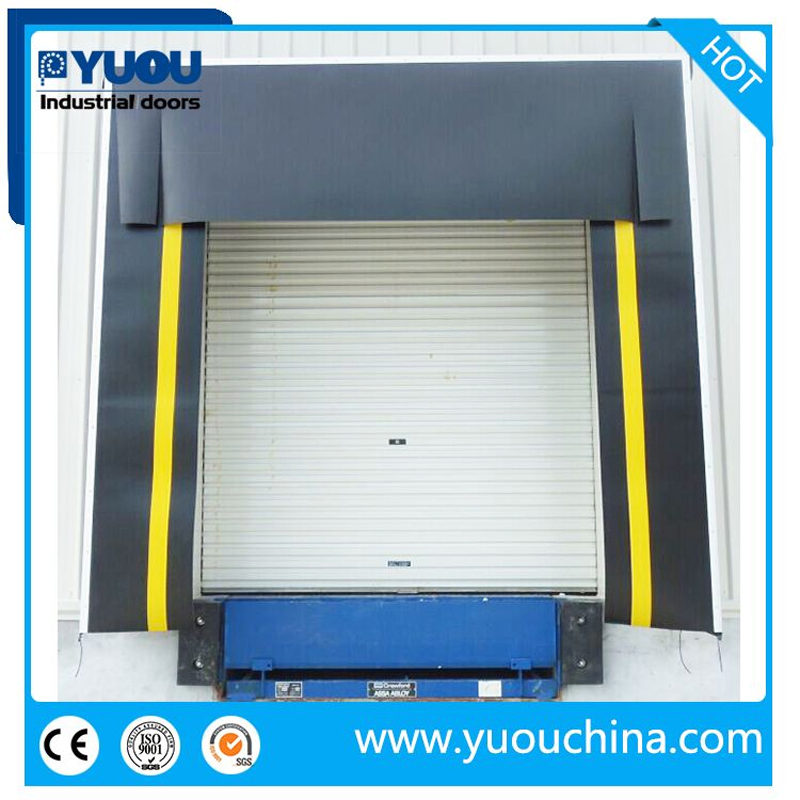

Mechanical Dock Shelter

Technical Data

Size	3400*3400mm or customized
Color	Standard color is black, or customized
Front Material	Longitudinal tensile strength >550N, transverse tensile strength >900N, max tensile strength 250N/mm², metal friction coefficient 0.3, PVC friction coefficient 0.4, thickness 3mm, unit weight 3.6kg/m²
Adjustable height range	1000mm
Side PVC Material	Tensile force 250N, thickness 0.5mm, unit weight 0.7kg/m²
Working Temperature	-35ºC to 70ºC
Aluminum Frame	Rear profile: 5044mm, Front profile: 4544mm, Frame: 50252.5mm, Front press plate: 34*4.8mm

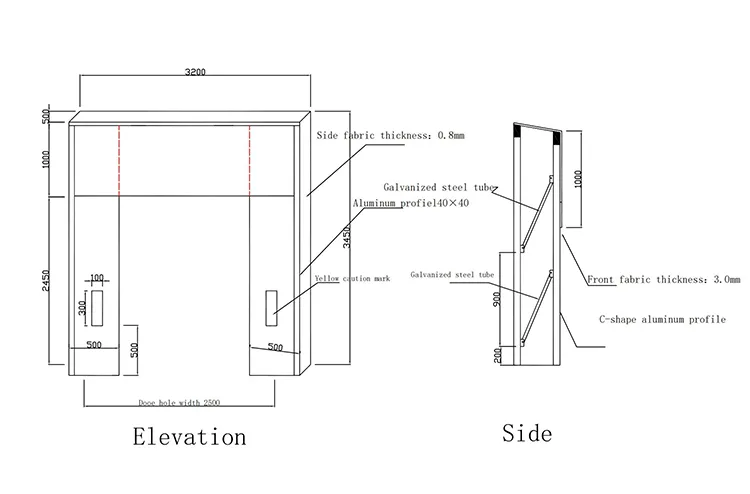

Structure Diagram

Product Details

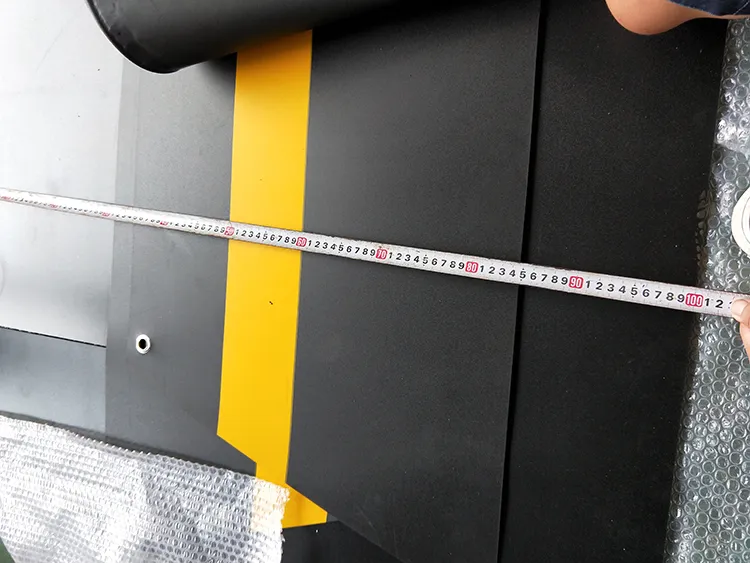

1. Front curtain: High tensile strength PVC material with 3mm thickness.

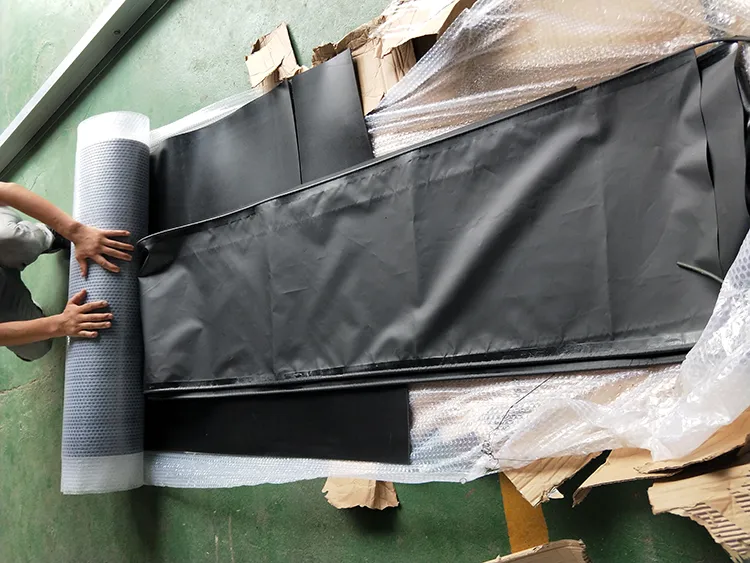

2. Side curtain: 0.5mm thickness, lightweight and durable.

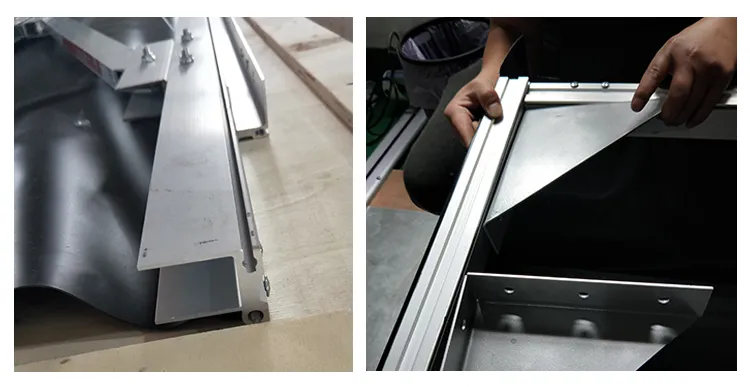

3. Aluminum frame: Robust aluminum alloy profiles for long-term industrial use.

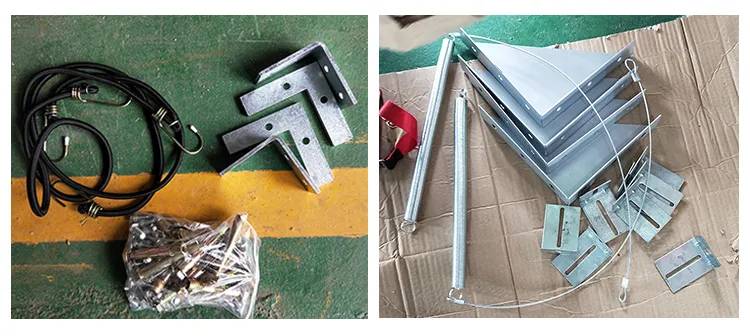

4. Accessories: High-quality components for mechanical operation.

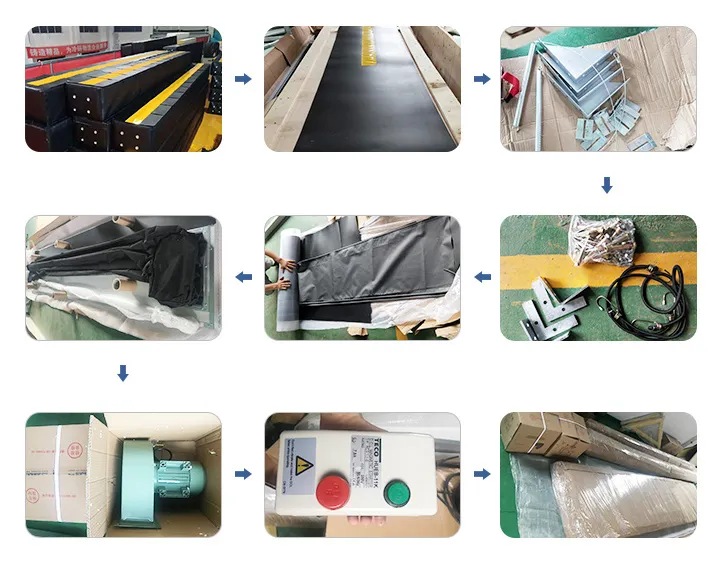

Delivery Package Contents

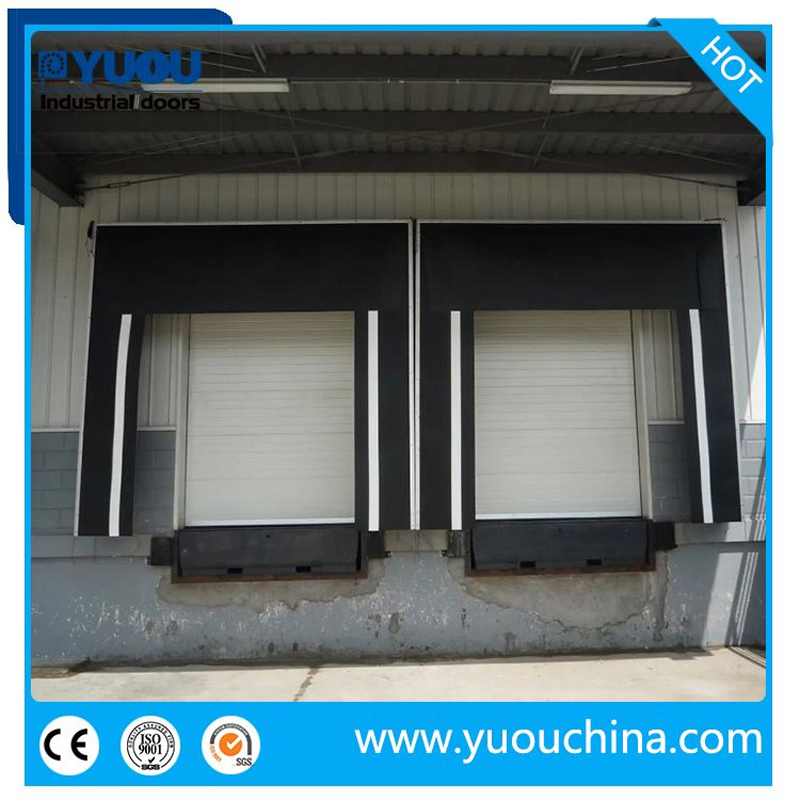

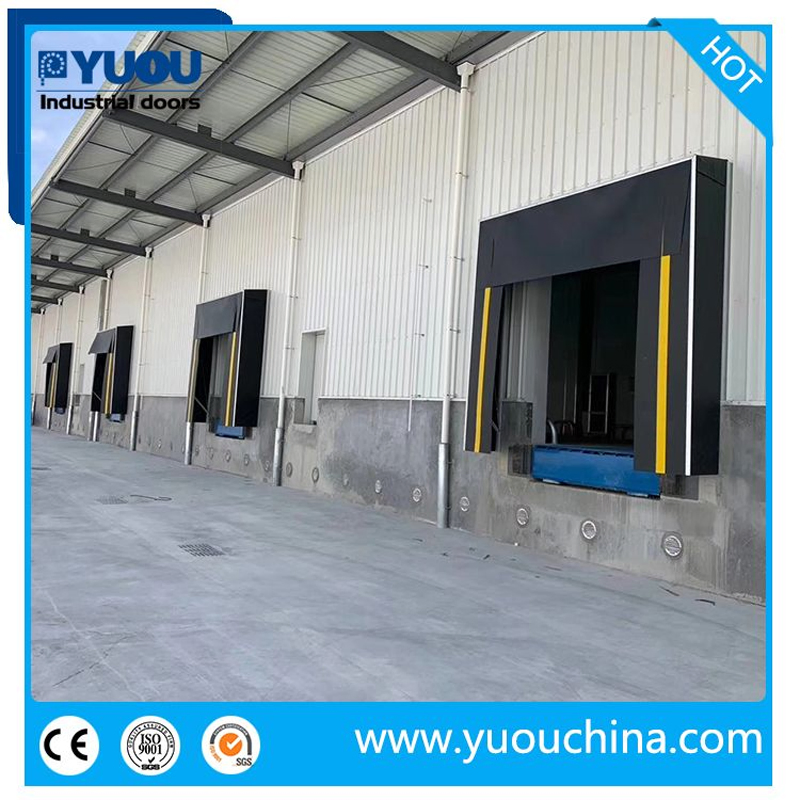

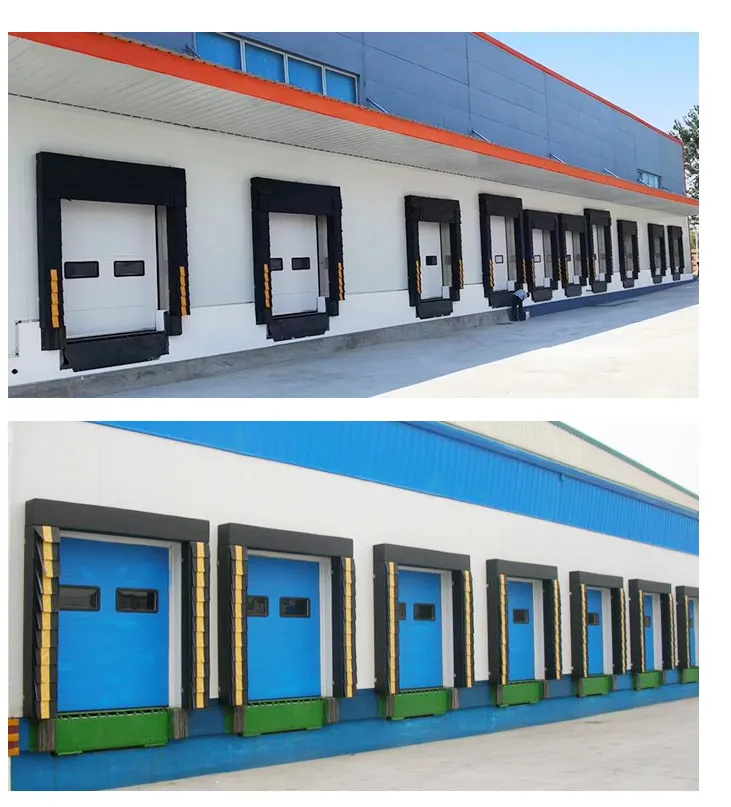

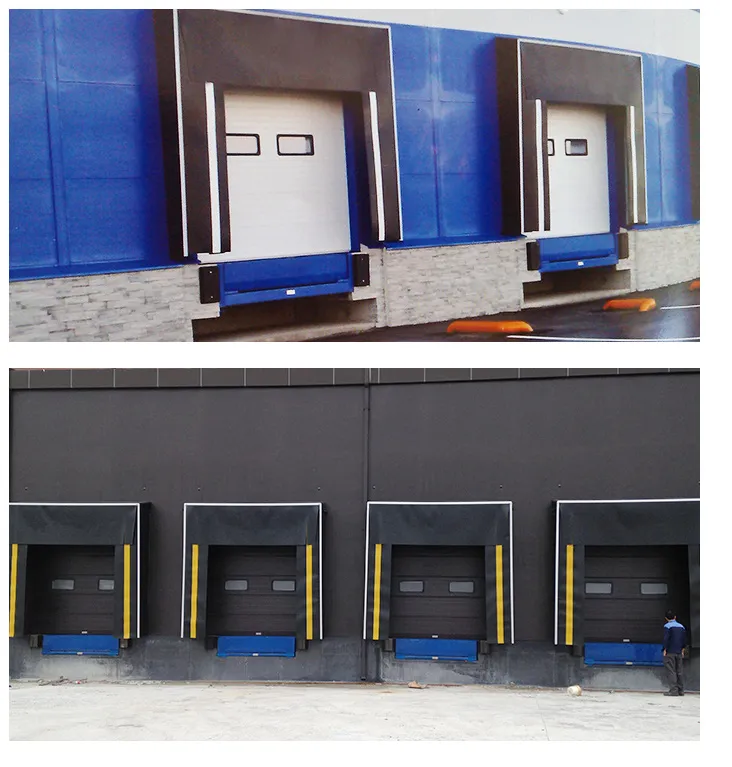

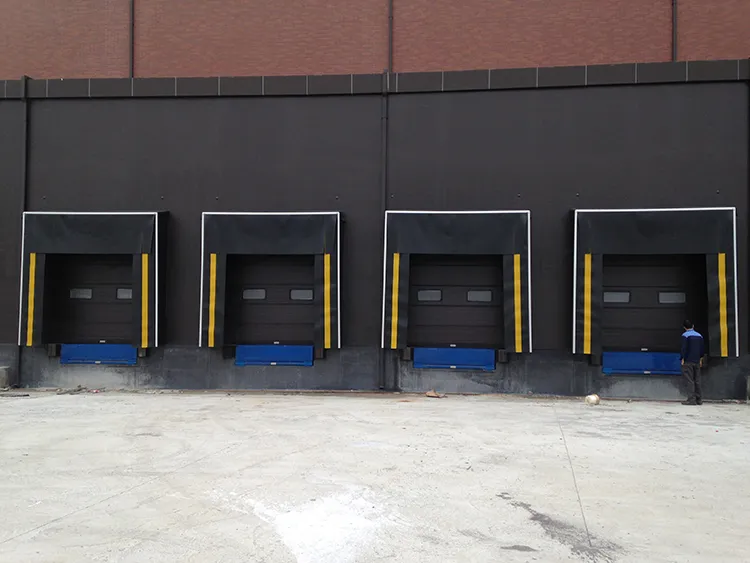

Real Product Shots

Frequently Asked Questions

Q: What is the primary purpose of a dock shelter? A: It is designed to seal the gap between a truck and the warehouse loading bay, creating an airtight environment that keeps out dust, insects, and maintains temperature.

Q: Can the size of the dock shelter be customized? A: Yes, while the standard size is 3400*3400mm, we offer customization to meet your specific loading bay requirements.

Q: What materials are used for the curtains? A: The front curtain is made of high-tensile 3mm thick PVC, and the side curtains are 0.5mm thick PVC, ensuring durability and flexibility.

Q: Is the dock shelter suitable for cold storage? A: Absolutely. It is ideal for cold storage and warehouses as it helps maintain internal temperatures with a working range of -35ºC to 70ºC.

Q: What are the different types of dock shelters available? A: We offer mechanical, inflatable, and sponge-based dock shelters to suit different operational needs and truck types.

Q: How is the product packaged for export? A: All products are packed in export-standard wooden cases to ensure they arrive safely at their destination.
