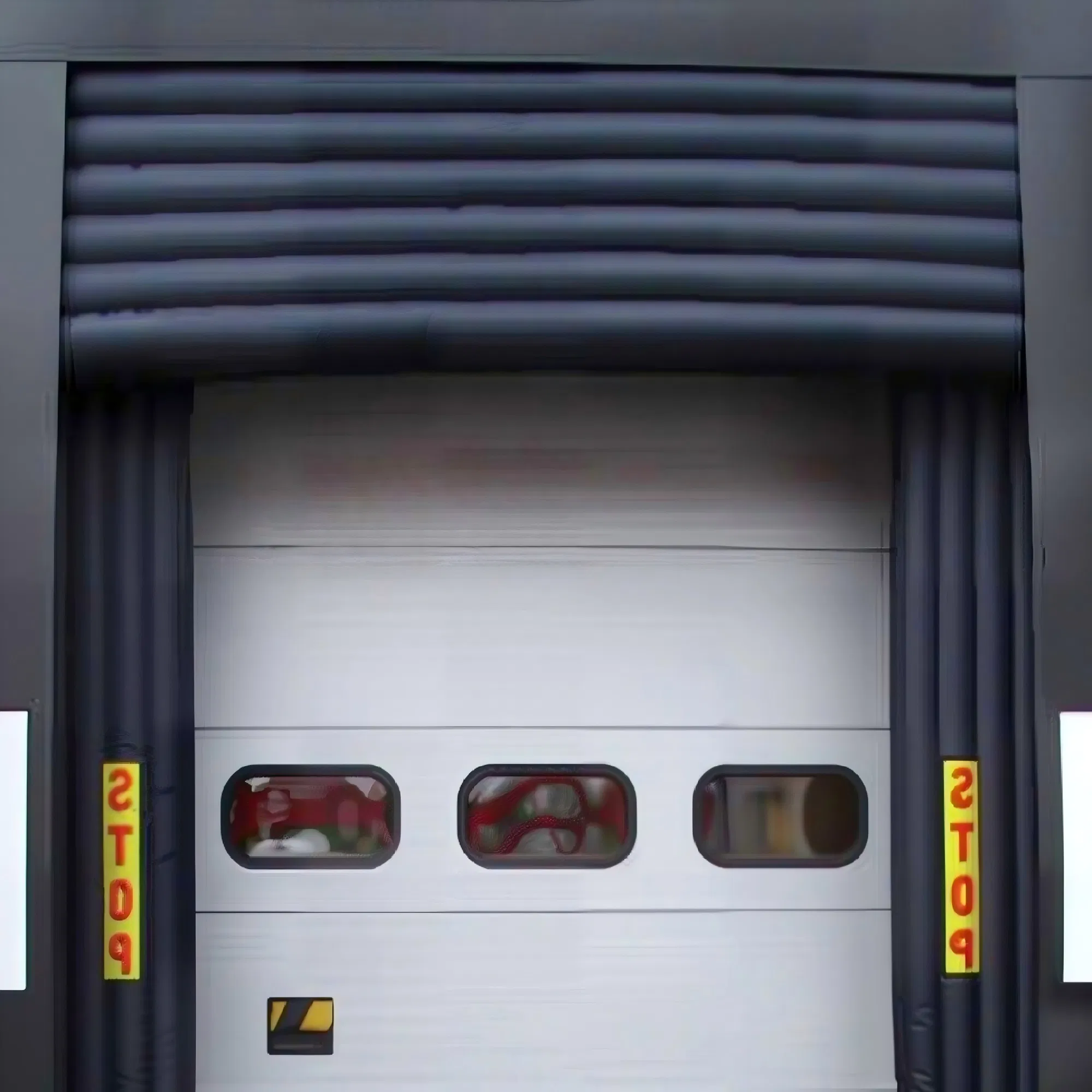

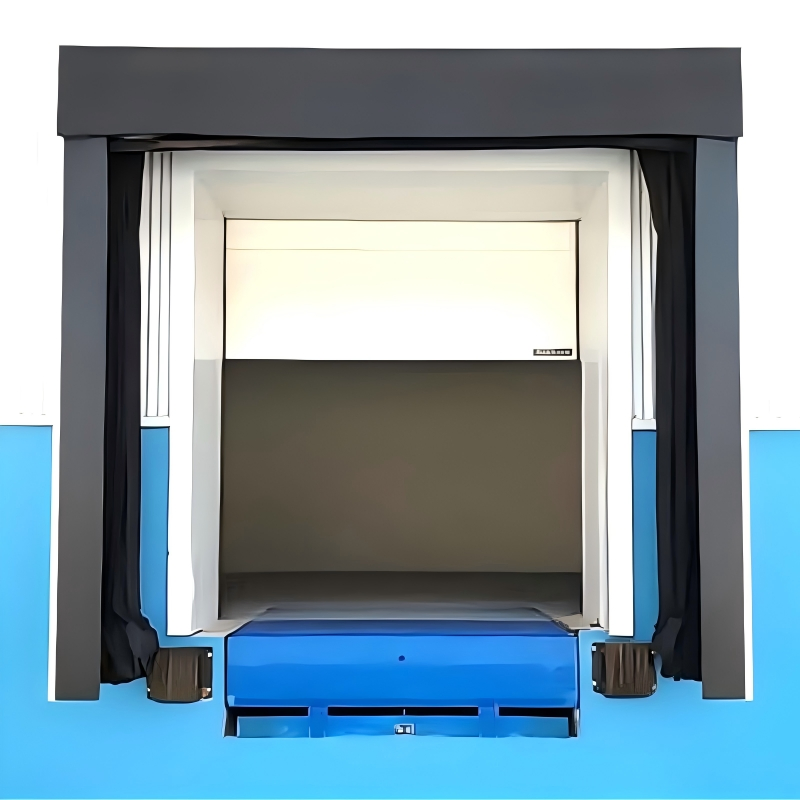

Food Factory Cold Warehouse PVC Fabric Retractable Loading Bay Loading Container Logistics Anti-Crush Adjustable Inflatable Dock Shelter Dock Door Shelter

1 / 5

Food Factory Cold Warehouse PVC Fabric Retractable Loading Bay Loading Container Logistics Anti-Crush Adjustable Inflatable Dock Shelter Dock Door Shelter

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months After Delivery

Send Inquiry

Product Description

Basic Specifications

Model NO.

XF-O-2000

Material

PVC + Aluminum Alloy Frame

Type

Air Tight

Open Style

Air Blowing

Opening Type

Automatic

Special Function

Sealing

Color

Customer-Tailor

Certification

ISO9001, CE

Position

Industrial

Fireproof Grade

EU Grade II

Specification

3400*3400 mm

Origin

Made in China

Packaging & Delivery

Package Size

200.00cm * 100.00cm * 60.00cm

Gross Weight

100.000kg

Transport Package

Wooden Case

Production Capacity

10000/ Year

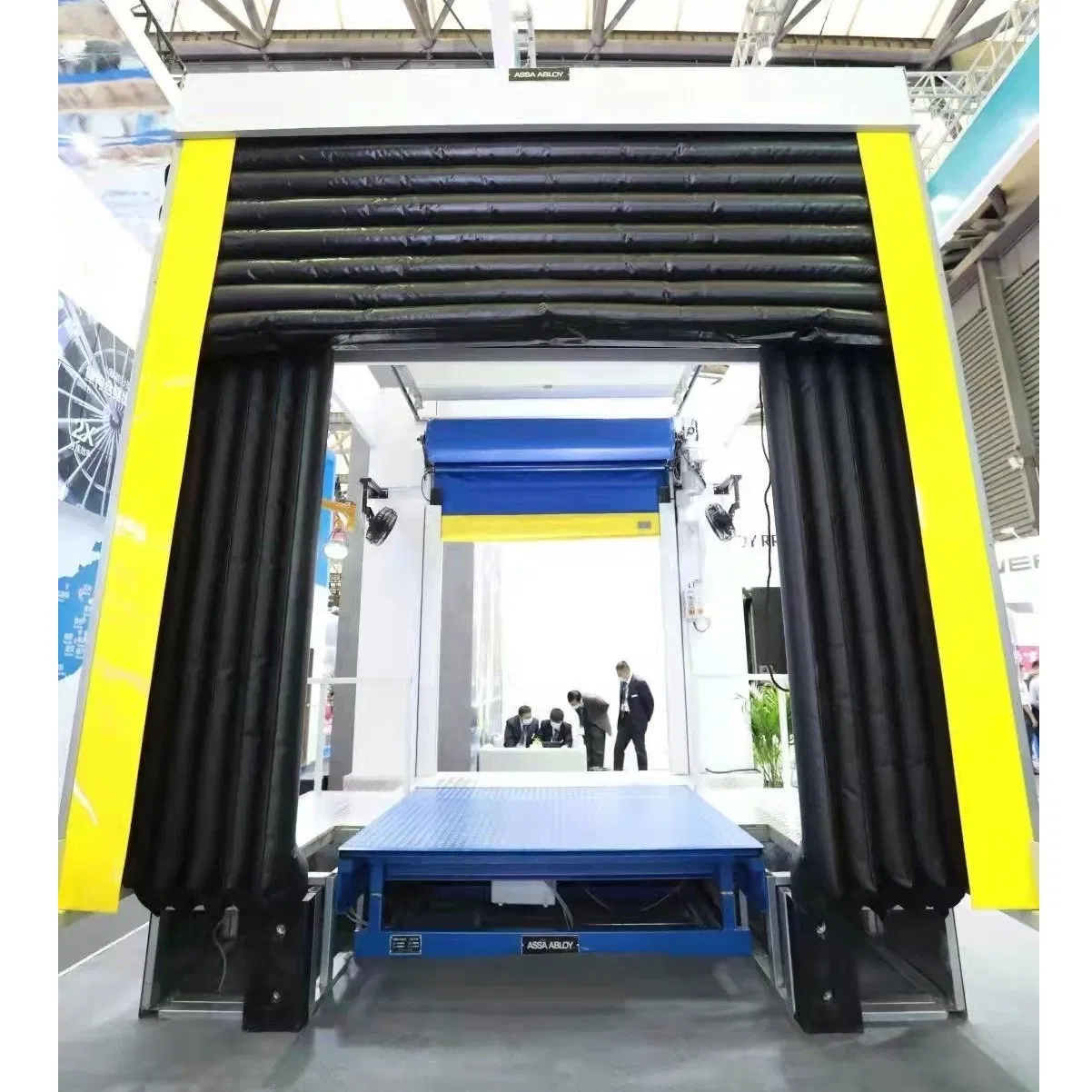

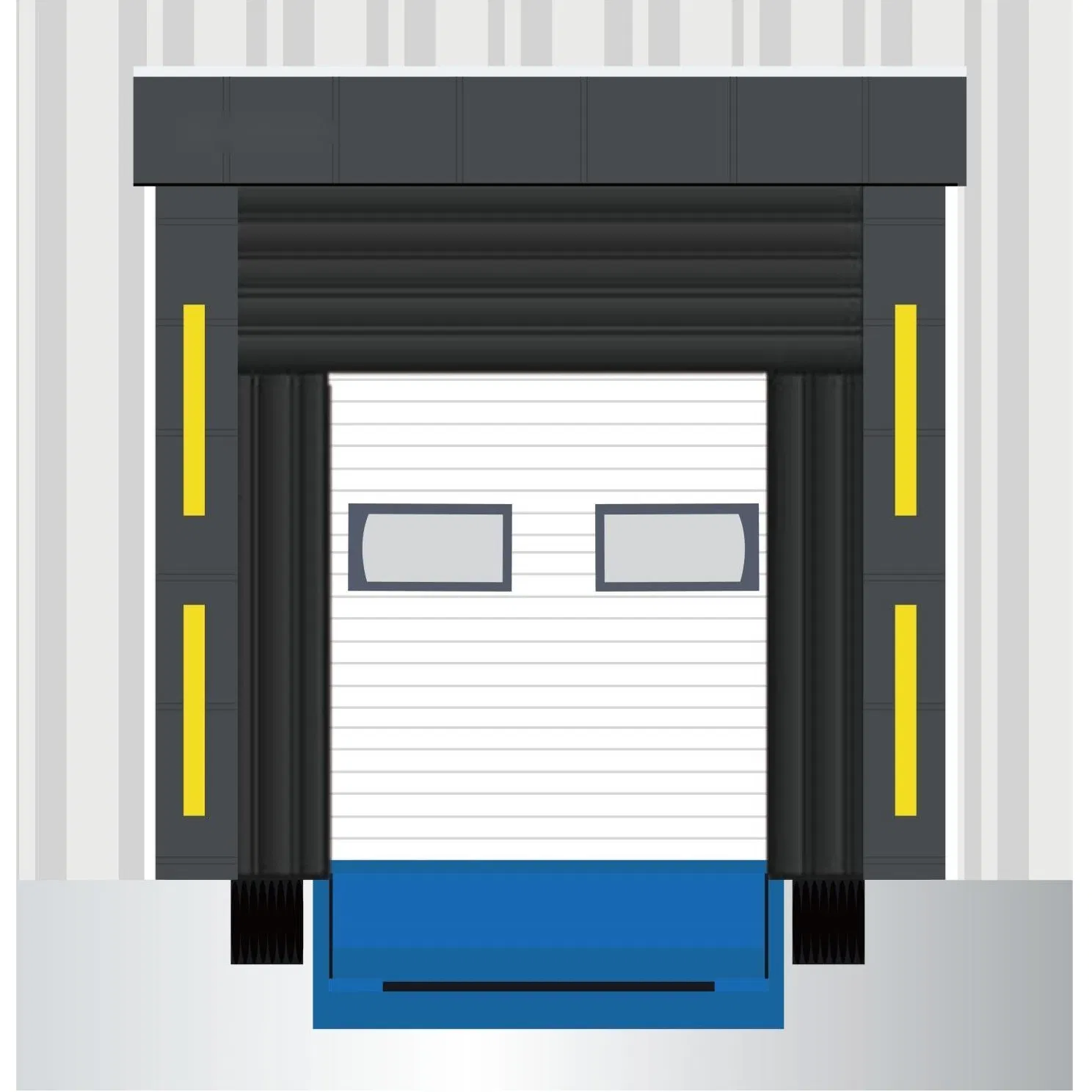

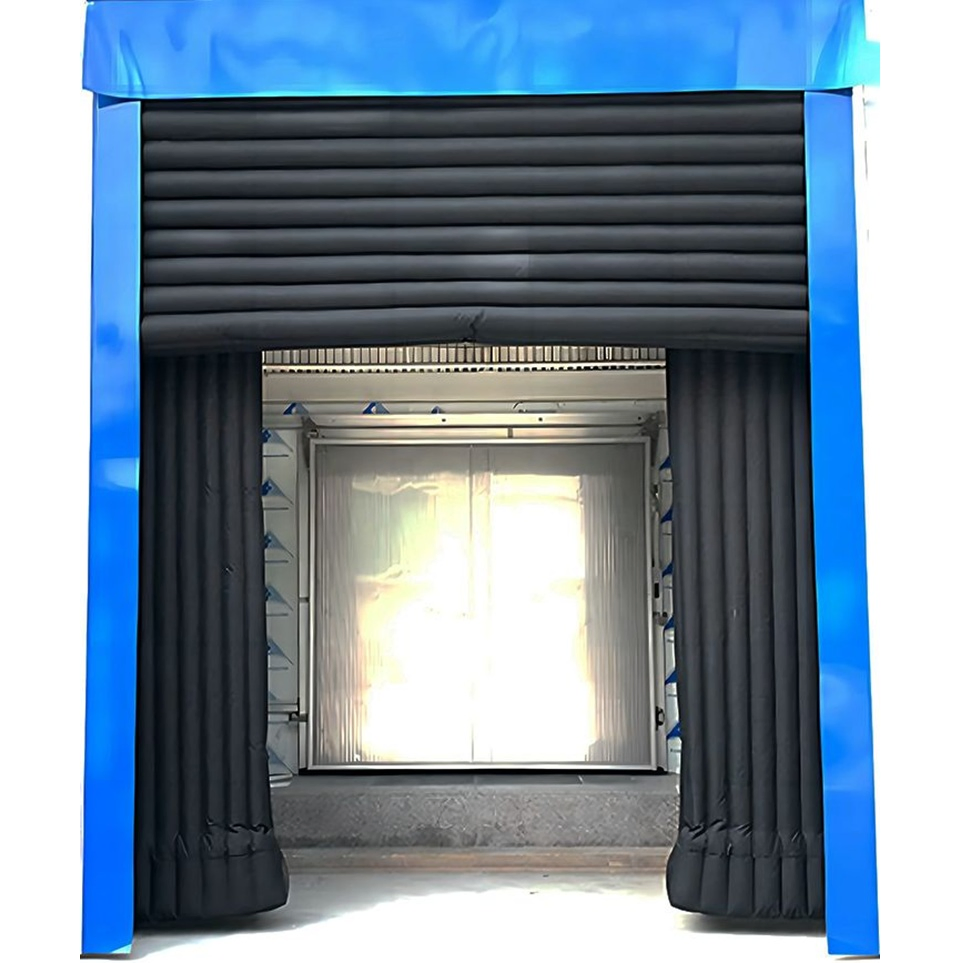

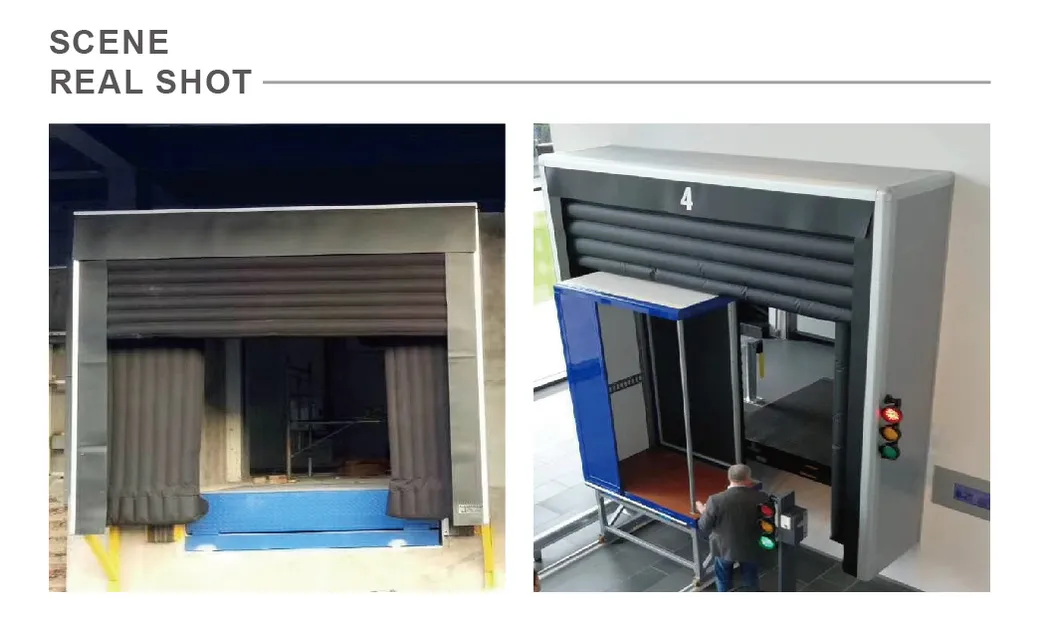

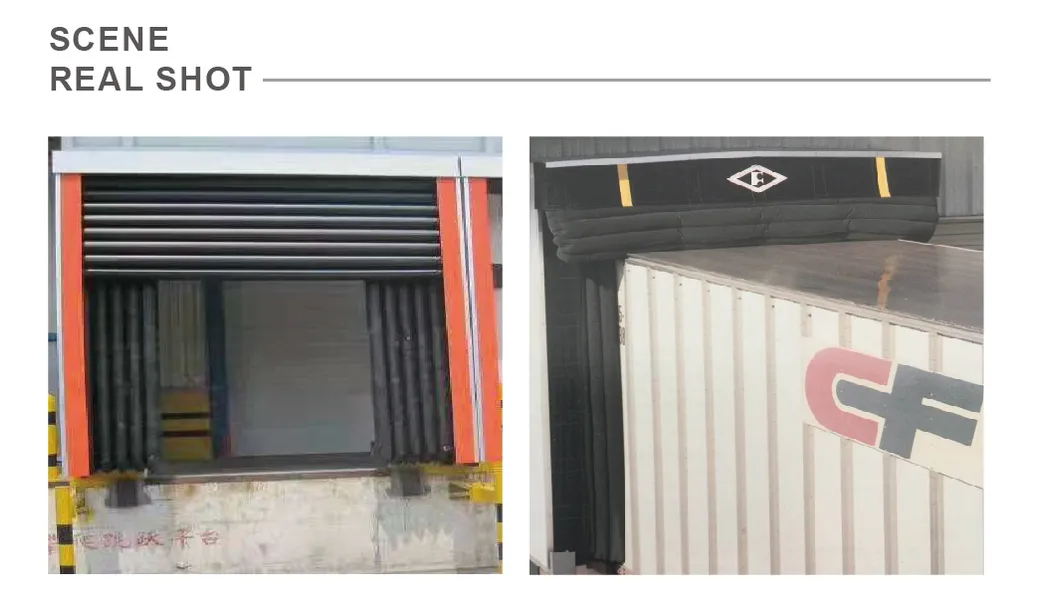

Product Gallery

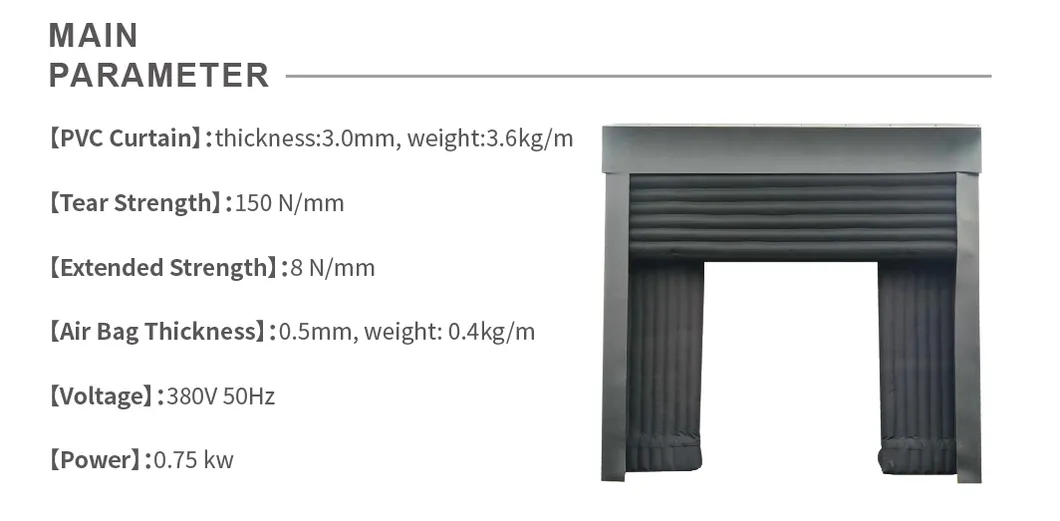

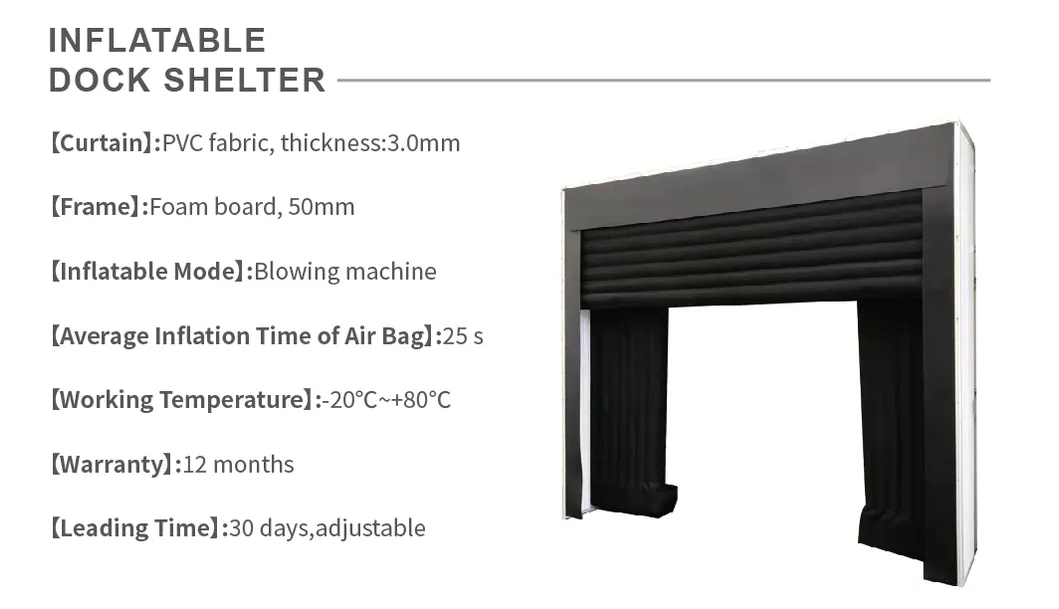

Technical Parameters

MORE PARAMETERS
Feature & Benefits	a. The space between truck and door can be adjusted b. Meet various types of truck dimensions and loading conditions c. Keep indoor temperature, cleaning, anti-wind d. Pressurize and inflate the airbag to achieve sealing effect
Air Bag Fabric	a. Polyester fabric with PVC coating b. Thickness: 0.5mm c. Strength at break: 290N/mm2 d. Weight: 0.4kg/m e. Fireproof grade: EU grade II

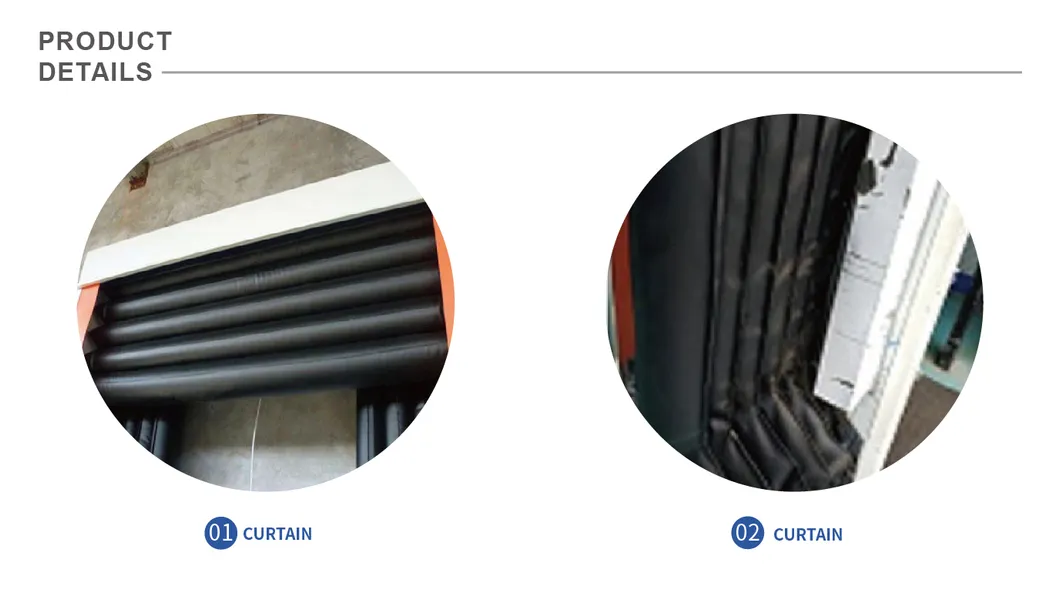

Front Fabric Curtain	a. Polyester fabric with PVC coating b. Thickness: 3.0mm c. Strength at break: 150N/mm2 d. Weight: 3.6kg/m e. Fireproof grade: EU grade II
Air Pump	a. Voltage: 380V 50Hz, 3 phase b. Power: 0.75kw c. Average inflation time: 25s
Metal Frame	a. Material: Aluminium alloy / polyurethane sandwich panel / galvanized steel b. Thickness: 50mm
Standard Size	3600(W)*3600(H) MM or customer-tailor
Temperature Scope	-35ºC ~ +70ºC

Key Features & Certifications

Professional industrial door design, manufacturing, and installation services.
Advanced equipment and technology providing customized solutions for high-quality products.
Comprehensive product range: Steel doors, fire doors, high-speed doors, sectional doors, and logistic docking systems.
Certified Quality: ISO9001 Management Certification and CE Certification.
Industry-recognized high-standard enterprise.

Frequently Asked Questions

Q1: What is the main benefit of using an inflatable dock shelter? A1: It provides a superior air-tight seal between the truck and the warehouse, maintaining indoor temperature, improving cleanliness, and offering protection against wind and weather during loading/unloading.

Q2: How long does it take for the airbag to fully inflate? A2: The average inflation time is approximately 25 seconds using the standard 0.75kw air pump.

Q3: Are the materials used in the dock shelter fireproof? A3: Yes, both the airbag fabric and the front fabric curtain meet the EU Grade II fireproof standard.

Q4: Can the dimensions of the dock shelter be customized? A4: Yes, while the standard size is 3600*3600 mm or 3400*3400 mm, we offer customer-tailored dimensions to meet specific truck and door requirements.

Q5: What is the operational temperature range for this product? A5: The dock shelter is designed to operate effectively in extreme environments ranging from -35ºC to +70ºC.

Q6: What certifications do these dock shelters hold? A6: Our products are certified by ISO9001 and carry the CE Certification, ensuring they meet international quality and safety standards.
