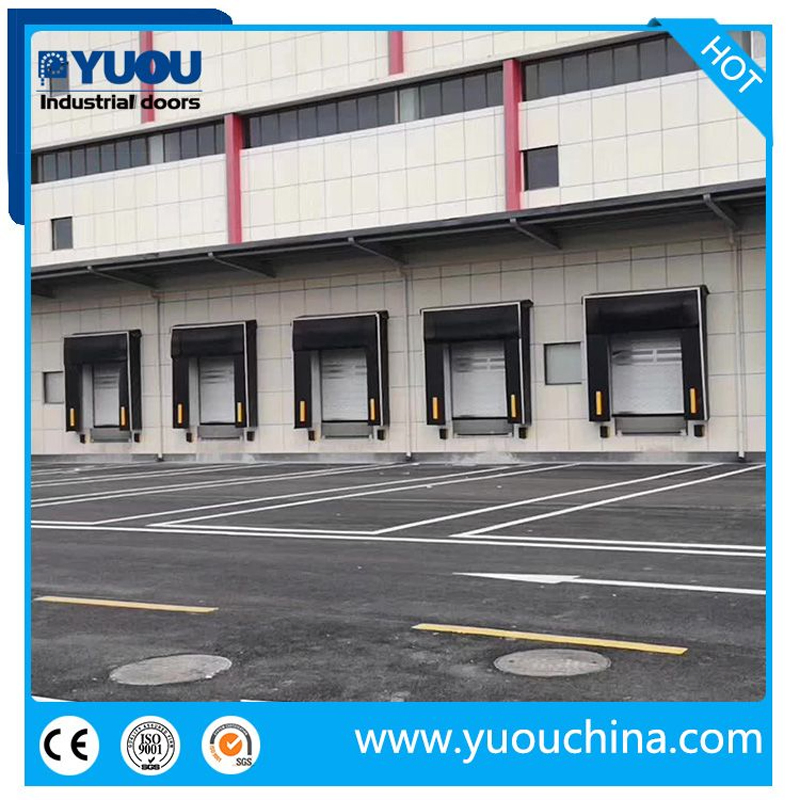

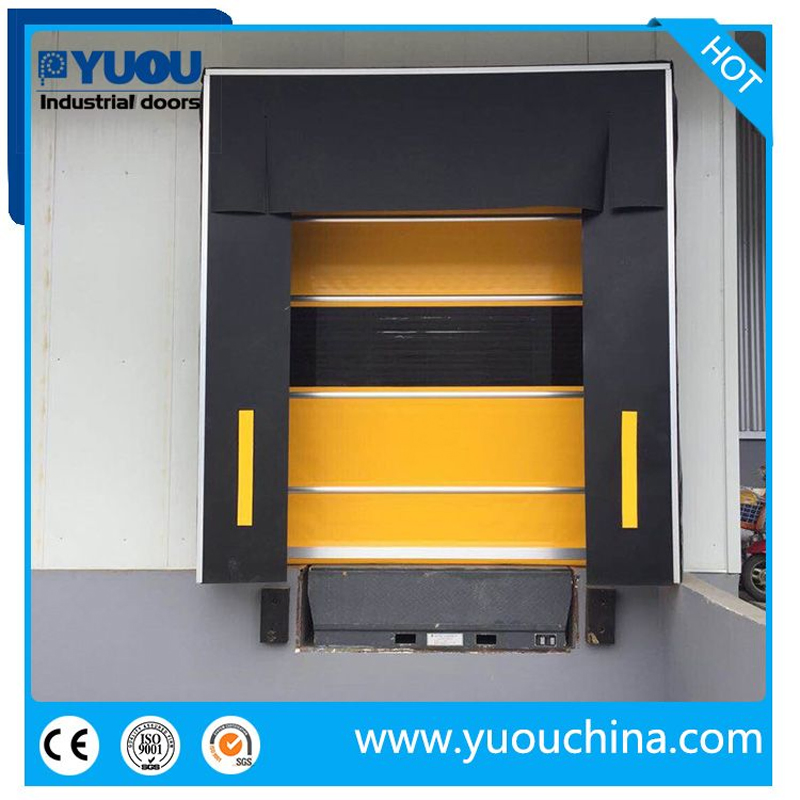

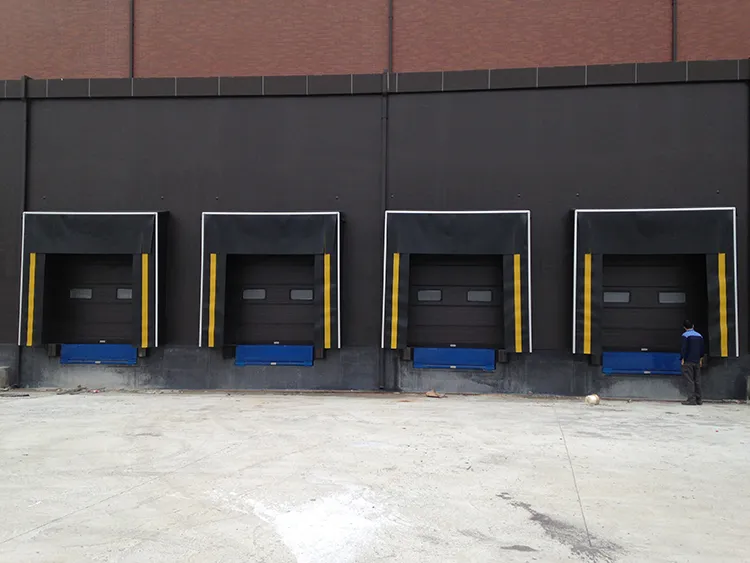

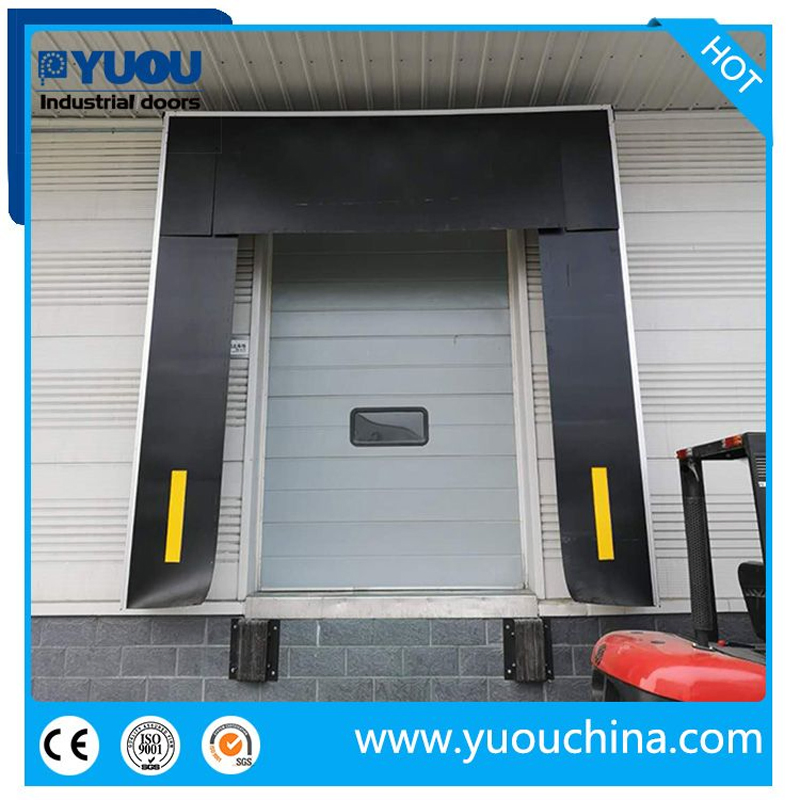

Dock shelter is widely used in dock areas. It seals the gap between the truck and the warehouse, providing a clean and airtight loading environment. Mechanical dock shelters are one of the most commonly used types.
| Mechanical Dock Shelter Specifications | |
|---|---|
| Size | 3400*3400mm or customized |
| Color | Standard color is black, or customized |
| Front Material | Longitudinal tensile >550N, transverse >900N, max tensile 250N/mm², thickness 3mm, unit weight 3.6kg/m² |
| Adjustable Range | 1000mm |
| Side PVC Material | Tensile force 250N, thickness 0.5mm, unit weight 0.7kg/m² |
| Working Temperature | -35ºC to 70ºC |

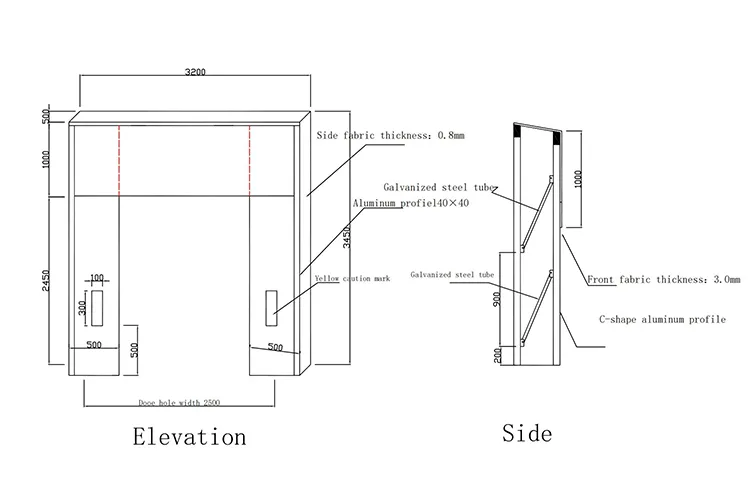

| Aluminum Frame | Rear profile 50*44mm, Front 45*44mm, Frame 50*25*2.5mm, Press plate 34*4.8mm |

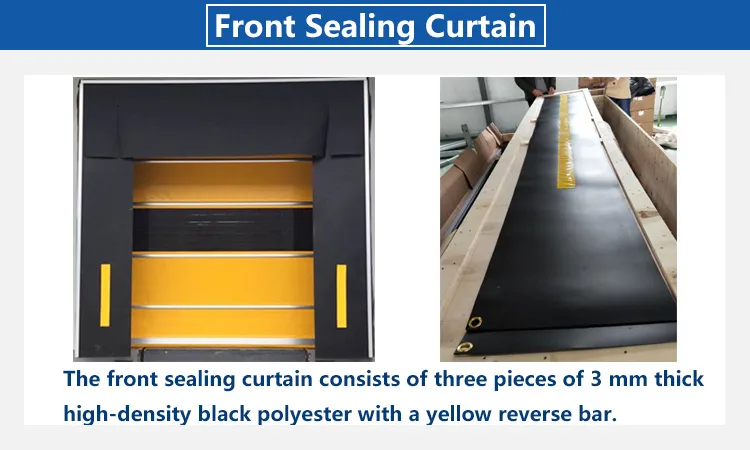

1. Front Curtain: High durability with longitudinal tensile strength >550N and PVC friction coefficient 0.4.

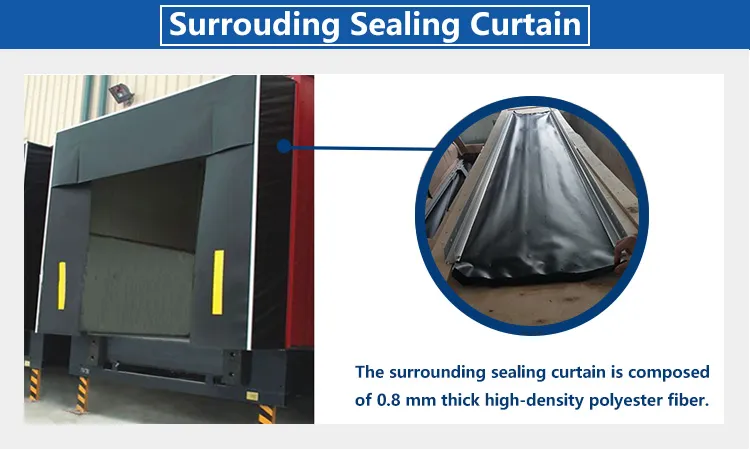

2. Side Curtain: Flexible PVC material with 0.5mm thickness and 0.7kg/m² unit weight.

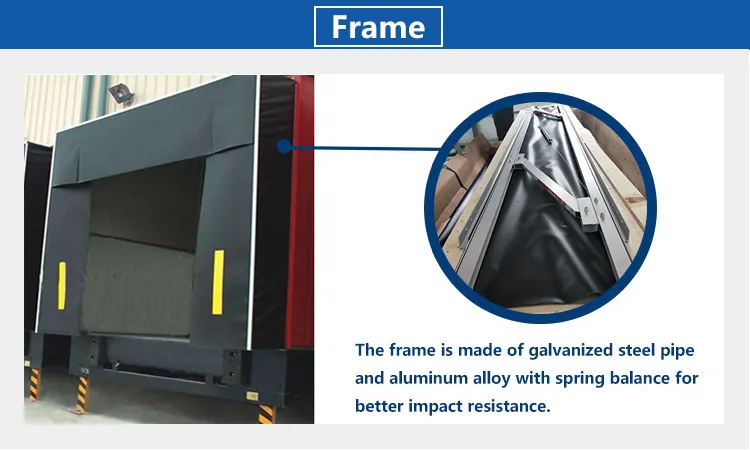

3. Aluminum Frame: Robust structure utilizing various profile sizes for maximum stability.

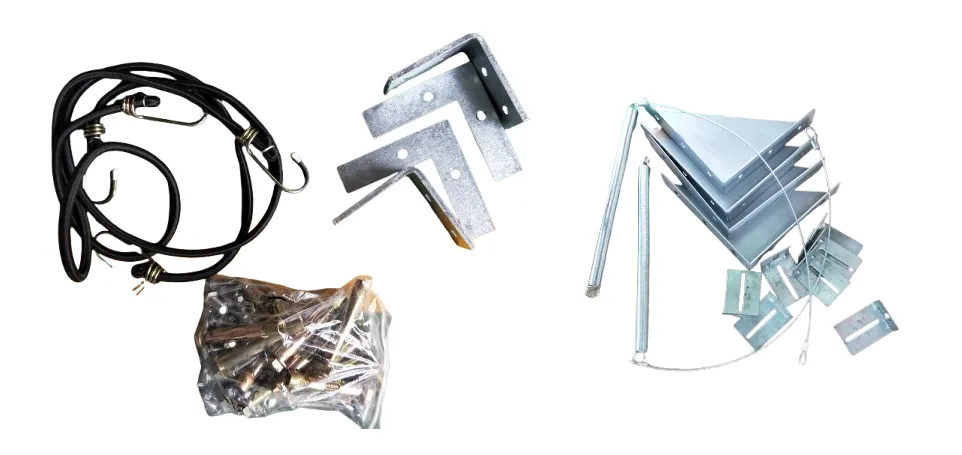

4. Accessories:
