Home > Lifting Levelers > Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
1 / 5
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler
Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler

Fastlink Customized Warehousing Buildings Factory Intelligent Hydraulic Lifting Equipment Truck Docking Dock Leveler

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
DLS-SHK
Application
Workshop Crane, Warehouse Crane
Lift Mechanism
Hydraulic
Carrying Capacity
Weight Level
Driven Type
Hydraulic
Feature
Efficient, Safe and Intelligent Control
Dynamic Load
6.8t / 10t / 15t
Certification
CE
Table Size
W2000mm * L2500mm * H600mm
Lip Length
400mm
Power
380V, 3pH, 50Hz
HS Code
8428909090
★

Product Description

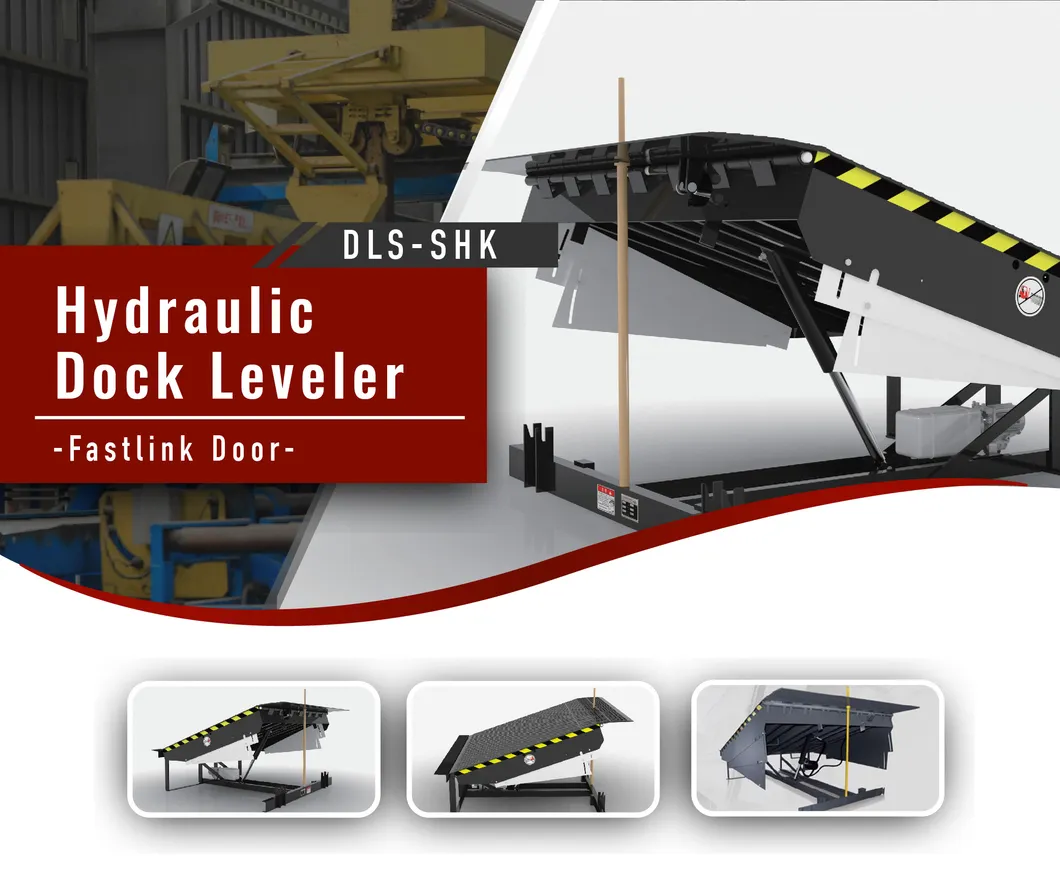

Hydraulic Lifting Equipment Truck Docking Dock Leveler
Important Attributes
ProductHydraulic docks leveler
MaterialHigh-strength steel
Opening ModeElectro-hydraulic

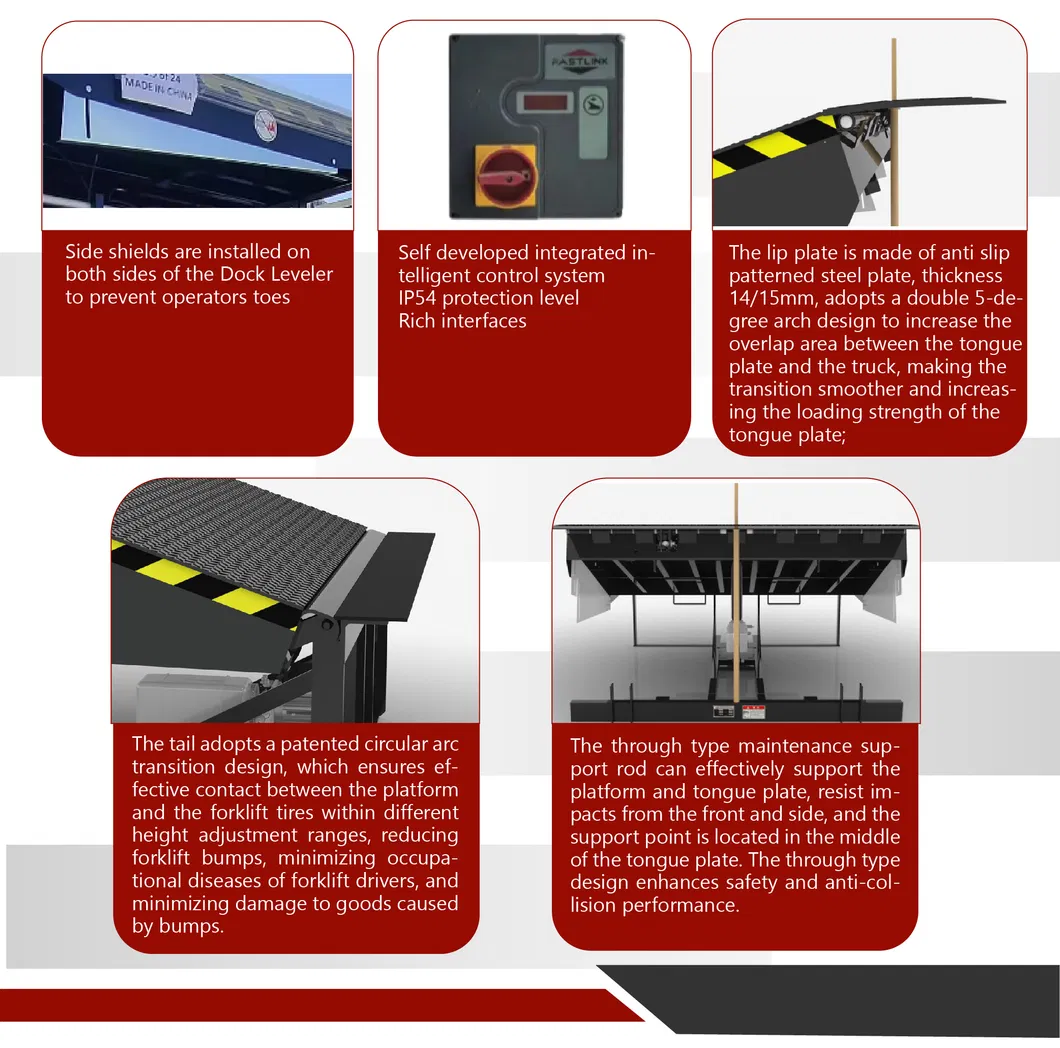

Deck PlateHigh strength non-slip pattern steel plate, substrate thickness 8mm
Lip Plate FeaturesThickness 14/15mm, double 5-degree arch design for better transition and bearing strength.
Bottom Reinforcement8-10 C-rope steel reinforcements for optimal support.

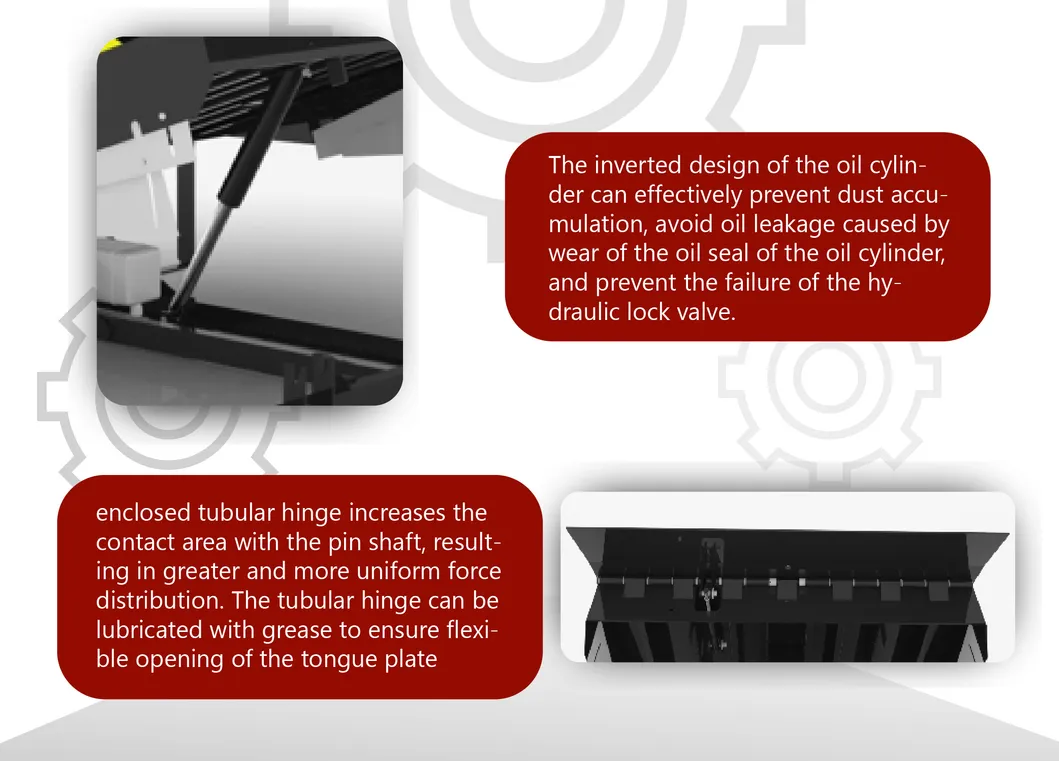

Hinge DesignClosed tubular hinges for uniform force and easy lubrication.

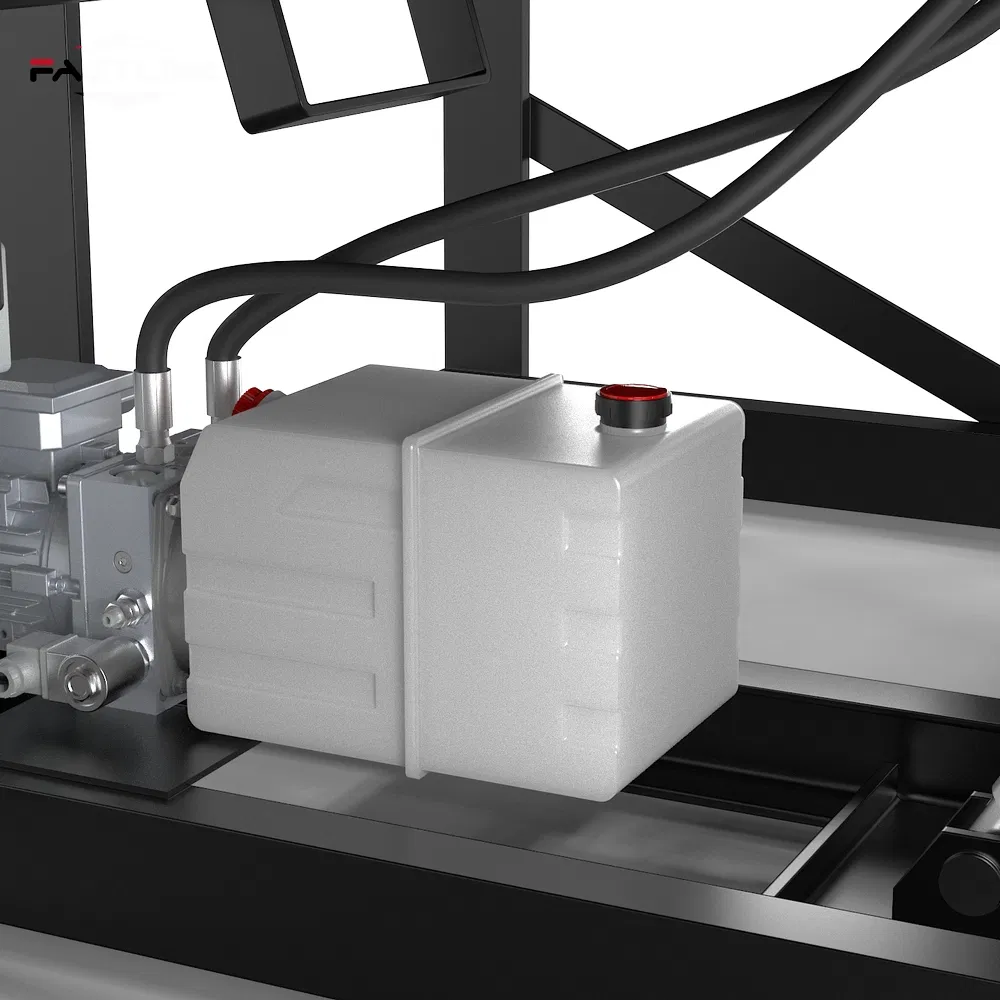

Hydraulic SystemIntegrated power unit for reliable operation and low maintenance.
Intelligent ControlFault code display, fire linkage, interlock function, and self-safety protection.

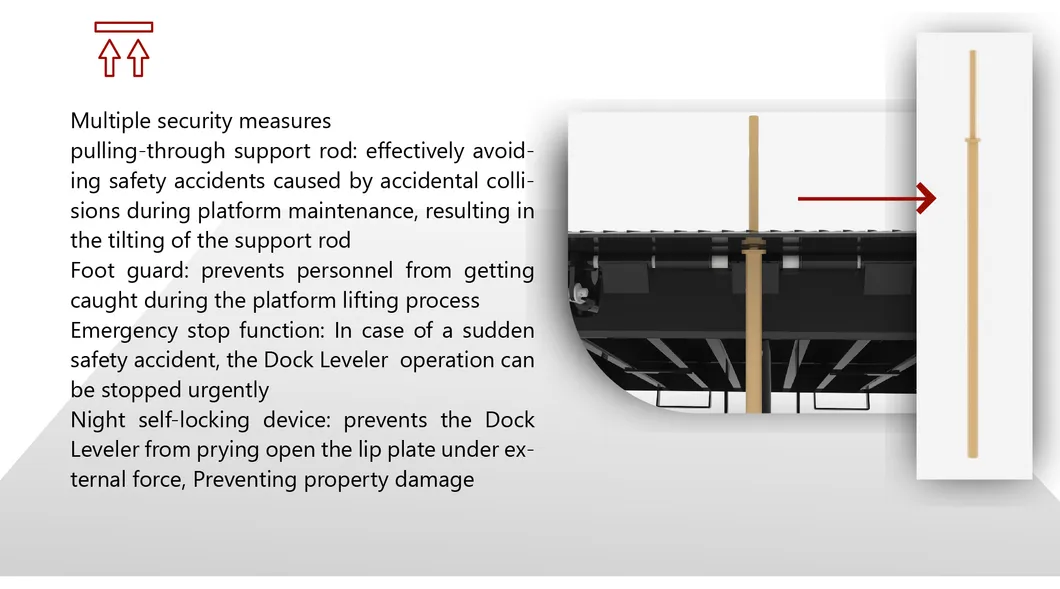

Security Configuration

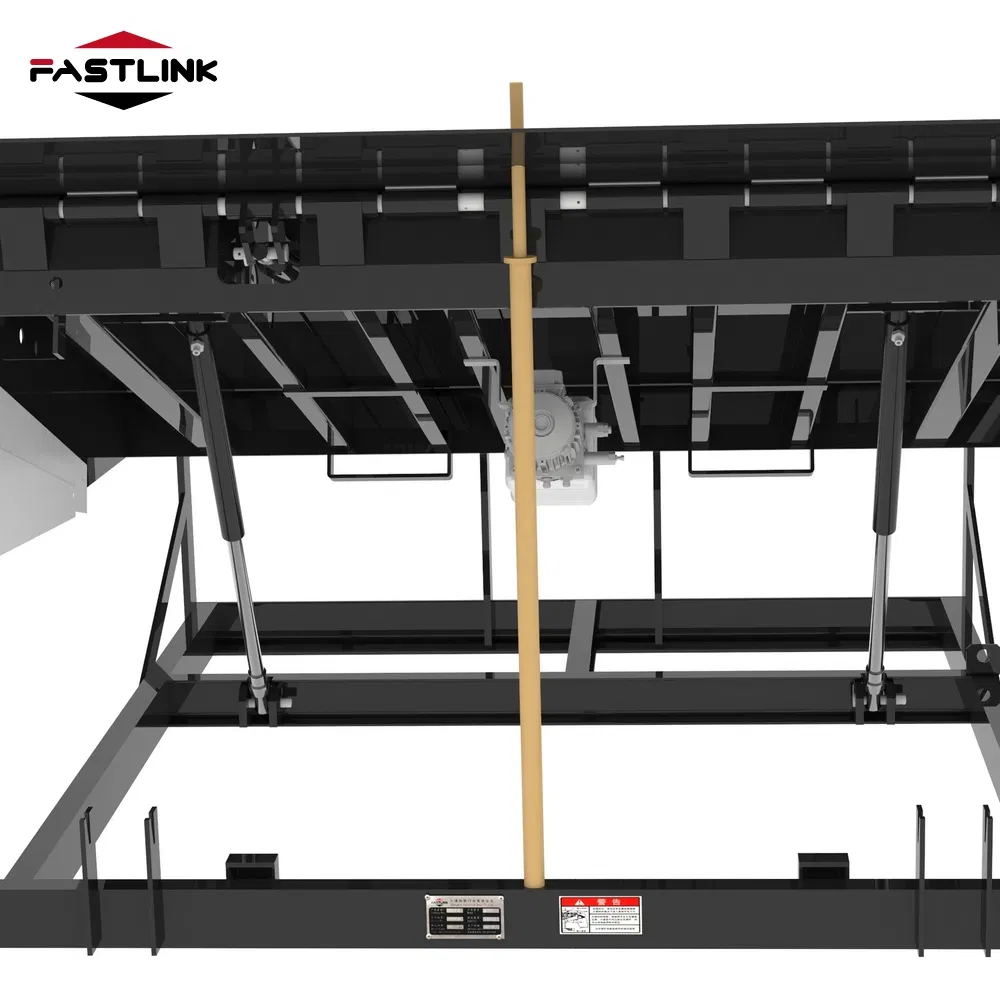

Maintenance SupportPenetrating support bars for enhanced safety during maintenance.
Side ProtectorsFoot protectors on both sides to prevent toe injury.
📷

Visual Gallery

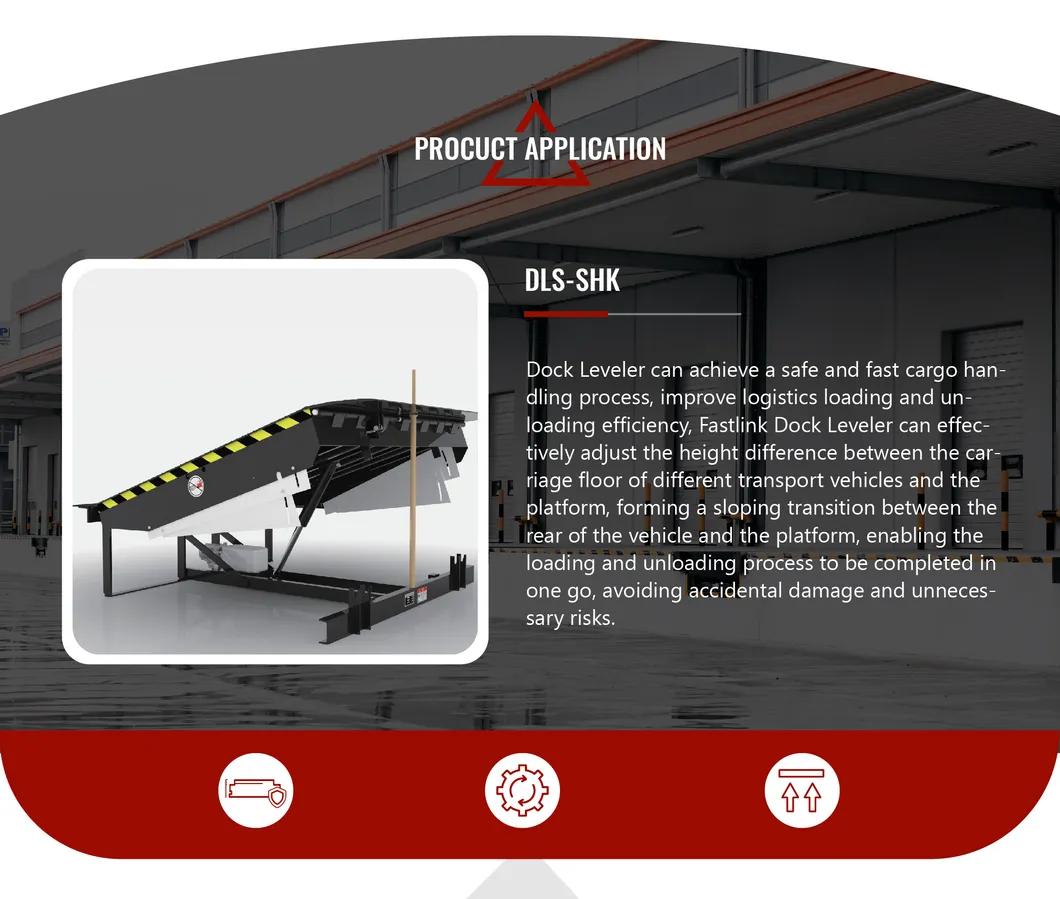

Dock Leveler Detail 1

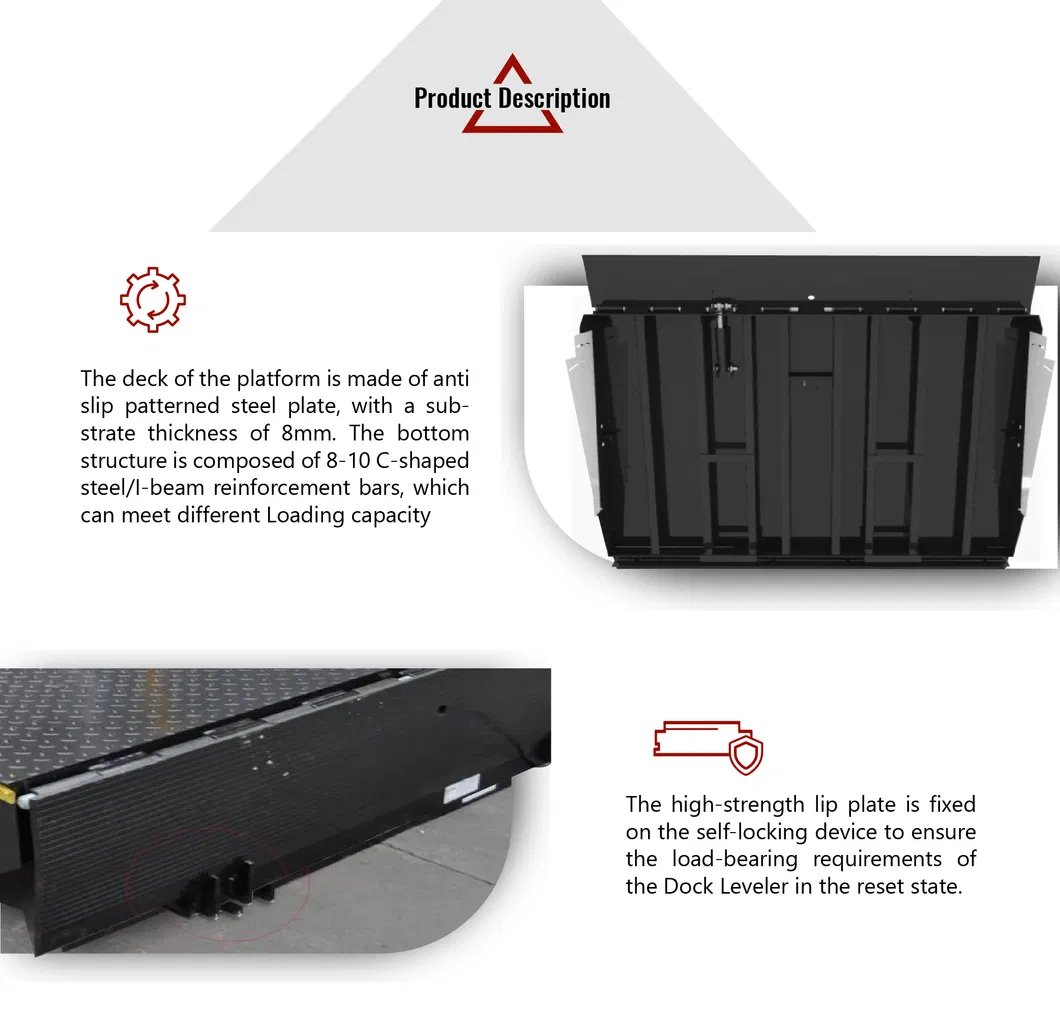

Dock Leveler Detail 2
Dock Leveler Detail 3

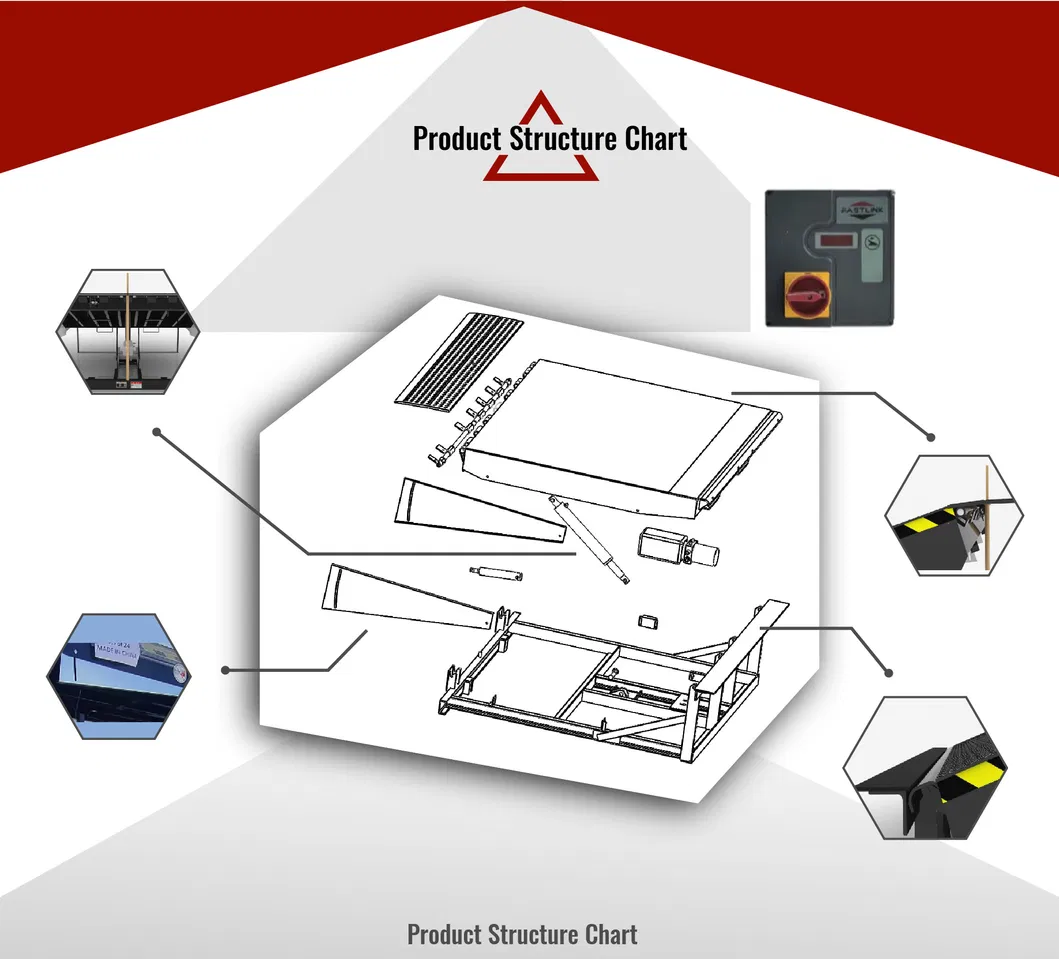

Dock Leveler Detail 4
Dock Leveler Detail 5

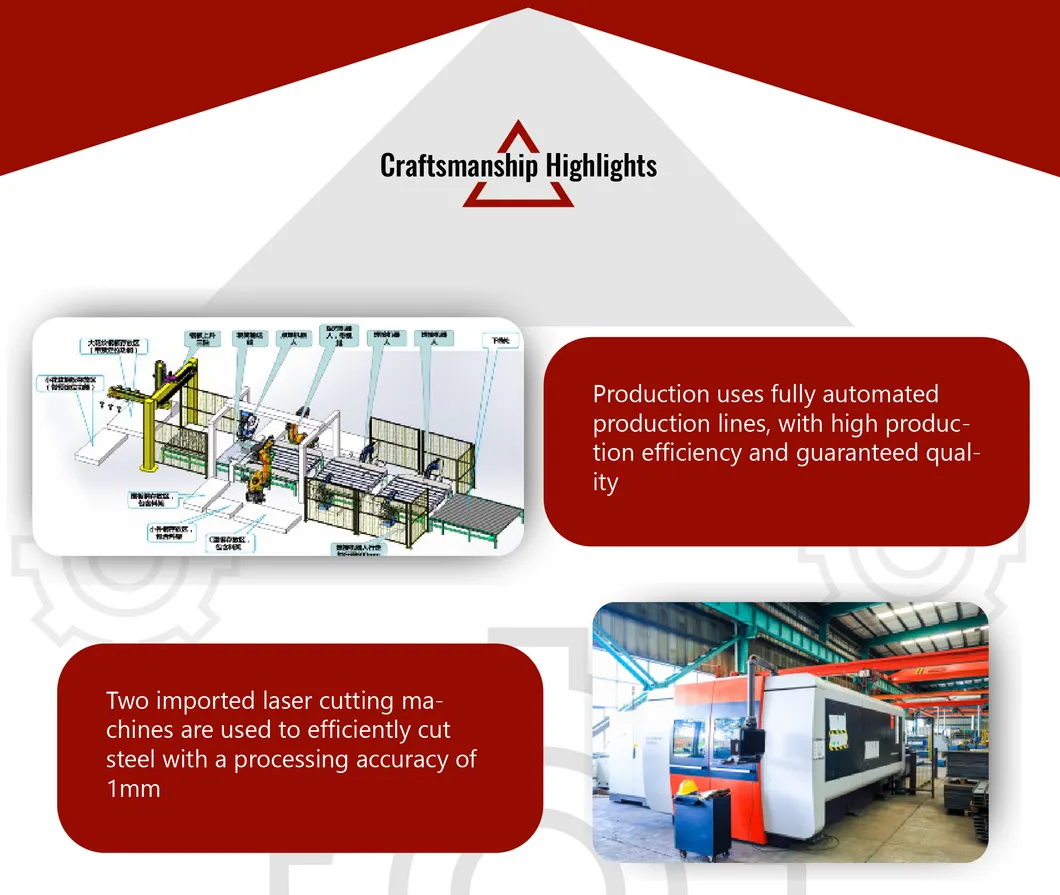

Dock Leveler Detail 6
Dock Leveler Detail 7

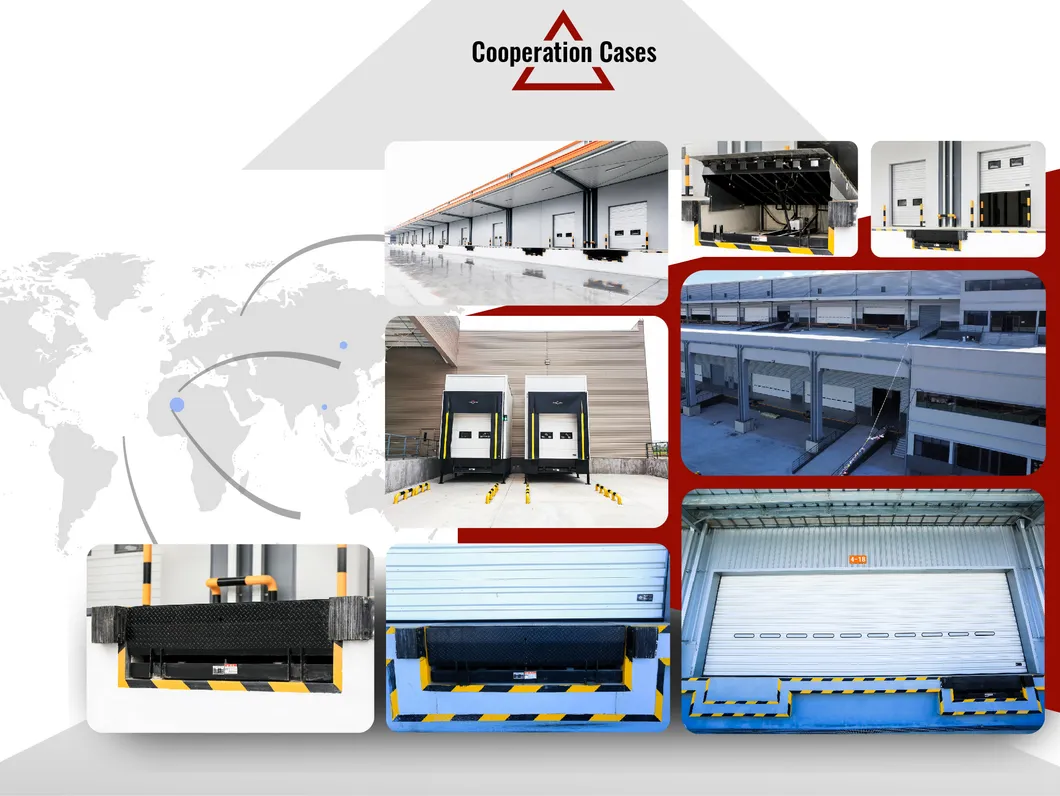

Dock Leveler Detail 8
Dock Leveler Detail 9
Dock Leveler Detail 10

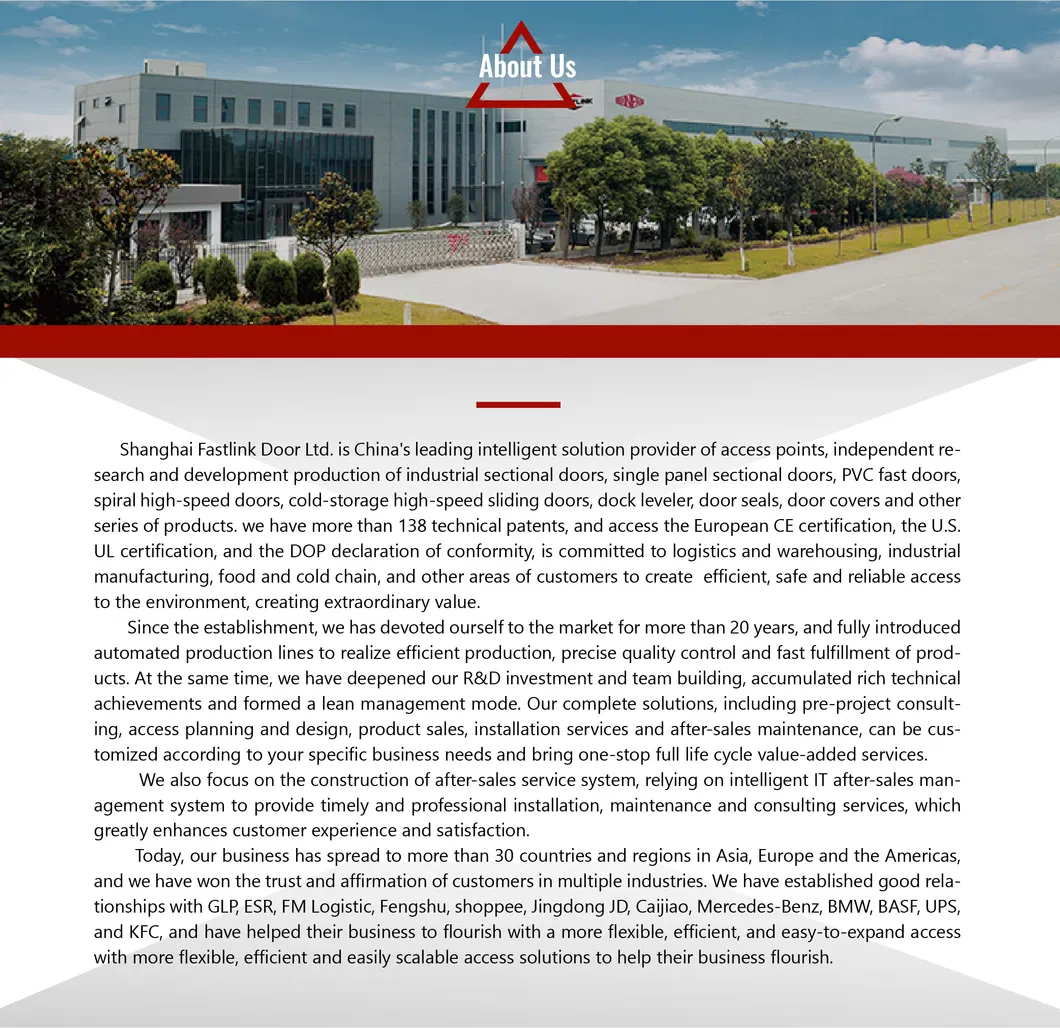

Dock Leveler Detail 11
Dock Leveler Detail 12
📦

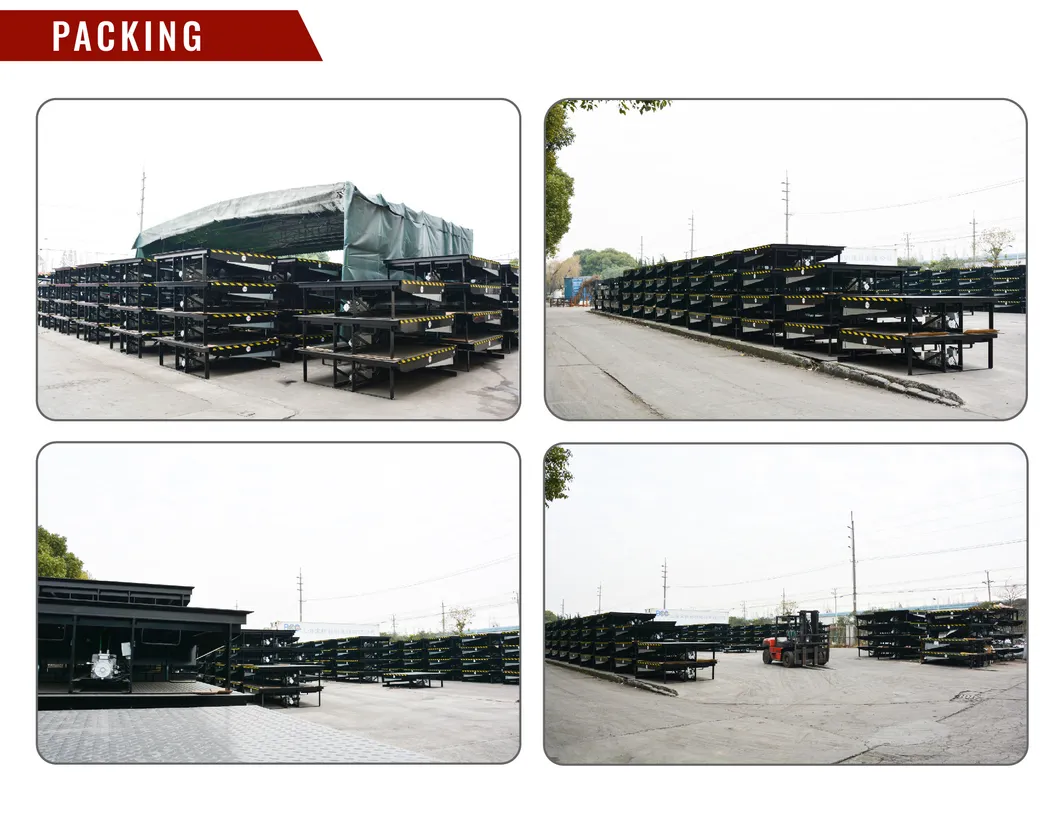

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
750.000kg
Transport Package
Wooden Box / Pallet
Supply Ability
2000 sets / Month
?

Frequently Asked Questions

Q1: How to choose the correct length for the Hydraulic Dock Leveler?
The length depends on the difference between the carriage floor height and the platform height. The formula used is L = h / 0.125, where 'h' is the height difference.
Q2: What are the standard sizes for these dock levelers?
Commonly selected sizes include W2000mm * L2000mm * H600mm, but sizes can range from W1400mm up to W2200mm in width and L2000mm to L4000mm in length.
Q3: What is the difference between dynamic and static platform loads?
Dynamic load is the maximum combined weight of the forklift and cargo during operation while hitched. Static load is the maximum weight the platform can hold in its reset (stored) state.
Q4: What safety features are integrated into the control system?
The system includes fault code displays, operation status monitoring, fire linkage, interlocking functions, and self-safety protection to ensure secure warehouse operations.
Q5: What materials are used for the deck and lip plates?
The deck utilizes 8mm high-strength non-slip pattern steel plate reinforced by C-rope steel, while the lip plate uses 14/15mm thick anti-slip tread steel with an arc transition design.
Q6: What certifications do your dock levelers hold?
Our equipment is fully certified with CE and UCL standards, ensuring it meets international safety and quality requirements.
