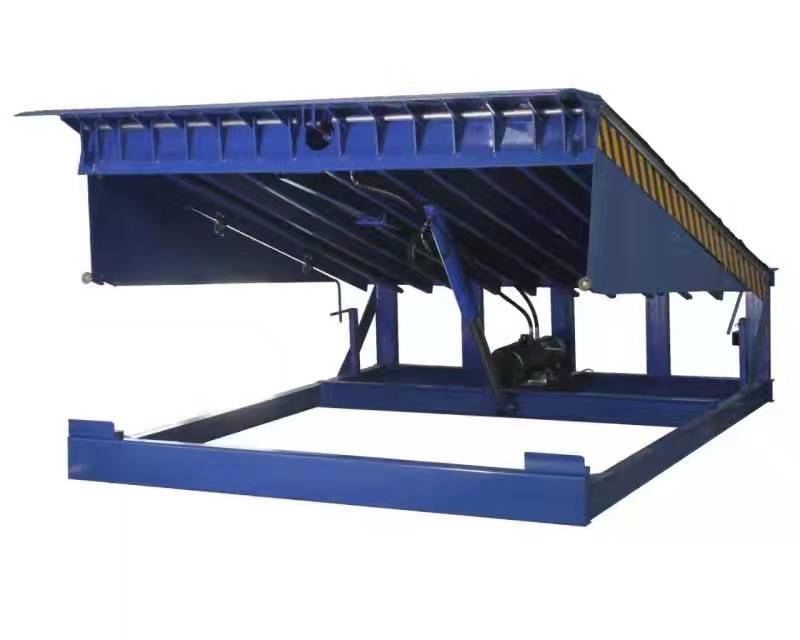

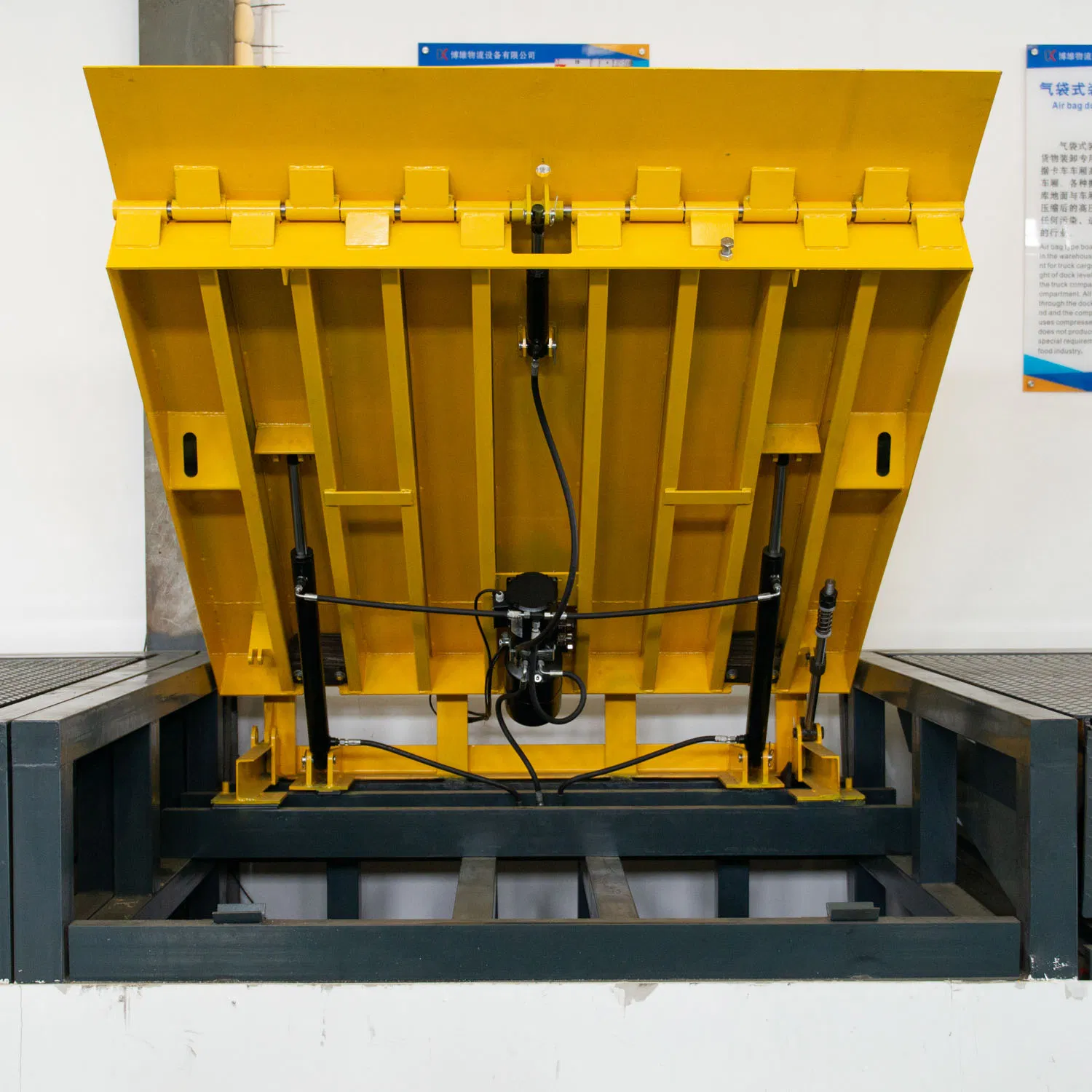

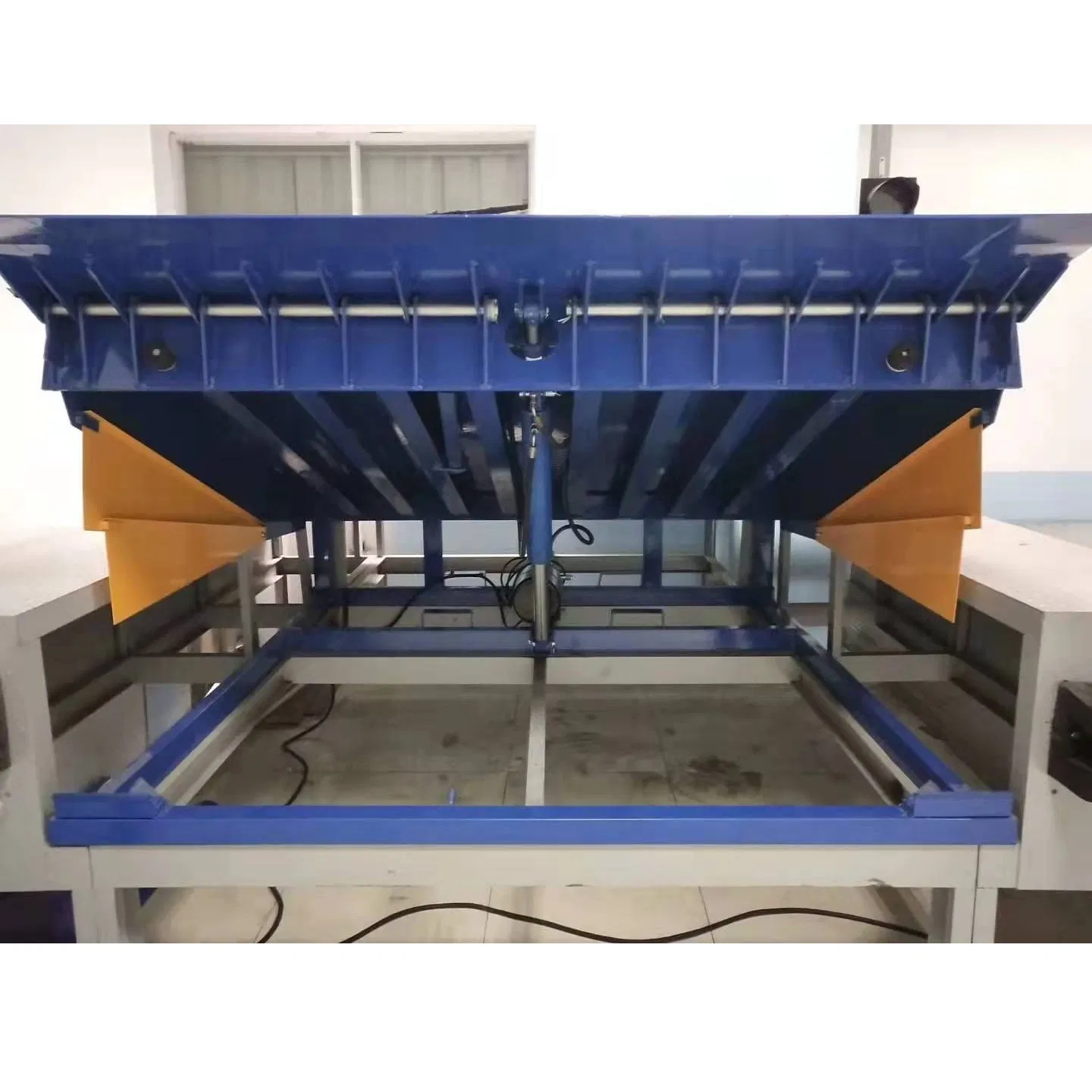

Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
1 / 5
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler
Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler

Electric Car Lift Platform Hydraulic Loading Ramp Truck Container Pit Lifting Equipment Dock Leveler

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

ℹ️
Basic Information
Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Specification
2000*2000*600 mm
Origin
Made in China
HS Code
84254290
📦
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
Transport Package
Wrapping Film

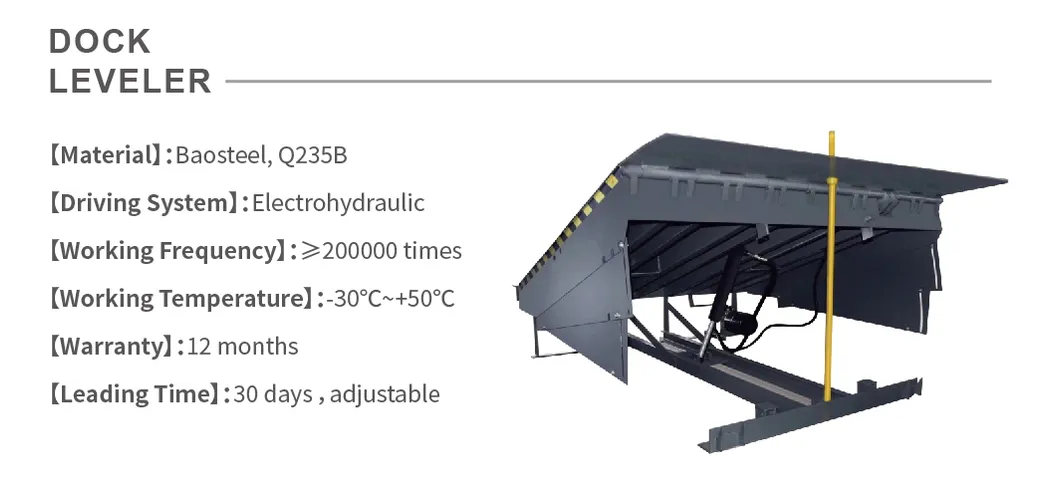

Lift Platform
Hydraulic Loading Ramp
⚙️
Technical Parameters
DETAILED SPECIFICATIONS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; surface treatment is blasting and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
Driving SystemElectrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main CylinderSingle cylinder / double cylinders
Main Board Stiffener8 pcs of 14# I-Beam, height of Beam is 140mm
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Anti-collision Bumper300*200*100 mm
Working Frequency≥ 200,000 times

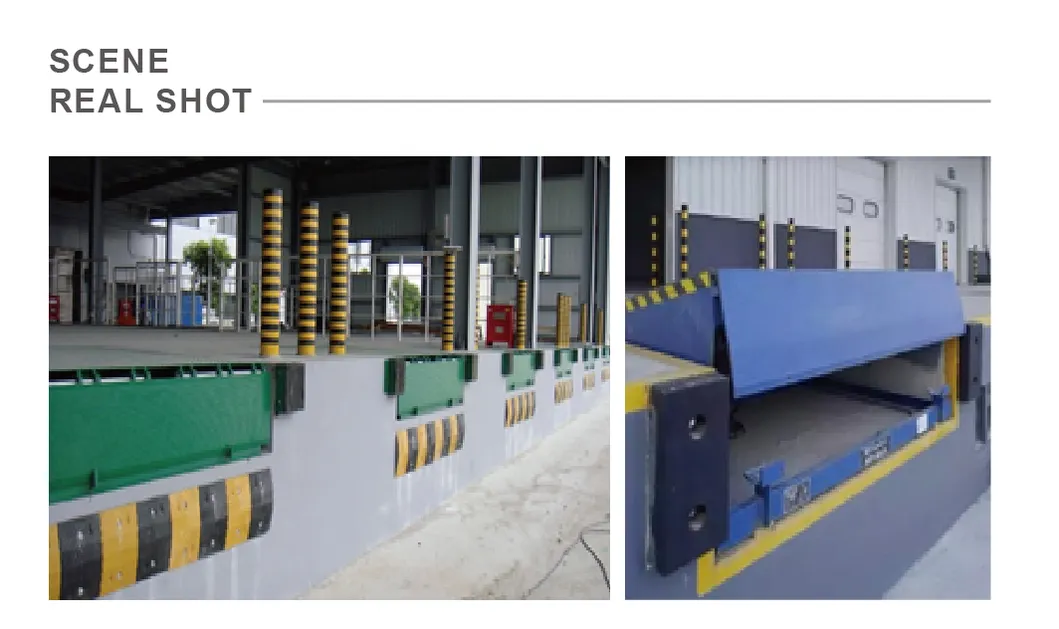

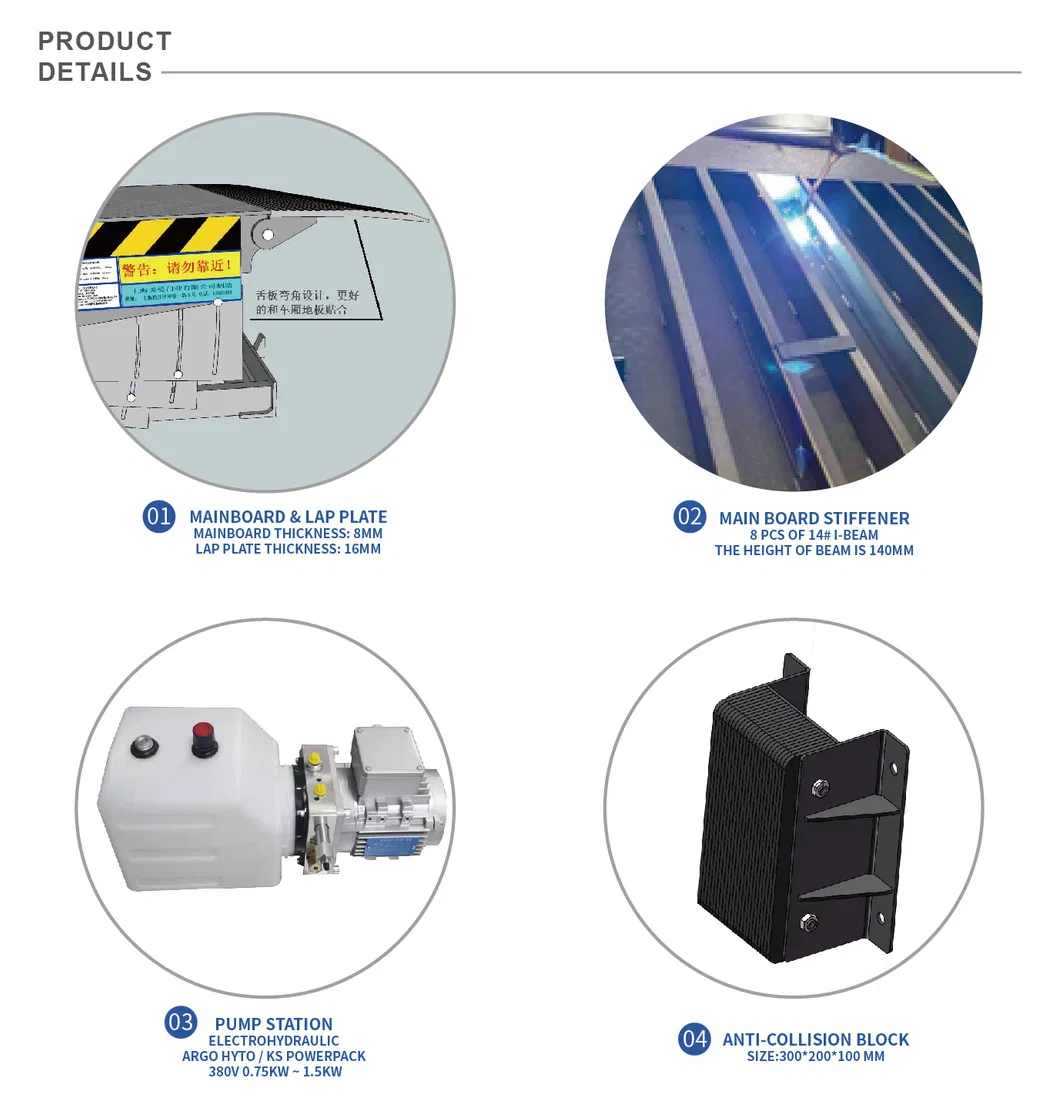

Dock Leveler Detail

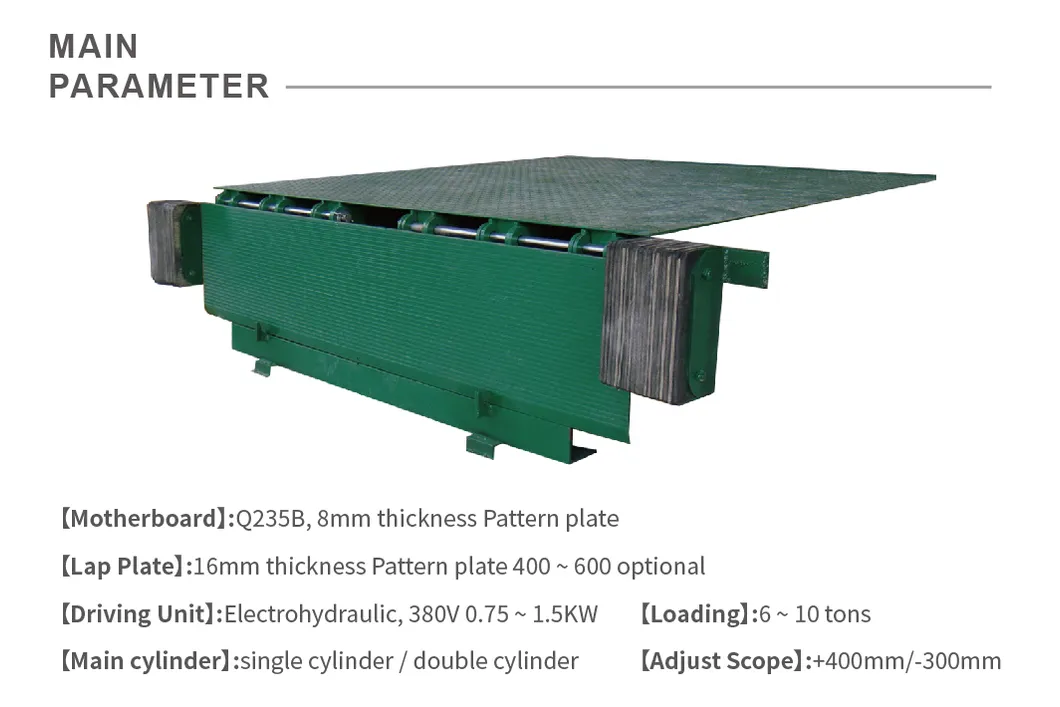

Loading Equipment
Container Pit Lifting
Technical Drawing

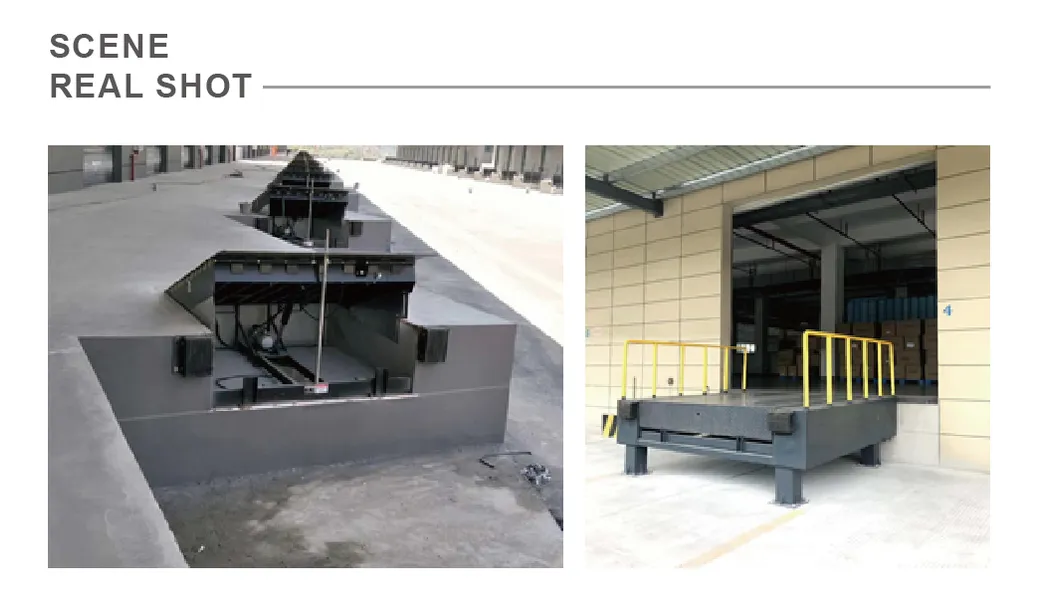

Installation View
❓
Frequently Asked Questions
What is the dynamic load capacity of this hydraulic dock leveler?
The equipment supports dynamic loads of 6T, 8T, 10T, 12T, and 15T depending on the specific configuration.
What materials are used for the main board?
The main board is constructed from Q235B steel plate with an anti-slide pattern, featuring a thickness of 6mm to 8mm and a powder-coated surface.
Can this equipment operate in extreme temperatures?
Yes, the working temperature range for this hydraulic system is from -30ºC to +50ºC.
What safety features are included?
It includes an explosion-proof valve, automatic retraction side baffles for toe protection, and high-quality anti-collision bumpers.
How long is the lifting and lowering cycle?
The upward adjustment takes ≤ 16 seconds, and the downward adjustment takes ≤ 10 seconds.
What power supply is required for operation?
The standard power requirement is 220V/380V at 50Hz, with power ratings between 0.75 Kw and 1.5kw.
