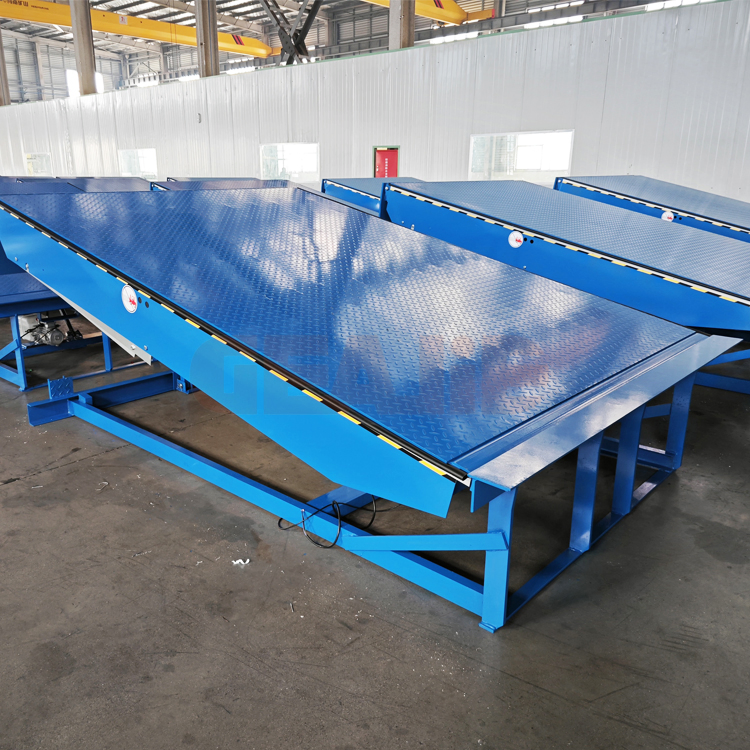

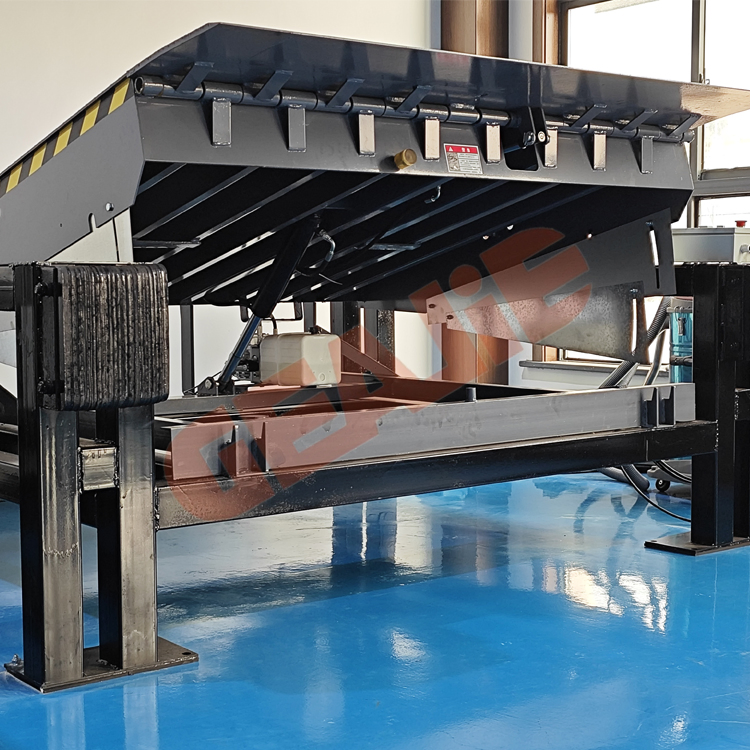

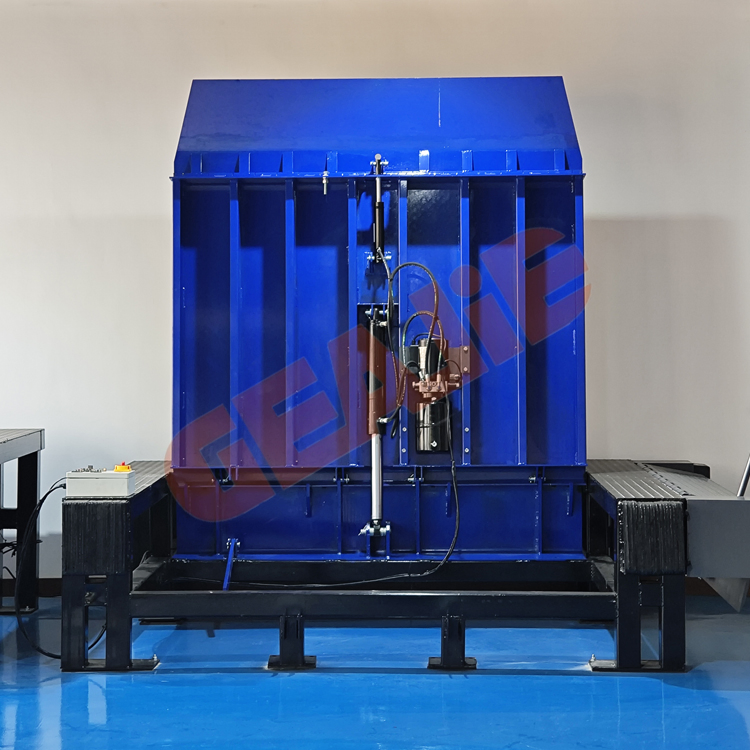

Loading and Unloading Container Lifting Table Stationary Mechanical Hydraulic Dock Levelers Landing Platform

Customization: Available
After-sales Service: Available
Warranty: 1 Year

Product Description

📊Basic Information
Model NO.DL11 ApplicationWarehouse Crane, Charge and Discharge
Lift MechanismArticulated Lift Carrying CapacityWeight Level
MovesStationary Driven TypeHydraulic
Running ModeStationary FeatureExplosion-Proof, Insulating
CertificationCE, RoHS, ISO 9001, AAA TypeWork Platform
Power Supply380V/0.75kw Hydraulic Power UnitSwiss Bucher Hydraulic System
Loading Capacity10000kg Working Range-300 to +350mm
📦Product Description
Dock Leveler Overview

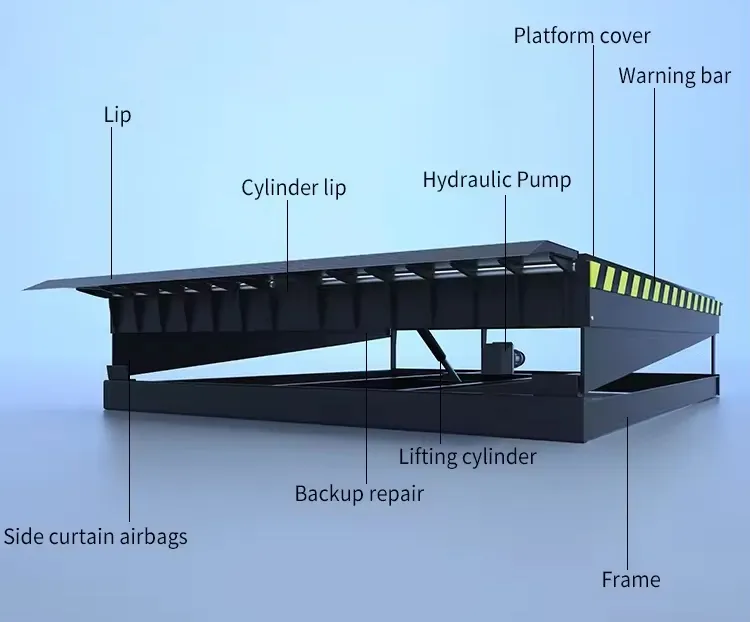

Electric Hydraulic Dock Leveller

Electric Hydraulic Dock Leveller
🖼️Product Show
Product Detail 1

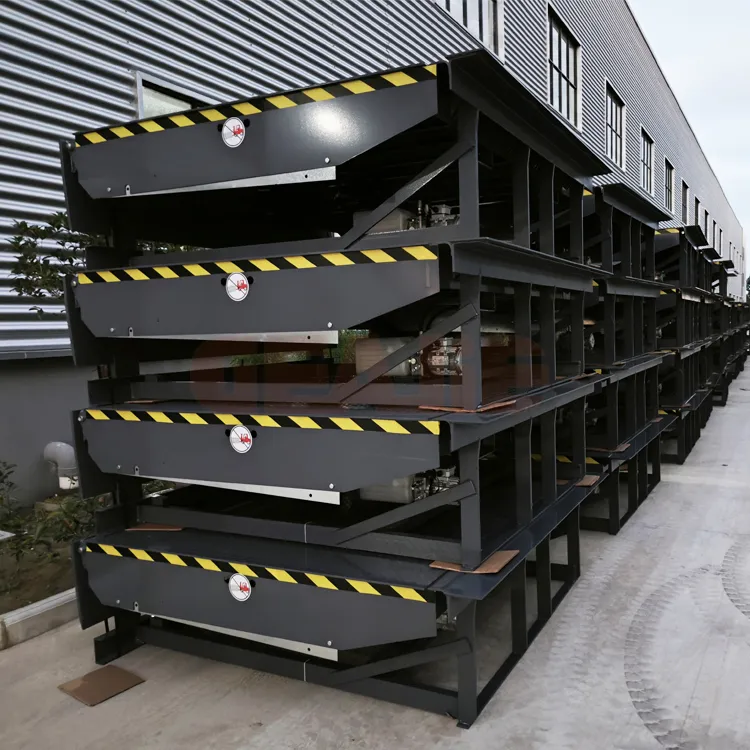

Product Detail 2

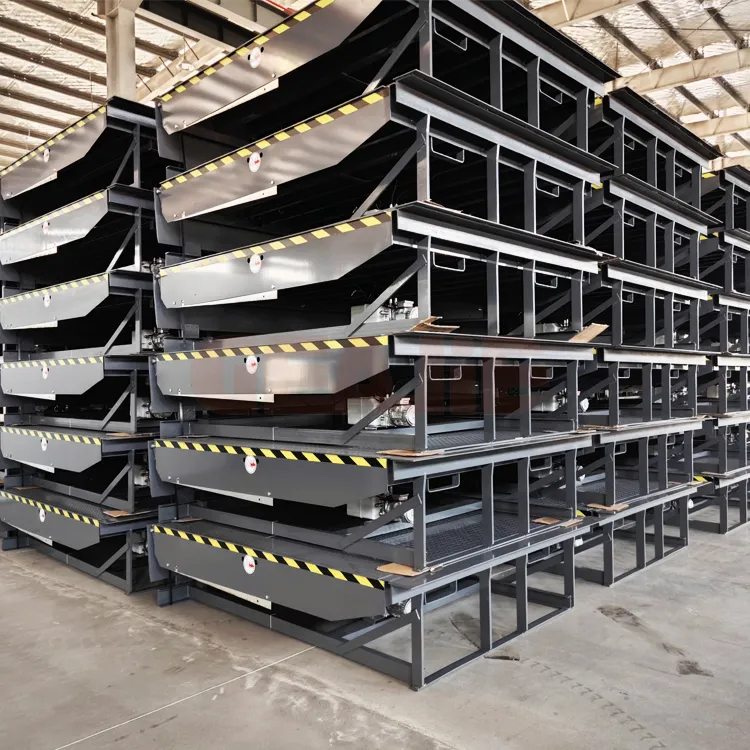

Product Detail 3

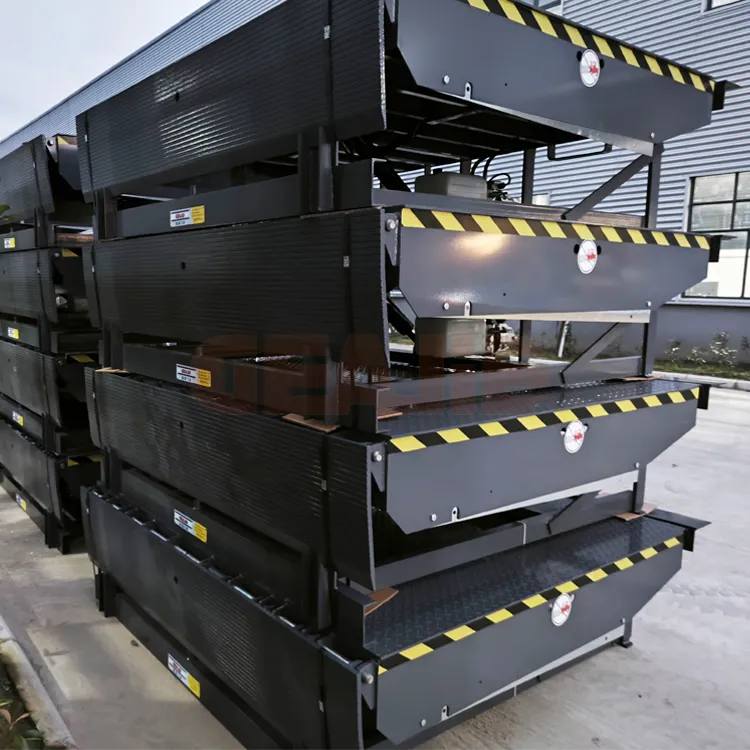

Product Detail 4

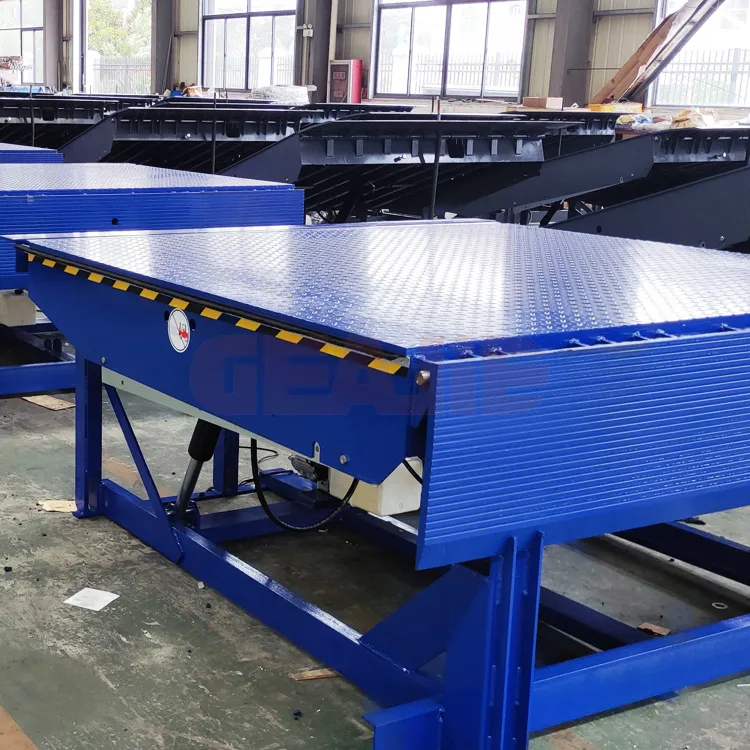

Product Detail 5
📋Material Specifications
FeatureSpecification
Application EnvironmentLogistics unloading port
Load Capacity6-25 tons
Width Options1830mm, 2000mm, 2130mm
Length Options2000mm, 2500mm, 3000mm, 3500mm
Countertop Structure8mm high-strength anti-skid pattern steel plate with bottom reinforcement
Lip Thickness14mm, 16mm, or 20mm high-strength anti-slip steel
Security ConfigurationAnti-fall function, anti-pinch protection, maintenance support rod, night self-locking

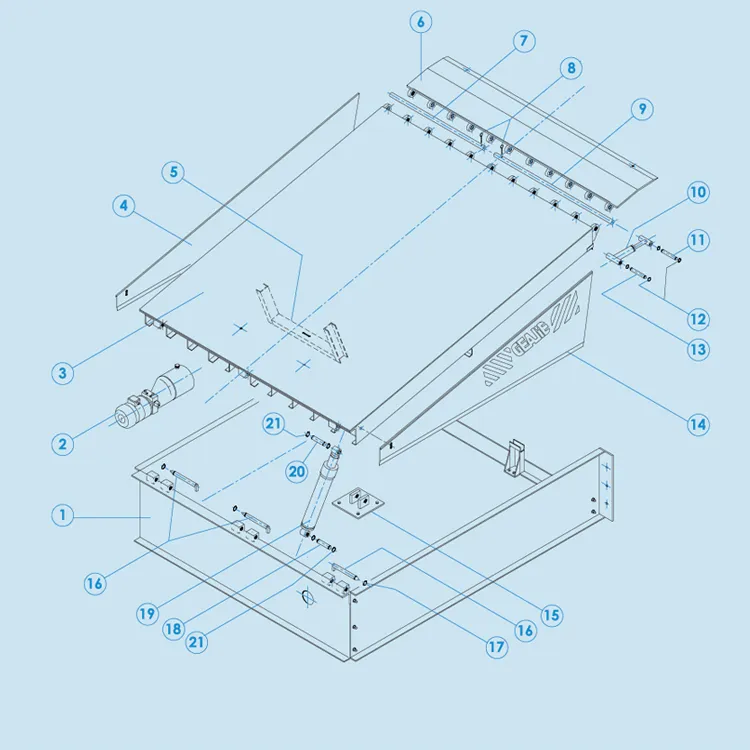

⚙️Structural Drawing
Structural Drawing
1. Mould12. Seeger straight pins of the lip
2. Hydraulic control unit13. Straight Pin body of the body
3. Upper plate14. Right foot guard
6. Swinging lip19. Upper plate cylinder
🌟Product Advantages
  • Versatile Types: Available in hydraulic, pneumatic, and mechanical versions to suit various loading requirements.
  • Durable Material: Constructed from heavy-duty steel with corrosion-resistant treatment for long-term industrial use.
  • High Load Capacity: Engineered to handle everything from light goods to heavy industrial machinery.
  • Advanced Safety: Equipped with anti-slip surfaces, safety barriers, and sensors to protect personnel.
  • Adjustable Design: Height-adjustable features ensure a seamless connection between the dock and different truck heights.
Product Advantages
🏢Facility & Production
Factory View 1
Factory View 2

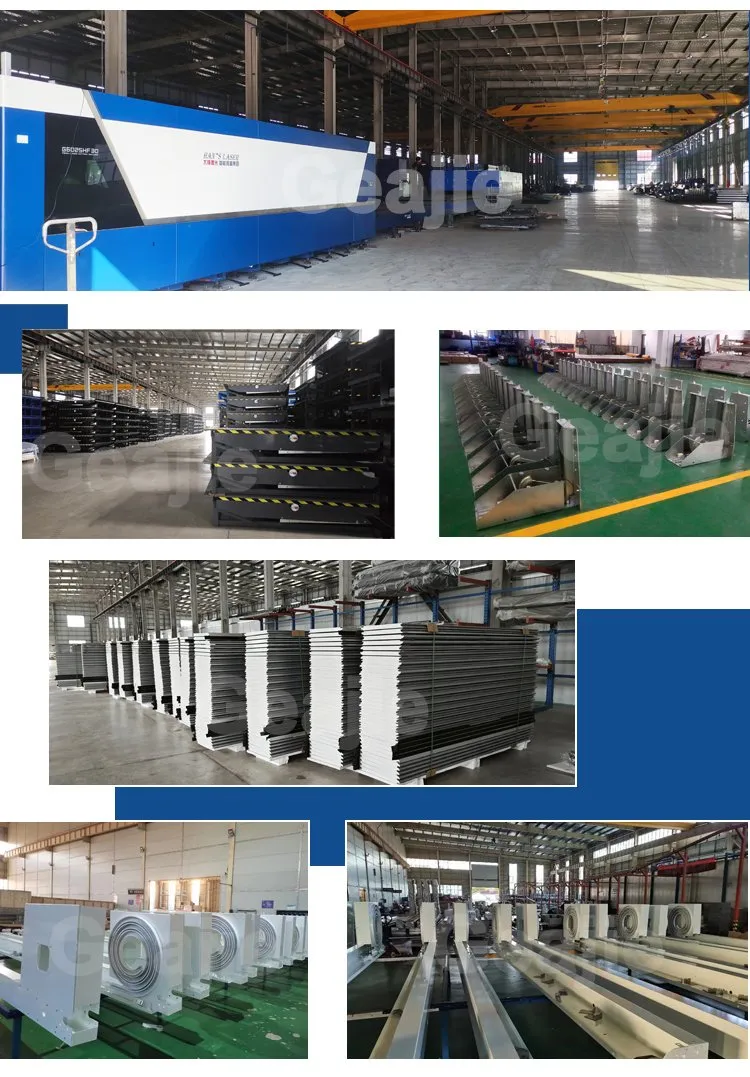

Factory View 3
Factory View 4
Factory View 5
Factory View 6
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
What are the maximum available dimensions for the platforms?
The maximum length can reach 6.5M and the maximum width is 6M, both of which are adjustable based on requirements.
Do you provide other industrial door or loading solutions?
Yes, we offer a wide range of products including sliding doors, rapid doors, garage doors, rolling shutters, cold storage doors, door seals, and industrial fans.
Is the installation process difficult for the dock leveler?
No, our products are designed to be very easy to install with standard tools and procedures.
Where are these dock levelers typically used?
They are primarily used in factory outlets, logistics parks, and any outgoing ports where efficient loading is required.
What is the primary benefit of using a dock leveler?
It significantly improves the efficiency of cargo handling, making the unloading and loading process faster and safer.
