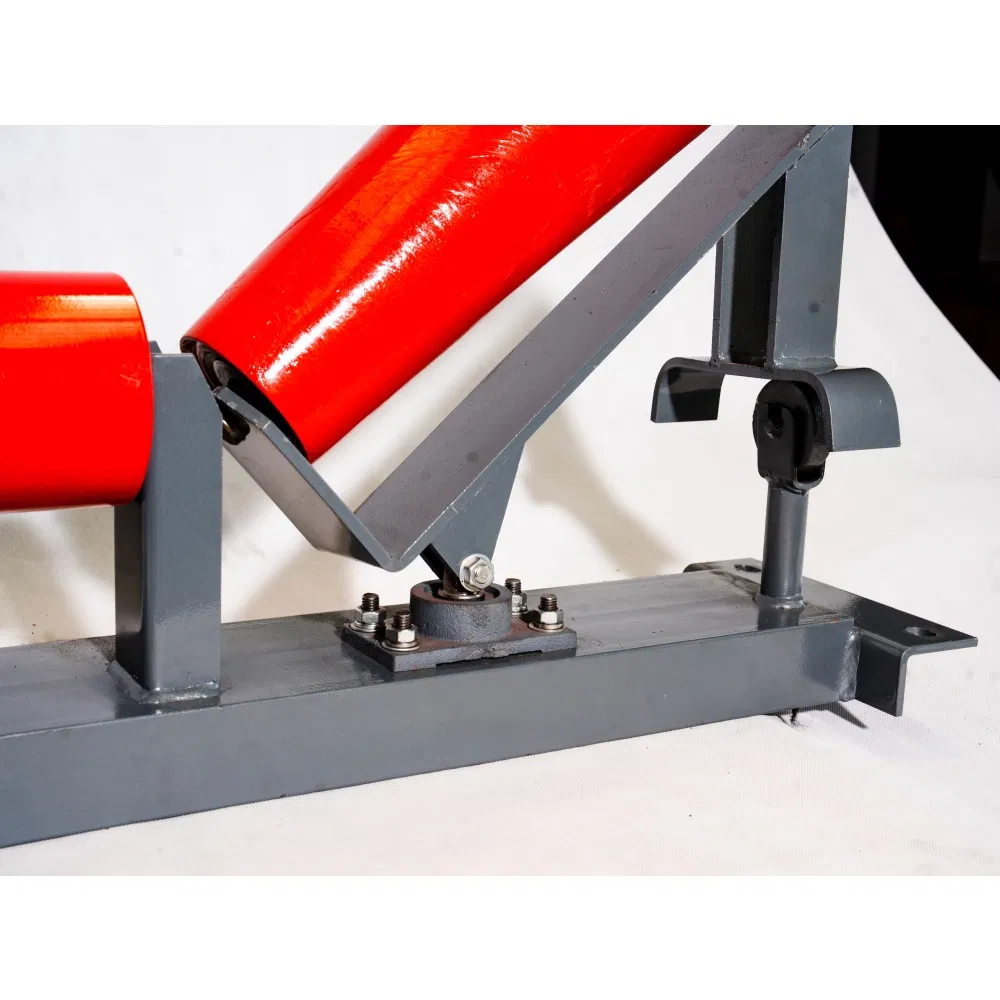

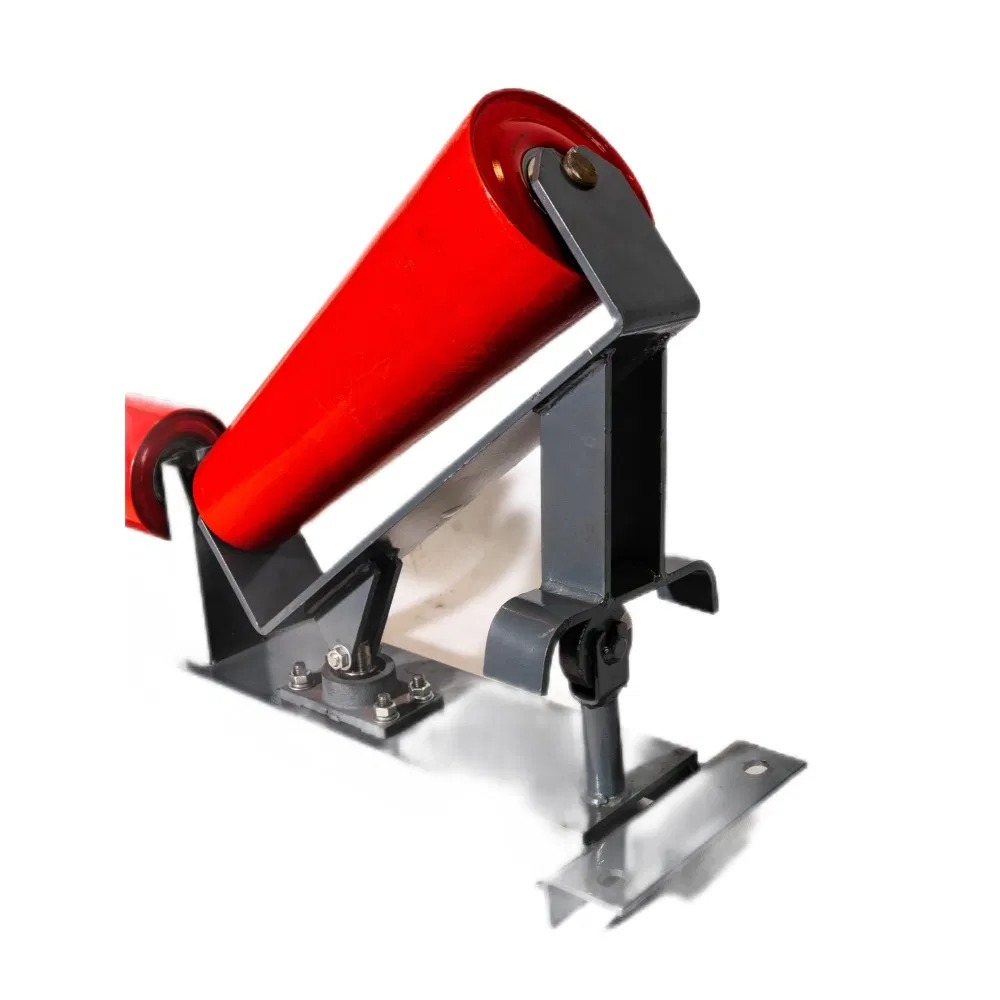

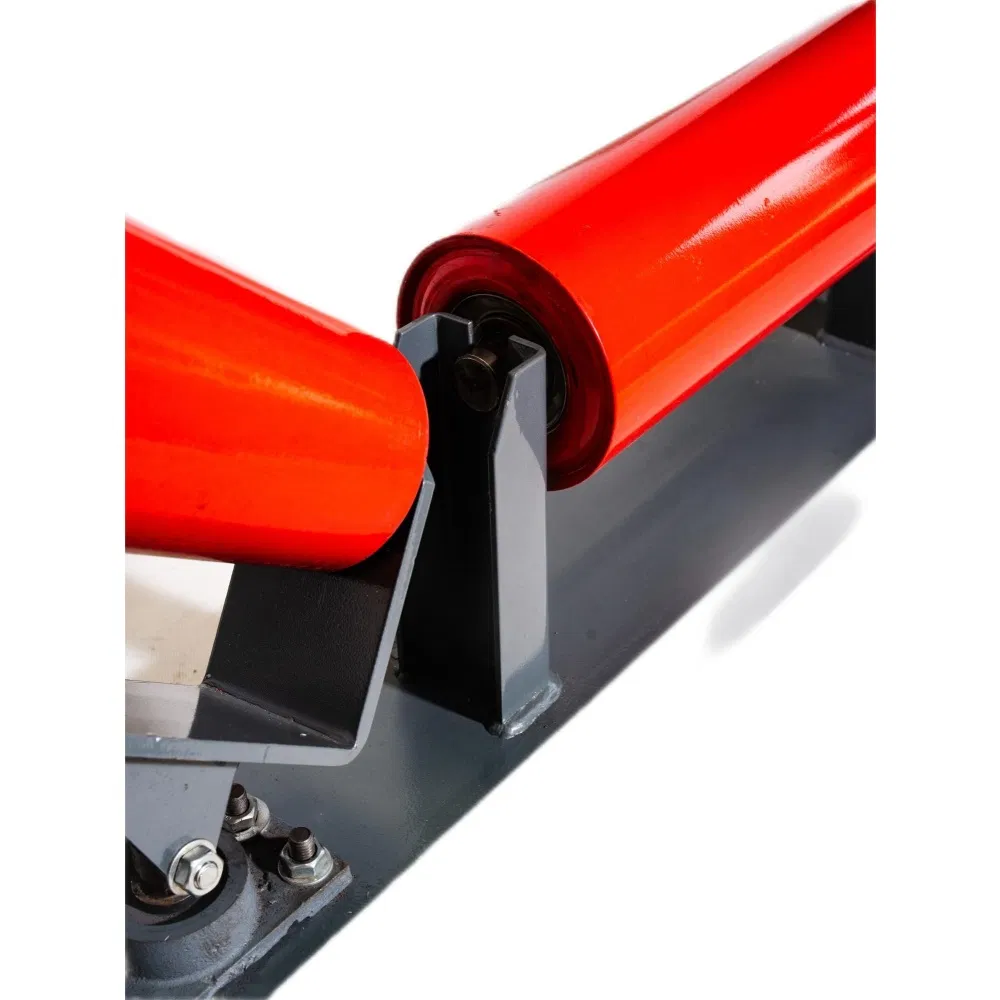

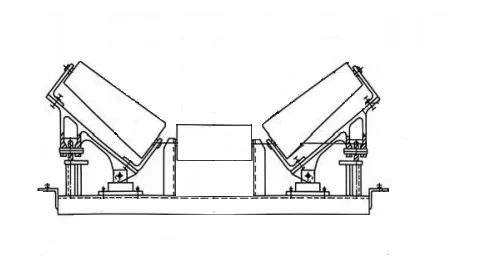

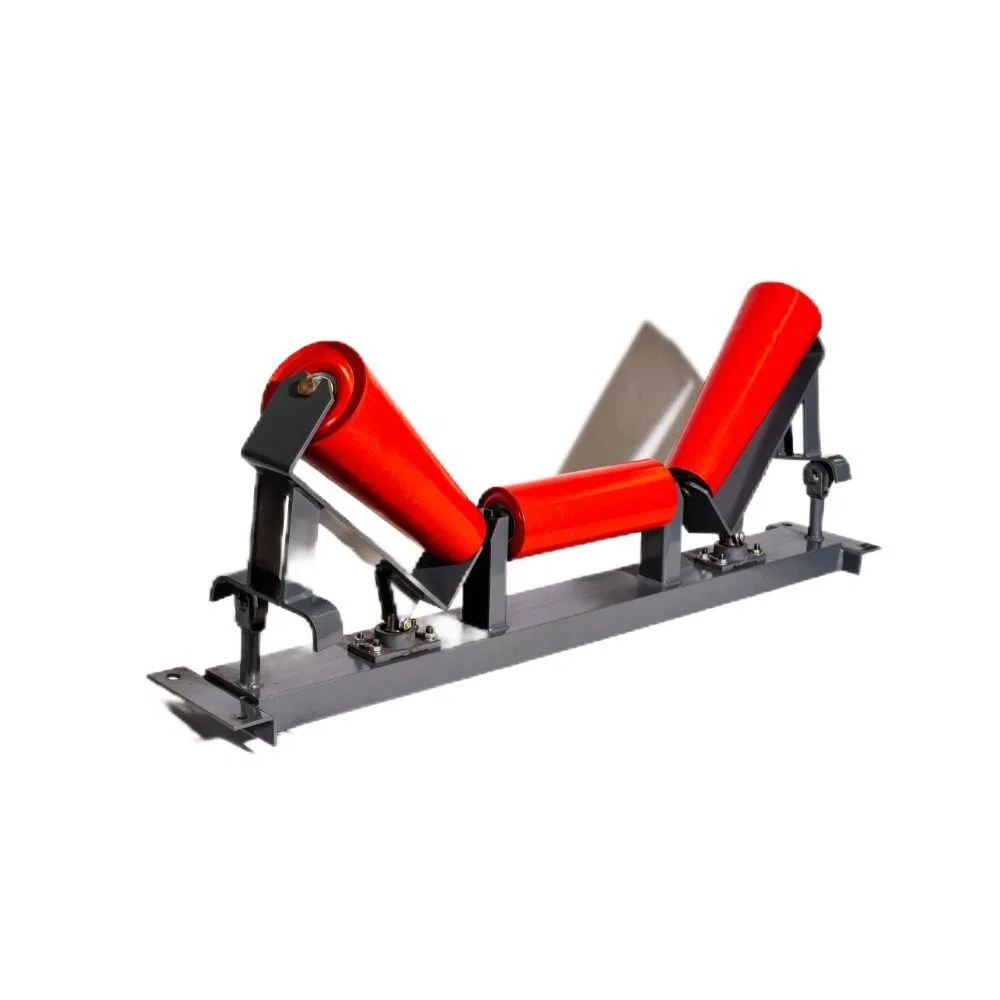

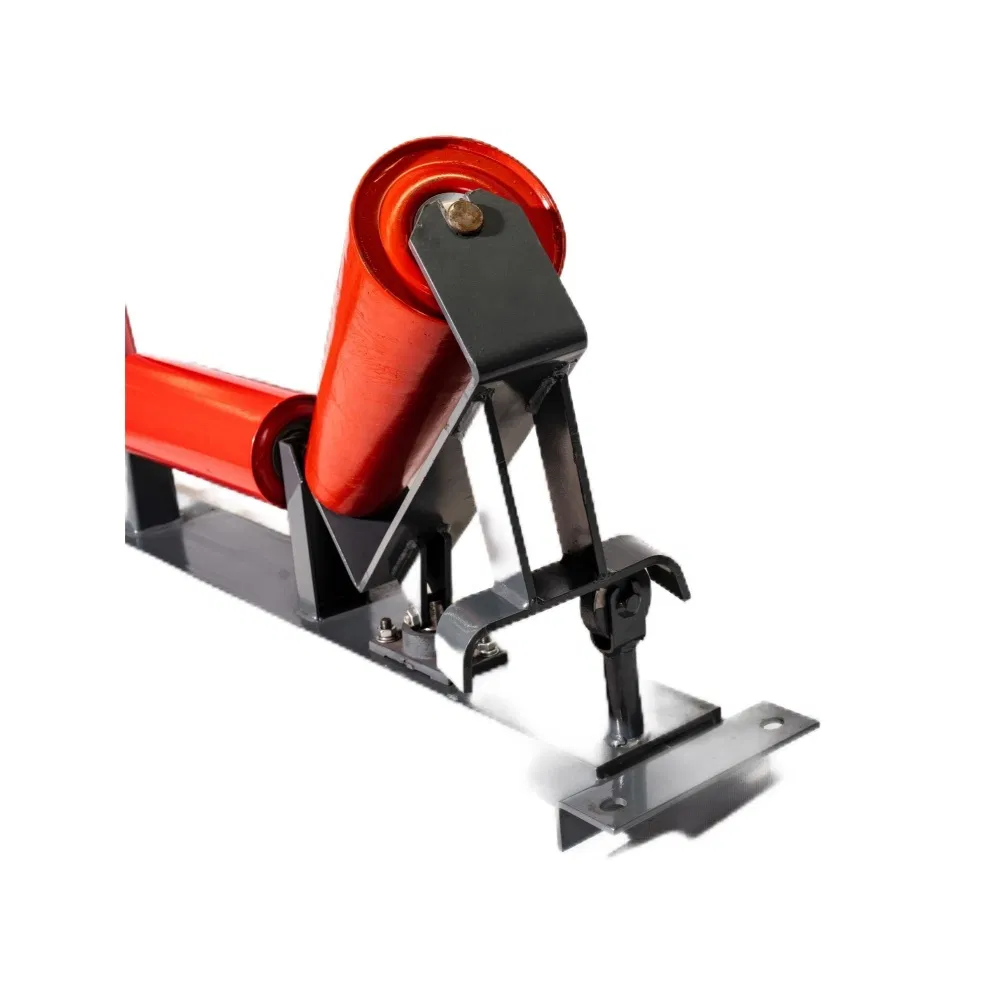

| Friction self-aligning roller parameters | ||||||
|---|---|---|---|---|---|---|
| Belt Width B | Roller | Metal bracket | ||||
| D | L | Bearing | Bottom size | Installation size | Overall height | |
| 400 | 63.5 / 76 / 89 | 160 | 6203 / 6204 | 600 | 660 | 291 / 310 |
| 650 | 76 / 89 / 108 | 250 | 6204 / 6205 | 890 | 950 | 359 / 379 / 414 |
| 1000 | 108 / 133 / 159 | 380 | 6205 / 6305 / 6306 | 1290 | 1350 | 493 / 524 / 564 |

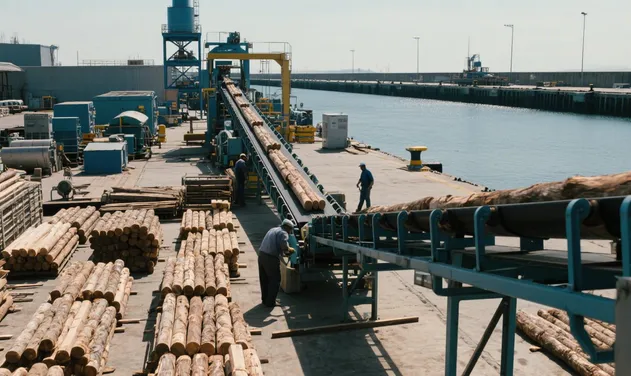

Applicable to V-groove structures with large contact areas. Ideal for correcting deviation in medium-high speed and large conveying conditions like mines and ports.
Suitable for flat conveyor belts handling light materials or piece goods. Simple structure, easy to install for low-speed and small-load scenarios.

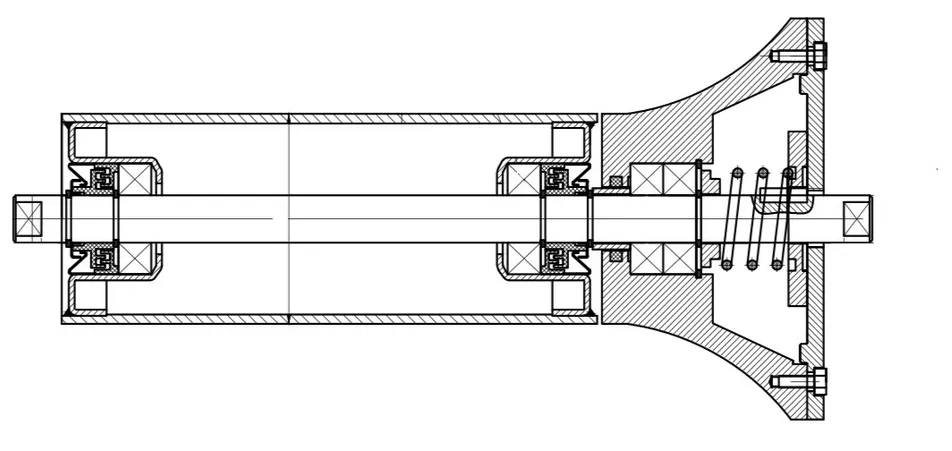

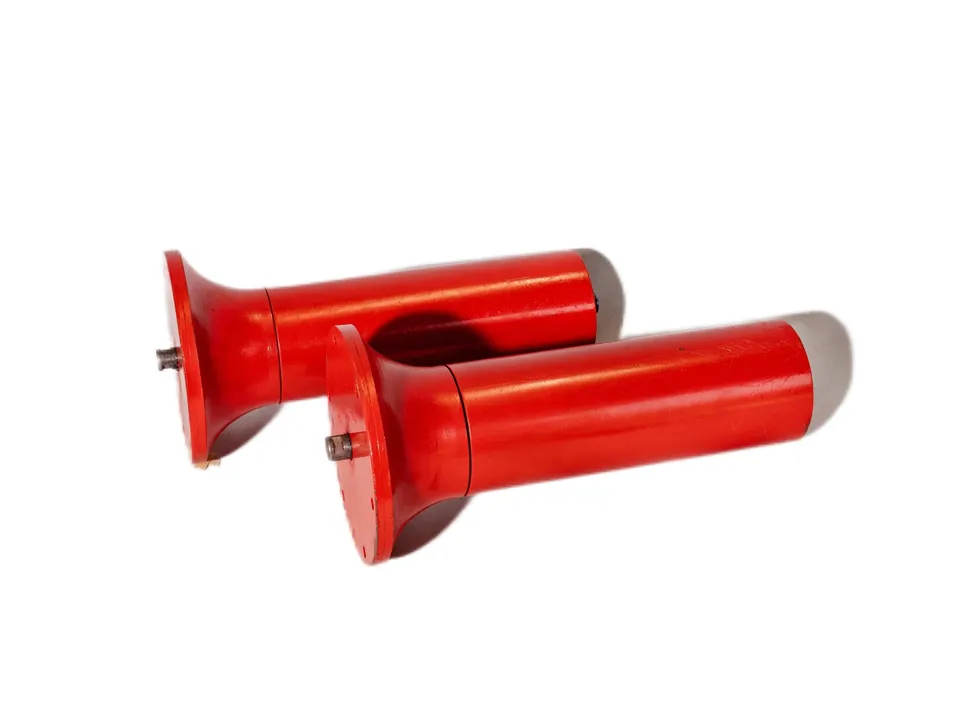

Uses friction between the belt and roller to drive rotation. Cost-effective and suitable for general deviation correction without additional power.
Equipped with sensors and motor drives for high correction accuracy. Best for automated production lines with strict deviation control.

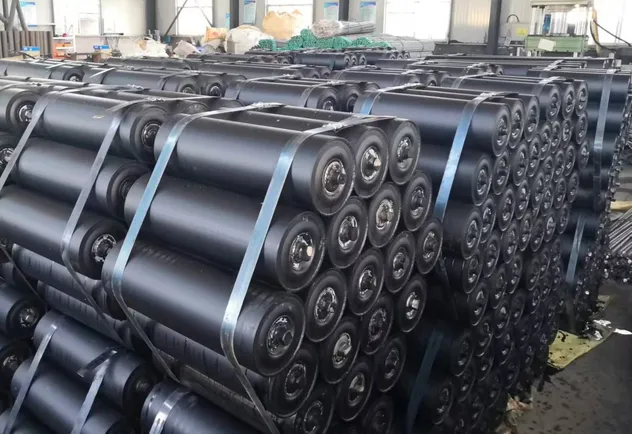

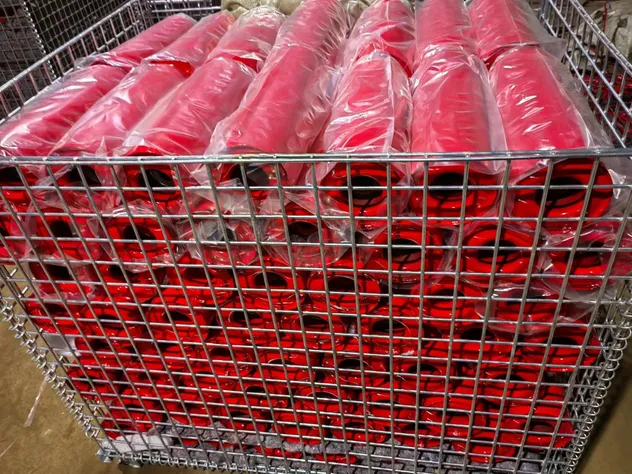

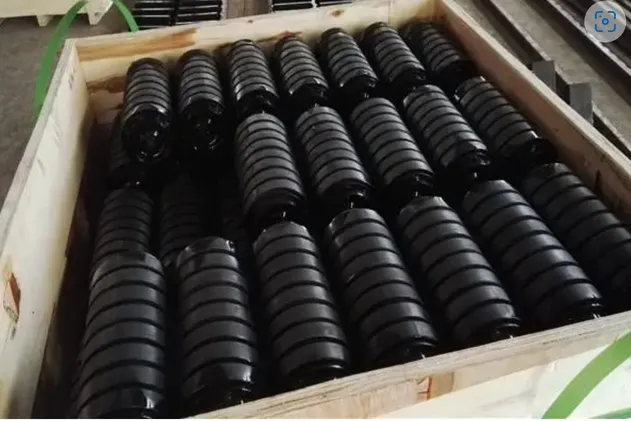

Our packaging solutions ensure maximum safety during transit. We utilize strong iron belts for bundling and offer customized fumigation-free wooden boxes. To prevent scratches, paint peeling, and deformation, each roller can be individually packaged before integrated quantitative packaging.
