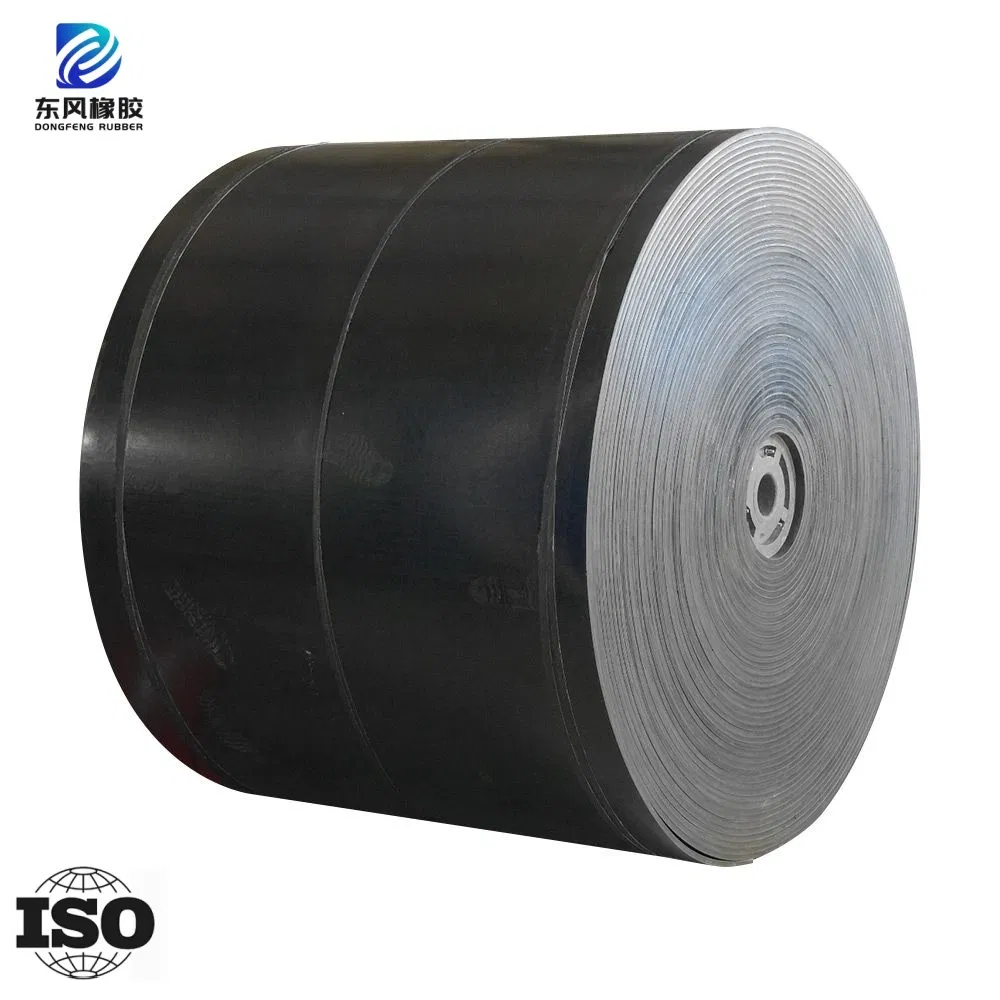

Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
1 / 5
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations
Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations

Heavy-Duty Rubber Conveyor Belt for Coal Mining Operations

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
EP/NN100, 125, 150, 200, 250, 300
Inside Material
Fabric
Feature
Oil, Acid, Alkali, Tear, Heat, Cold, Wear Resistant
Tensile Strength
Strong
Product Name
Fabric Core Conveyor Belt
Applications
Coal, Mining, Cement Plant, Power Plant
Rubber Strength
10MPa - 24MPa
Length
50m - 2000m
Width
500mm - 3000mm
Edge
Moulded Edge / Cut Edge
Cover Thickness
Top: 2-8mm / Bottom: 2-8mm
Capacity
5000 meters / Day
🔍 Product Overview

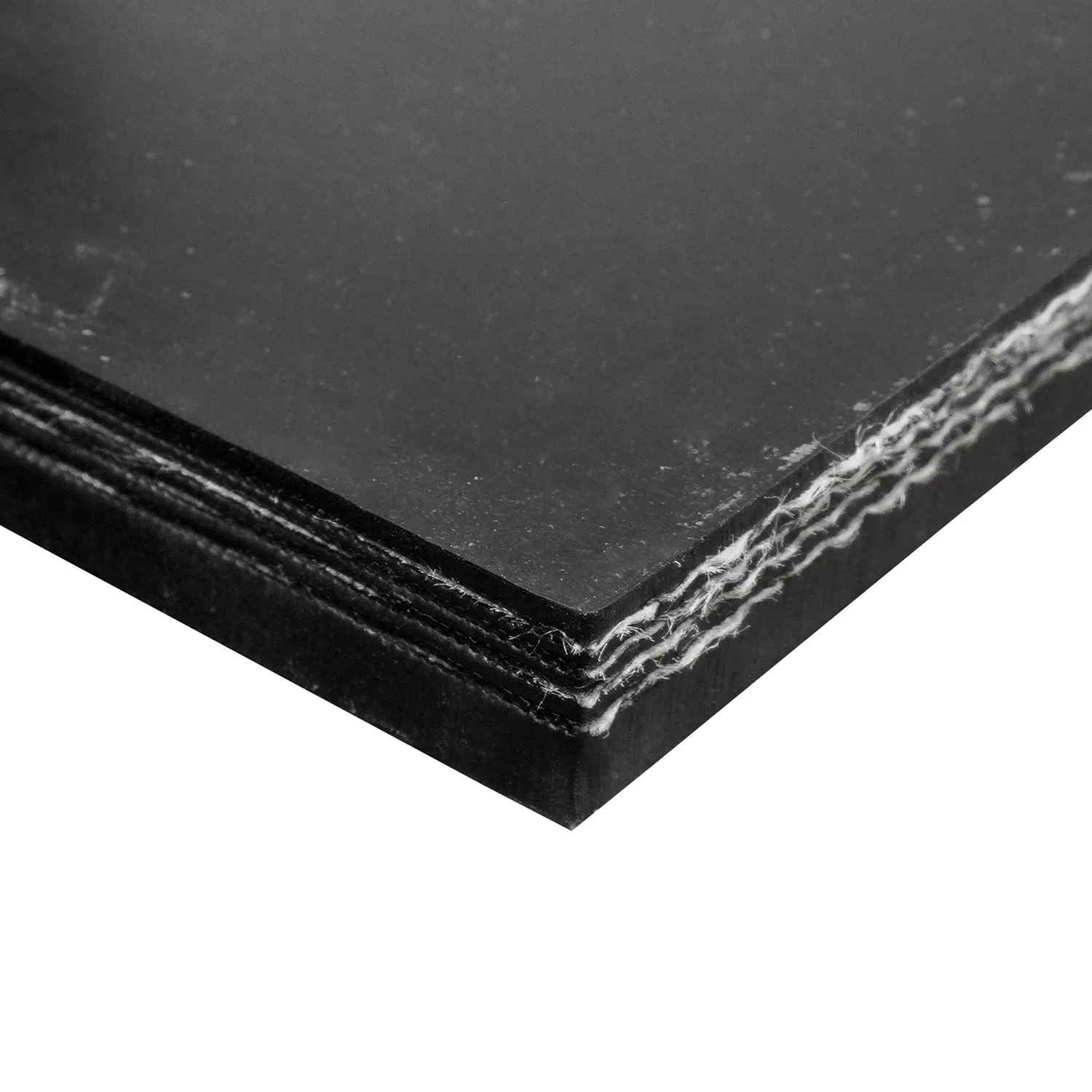

Heavy-Duty Rubber Conveyor Belt
Polyester core conveyor belts are designed to the highest industry standards. They consist of multiple layers of polyester canvas bonded together, covered with high-strength, wear-resistant flexible rubber. These belts are ideal for transporting materials in mining, stone processing, construction, recycling, steel, and paper industries.
✨ Key Features
High Strength
Corrosion Resistance
Heat Resistance
Excellent Wear Resistance
Low Elongation
Dimensional Stability

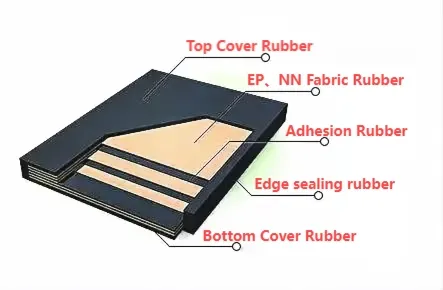

Conveyor Belt Feature Manufacturing Standard
🏭 Standards & Applications
Manufacturing Standards
GB/T7984, MT/T914, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173
Product Application
Suitable for long-distance, large capacity, high-speed material transportation in mining, quarrying, and chemical plants.
📊 Technical Parameters
Fabric Specs Ply Thickness (mm/p) Strength Series (N/mm) Cover Thickness (mm) Width (mm)
2ply 3ply 4ply 5ply 6ply Top Bottom
EP1000.752003004005006002.0 - 80 - 4.5400-2500
EP2001.1040060080010001200500-2500
EP3001.35600900120015001800500-2500
EP5001.70--2000250030001000-2500
📷 Detailed Photos

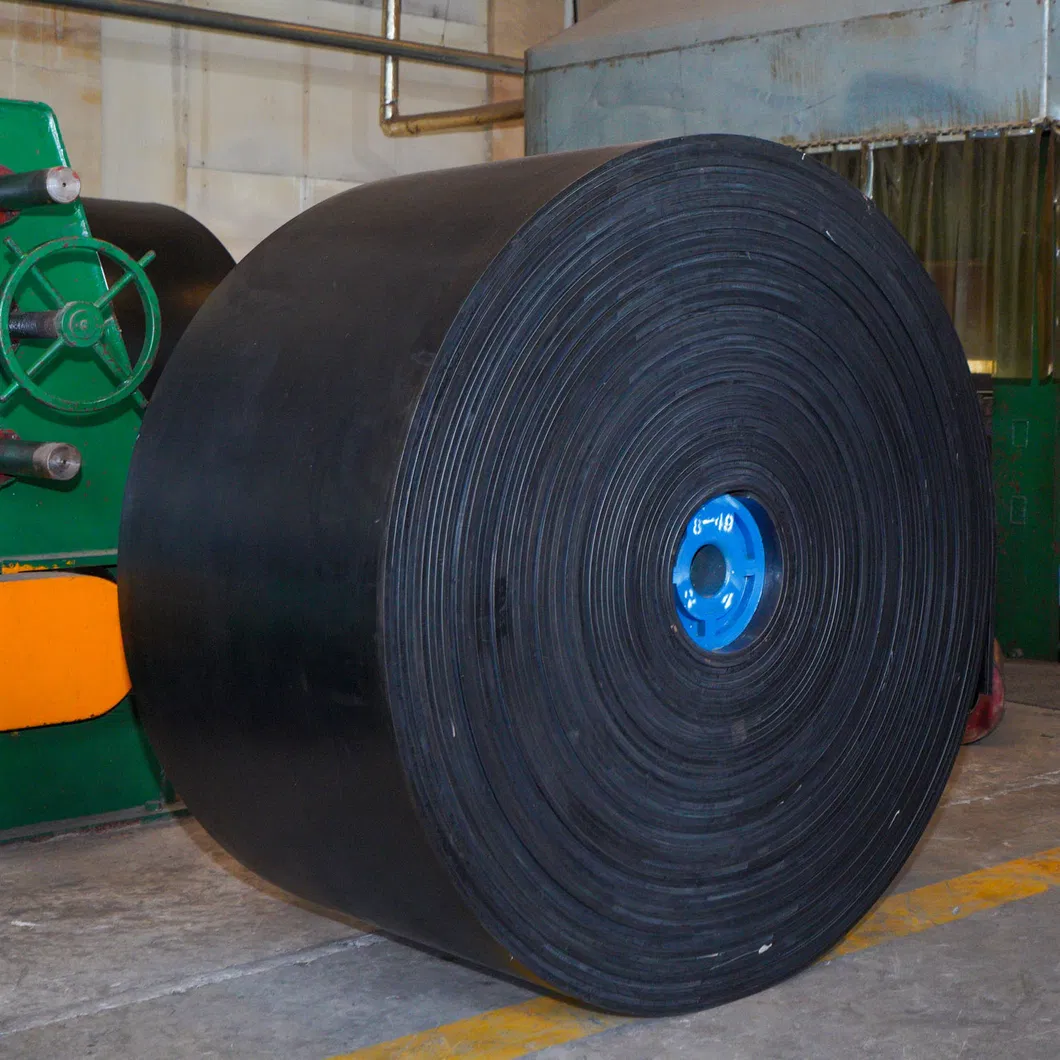

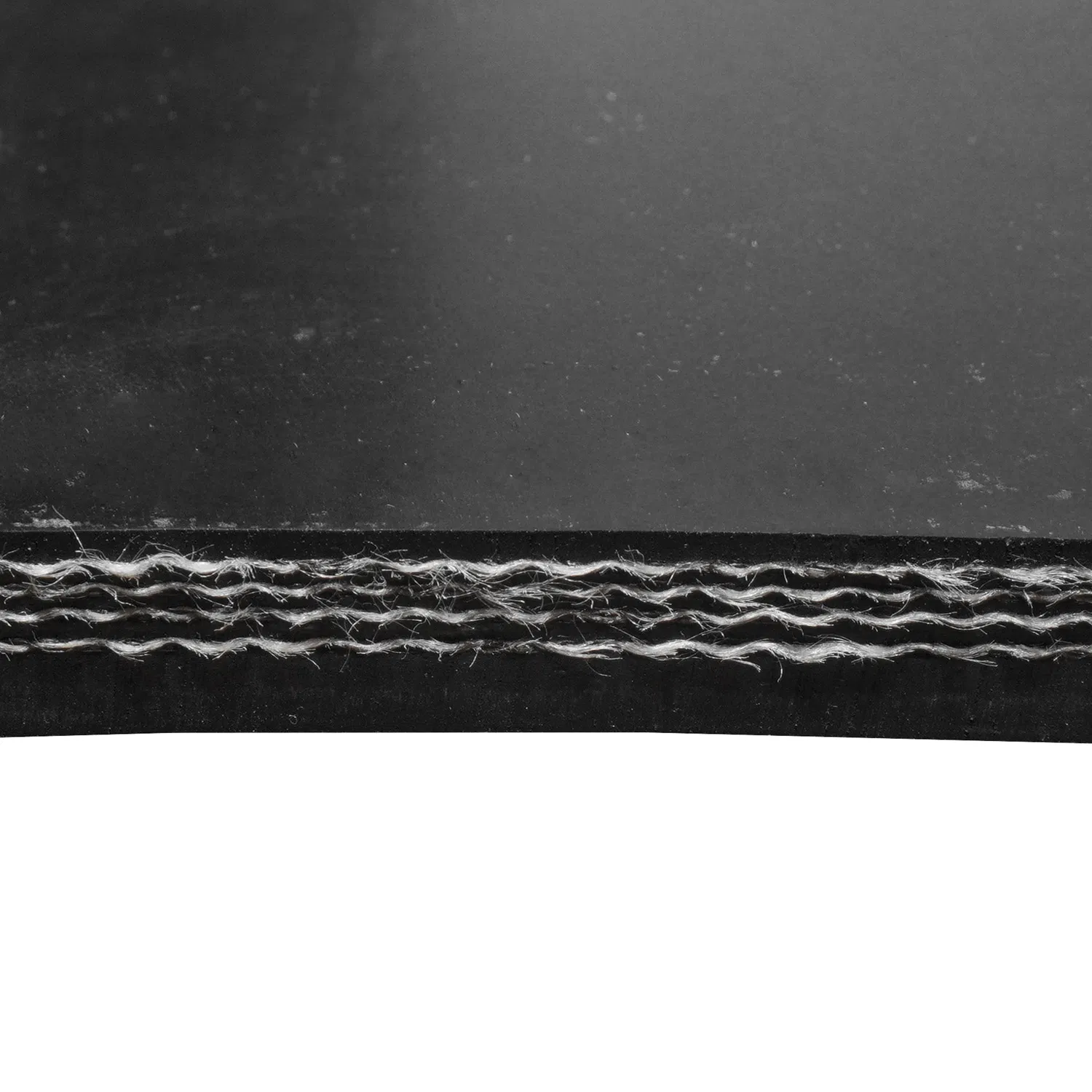

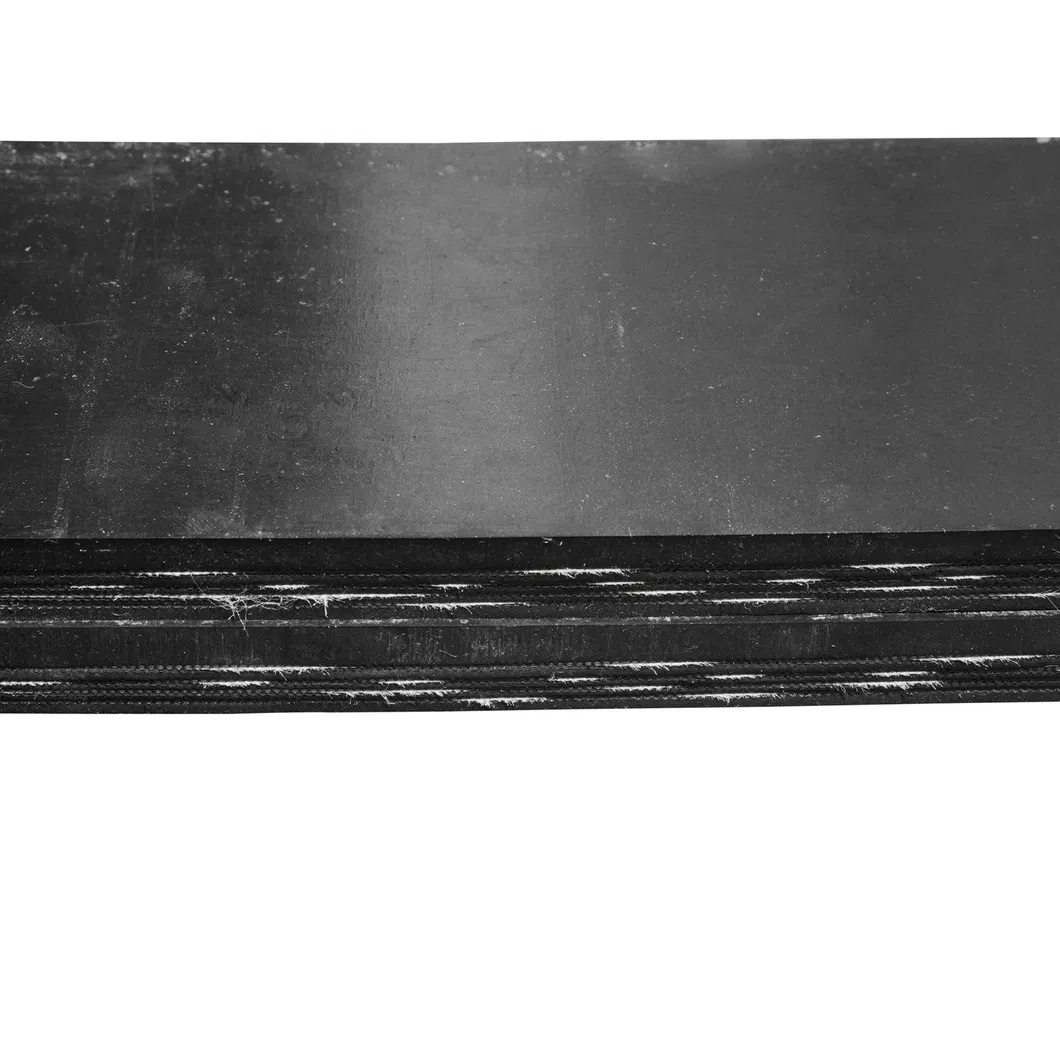

Detail 1 Detail 2 Detail 3

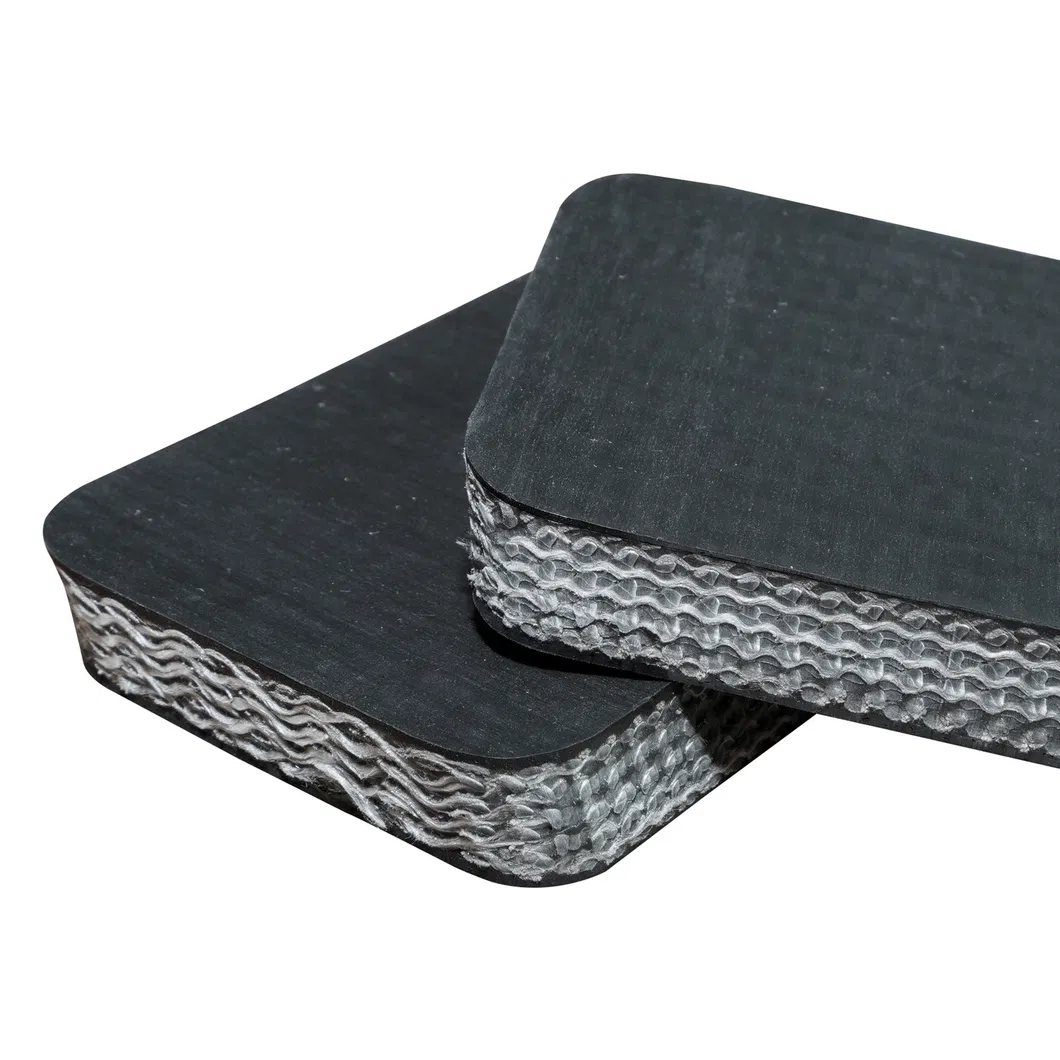

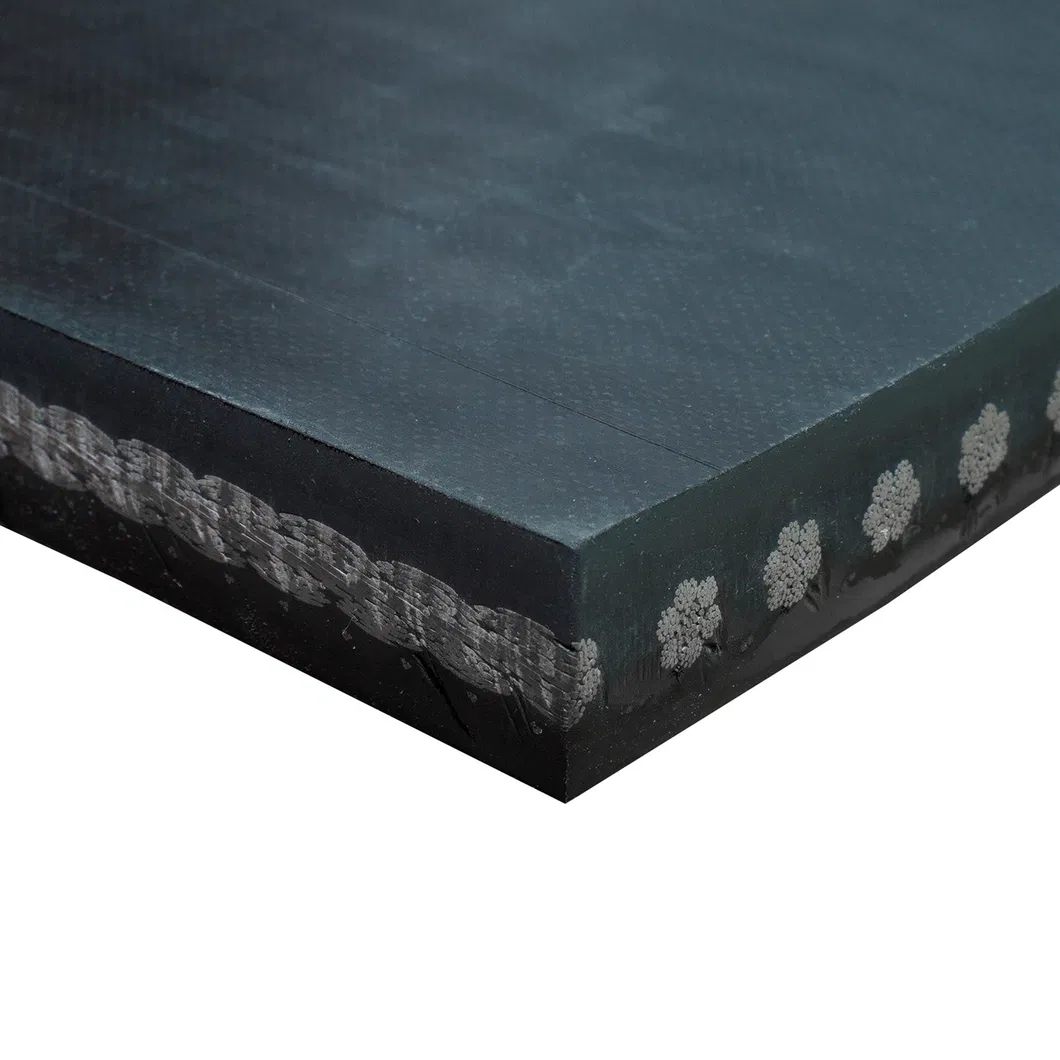

Production 1 Production 2 Production 3

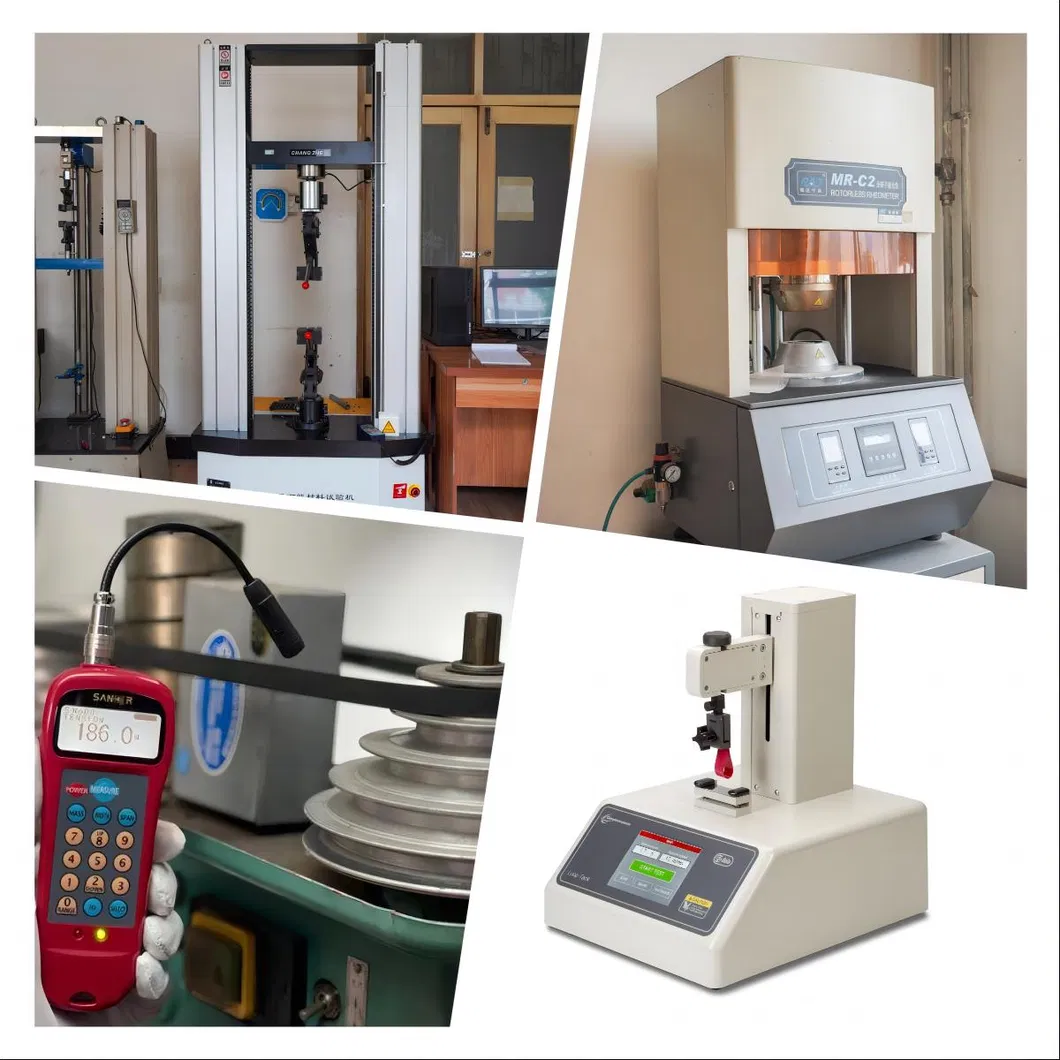

✅ Quality Inspection
Quality Inspection

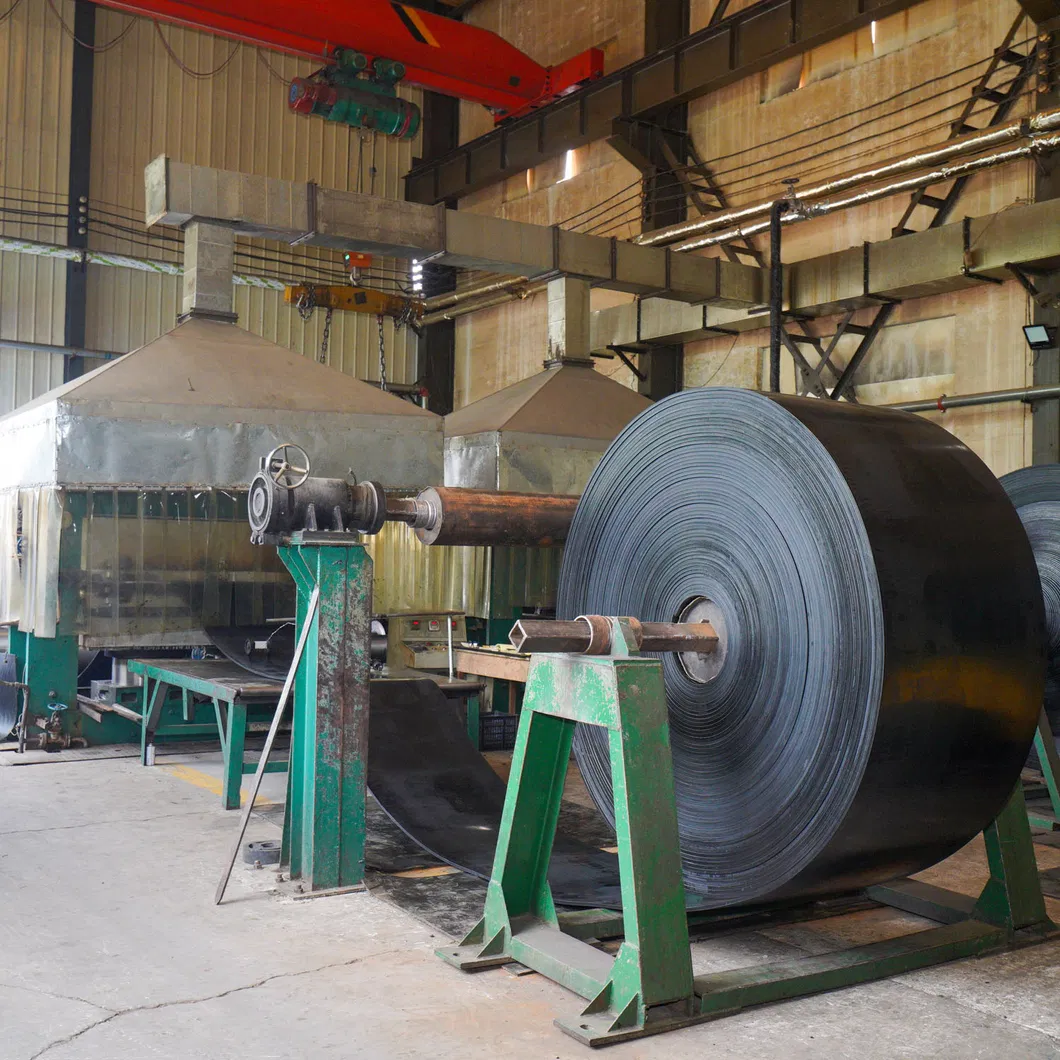

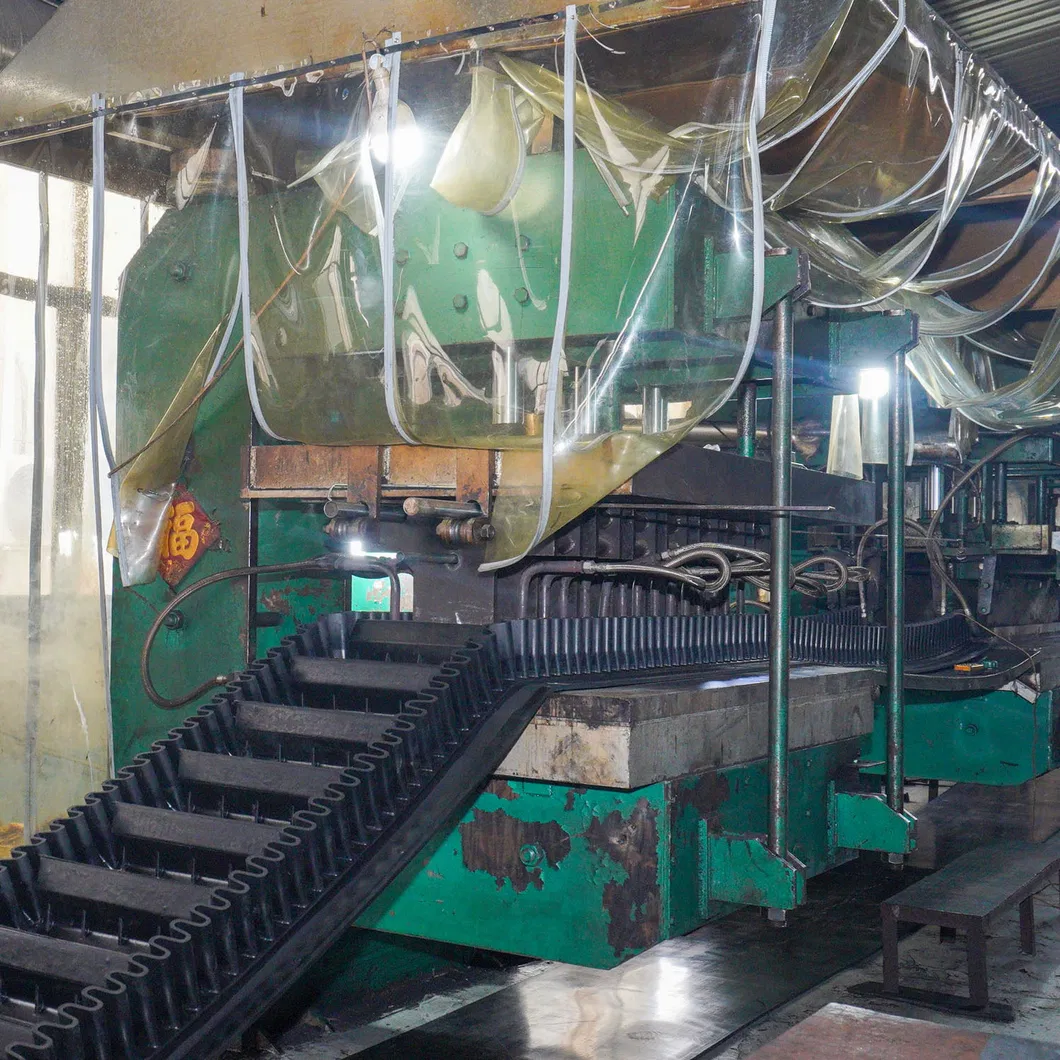

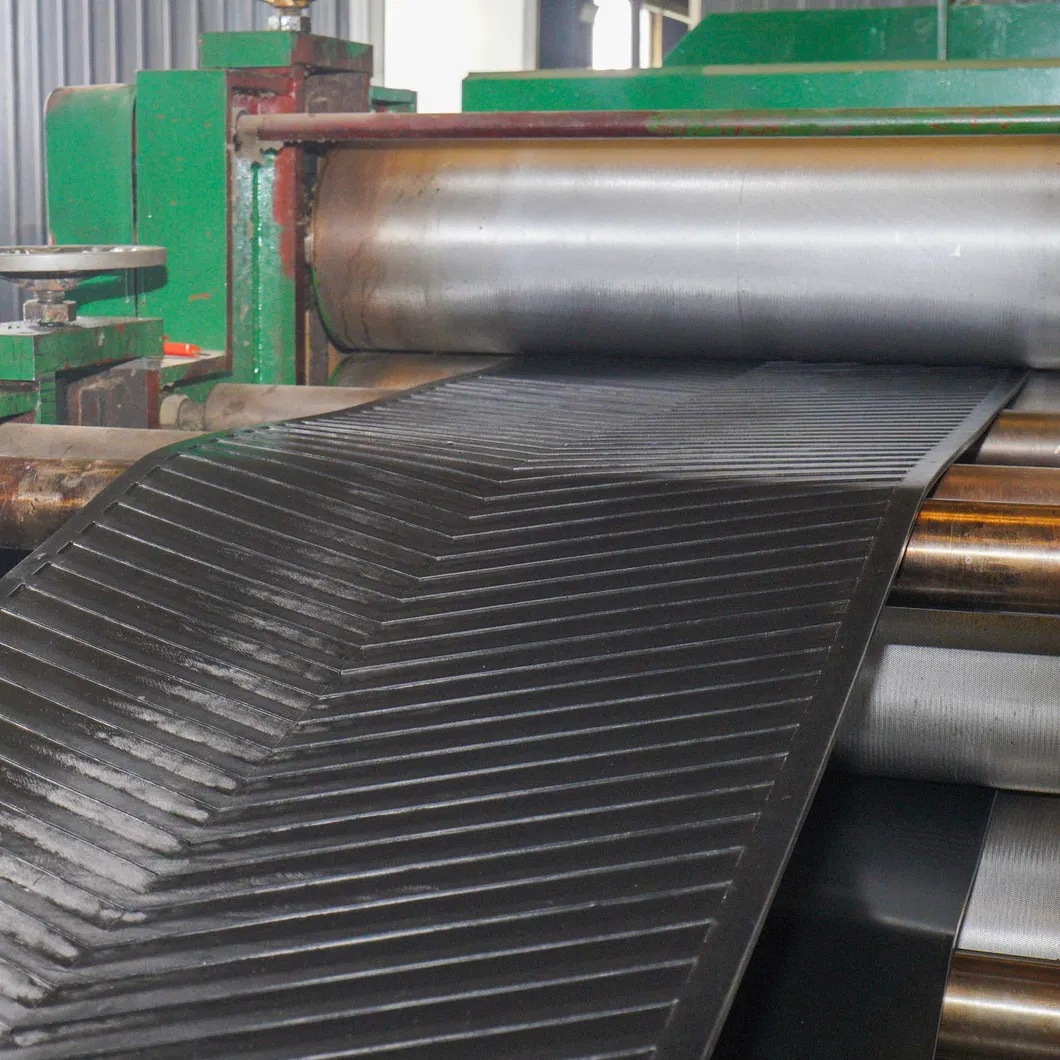

Lab Test 1 Lab Test 2 Lab Test 3
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we have been producing rubber conveyor belts and conveyor rollers for over 44 years, ensuring professional expertise and high-quality standards.
What is the standard lead time for orders?
Typically, bulk orders take 10 days for production, while full container orders require approximately 30 days. Urgent orders can be processed through our green channel.
What are the available payment methods?
We accept payments via T/T (Telegraphic Transfer) or L/C (Letter of Credit) through official bank accounts.
How are the conveyor belts packaged for shipping?

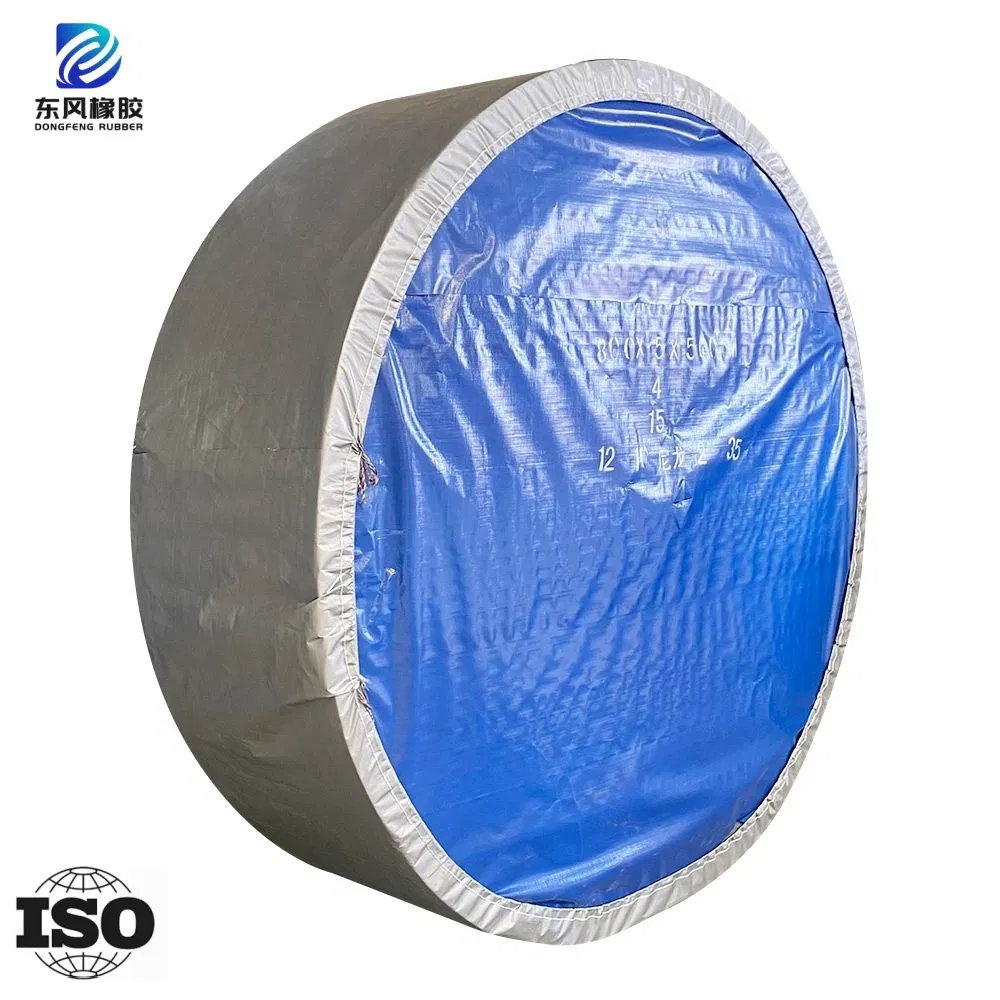

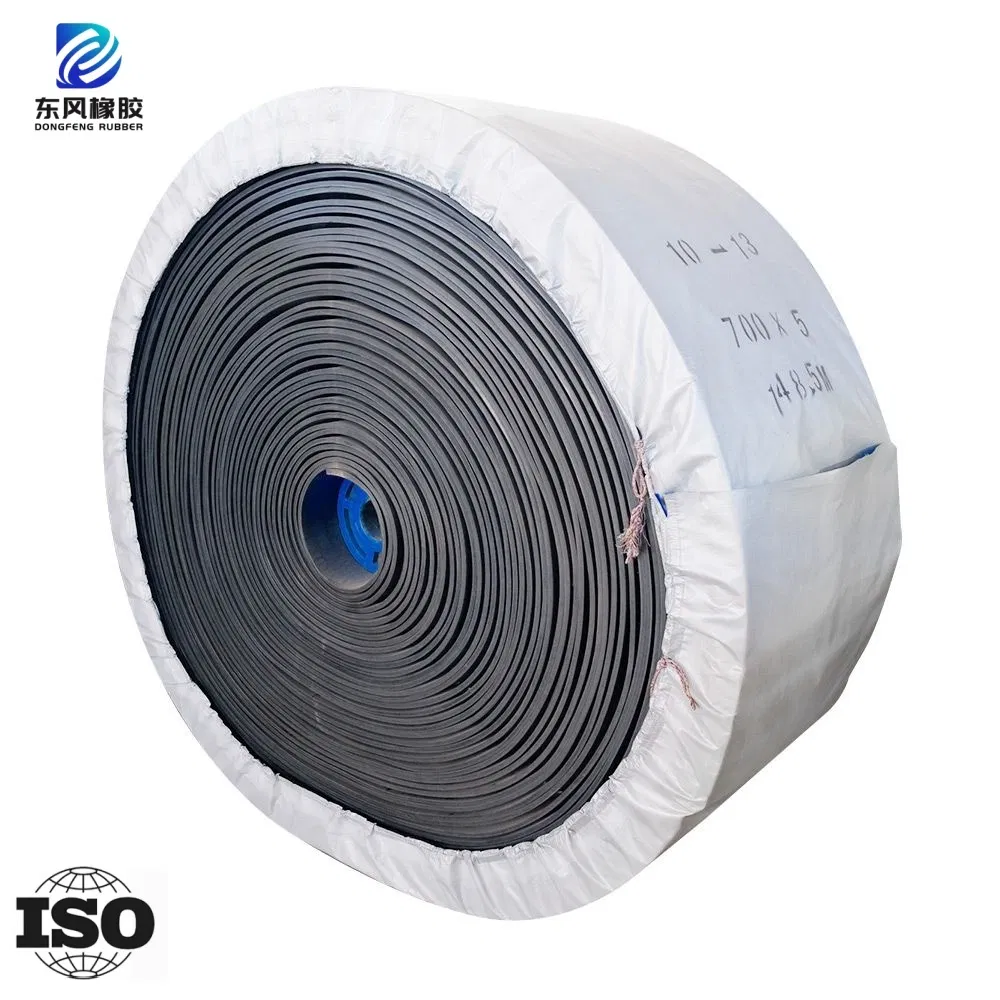

The inner core is a round rubber core (30cm diameter), and the outer layer is wrapped in one-ply waterproof PP fabric with a steel pallet at the bottom for stability.
Can the belt width and thickness be customized?
Yes, we offer customization for widths ranging from 400mm to 3000mm and various cover thicknesses to meet specific industrial requirements.
Which industries are these belts suitable for?
Our belts are widely used in coal mining, metallurgy, cement production, electric power plants, building materials, and chemical industries.
