UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
1 / 5
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes
UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes

UV LED Curing Tunnel Conveyor System Installed with UV Lamp Customized Sizes

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
LD2000500
Input Voltage
AC100~240V(50/60Hz)
Cooling Method
Air-Cooled and Water-Cooled
LED Life
20000hrs
Control Method
RS232/Pedal/PLC
Operation Interface
Touch Screen
LED Beam Size
500X200mm or Customized
Wavelength
365/385/395/405nm
Certification
CE
Material
Sheet Metal
Belt Size
L2000mm*W500mm
UV Intensity
2.5W/Cm2 or Customized
HS Code
8543709990
Production Capacity
10000PCS/Year
🔍 Product Description

UV LED Curing Tunnel Conveyor System

Product model: A-LD12030

Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)

⭐ Features of Controller

  • External input signal controls UV irradiation via MCU, PLC, and scanner.
  • Signal output for various working status LEDs (start, stop, working, alarm).
  • RS232 interface for programming parameters and software updates.
  • Direct lighting control via foot switch or sensor connection.

⭐ Advantages of UV LEDs

  • No infrared radiation, ideal for low-temperature materials.
  • Specific spectra ensure safe and fast curing.
  • Instant turn on/off with no warm-up phase required.

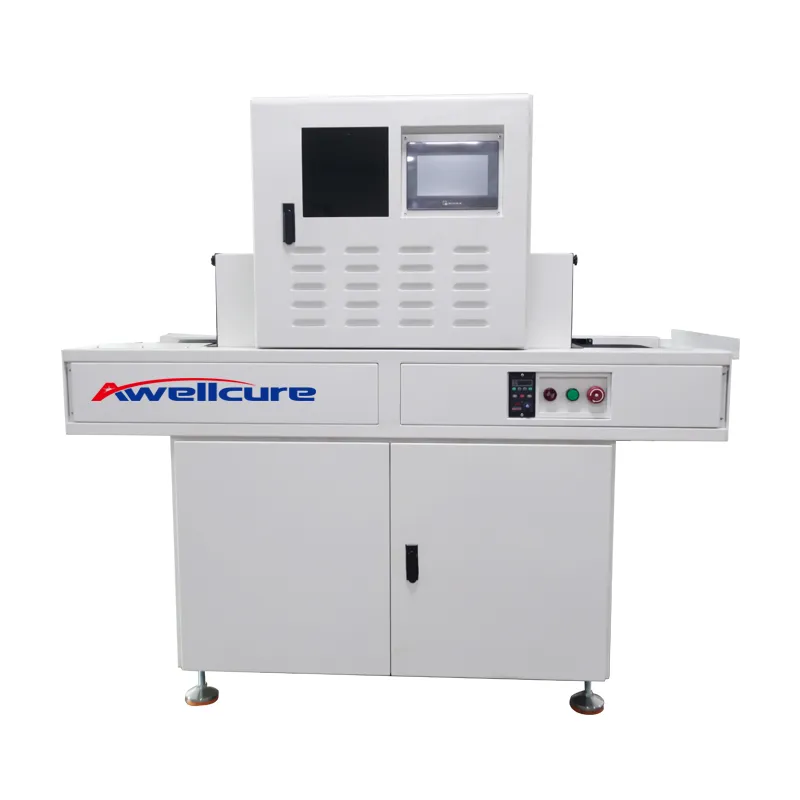

UV LED Curing Tunnel Conveyor System

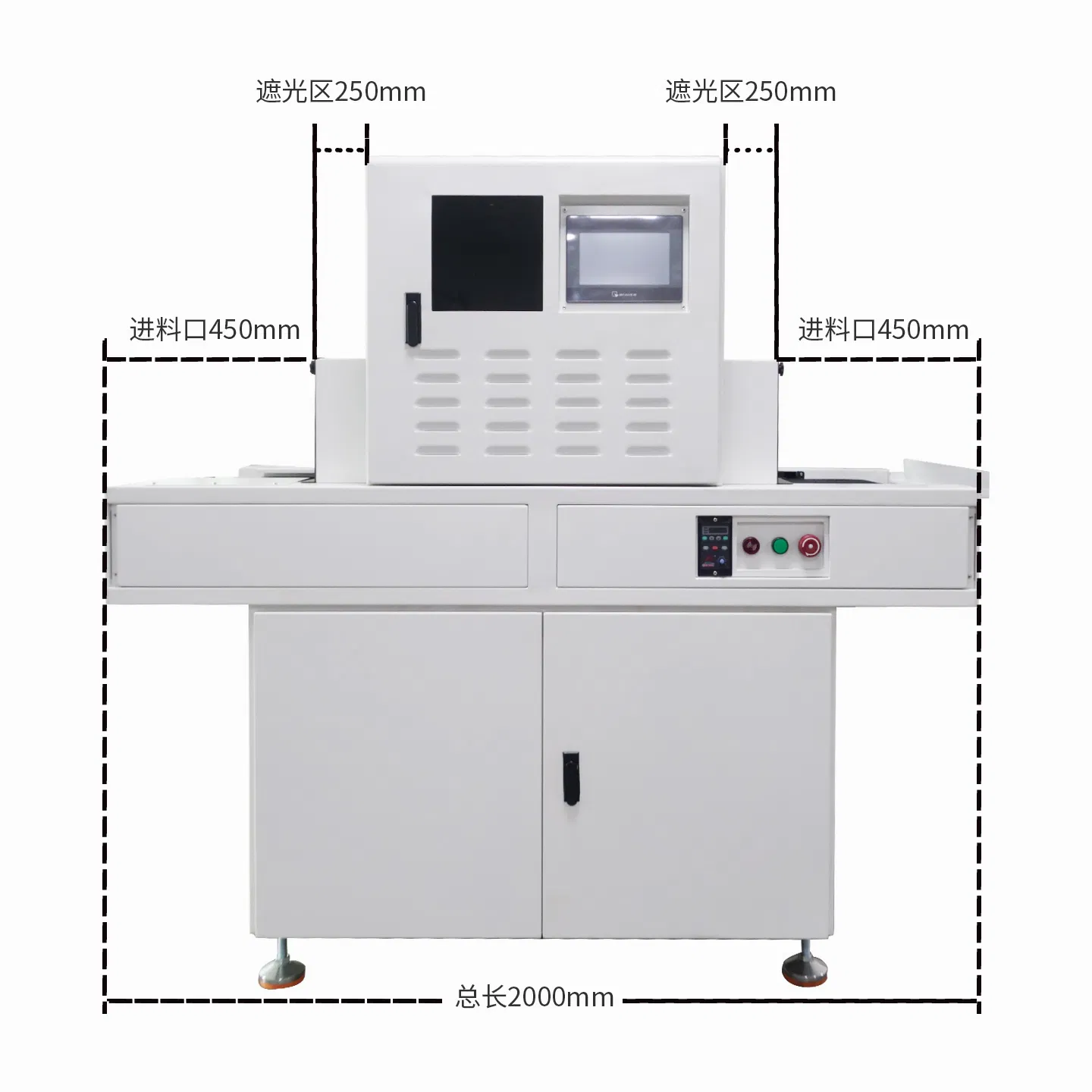

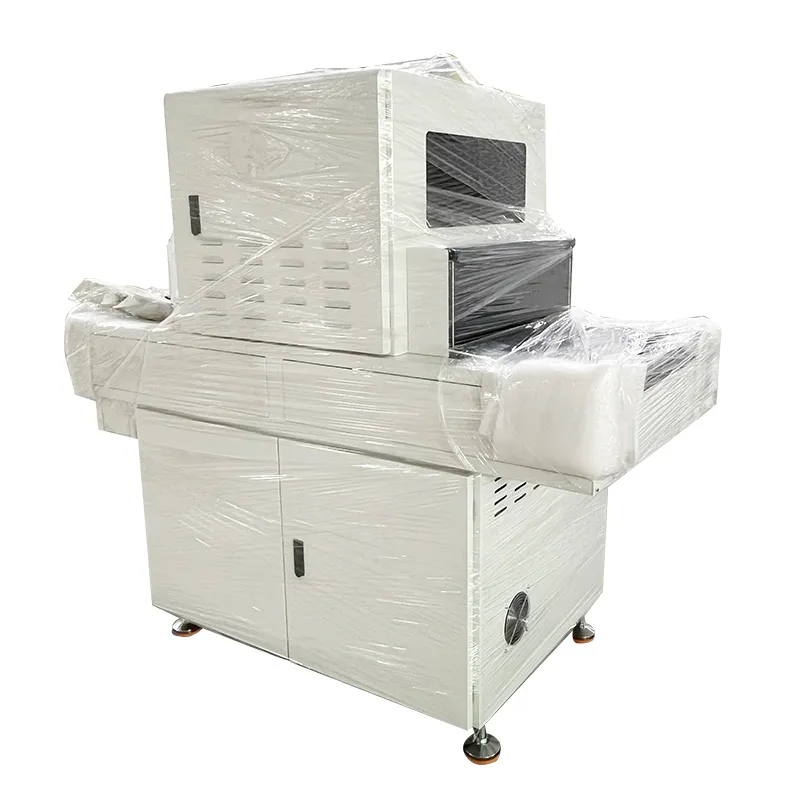

UV LED Curing Tunnel Conveyor System Details
⚙️ Technical Specifications

(Custom configurations available upon request.)

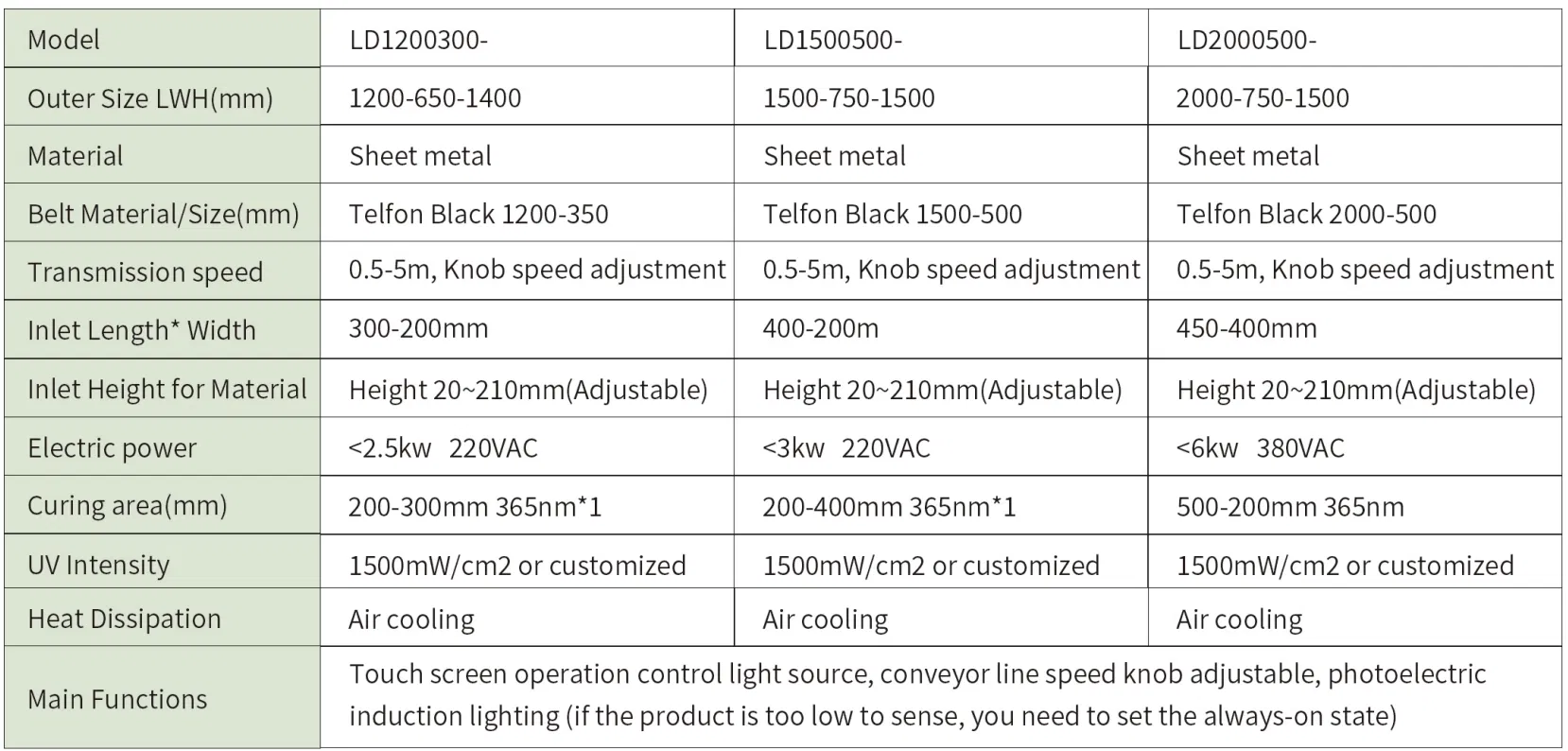

Technical Specifications Chart
⚖️ UV LED vs. Mercury Lamp

UV LED curing systems offer faster response, greater energy efficiency, longer lifespan, and a more environmentally friendly alternative to traditional mercury lamps.

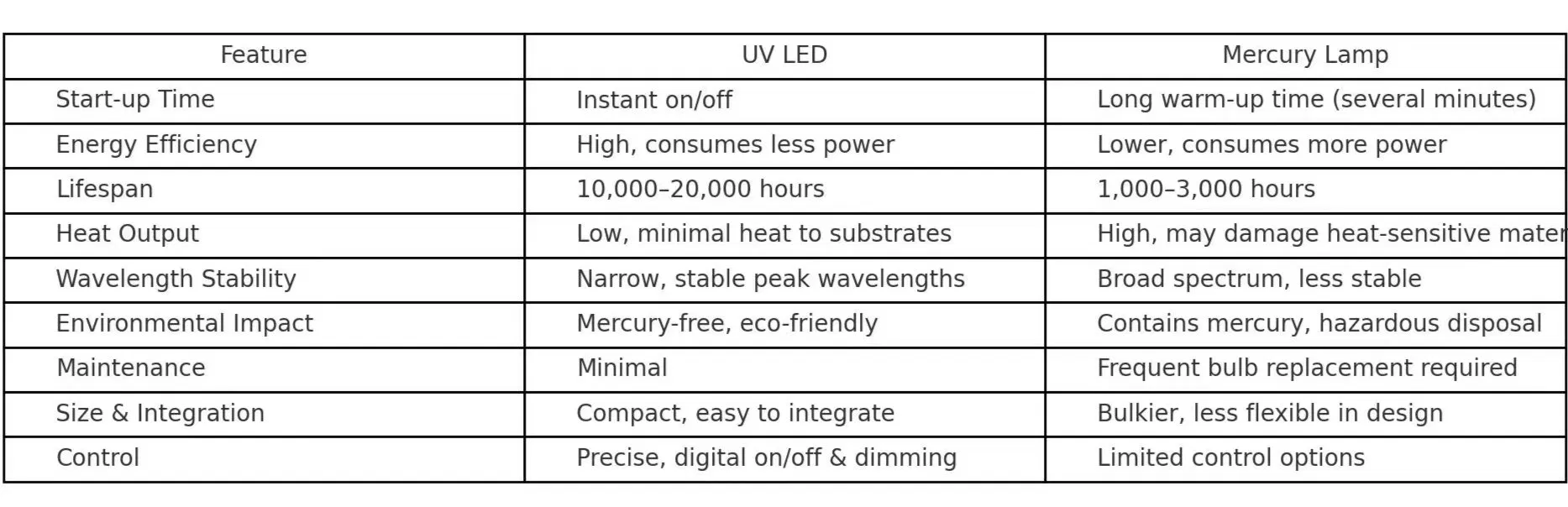

Comparison Overview
🚀 Applications

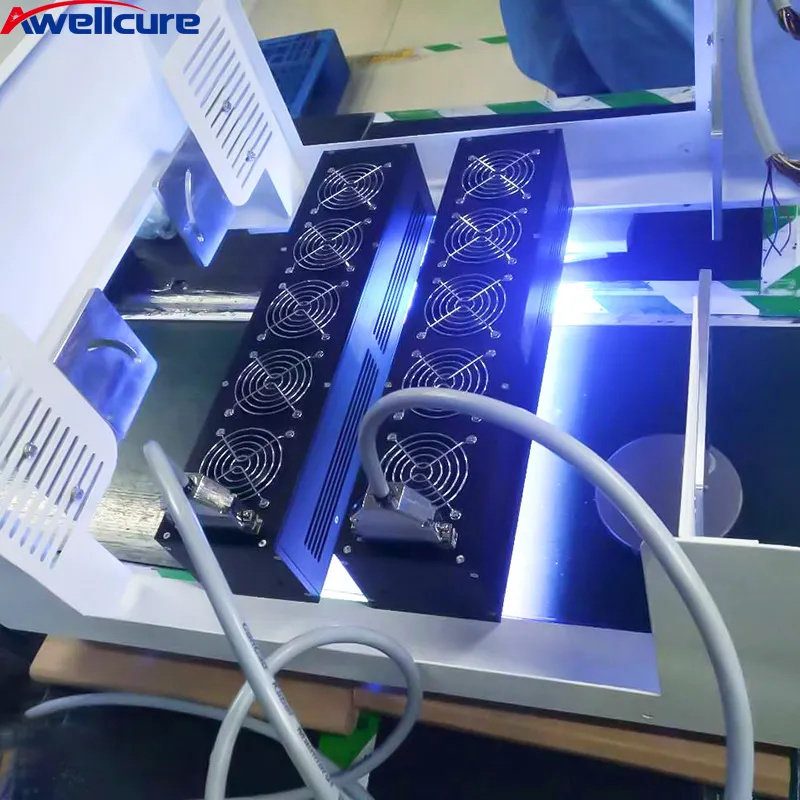

Application Instance

1. UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.

2. UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry

3. UV Ink: UV printing, 3D printing, Flexo printing, digital printing, screen printing

🛠️ After Sales Service

Standard Warranty: 12 months.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation/maintenance training.

🏢 Company Expertise

Leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS. Exporting to 50+ countries, offering reliable curing solutions backed by R&D innovation and strict quality control.

Factory Environment

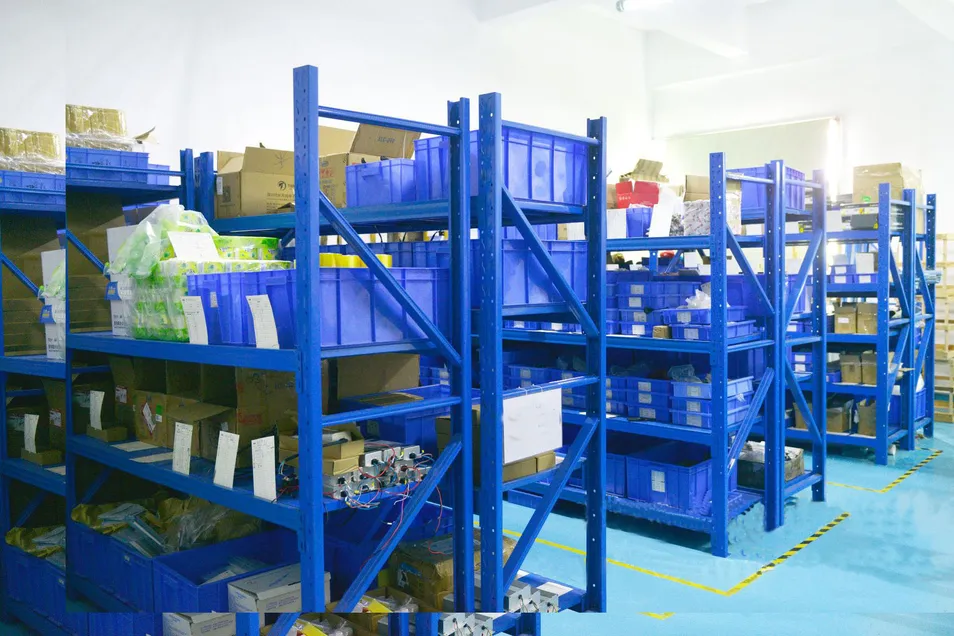

Production Line

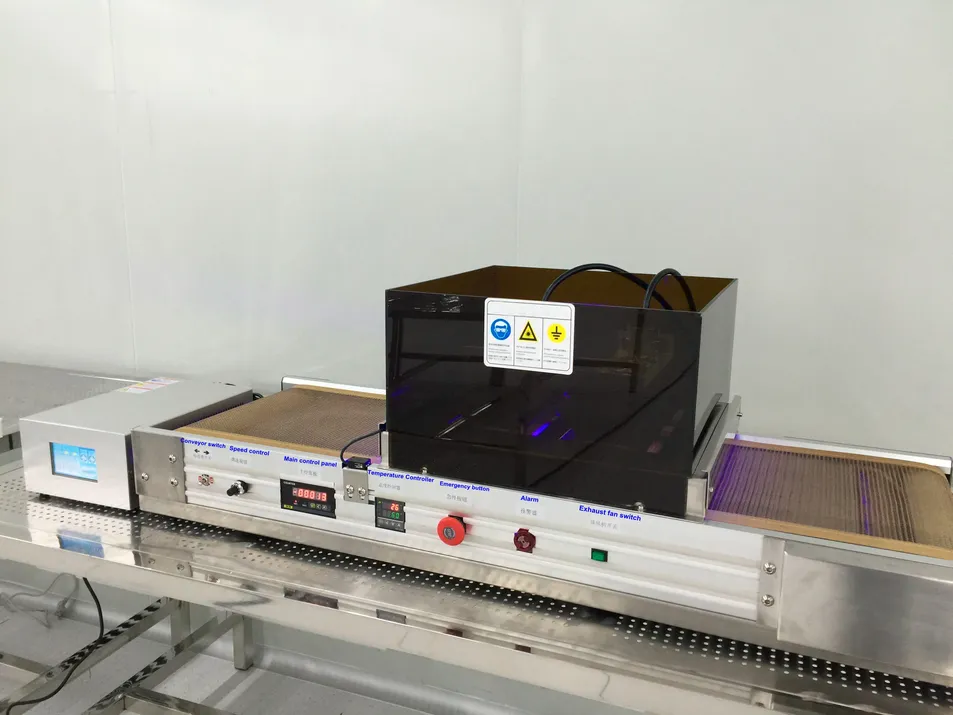

Quality Control

Main Products

  • UV-LED Spot/Line/Area curing systems
  • UV-LED Oven/Conveyor curing
  • UV-LED Measuring systems

Why Choose Us?

  • OEM/ODM capabilities
  • Competitive pricing & bulk discounts
  • Fast shipping support
  • Turnkey project solutions
❓ Frequently Asked Questions
Why choose our UV LED curing system?
Our team has over 12 years of combined experience in the UV LED curing industry and can meet the specific technical requirements of each client.
What are the primary applications for this system?
It is mainly used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish, and other UV-sensitive materials across various industries.
What are the advantages of UV LED over mercury lamps?
Key advantages include a longer service life, significant energy savings, instant power on/off capability, and an environmentally friendly process.
How do I determine the required emitting window size?
The size depends entirely on the specific curing area required for your application. We offer customized sizes to fit your production line.
How do I choose the correct power intensity?
Power intensity requirements depend on the properties of your UV-sensitive materials and your required production efficiency/speed.
Can you customize the Peak Irradiance?
Yes, any size of emitting window and Peak Irradiance can be customized according to your specific industrial applications.
