LED UV Curing Conveyor System with Law-Energy Lamp for Lens Manufacturing

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.	EB-DK200	Structure	Conveyor System
Material	Metal and LEDs	Application	Chemical Industry
Condition	New	Power	600W
UV Wavelength	365nm/395nm/405nm	Belt Length	800mm
Belt Width	200mm	Package Size	95.00cm * 62.00cm * 90.00cm

💡 Product Description

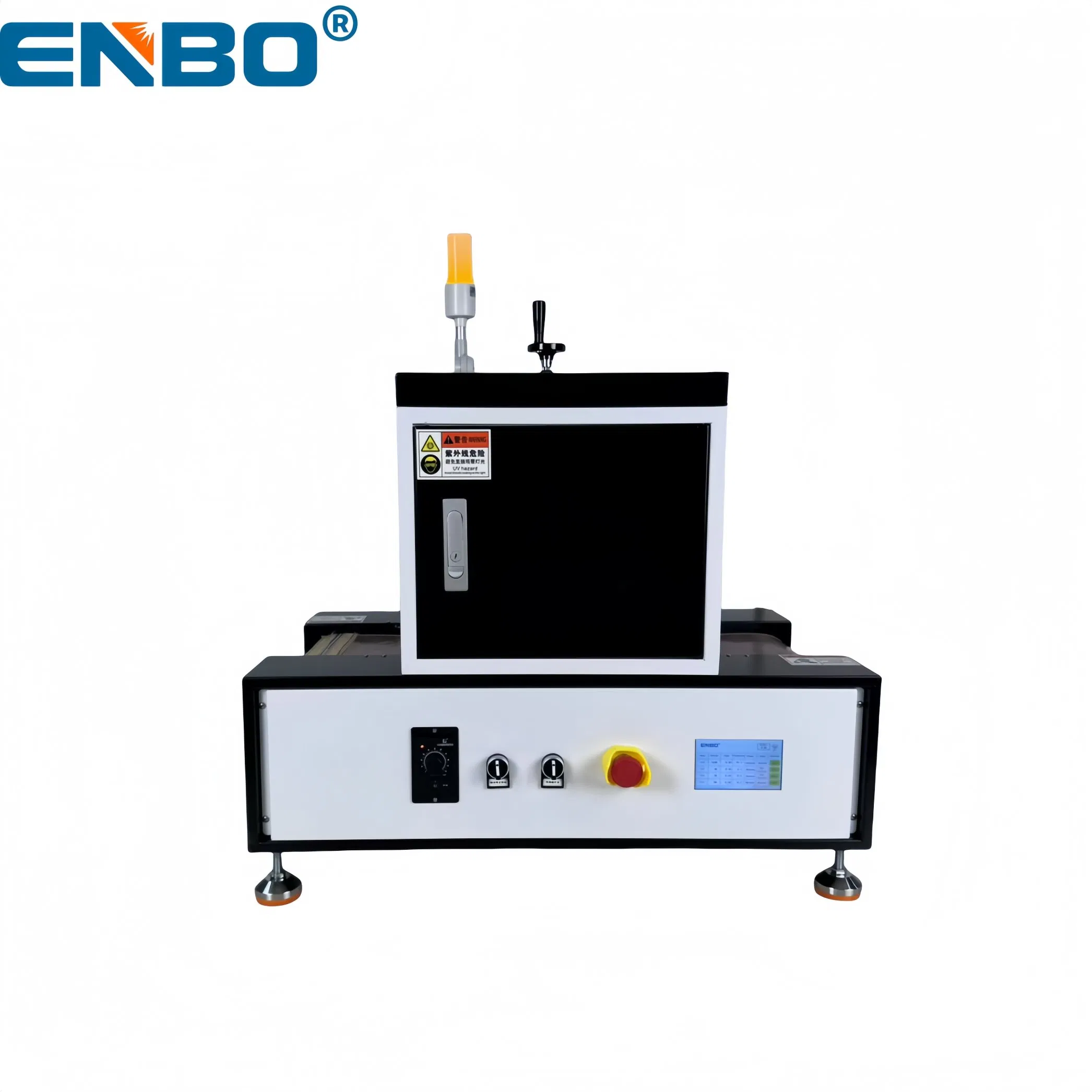

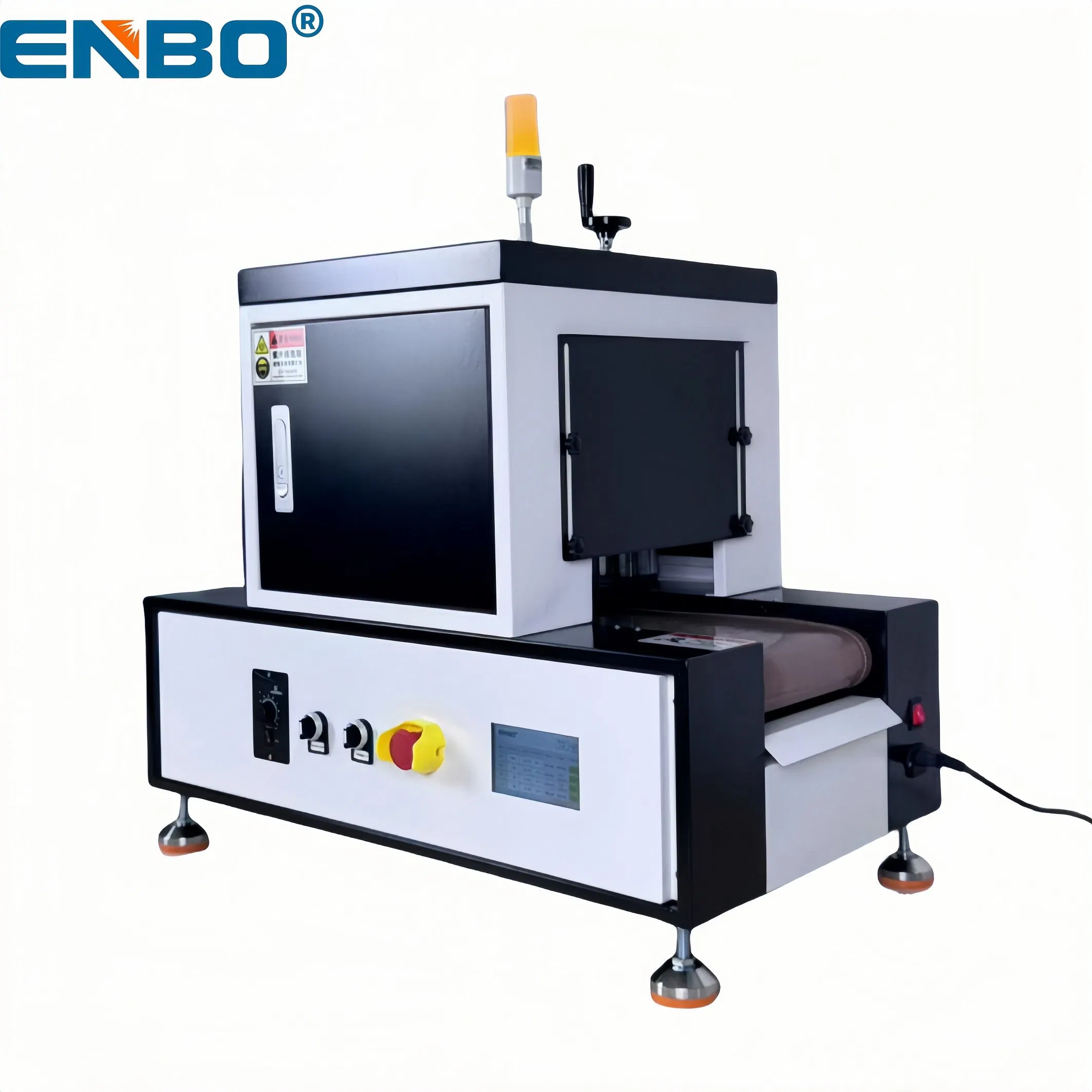

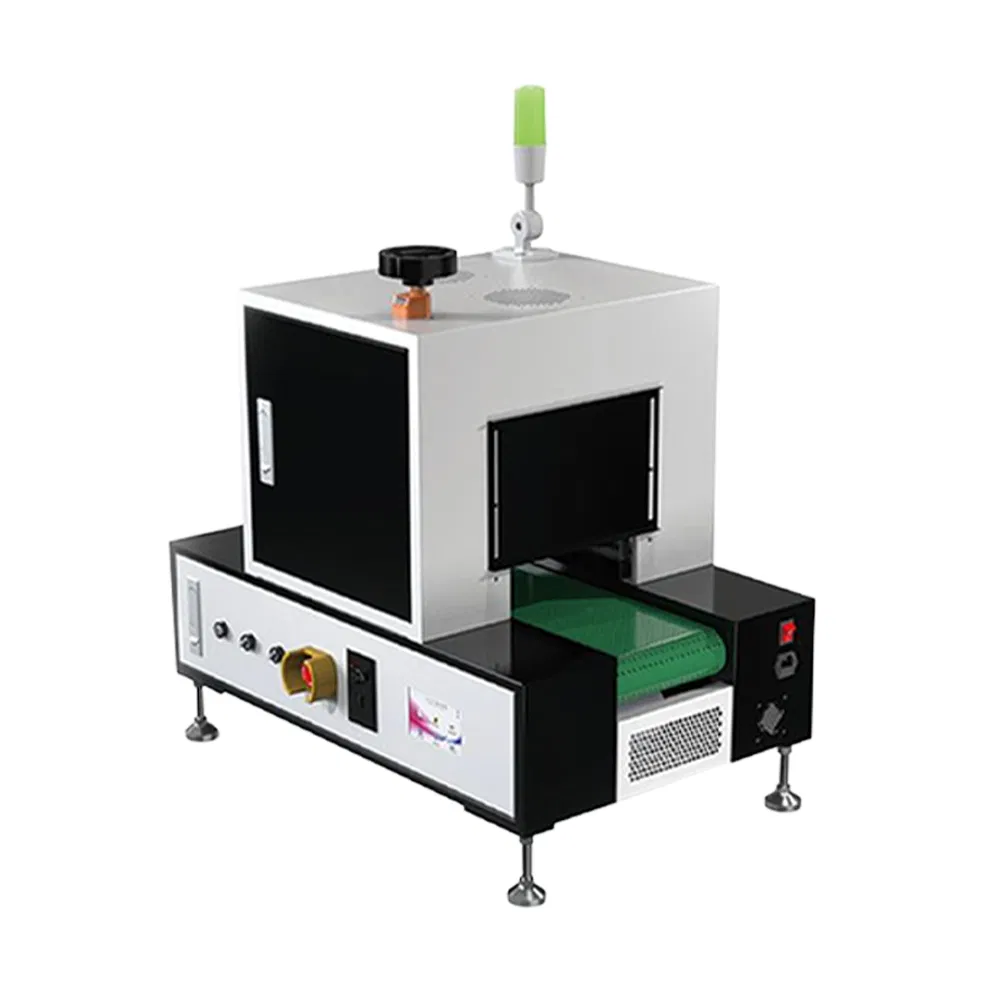

LED UV Curing Desktop Conveyor Introduction

The EB-DK200 is a desktop LED UV curing conveyor system featuring a 200mm belt width. It offers an optional intensity range from 600mw to 18000mw/cm², providing a compact and efficient solution for industrial curing needs.

The conveyor height is adjustable from 10mm to 180mm, and the belt material can be customized with options like stainless steel or PVC. The system is equipped with a Flood Curing Lamp that allows for 0-100% power control, making it ideal for curing adhesives, inks, and coatings in small areas.

⚙️ Product Parameters

Power	600W	UV Wavelength	365nm/395nm/405nm/485nm
Cooling Method	Air Cooling or Water Cooling	UV Intensity	9000-18000mw/cm²
Display	5-inch Touch Screen	Conveyor Belt Width	200mm

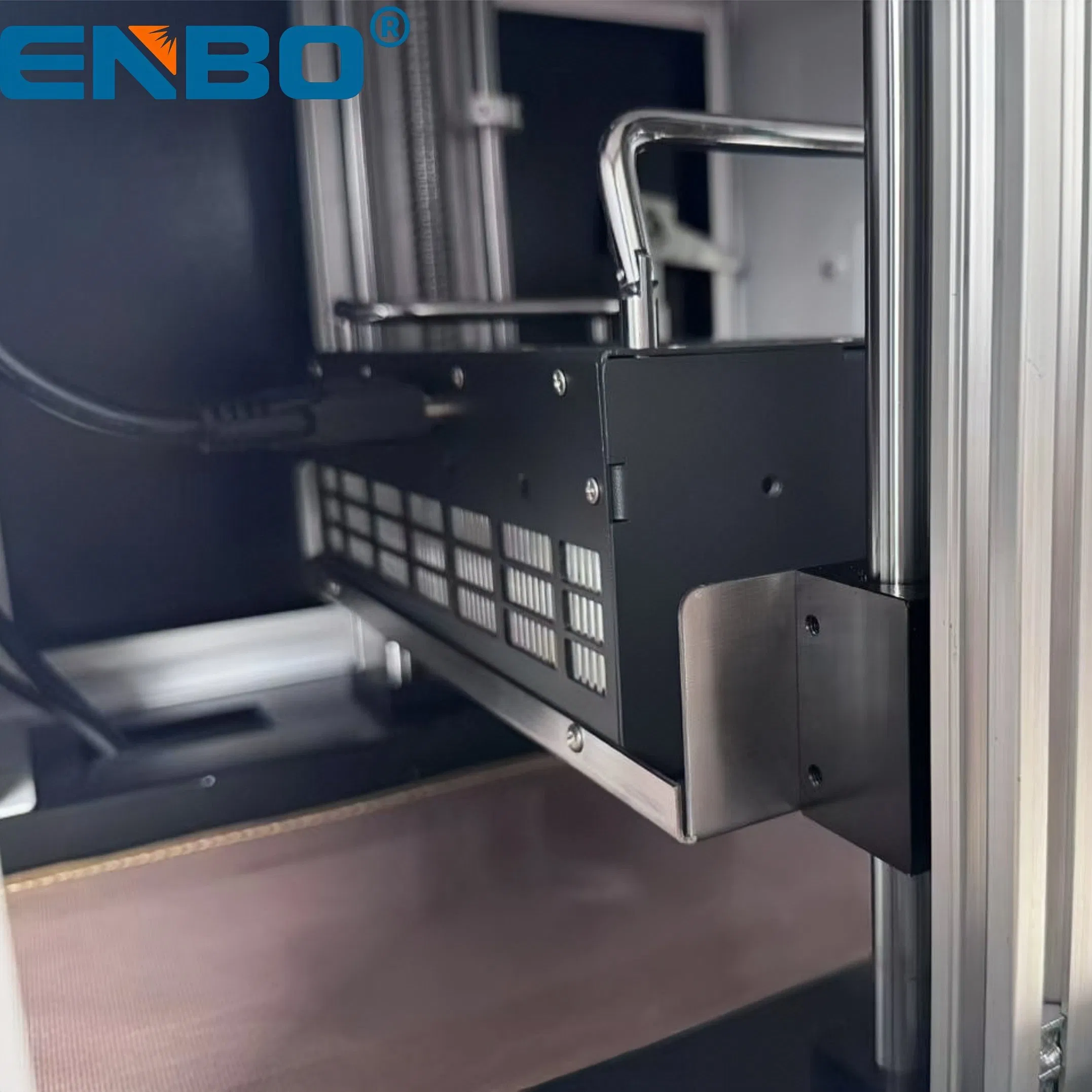

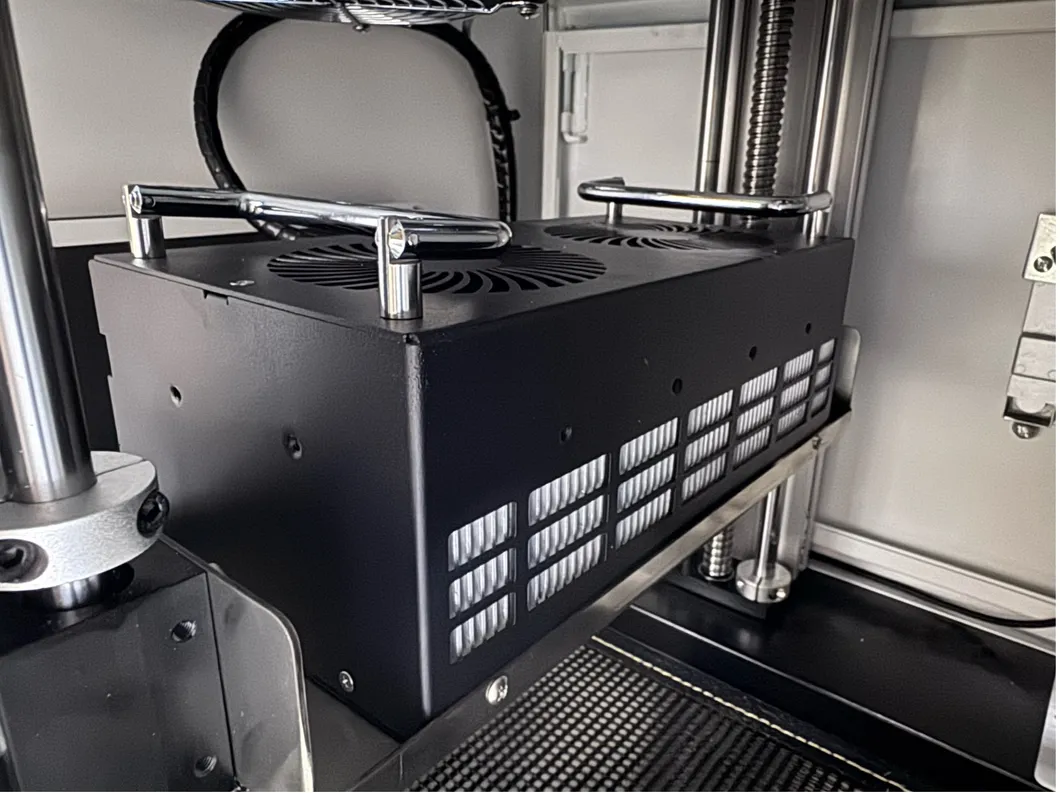

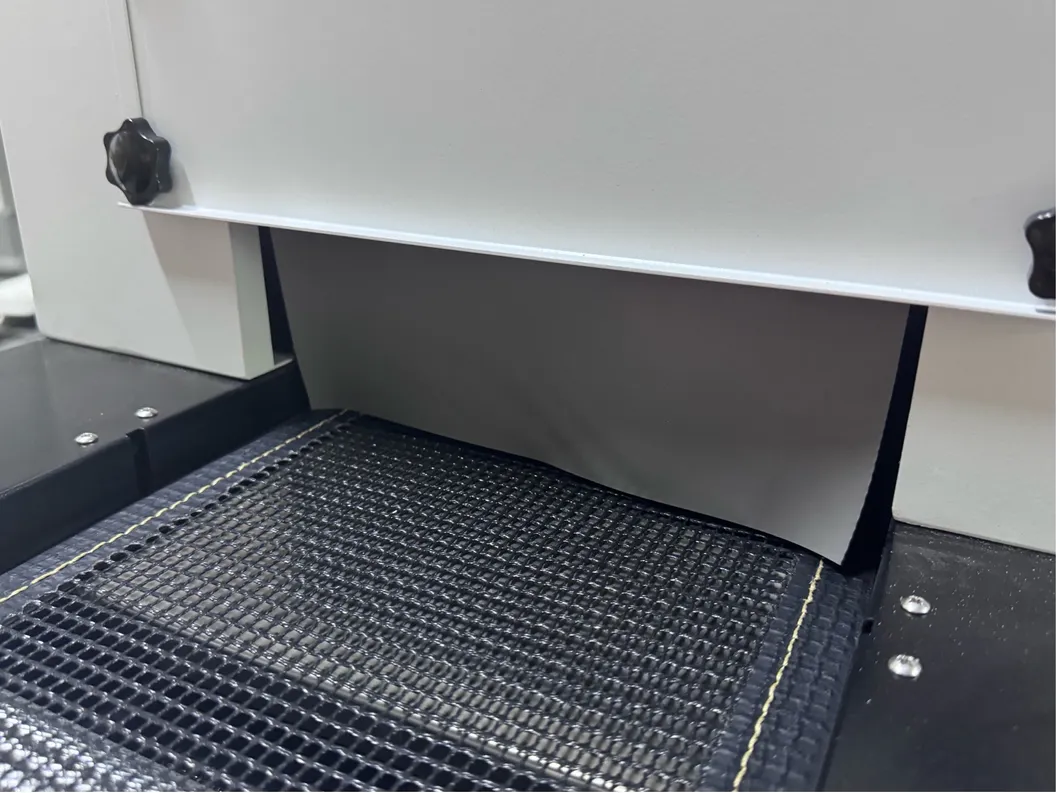

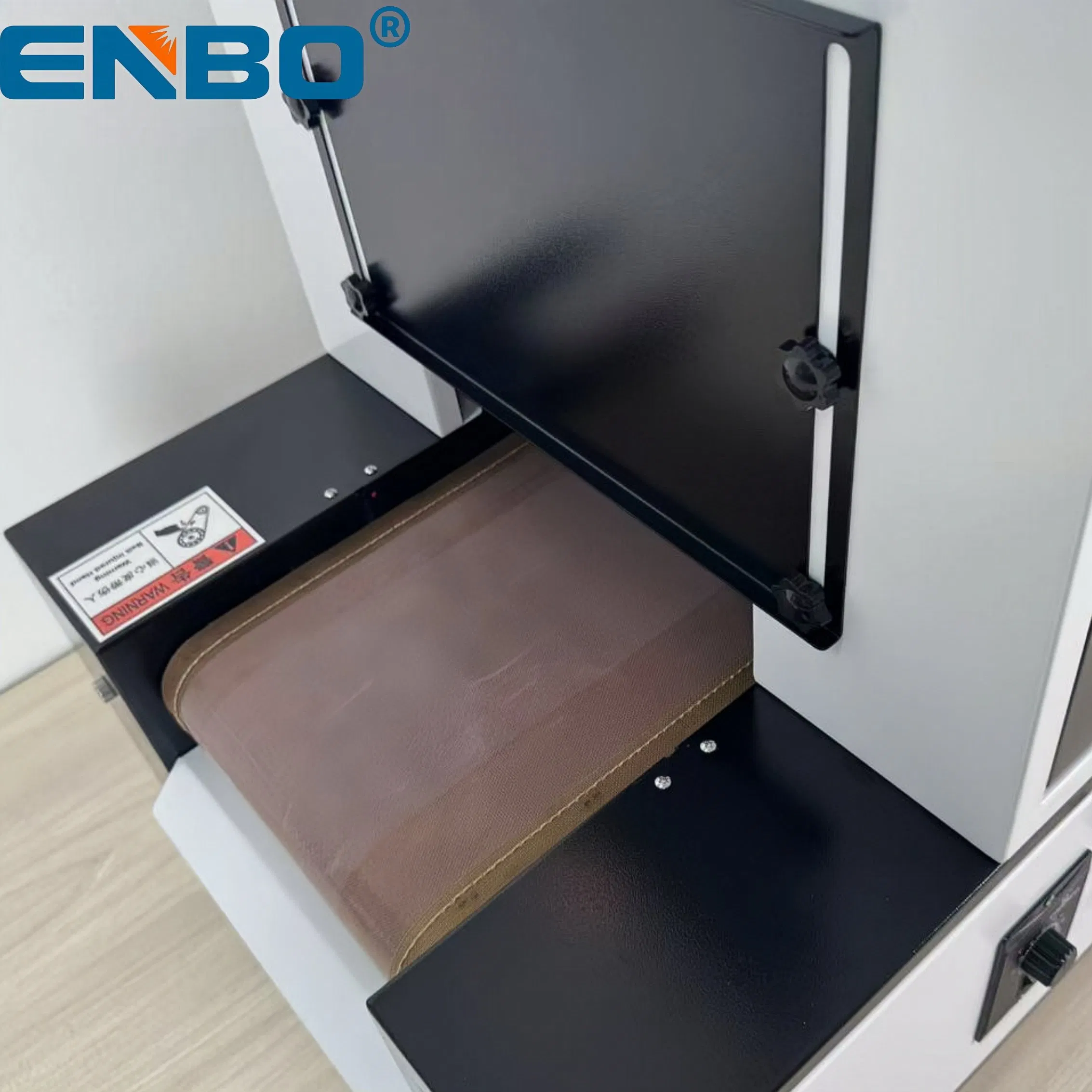

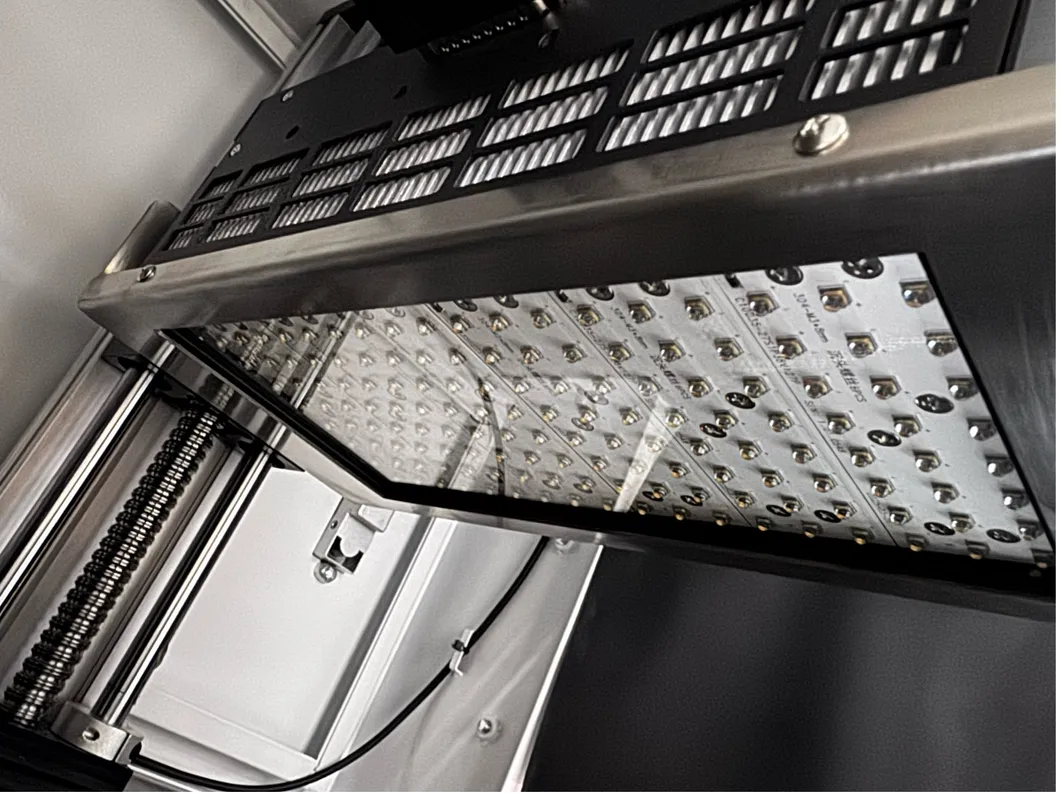

📸 Detailed Photos

🌟 Key Features

⚡

High Efficiency: Capable of reaching UV intensity up to 18000w/cm² for rapid curing.

🌈

Versatility: Multiple wavelength options (365nm, 395nm, 405nm) to suit various materials.

📱

User-Friendly: 5-inch touch control display for easy operation and 0-100% power adjustment.

🛠️

Customizable: Standard 200mm width with optional belt materials like stainless steel or PVC.

🏥

Professional Use: Perfect for medical, electronic, and laboratory applications.

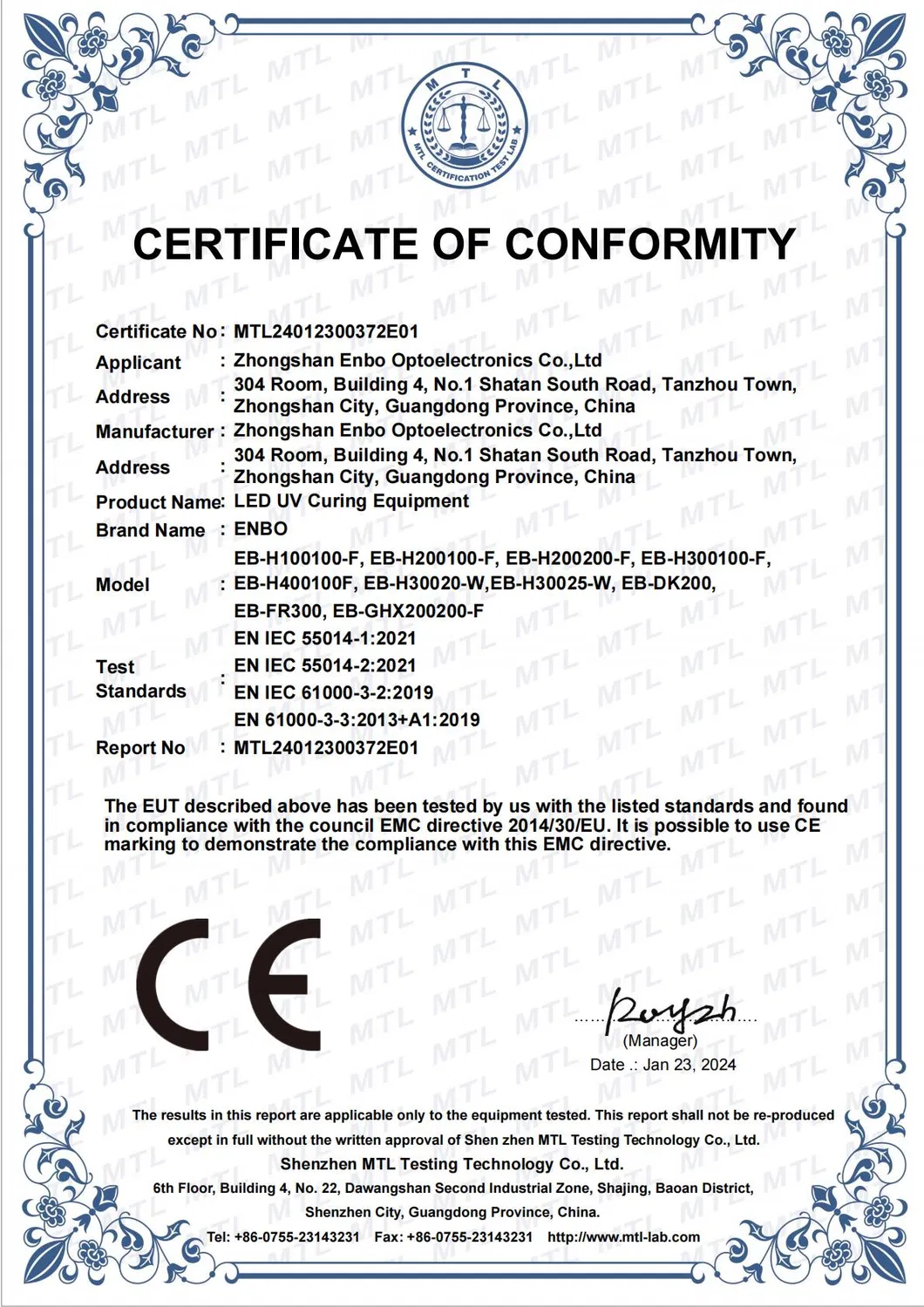

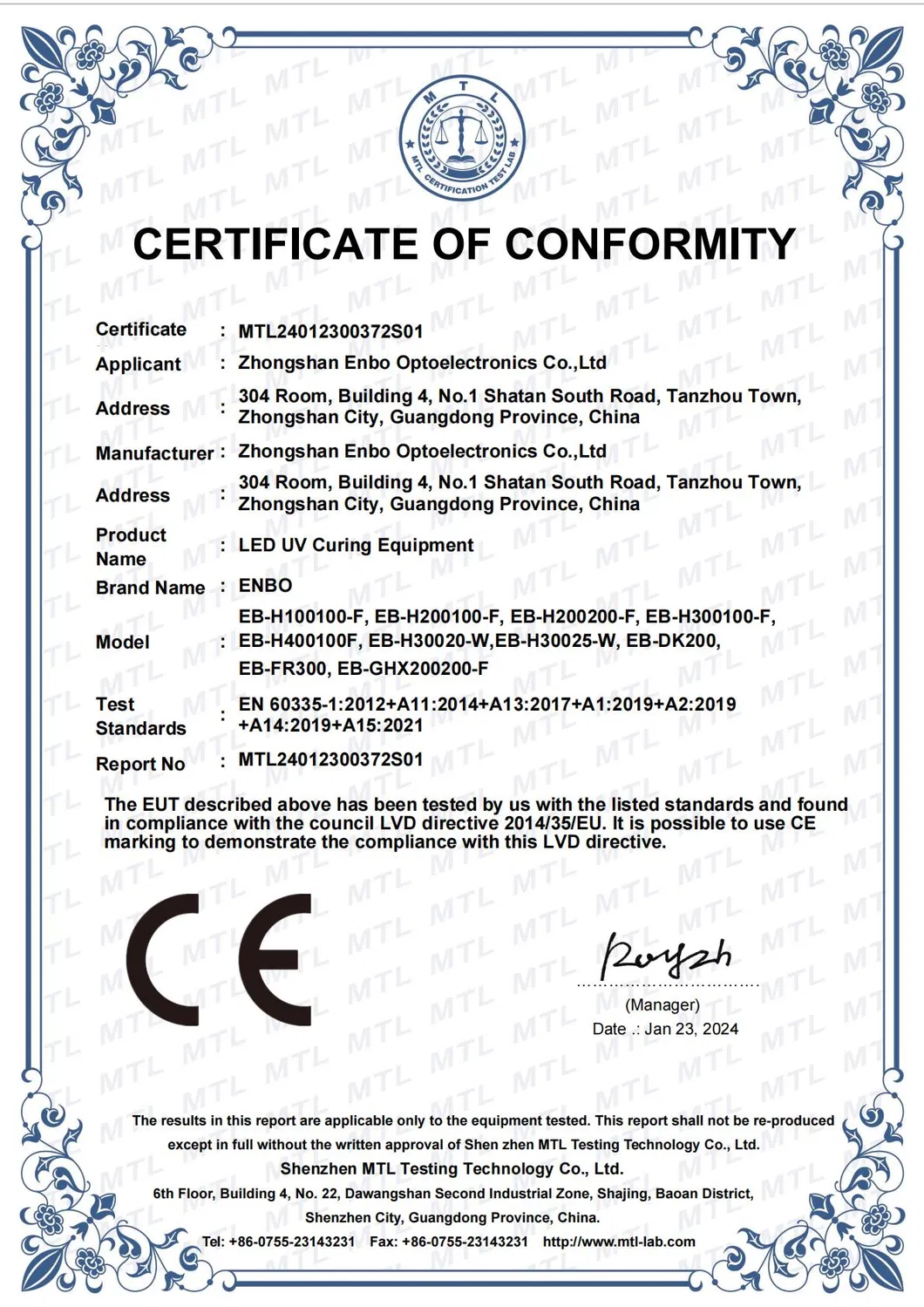

📜 Certifications

📦 Packaging & Shipping

We utilize professional export-grade packaging and reinforced wooden crates to ensure the maximum safety of the products during international transportation.

❓ Frequently Asked Questions

What does the complete UV LED curing system include?

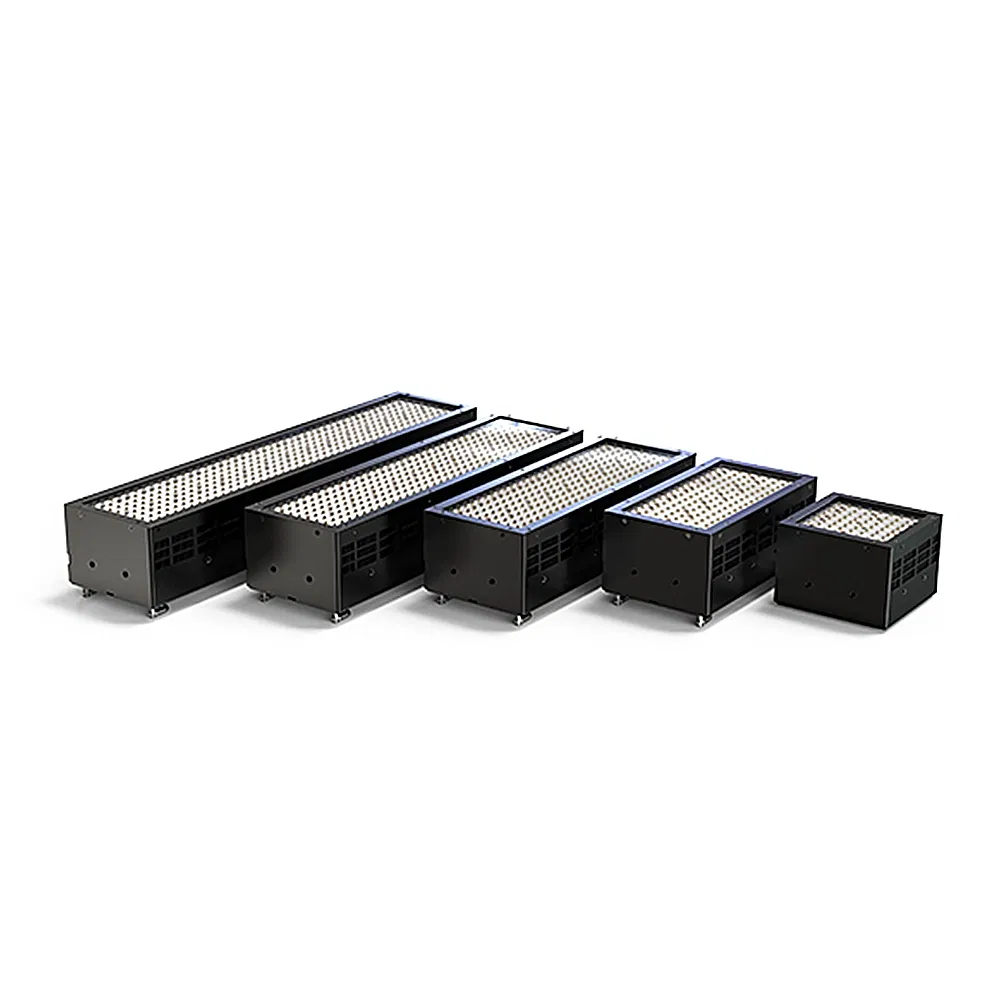

The full system consists of the UV LED Curing Conveyor, the UV LED Lamp, and the integrated Controller System.

Can I integrate my own PLC and Electric cabinet?

Yes, our UV LED drivers support RS485 communication for seamless integration with external control systems.

How do I proceed with an order for this system?

First, share your requirements. We will provide a quote based on your needs. Once samples are confirmed and a deposit is placed, we move into formal production.

Is it possible to print a custom logo on the system?

Yes, we can print your logo. Please provide the design and formal notification before production begins.

What kind of warranty and service do you offer?

We provide a 1-year free warranty and a service life guarantee of up to 20,000 hours for the LED components.

Are the conveyor speed and belt material adjustable?

Yes, the standard speed is 5m/min but can be customized. Belt materials such as stainless steel and PVC are also available.
