Introduction:

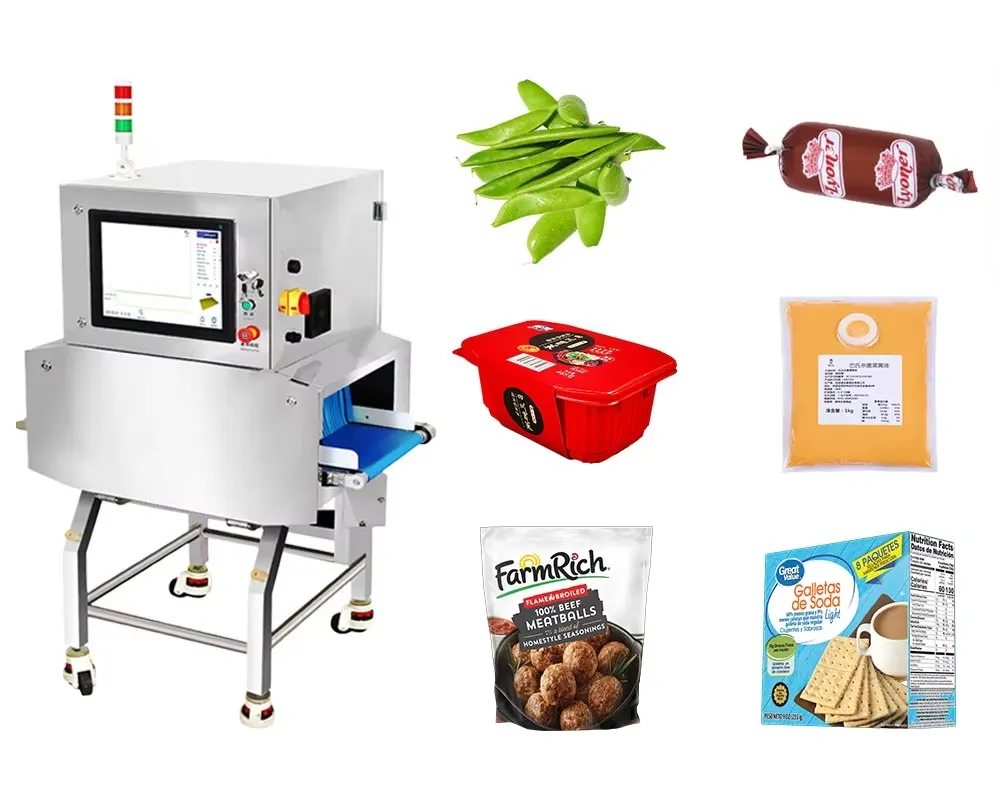

These X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers.

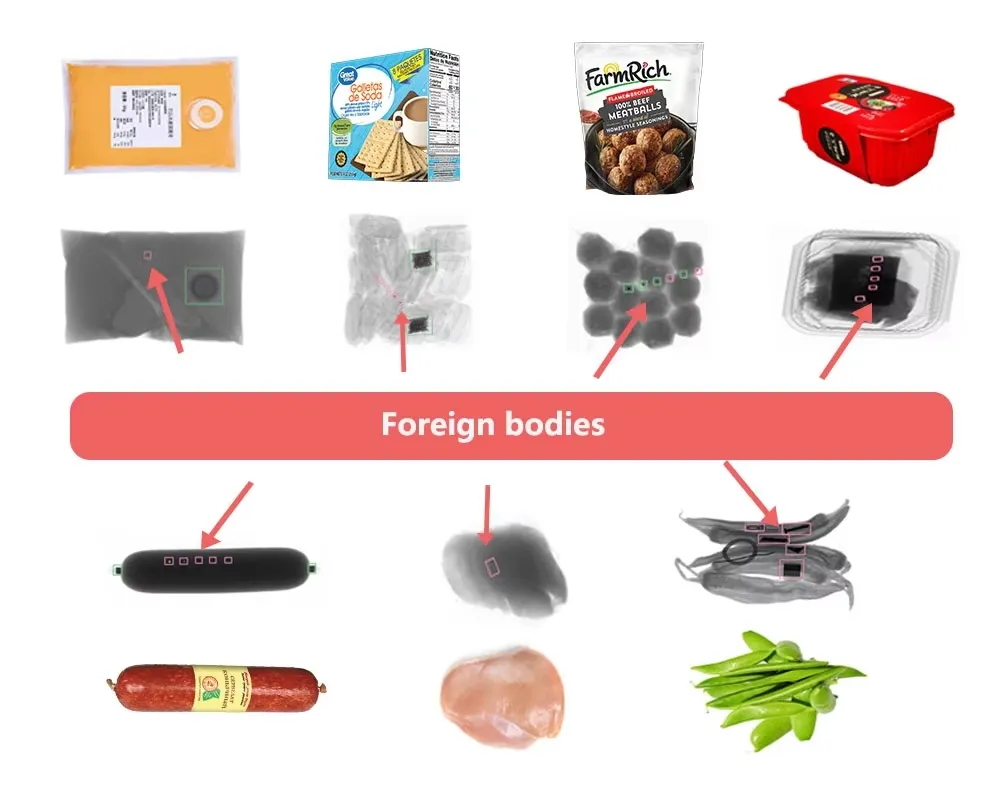

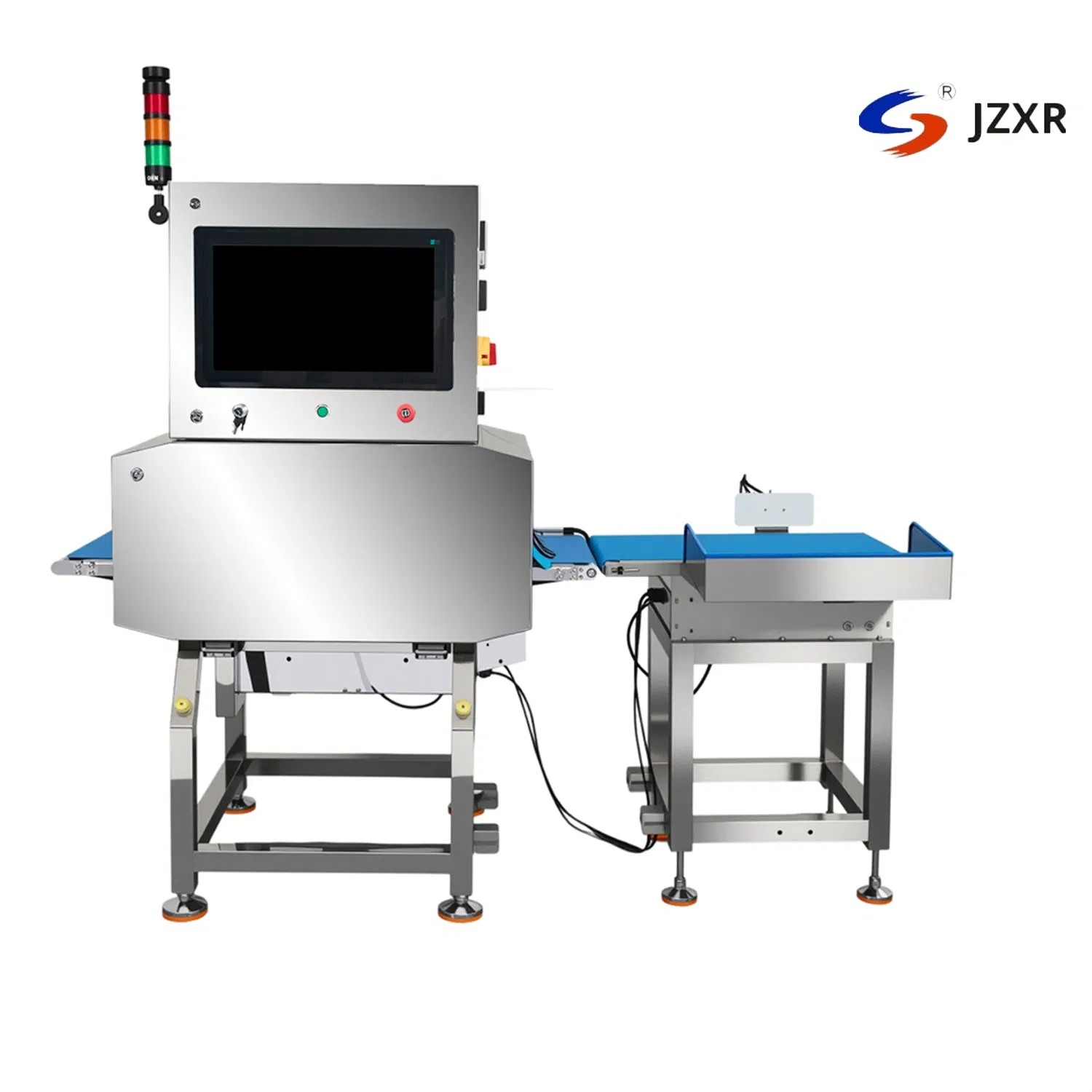

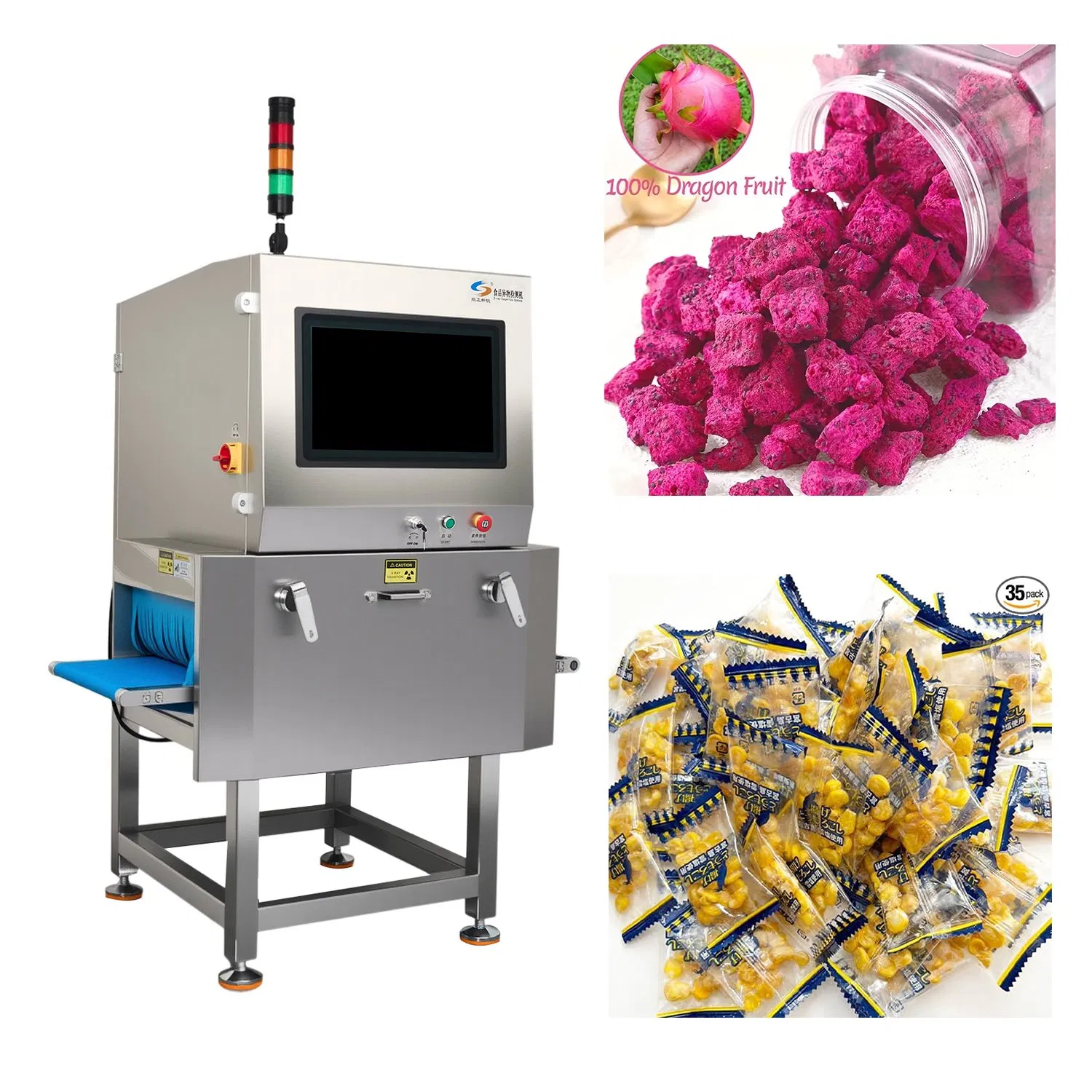

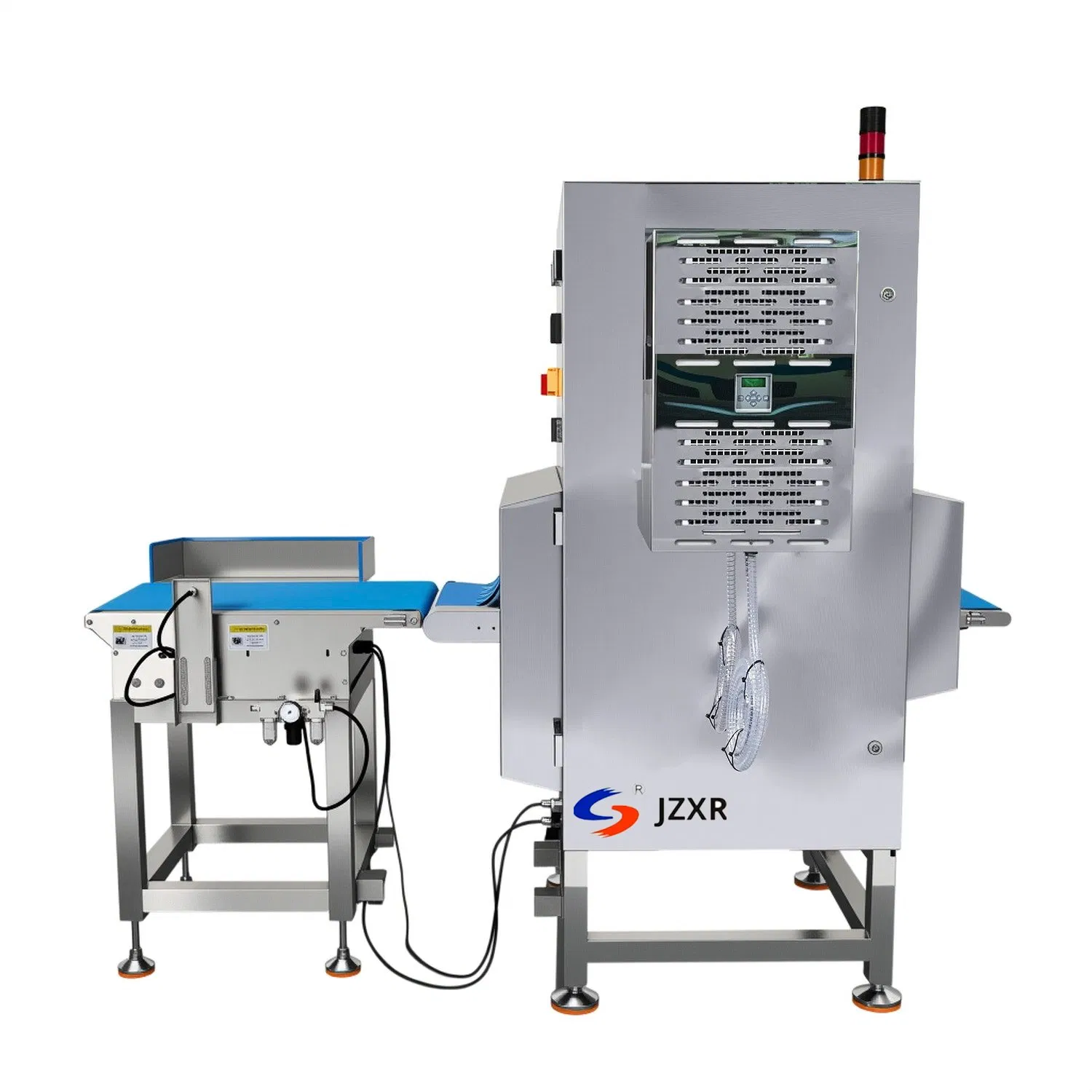

XR-400D series is used for detecting contaminants inside of the small packaged products. Metal and non-metal impurities include ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, had rubber and hard plastic, even for products wrapped in aluminum foil or metallised film and etc. The foreign object is detectable by its density. The greater density they have, the easier they can be found. That is why we normally use X-RAY inspection system to detect even the most tiny contaminants.
| Model | XR-100D | XR-400D | |
|---|---|---|---|

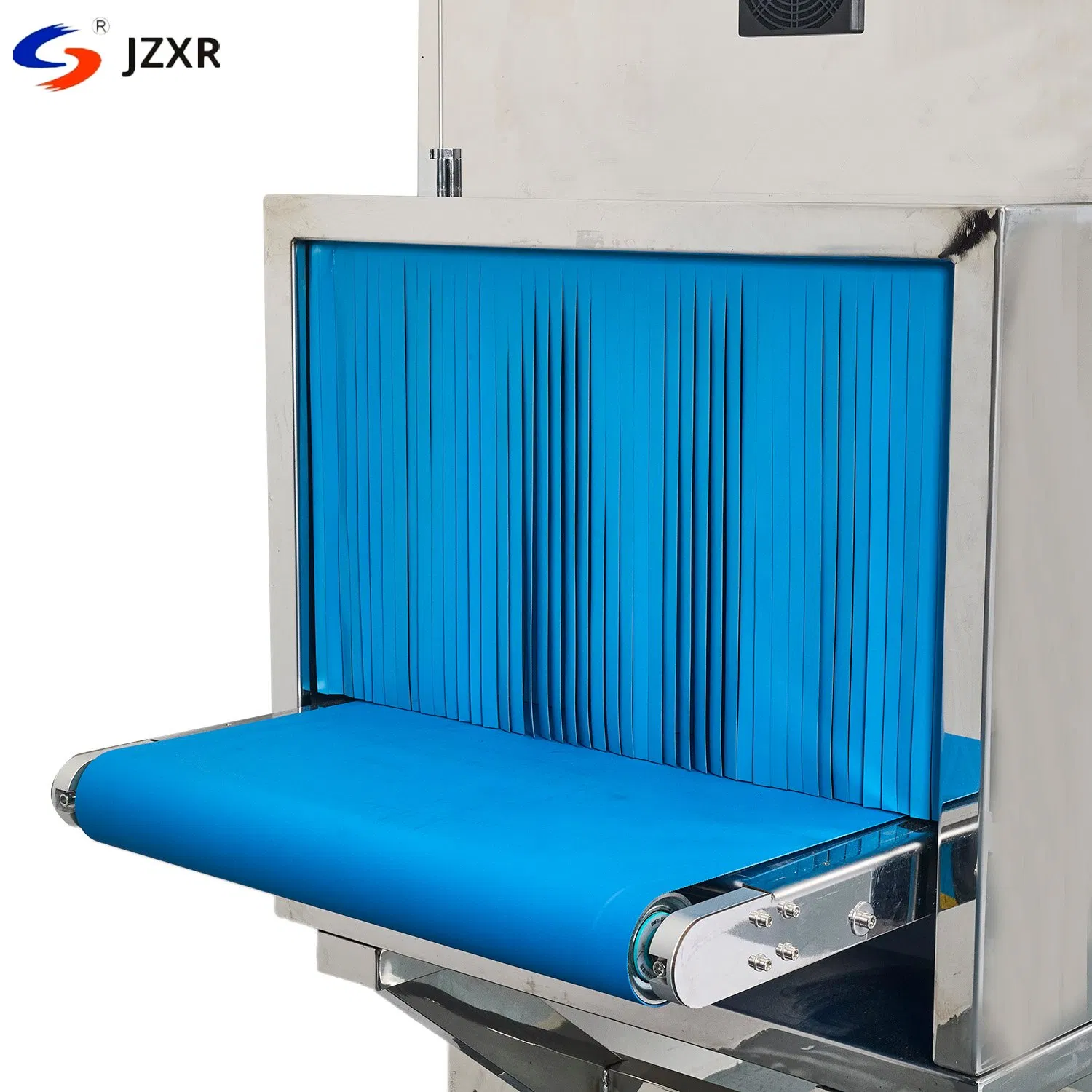

| Tunnel size(W*H) | 400*200mm | 400*200mm | 400*250mm |
| X-ray Generator | 60kV,60W | 80kV,150W/350W | |
| Max Sensitivity | SUS ball: Ø0.6mm | SUS ball: Ø0.4mm | |
| Conveying speed | 10-32m/min | 10-40m/min | |
| Conveyor load | 2kg | 5kg | |
| Screen | 17'' Full touchable | 21.5 Full touchable | |
| O/S | Windows 10 | ||
| Belt | White or Blue food grade PU belt | ||
Pre-sales Services:
1. Collecting product information and requirements.
2. Providing solutions and offers within 12 Hours.
3. Detailed service cases and videos available for review.
In-sales service:
4. Sending machine drawings for approval before production.
5. Following up production process for on-time delivery.
6. Sending inspection videos before dispatch.
After-sales service:
7. Full manuals and videos for installation and maintenance.
8. Online support: Response within 4 hours; solutions within 24 hours.
9. Onsite technical support available if required.
