UH-5075-S series conveyor chains have excellent extensity and capable of making any turn on both horizontal planes and vertical planes. Based on the actual needs of various process flows, the conveyor has been deliberately designed to run across relatively long routes and obstruction objects to transmit the work pieces along the scheduled route all the way to their destinations.
In this way, UH-5075 can integrate all separate production steps into an automatic production line, which has greatly improved efficiency and product quality level and strengthen the management as well.
| Model No. | UH-5075-S (Standard) | UH-5075-HH (Heavy-duty) | UH-5075-HV (Heavy-duty) | UH-5075-HA (Heavy-duty) |
|---|---|---|---|---|
| Suspension Spacing (mm) | 150+(150× N) | 150+(150 × N) | 150+(150 × N) | 150+(150 × N) |
| Chain's Weight (kg/m) | 4.2 | 4.58 | 4.83 | 5.3 |
| Single-span Weight (≤kg) | 35 | 40 | 45 | 50 |
| Allowed Pull Force (≤kgf) | 3000 | 3000 | 3000 | 3000 |
| Working Temp (≤°C) | 250 | 300 | 300 | 400 |

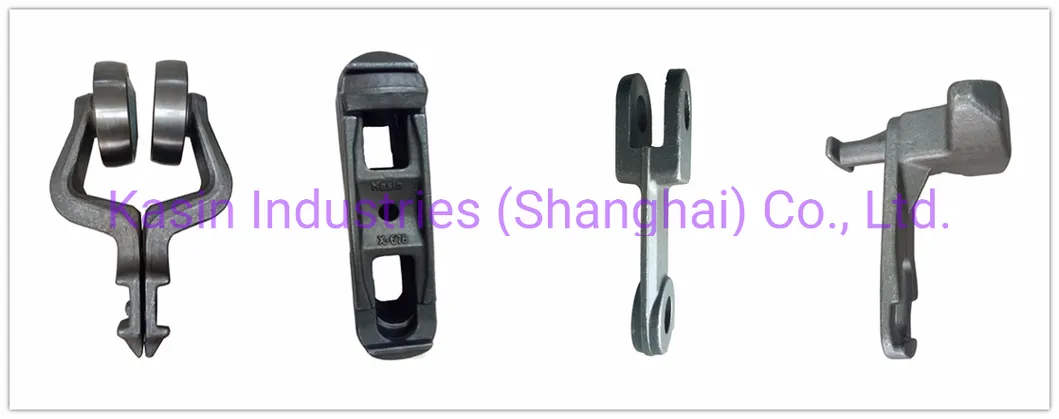

Forged Trolley | Forged Chain X678 | Drop Forged Chain | Forging Pusher

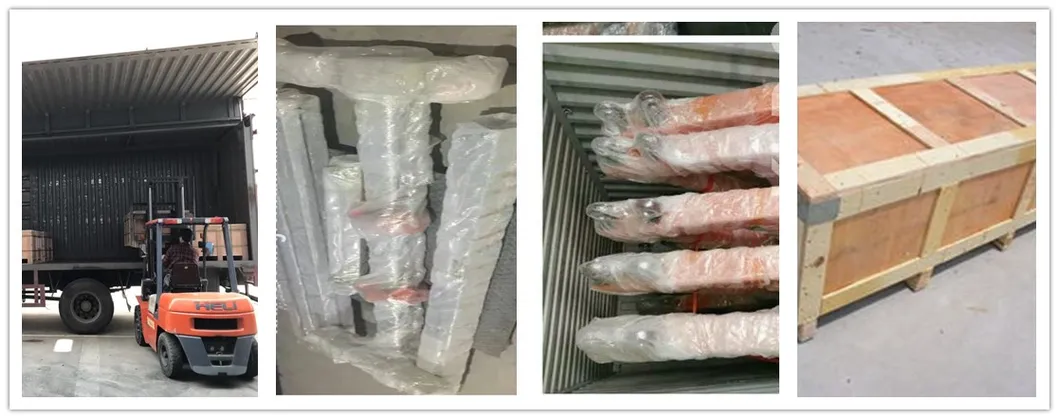

Inner Packing: Carton or standard export packing.
Outer Packing: Durable wooden cases tailored to customer requirements.
