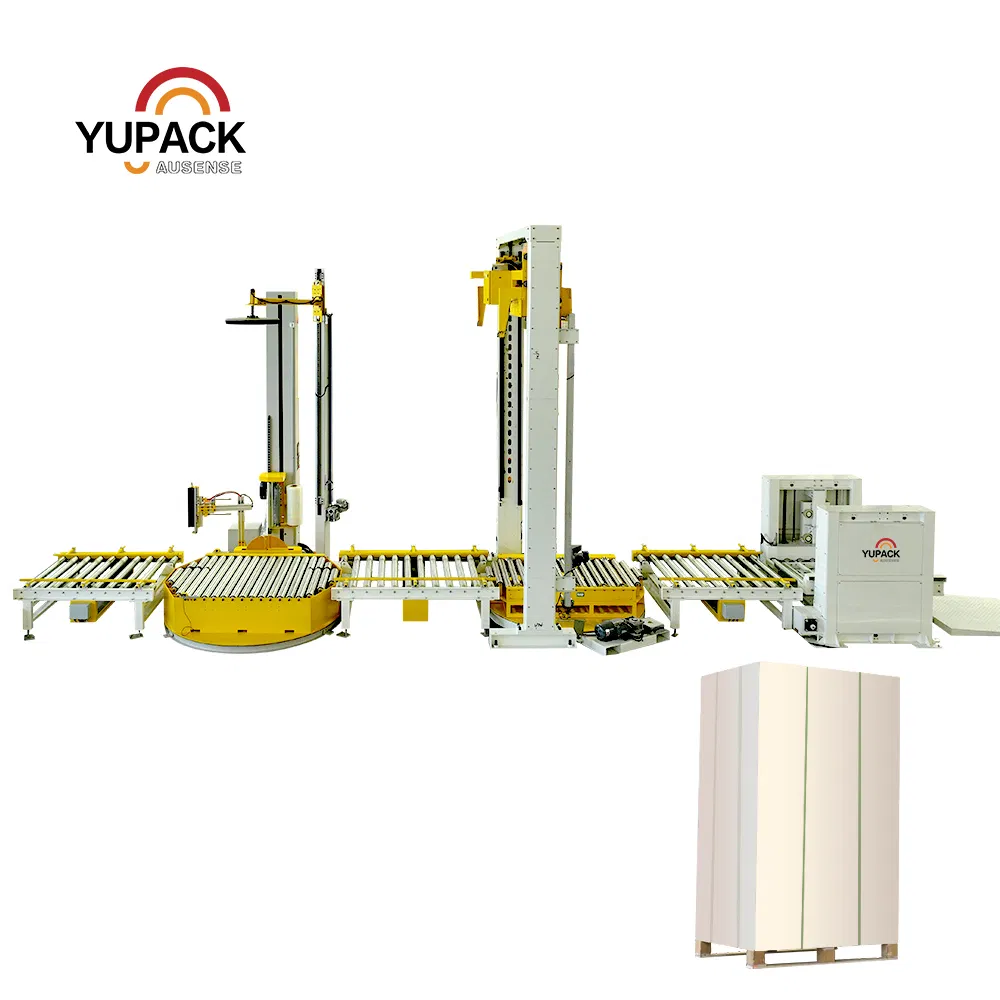

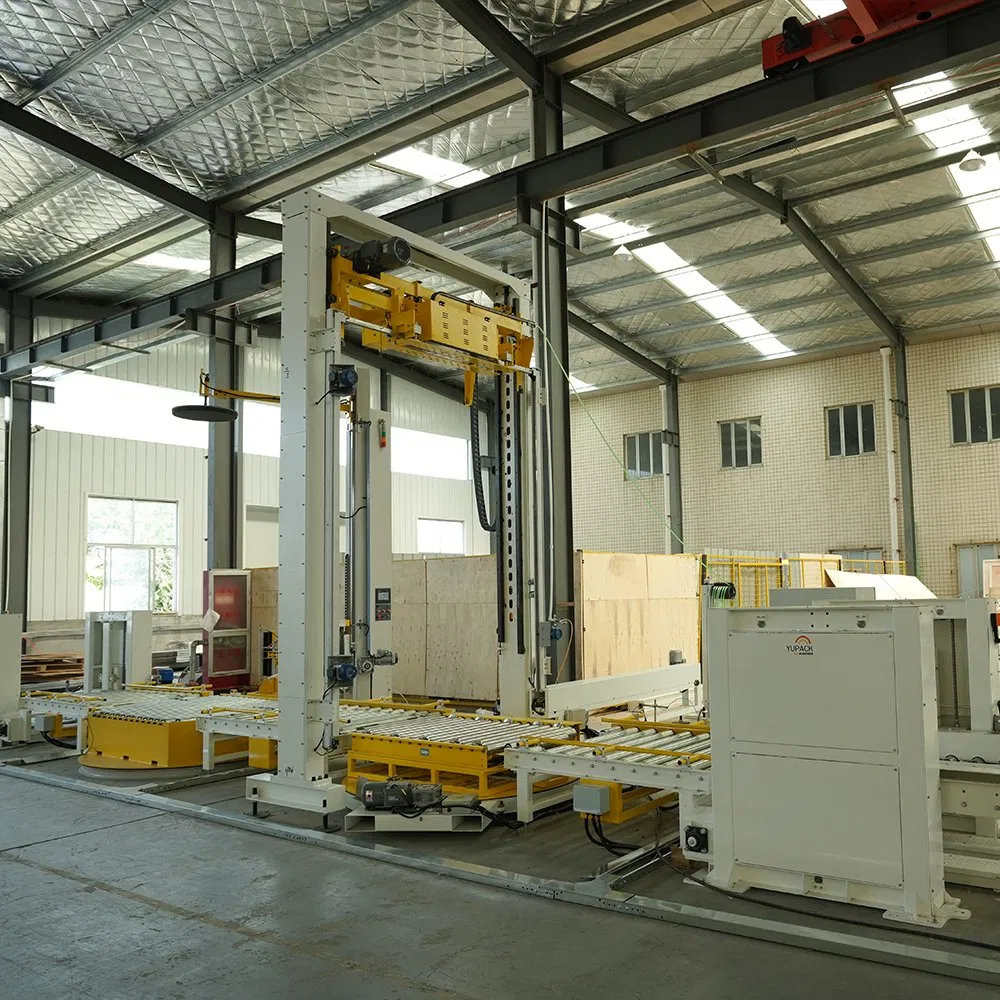

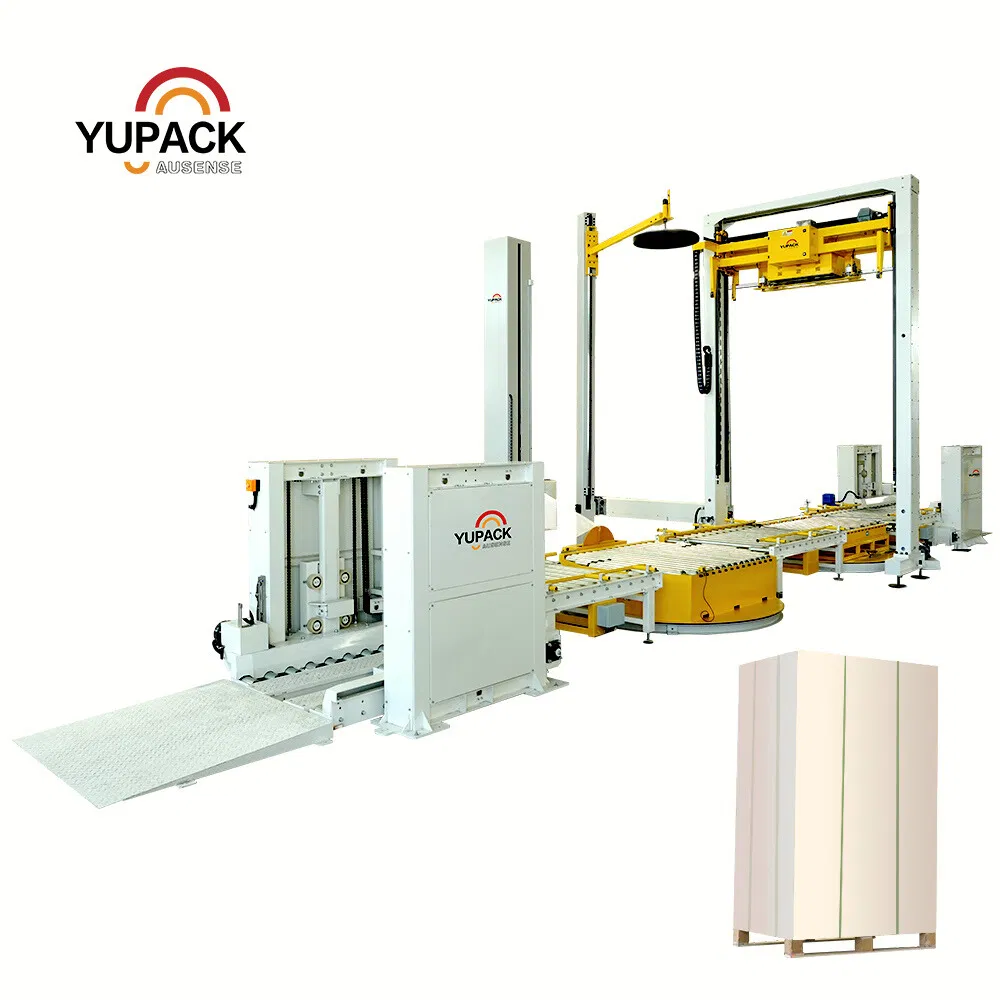

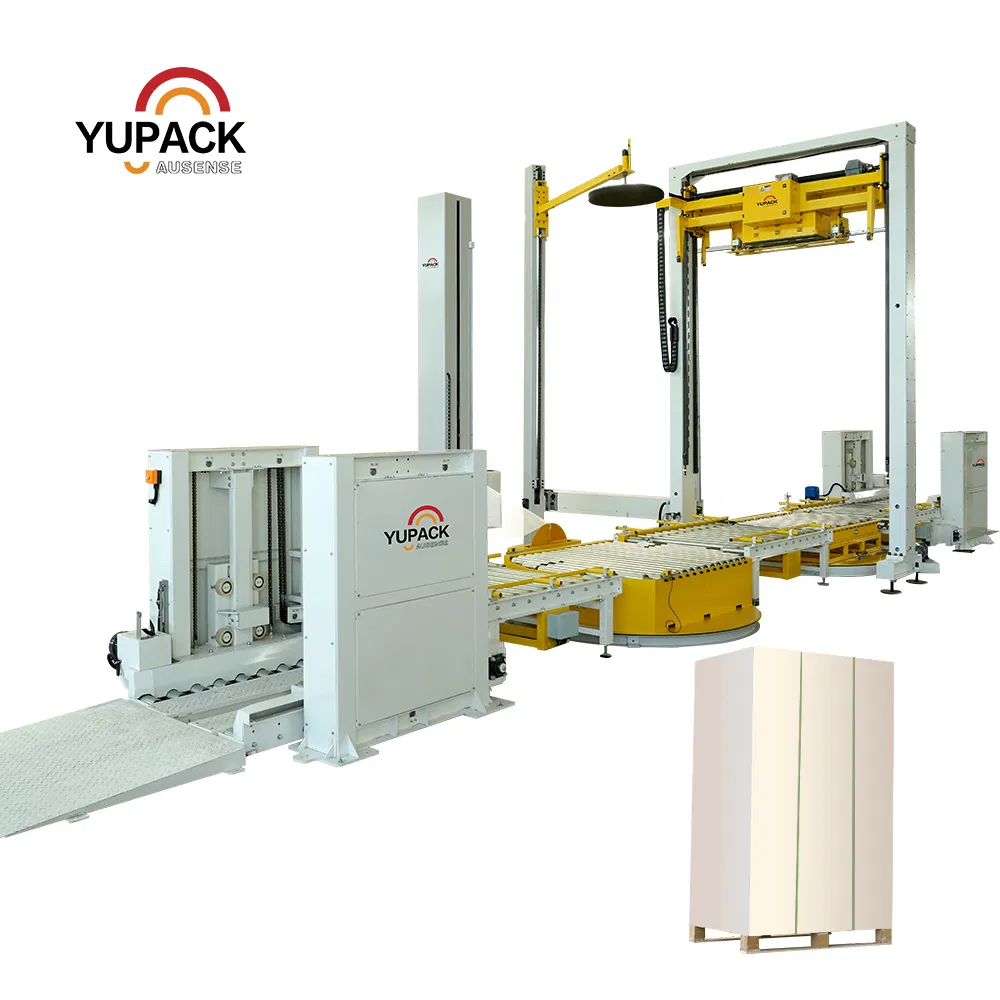

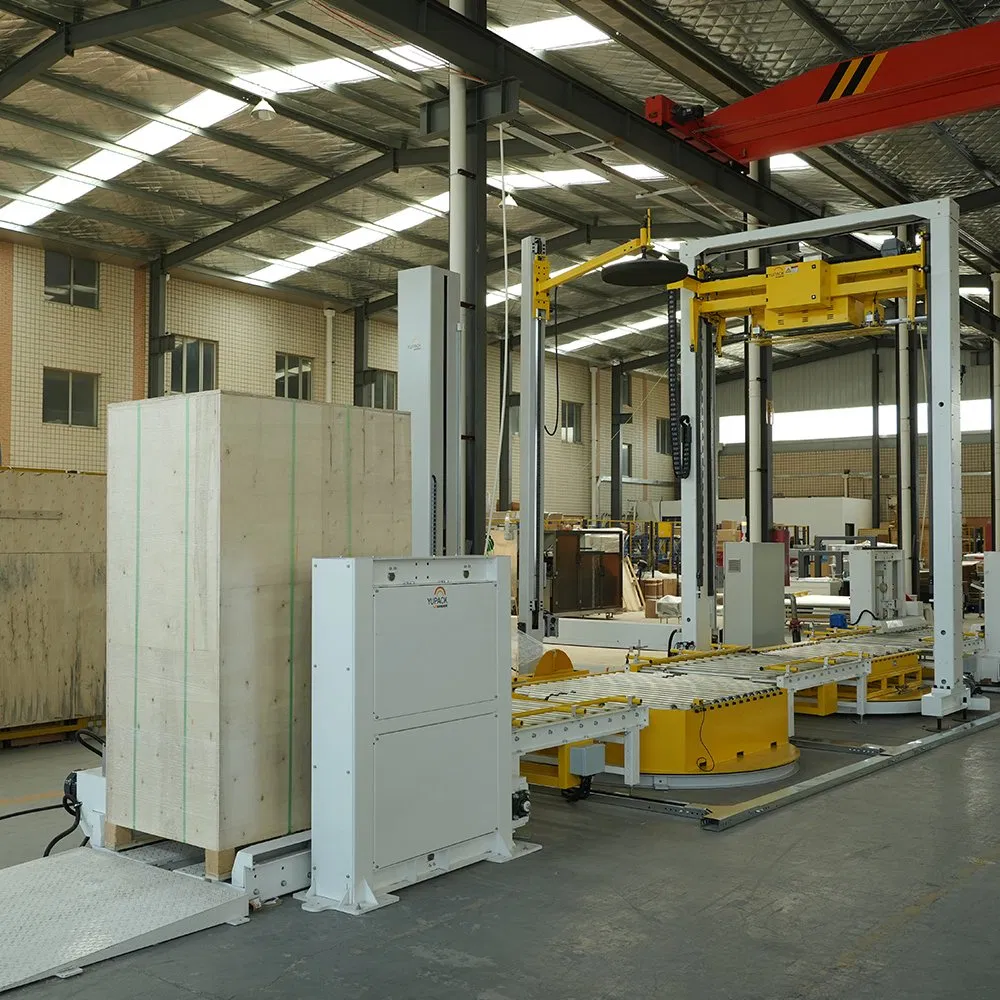

Cross Strapping and Automatic Turntable Stretch Wrapping System with Vertical Conveyor Transitions, Roller Conveyor Wrapper and Pallet Magaziner

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

📋

Basic Information

Usage
Packaging of Goods
Packaging Material
Plastic
Packaging
Cartons
Driven Type
Electric
Type
Assembly Line
Function
Storage and Packaging
Packaging Technology
Mildew Proof Packaging
Application
Box/Carton
Soft and Hardness
Flexible Package
Circulation Function
Outer Packing
Frequency of Use
Several Packaging
Mode of Operation
Packaging of Export Products
Voltage
380V, 50Hz, 3 Phase
Power
Turntable 0.75kw, Film Rack 0.4 Kw, Column 0.37 Kw
Packing Specification
L500-1200 * W500-1200mm
Packing Height
500-2000 (Customizable)
Transport Package
Wooden Case
Specification
CE
HS Code
8422309090
Production Capacity
100 Sets Per Month
📦

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
200.000kg
⚙️

Product Description

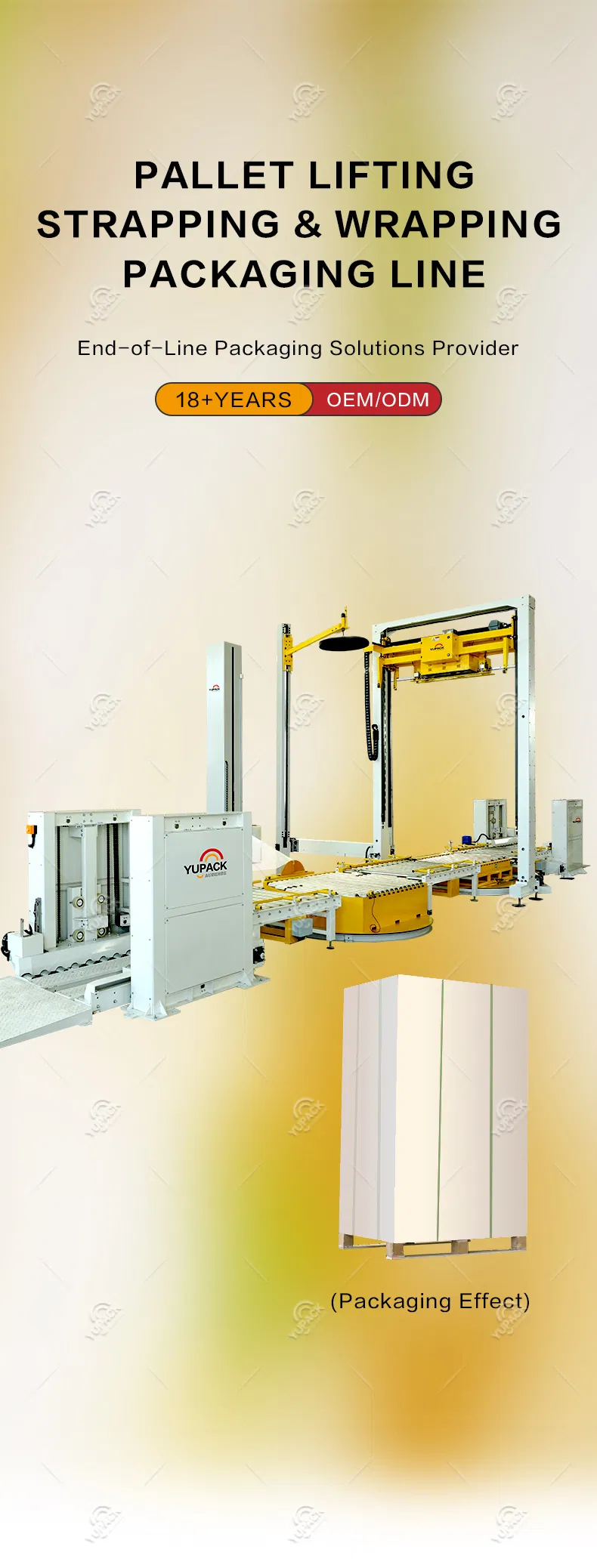

Pallet Lifting, Bundling, and Stretch Wrapping Packaging Line is an advanced, fully automated solution designed for high-efficiency material handling and unit load stability in modern logistics, warehousing, and manufacturing facilities. Engineered for reliability, precision, and seamless integration, this packaging line optimizes the final stages of production by combining lifting, bundling, and stretch wrapping into one continuous, streamlined process. It features a state-of-the-art lifting mechanism capable of handling up to 2,000 kg per pallet, ensuring safe and efficient load transfer. The bundling process utilizes high-strength straps, effectively securing loads of various sizes and shapes. Additionally, the stretch wrapping system applies stretch film evenly, reducing material costs while enhancing load protection. This line has been successfully implemented in industries such as food and beverage, electronics, and automotive, significantly improving overall packaging efficiency and reducing labor costs.
📊

Product Parameters

ModelMH-105C mobile machine
Bundling force250kg
Bundling speed25 seconds/row
Frame SizeCustomized according to customer’s pallet size
Applicable Strapping Band Width13-16mm
Strapping Band MaterialPP, PET
Power Supply380V, 50HZ, 1.5kw
Machine weight420kg
Electrical configurationSiemens “PLC” control, French “TE”, Japanese “OMRON”, “ZIK” electrical components
🖼️

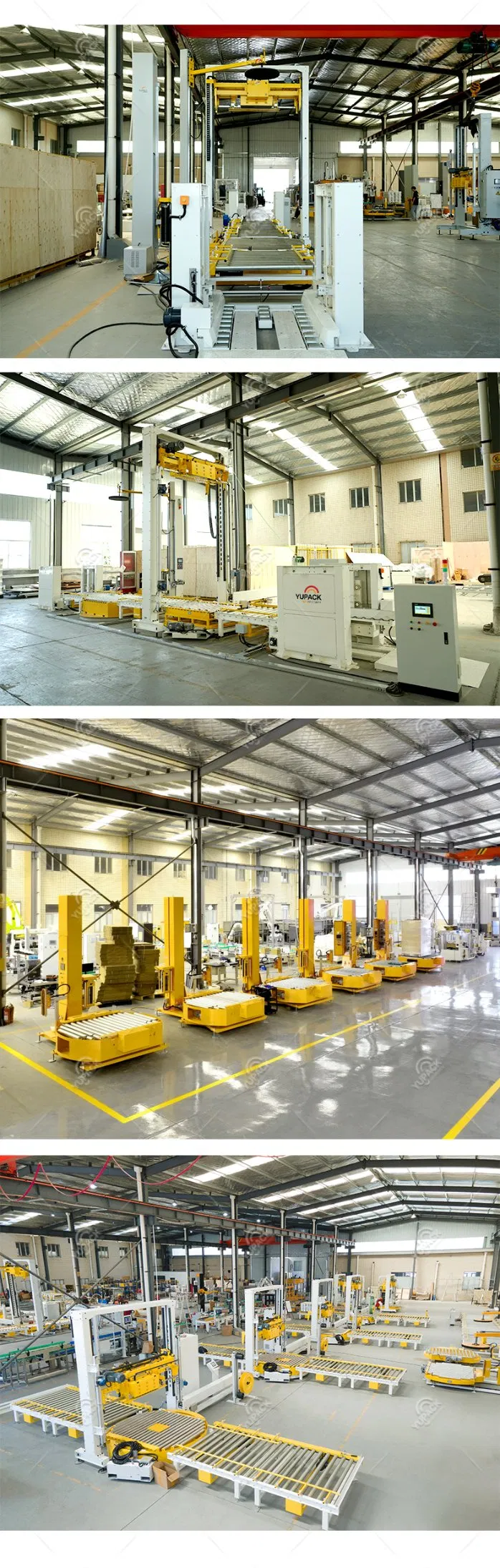

Product Visuals

Frequently Asked Questions

What is the maximum weight capacity for this pallet lifting system?
The state-of-the-art lifting mechanism is capable of handling up to 2,000 kg per pallet, ensuring safe and efficient load transfer.
What types of strapping materials are compatible with the bundling machine?
The system is designed to work with both PP and PET strapping bands, with an applicable width of 13-16mm.
How fast can the machine bundle a pallet?
The bundling speed is approximately 25 seconds per row, allowing for high-throughput operations.
Can the frame size be adjusted for different pallet dimensions?
Yes, the frame size is fully customizable according to the customer's specific pallet size requirements.
What electrical components are used in the control system?
The machine features high-quality electrical configurations including Siemens PLC control, along with components from OMRON, TE, and ZIK.
Which industries benefit most from this packaging line?
This line is ideal for the food and beverage, electronics, and automotive industries, where it significantly improves packaging efficiency and reduces labor costs.
