Home > Mobile Yard Ramps > Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp

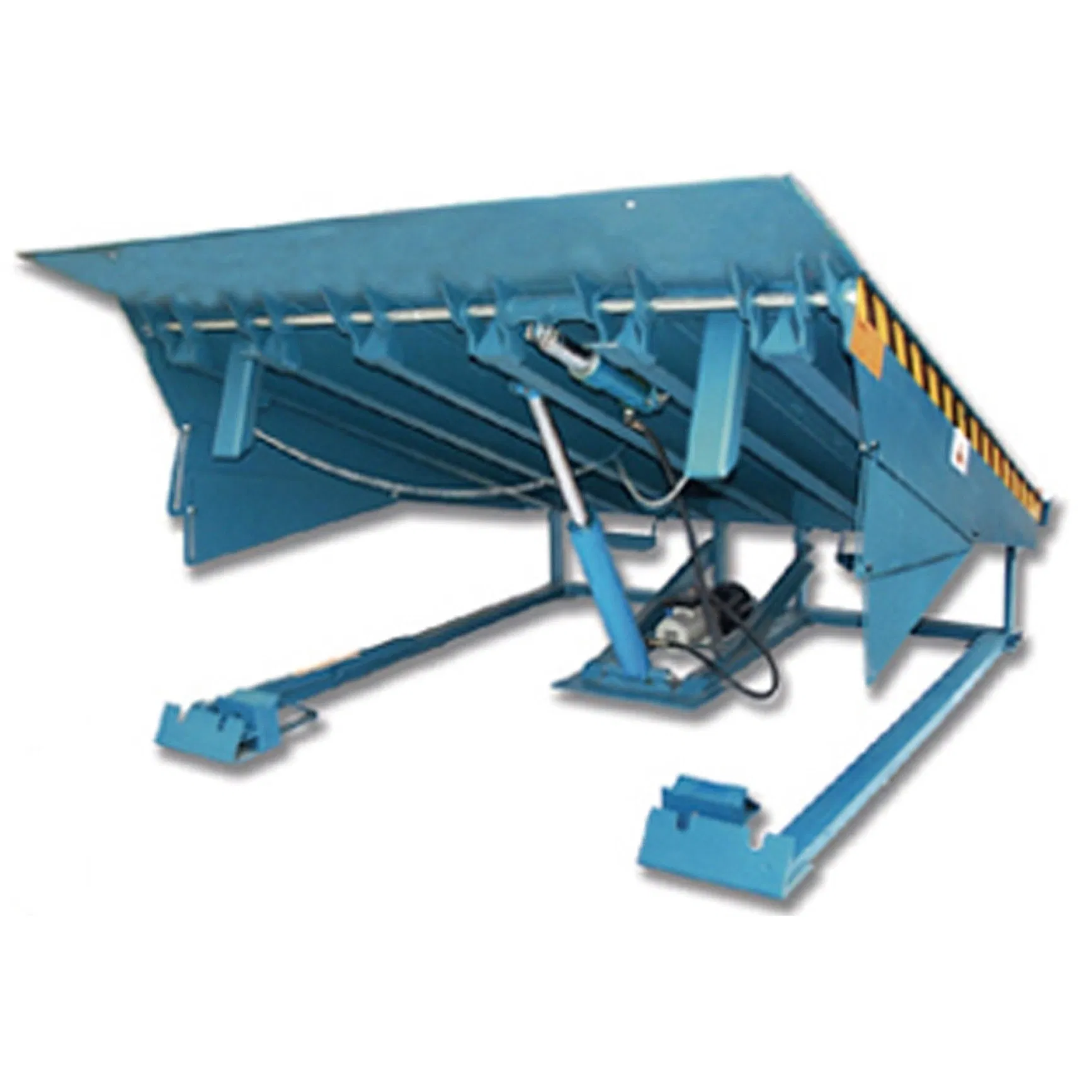

Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
1 / 5
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp
Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp

Mobile Container Lift Ramps Loading Unloading Bay Truck Ramp Yard Dock Leveler Dock Ramp

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

Basic Information
Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Specification
2000*2000*600 mm
Origin
Made in China
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
Transport Package
Wrapping Film
Product Overview

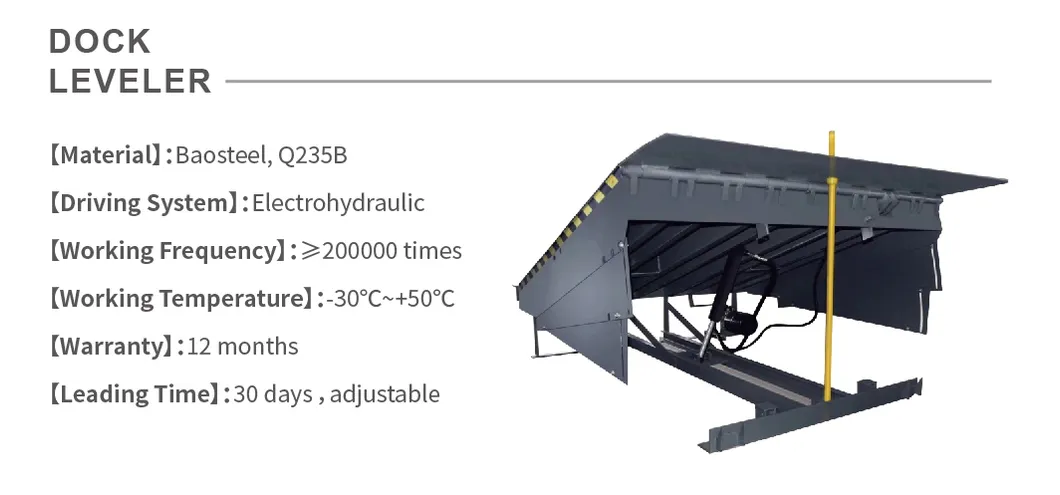

Dock Leveler 1

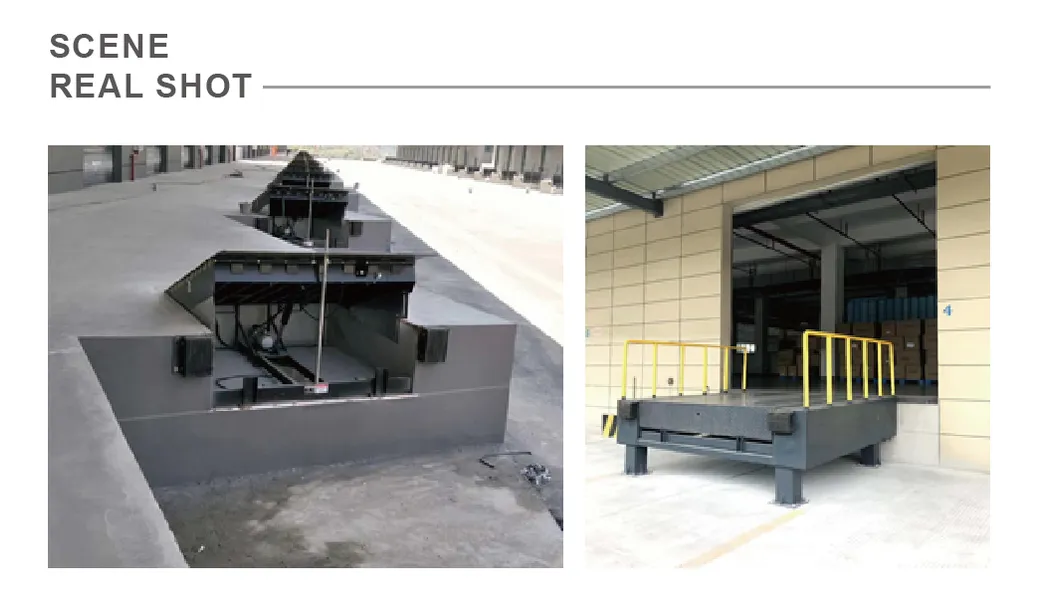

Dock Leveler 2

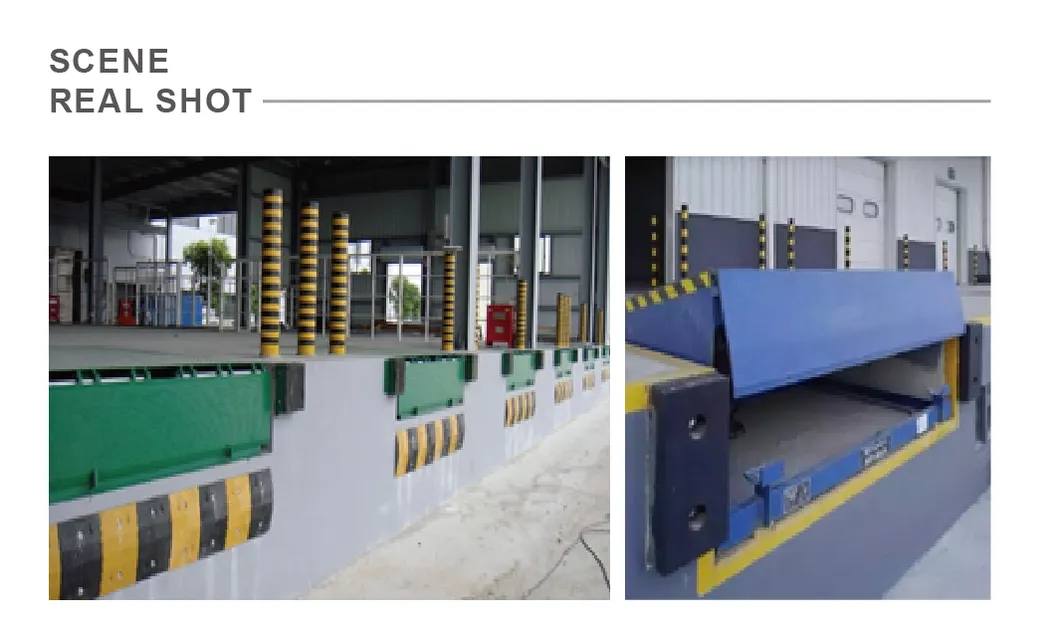

Dock Leveler 3
Dock Leveler 4
Dock Leveler 5

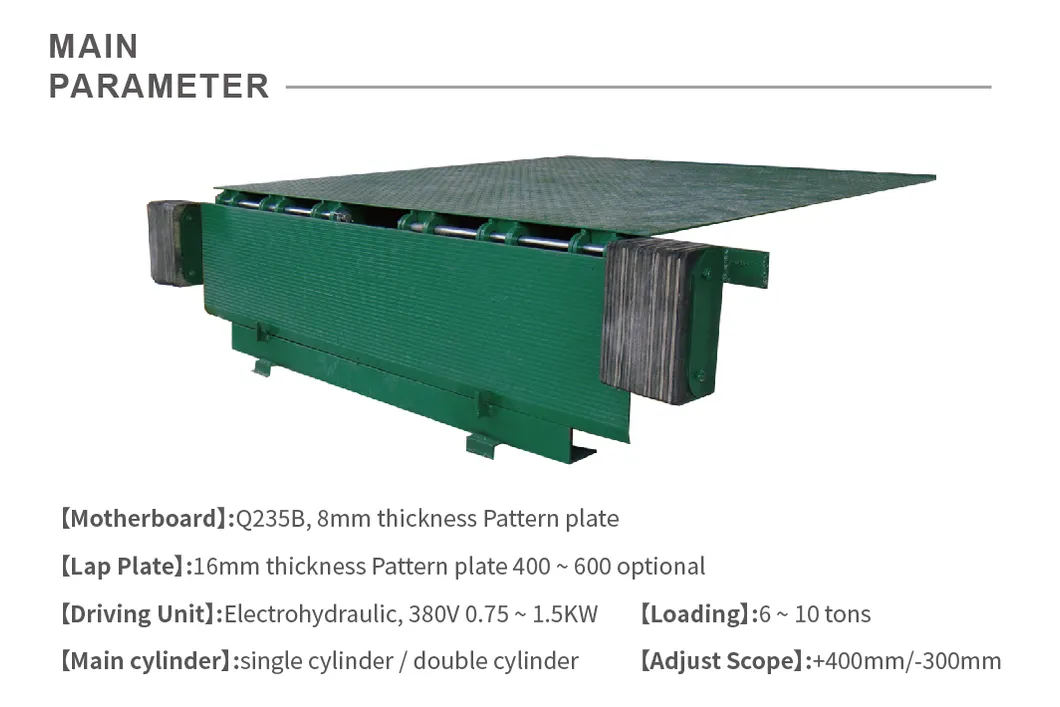

Detailed Parameters
TECHNICAL SPECIFICATIONS

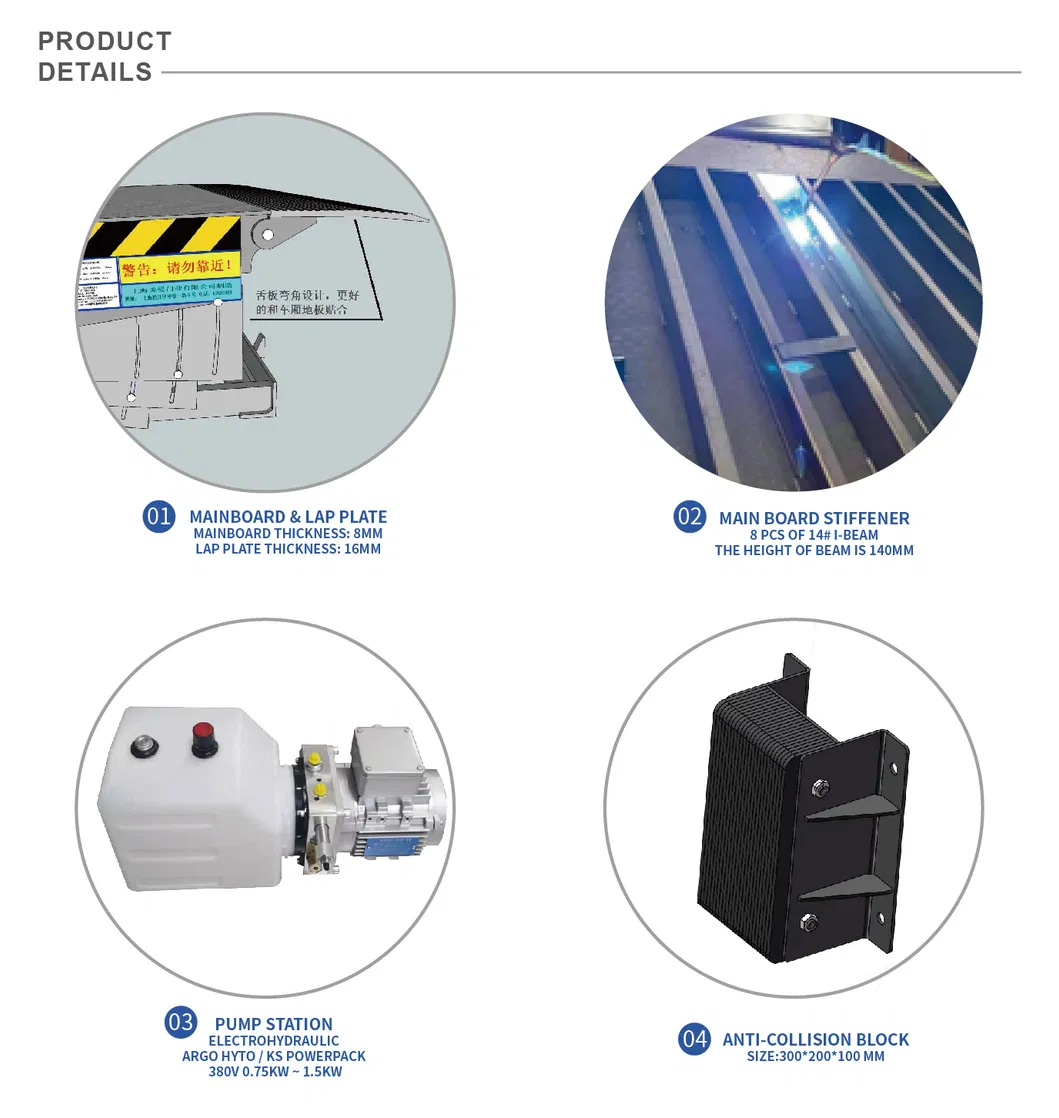

Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; surface treatment is blasting and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load: 6T / 8T / 10T / 12 T / 15T
Driving SystemElectrohydraulic, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main CylinderSingle cylinder / double cylinders
Stiffener8 pcs of 14# I-Beam, the height of Beam is 140mm
Oil PipeT3683-2001; 60mpa High Pressure Oil Pipe
Safety PartsAutomatic retraction side baffles, Explosion proof valve
Working Temp-30ºC ~ +50ºC
Bumper Size300*200*100 mm Anti-collision Bumper
Technical Drawing
Application Scene
Frequently Asked Questions
What is the maximum dynamic load capacity of this dock leveler?
The dynamic load capacity ranges from 6T to 15T, including options for 8T, 10T, and 12T to suit different loading requirements.
What safety features are included in the design?
It features an explosion-proof valve, automatic retraction side safety baffles, and anti-collision bumpers (300*200*100 mm) to ensure safe operation.
Can it operate in extreme weather conditions?
Yes, the system is designed to function reliably in temperatures ranging from -30ºC to +50ºC.
What are the materials used for the main platform?
The main board and lap plate are made of high-quality Q235B steel with an anti-slide pattern, finished with blasting and powder coating for durability.
What power supply is required for the hydraulic system?
The unit supports both 220V 50Hz and 380V 50Hz power configurations, with power ratings between 0.75 Kw and 1.5kw.
What is the adjustment range for loading heights?
The dock leveler provides an adjustment scope of +400mm upwards and -300mm downwards to accommodate various truck heights.
