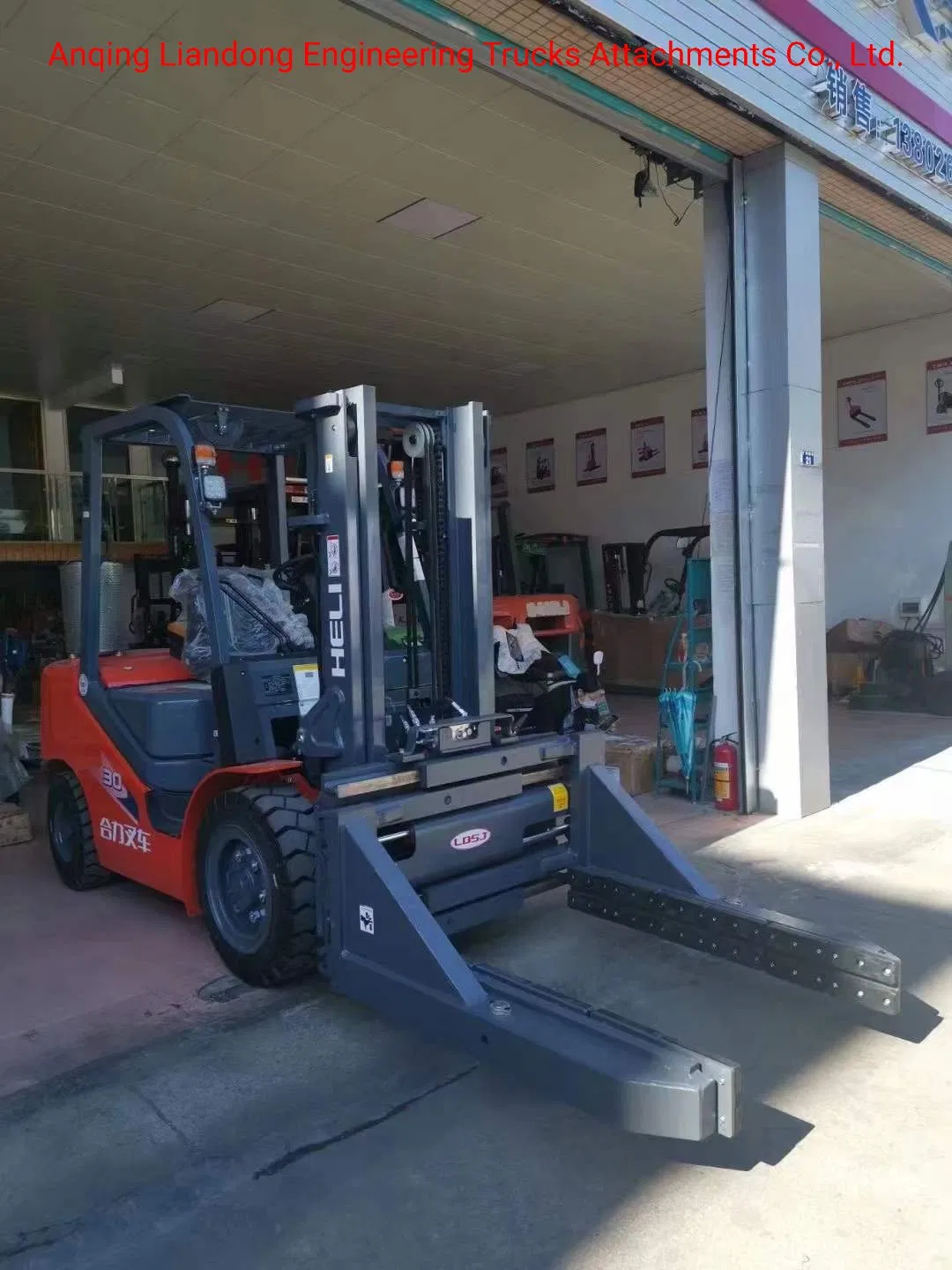

Heli Forklift Attachment Cement Block Clamps for Heli Doosan

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Basic Information

Model NO.
Customized
Material
High Strength Steel
Surface Treatment
Polishing
Standard
Standard
Valve Core
Premium Brand
Seals
High-Quality Seals
Sideshifting
Optional
Transport Package
Plywood
Specification
2000KG
Origin
China
Production Capacity
8000 pieces/Year
📝

Product Description

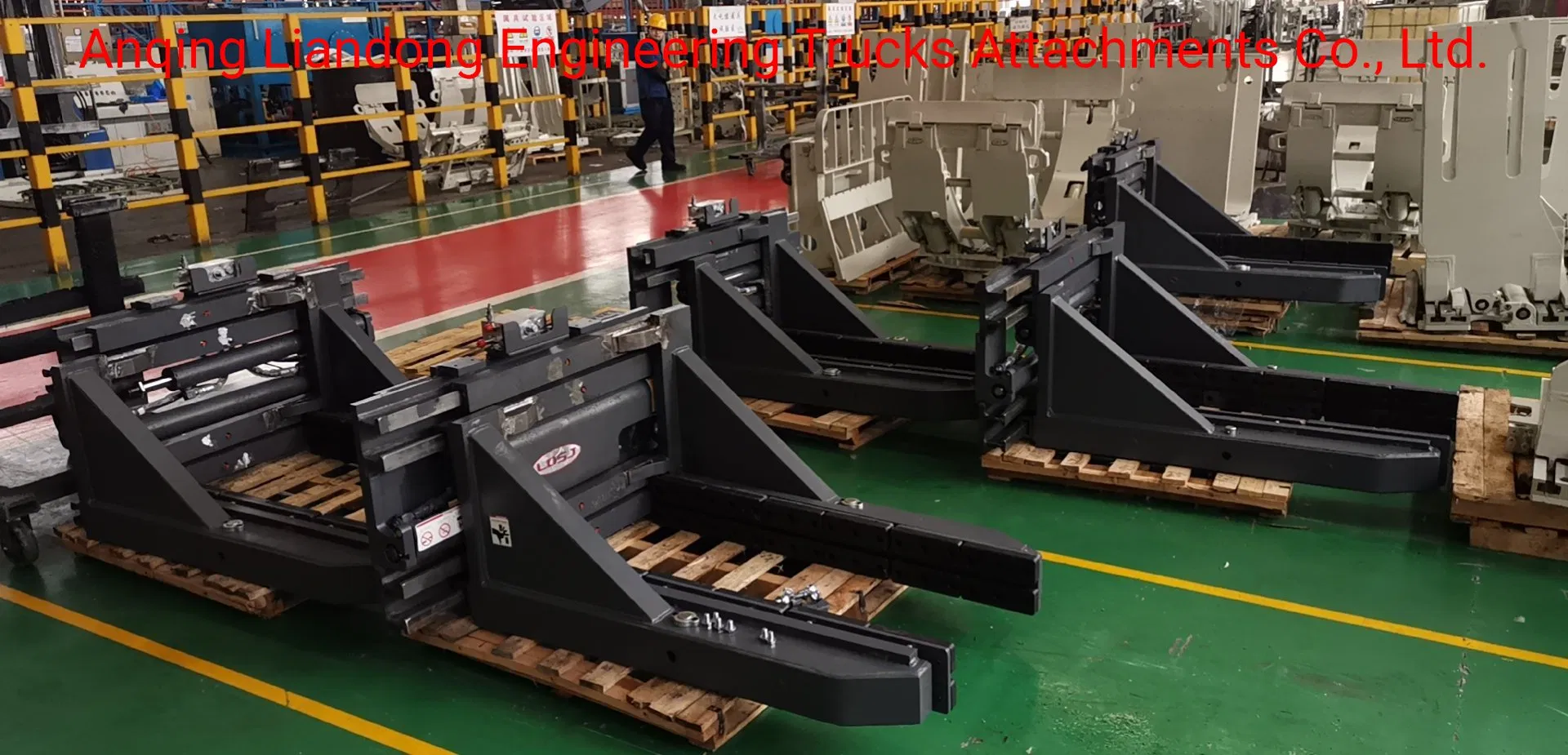

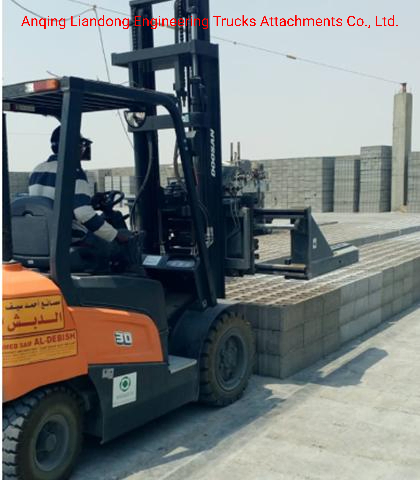

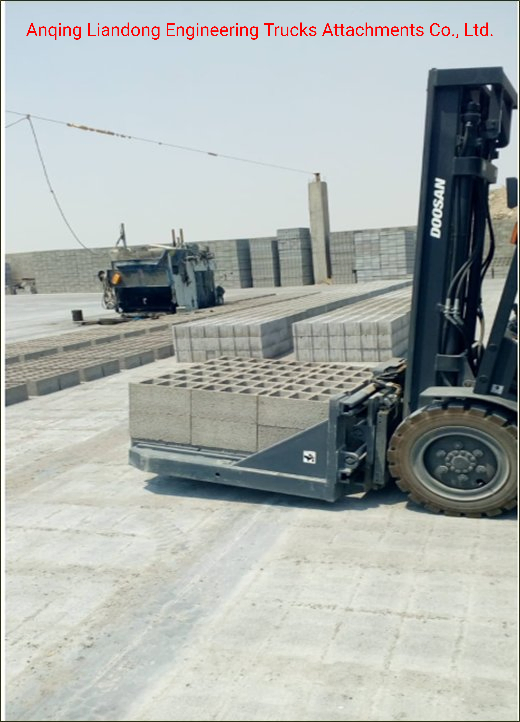

Block clamps can efficiently handle and stack nearly any type of solid, regular cubic goods packed without pallets. They are widely used in construction material and metallurgy industries for handling concrete blocks, cement bricks, carton cubes, etc.

📐

Product Parameters

F-Series Block Clamps

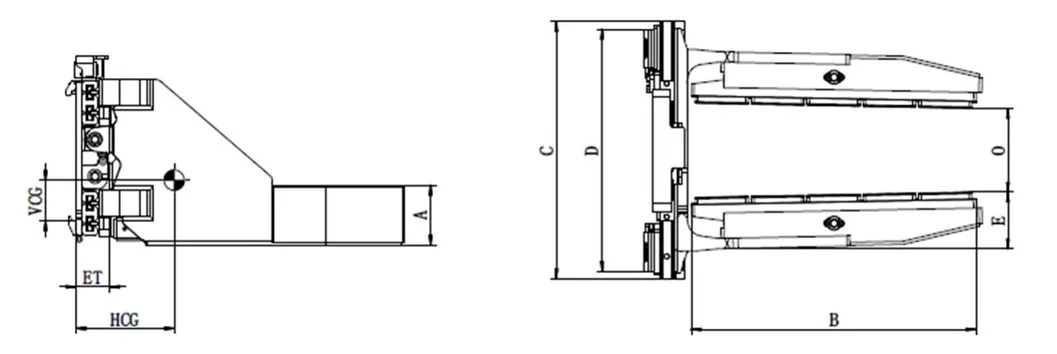

Capacity @ LC (kg@mm) Order NO. Mounting Class Opening Range (mm) Arm Height (mm) Arm Length (mm) Frame Width (mm) Hook Spread (mm) Arm Thickness (mm) Weight (kg) ET (mm) VCG (mm) HCG (mm)
1800@600 ZK15F-B1 III 290-1600 160 1230 1100 970 191 680 132 139 339
1800@600 ZK15F-B2 III 270-1580 160 1265 1130 930 191 710 198 180 362

Features & Technical Notes

Key Features:

  • Imported load keeping valves and cone sealed high-performance rubber hoses.
  • High-performance alloy steel plates for left and right clamping panels.
  • High-strength connection plates with anti-deformation heat treatment.
  • Replaceable high-wear-resistance rubber blocks on clamp arms.

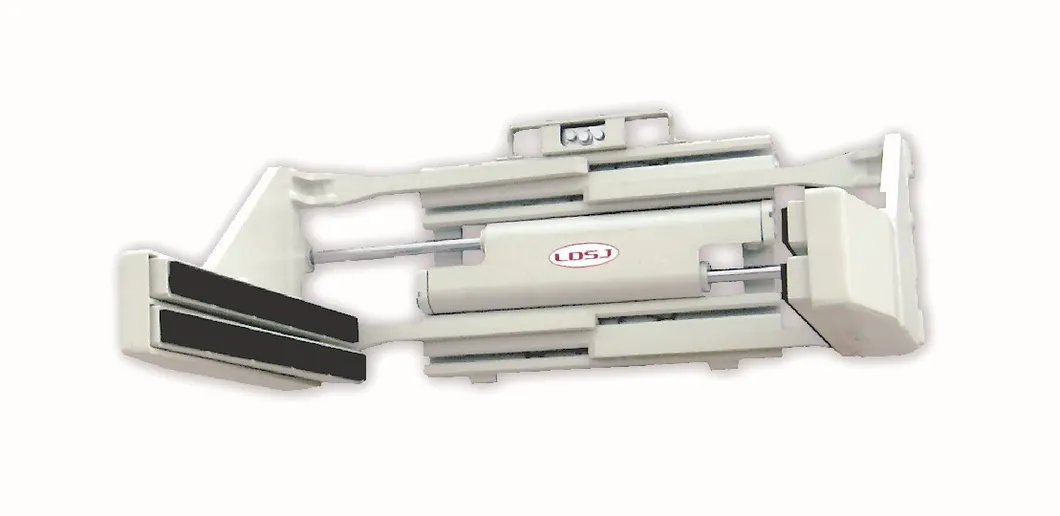

  • Integrated sideshifting function.

Important Notes:

  • i Obtain actual comprehensive bearing capacity from the forklift factory.
  • i Forklift requires 2 additional groups of oil lines.
🏢

Production Capability

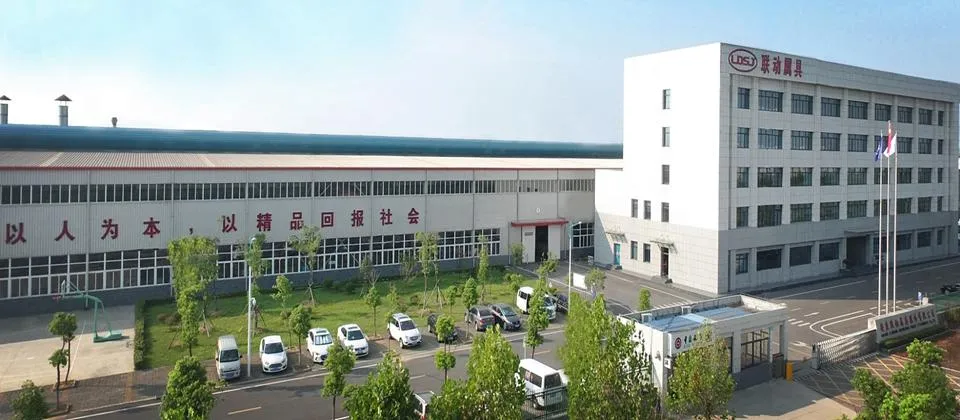

The company is a major manufacturing entity created in January 2011, integrating R&D, manufacturing, sales, and service of construction machinery attachments and parts. Our products are widely used in papermaking, storage, tobacco, port, chemical, construction, and smelting industries.

With over 3000 types of products, we utilize high-efficiency digital intelligent equipment such as CNC cutting machines, welding robots, and machining centers. We are committed to continuous quality improvements and have passed ISO9001, ISO14001, and OHSAS18001 system certifications.

📜

Certifications & Logistics

Frequently Asked Questions

1. What materials can these block clamps handle? They are designed for solid, regular cubic goods such as concrete blocks, cement bricks, and carton cubes without the need for pallets.
2. Are the wear parts on the clamp arms replaceable? Yes, the clamp arms are equipped with replaceable high-wear-resistance rubber blocks to ensure long-term durability.
3. Does the attachment support sideshifting? Yes, these block clamps come with an integrated sideshifting function for precise load positioning.
4. What are the requirements for the forklift installation? The forklift truck needs to be equipped with 2 additional groups of oil lines to operate the attachment functions.

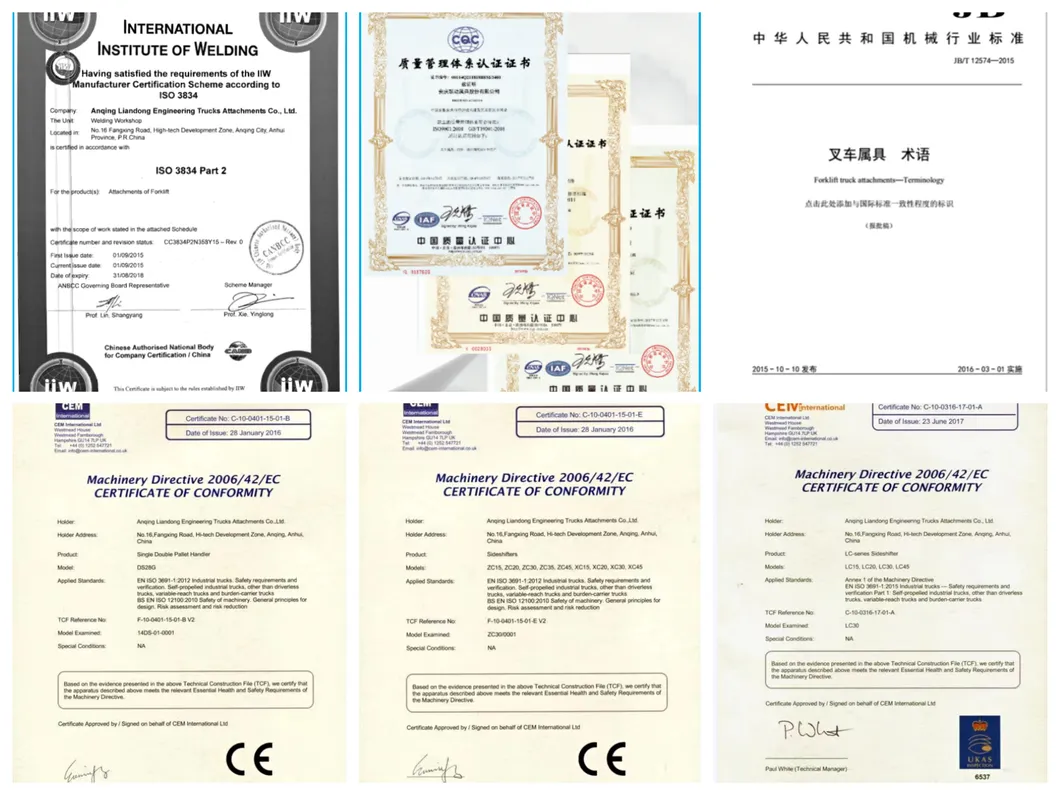

5. What quality standards does the manufacturer follow? The production facility is certified under ISO9001, ISO14001, OHSAS18001, and ISO3834-2 international welding quality systems.

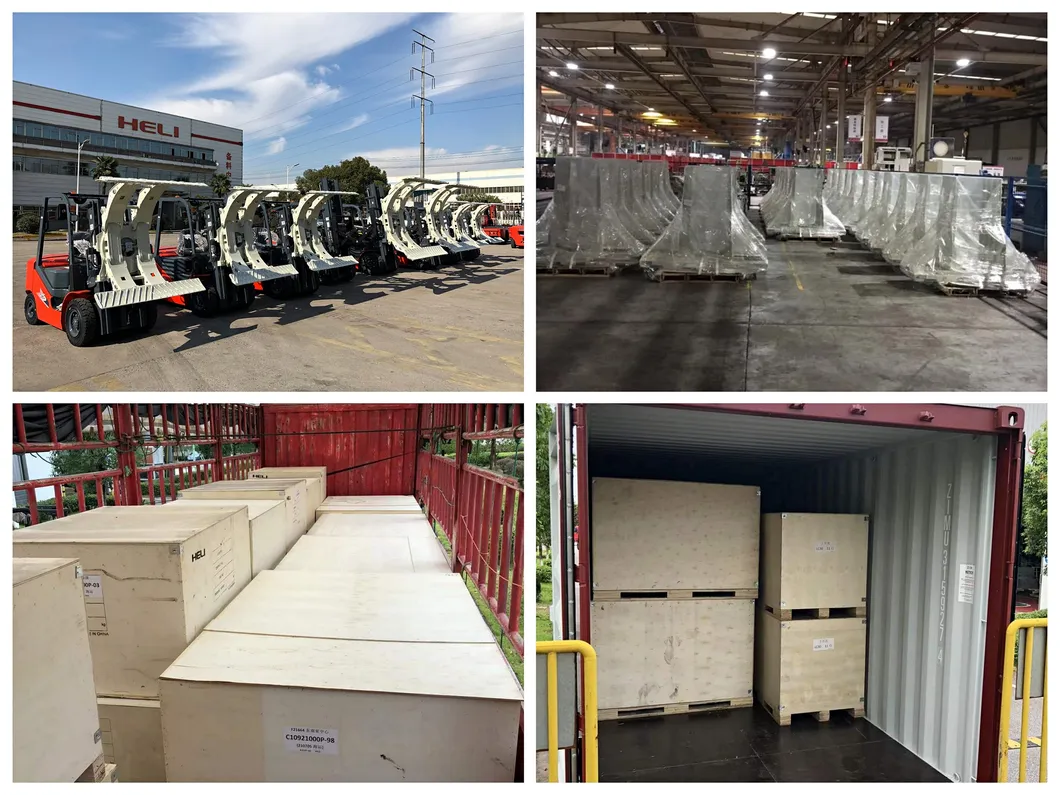

6. How are the products protected during shipping? Products are typically packed in high-quality plywood cases to ensure safety and prevent damage during international transport.
