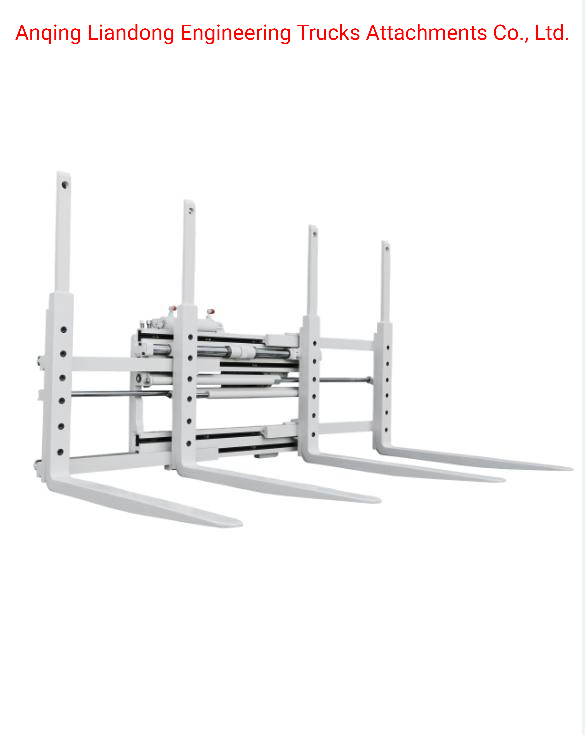

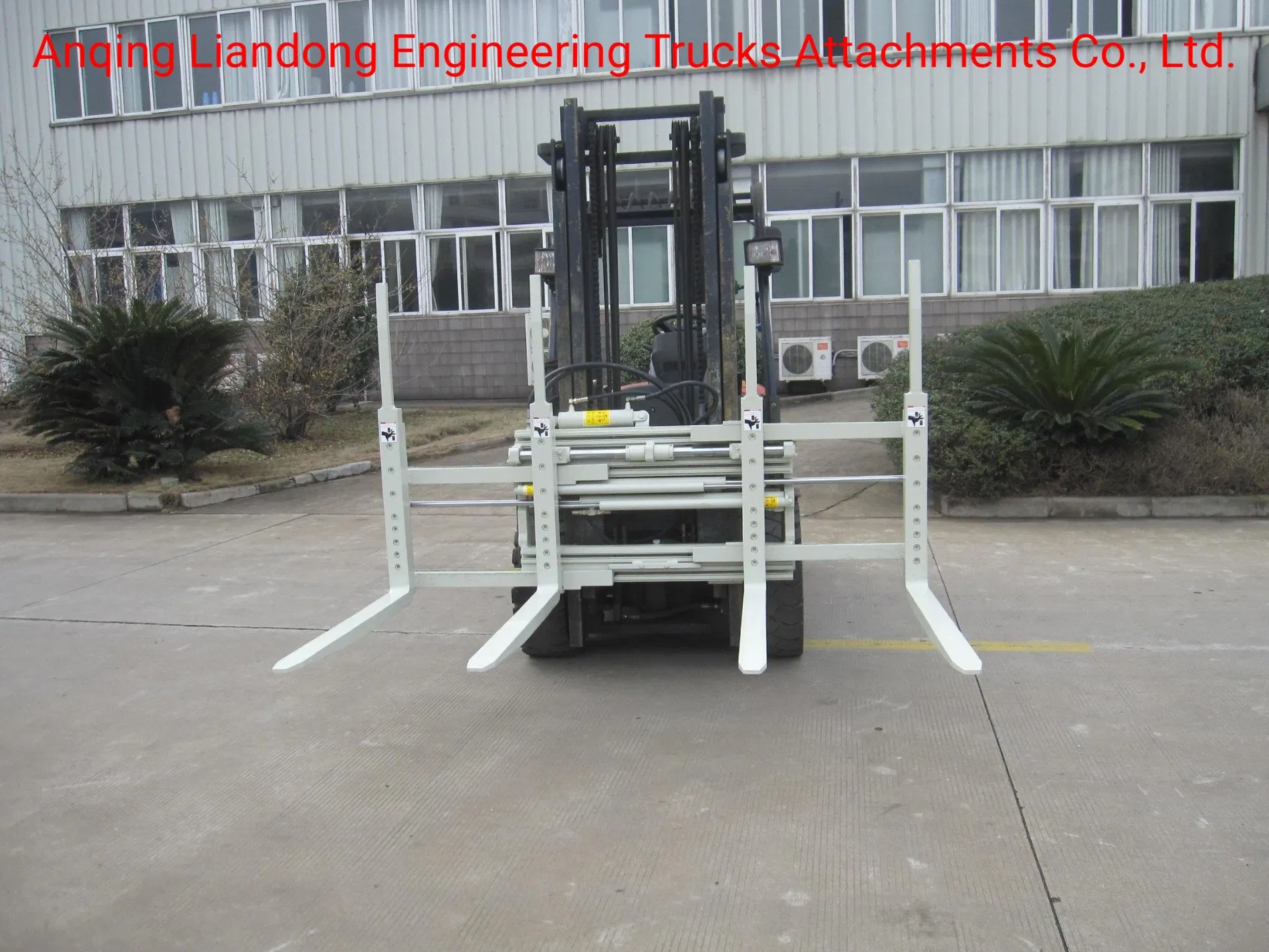

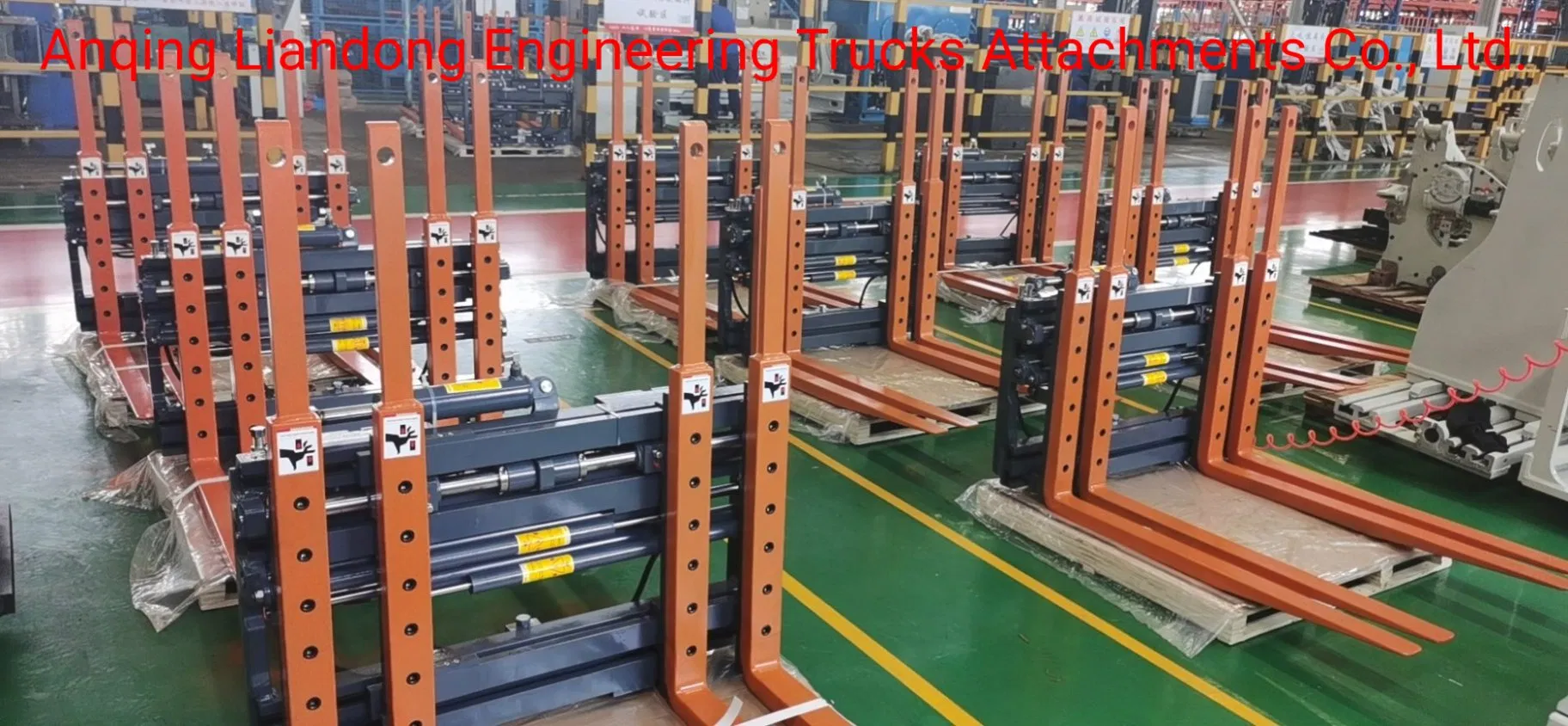

Forklift Parts, Attachments, 1-7 Tons Single Double Pallets Handler with High Quality for Heli, Hyster

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Model NO.
Customized
Material
Q345 Steel
Surface Treatment
Polishing
Standard
Standard
Sideshifting
±100mm
Valve Core
Sun Brand
Seals
Nok
Oil Lines
Two
Transport Package
Plywood
Specification
2000kg
Origin
China
HS Code
8431209000
📦 Product Description

Single Double Pallets Handlers flexible application of single or double pallets handling. They are widely used for handling and stacking operations in food and beverage industry, import and export trade and bottled goods industry.

📷 Detailed Photos

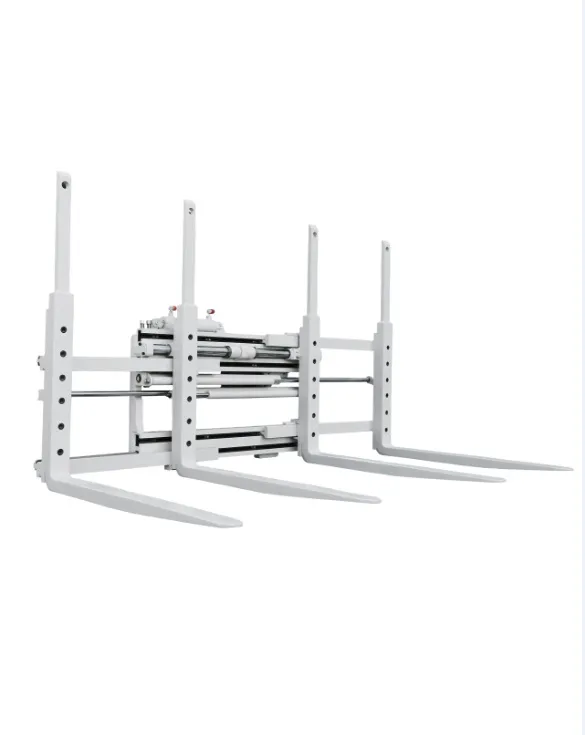

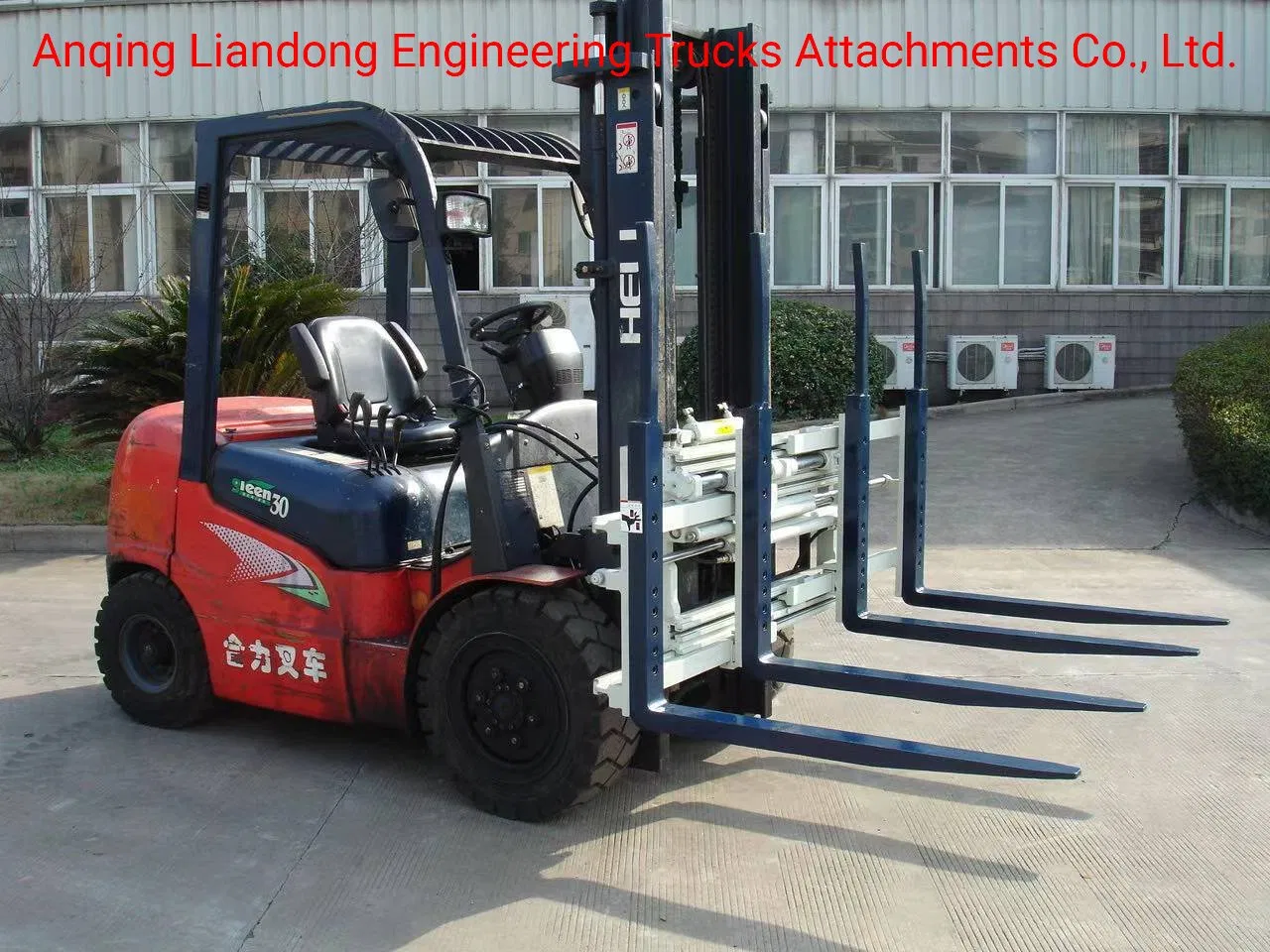

Single Double Pallets Handler Detail 1

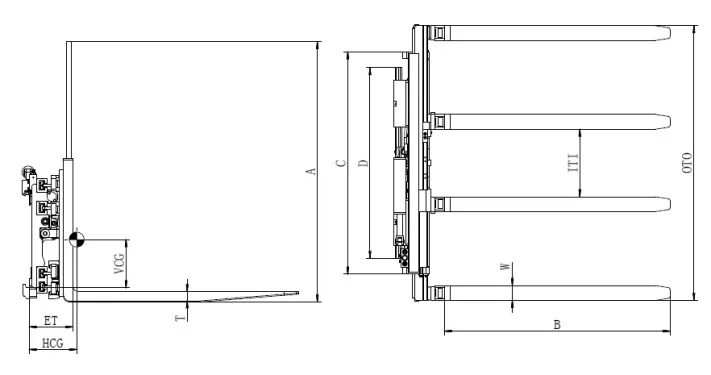

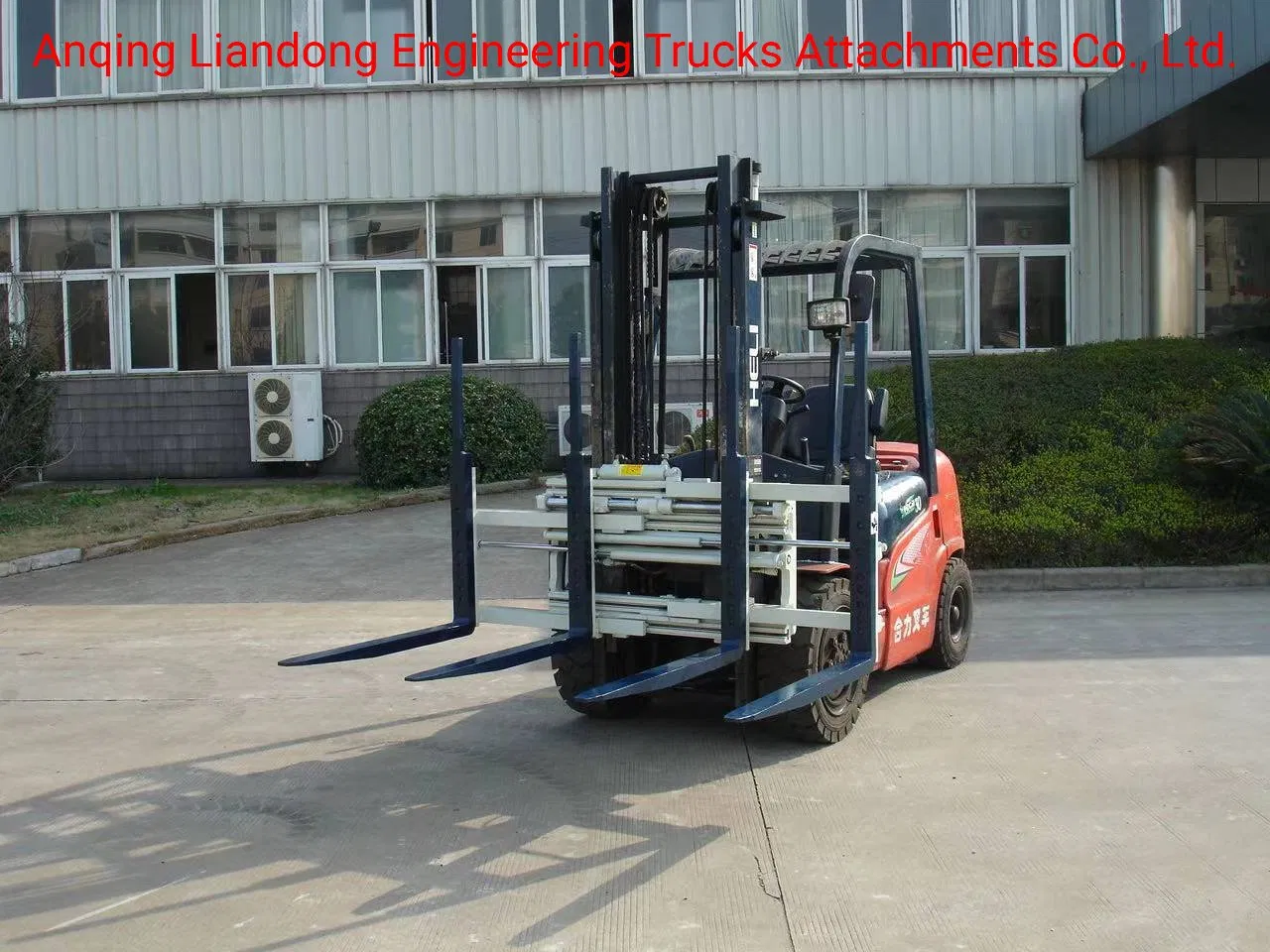

Single Double Pallets Handler Detail 2
⚙️ Product Parameters
Single Double Pallets Handler Specifications
Capacity @ Load Center (Kg@mm) Catalog Order NO. Mounting Class Fork Width C (mm) Opening Range ITI (mm) Opening Range OTO (mm) Fork Size BxWxT (mm) Arm Height A (mm) Hanging Plate Width D (mm) Effective Thickness ET (mm) VCG (mm) HCG (mm) Weight (kg) Available Forklift (t)
2800@600 DS28G-A1 II 1100 371-729 705-2100 1065x80x50 1260 970 246 257 224 550 1-2.5t
2800@600 DS28G-B1 III 1105 371-729 705-2100 1065x80x50 1260 1030 236 257 224 550 3-4.5t
2800@600 DS28G-B2 III 1105 371-729 705-2100 1220x80x50 1260 1030 236 249 264 570 3-4.5t
2800@600 DS28G-B6 III 1175 301-659 635-2030 1220x80x50 1260 1030 236 252 250 570 3-4.5t
4000@600 DS40G-C1 IV 1175 301-657 635-2030 1200x80x60 1290 1292 291 354 260 810 5-7t

Notes:

  • Please obtain the actual comprehensive bearing capacity of forklift/attachment from the forklift factory.
  • The forklift truck needs to add 2 groups of oil lines.

Features:

  • Imported load keeping valves and cone sealed high-performance rubber hoses.
  • High-performance alloy steel plates for the guide rail assembly.
  • With side shift function inside.
  • Two pairs of forks can handle two pallets at one time while being separated, and can operate flexibly while being closed.
🏢 Profile & Capabilities

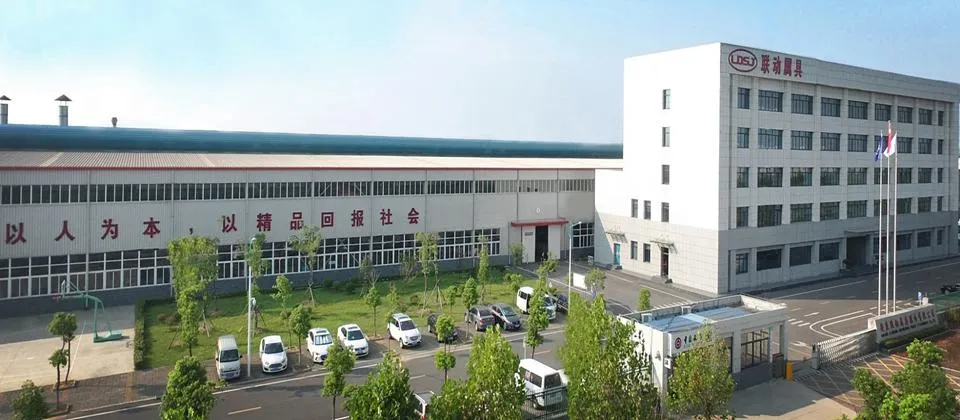

Manufacturing Facility

The enterprise integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking and short-distance handling.

At present, the product type has reached more than 3000 kinds and key parts have been independently developed and manufactured. Many products have independent intellectual property rights and obtained national patents, actively participating in and leading the formulation of industry standards for construction machinery attachments.

Equipped with high-efficiency digital intelligent equipment such as CNC cutting machine, welding robot, machining center, CNC lathe, shot blasting machine, washing machine and painting line. It also has advanced physical and chemical laboratories and perfect product testing facilities. Committed to continuous quality improvements, from product design to after-sale service, providing excellence to customers worldwide. It has passed ISO9001, ISO14001, OHSAS18001 system certifications and ISO3834-2 international welding quality system certification.

📜 Certifications

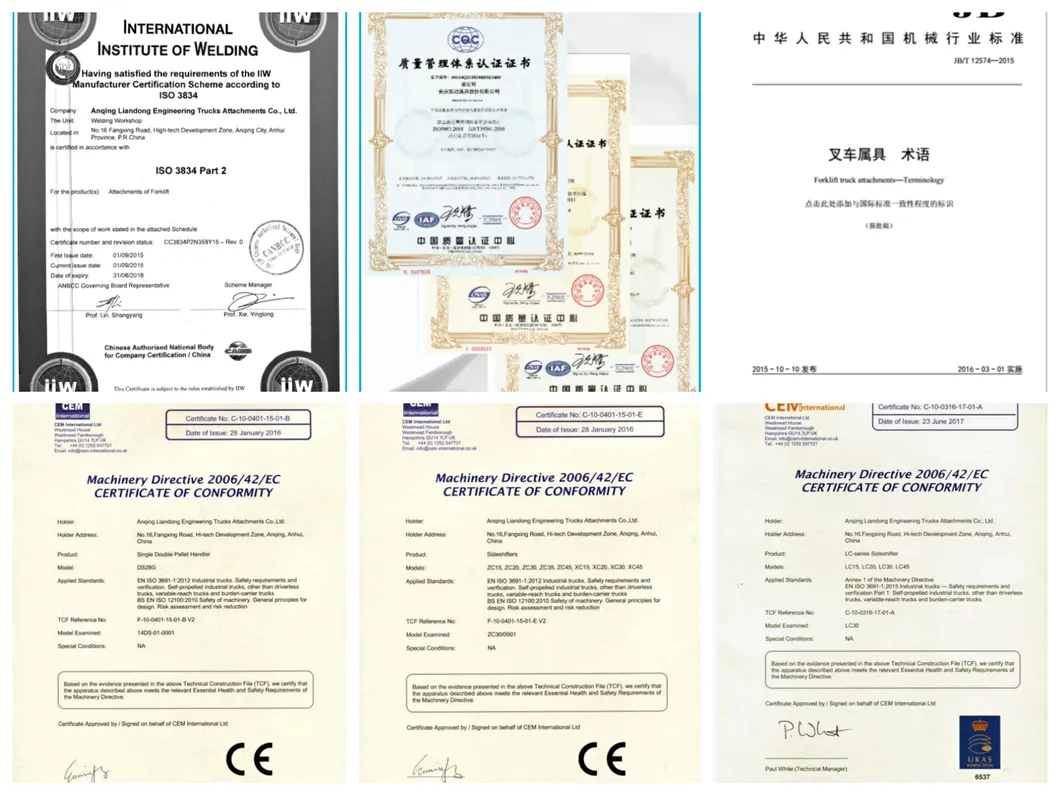

Certification Documents
🚢 Packaging & Shipping

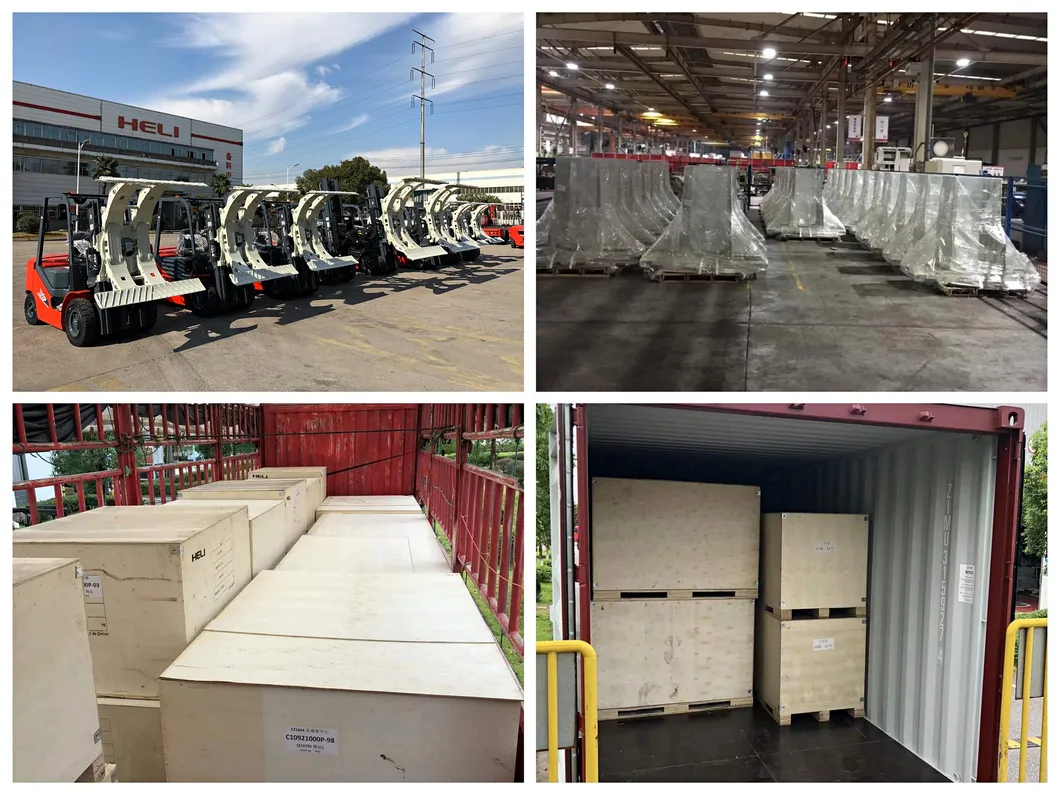

Packaging and Shipping Details
❓ Frequently Asked Questions
What are the primary benefits of a Single Double Pallets Handler?
It allows a forklift to carry either one or two pallets simultaneously. When the forks are spread, you can handle two pallets side-by-side; when closed, they function as standard forks for a single pallet, significantly increasing handling efficiency.
Which industries typically use this attachment?
These handlers are widely used in high-volume industries such as food and beverage, bottling plants, import/export warehouses, and any facility requiring rapid stacking and loading.
Does this attachment include a sideshift function?
Yes, our Single Double Pallets Handlers come with an integrated side shift function (typically ±100mm) to allow for precise positioning of loads without moving the entire forklift.
What hydraulic modifications are needed for the forklift?
The forklift truck generally needs to be equipped with 2 additional groups of oil lines to operate the spreading and sideshifting functions of the attachment.
What materials are used to ensure the durability of the handler?
We use high-performance Q345 steel and alloy steel plates for the guide rail assembly. Key components like valve cores are sourced from reputable brands like Sun, and seals are from Nok to ensure long-term reliability.
How do I determine if this attachment fits my specific forklift?
You should check the Mounting Class (e.g., Class II, III, or IV) of your forklift carriage and consult the forklift manufacturer's capacity chart to ensure the combined weight and load center are within safe operating limits.
