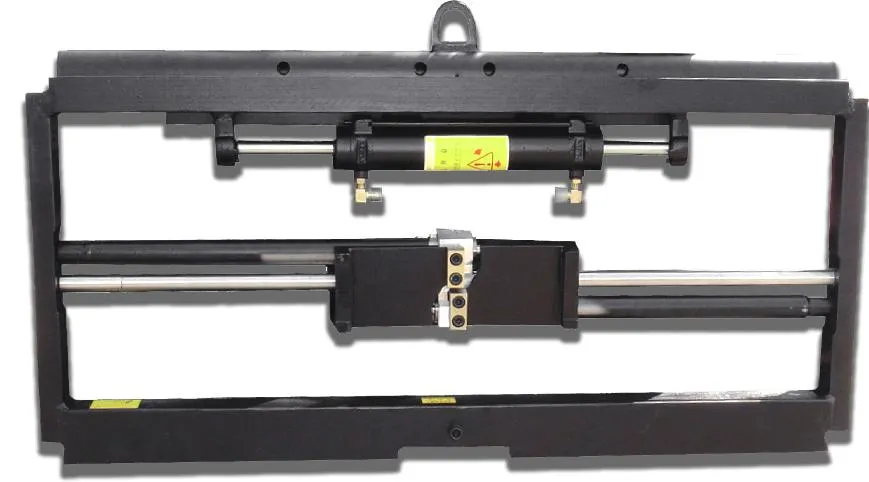

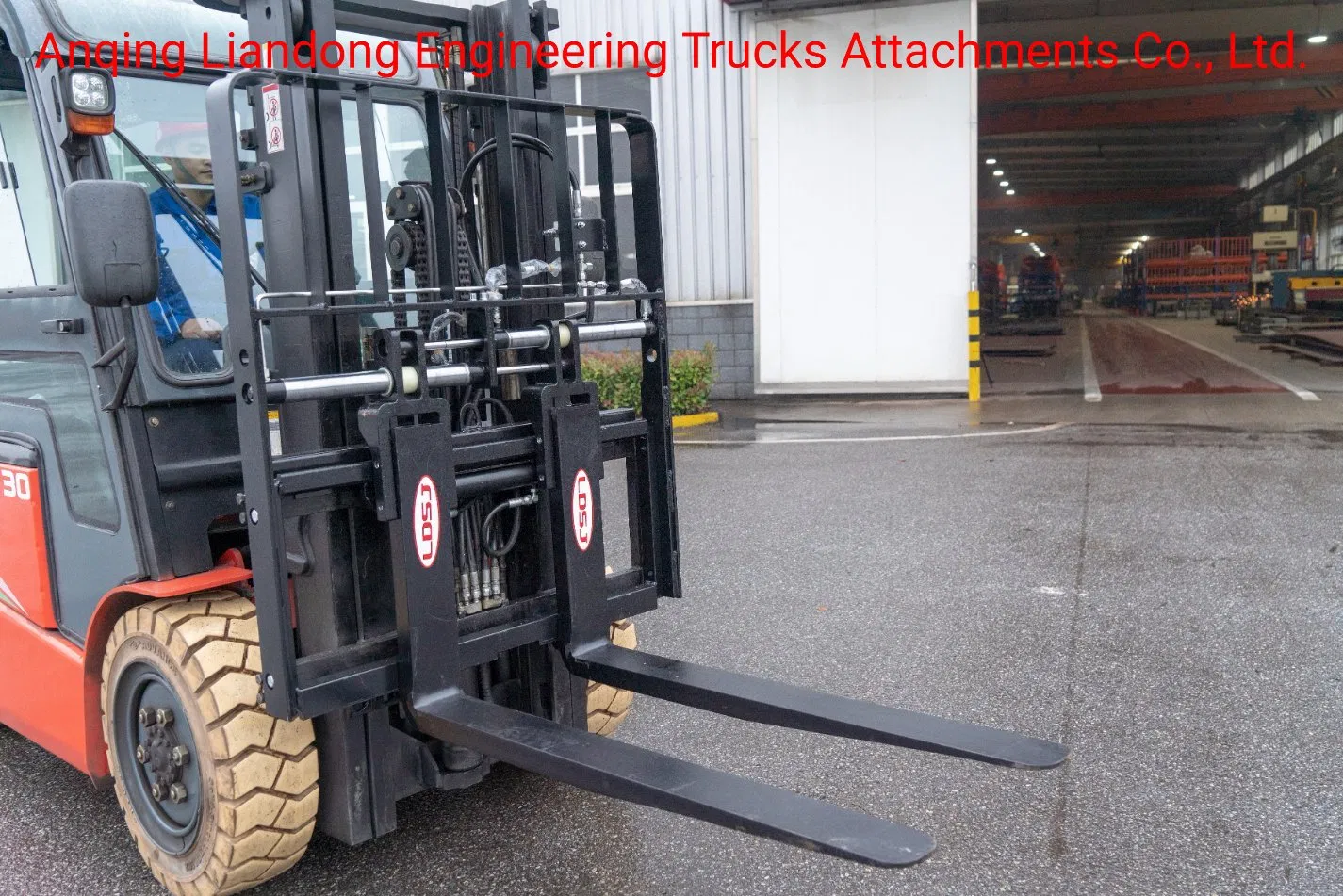

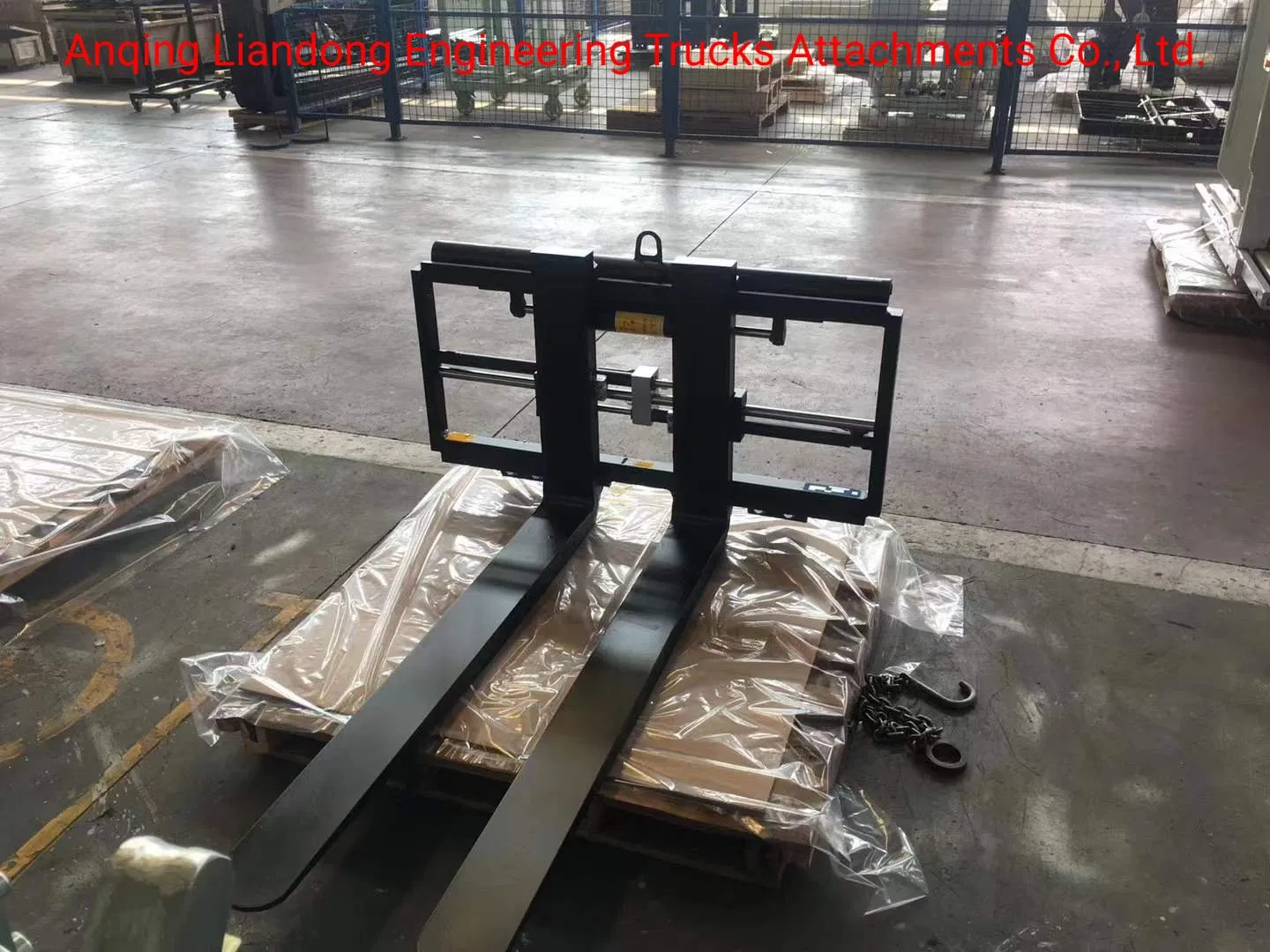

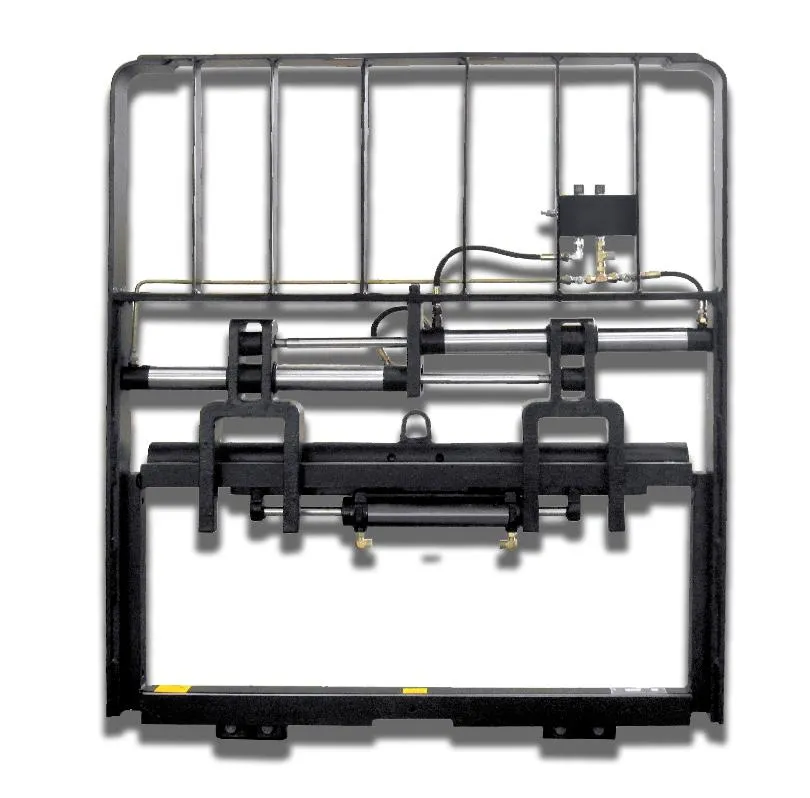

Fork positioners are widely used in logistic, warehouse and manufacturing industry. It can allow the drivers to adjust the forks quickly and accurately to fit different pallet sizes without leaving the seat. Fork positioner can also achieve the function of side shift.

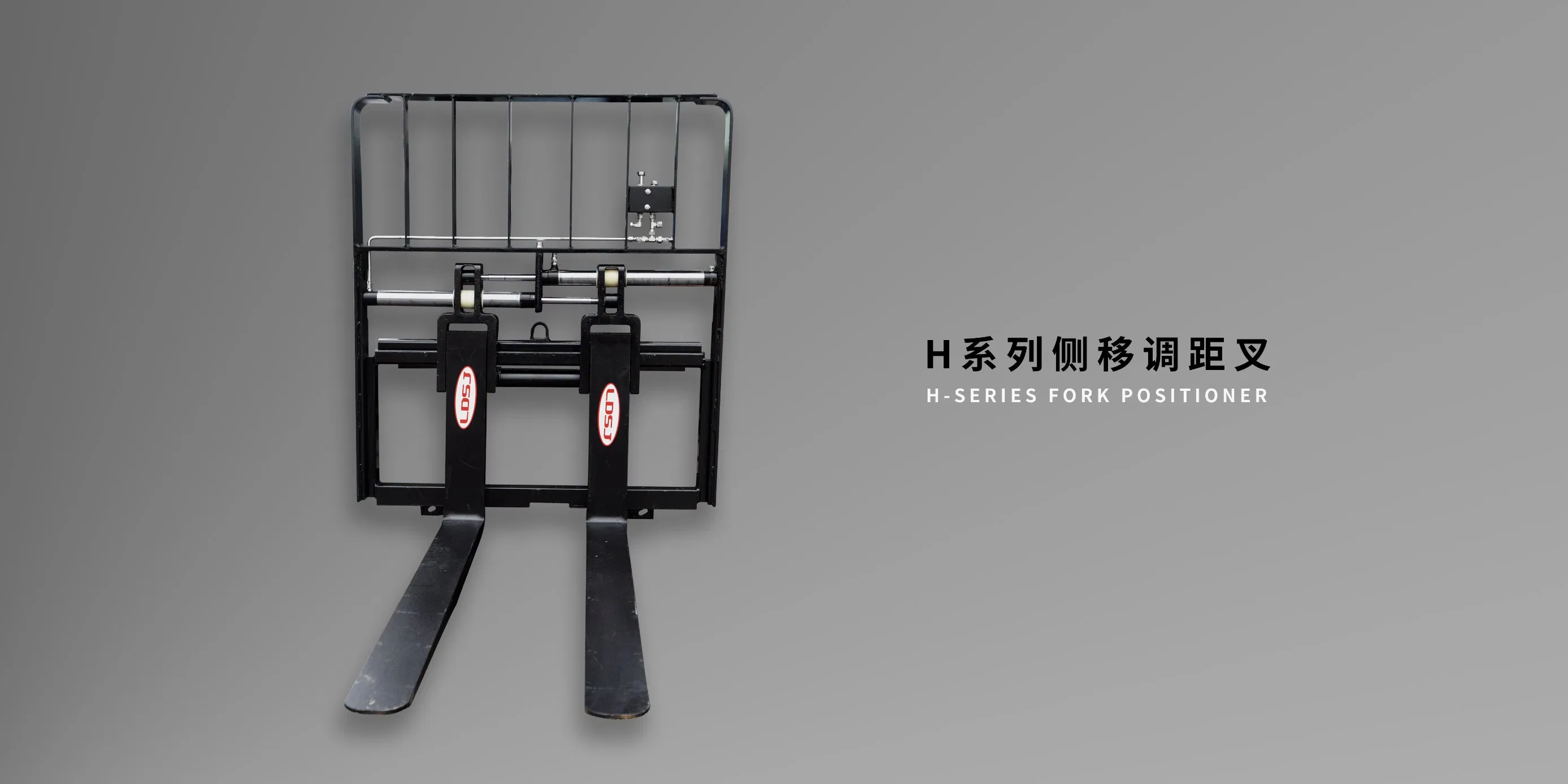

| H-Series Fork Positioners | |||||||||

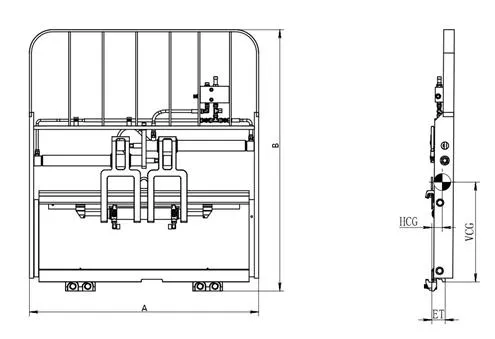

| Capacity @ Load Center (Kg@mm) | Catalog Order NO. | Mounting Class | Opening Range (mm) | Fork Pocket Width (mm) | Overall Width (mm) | Weight (kg) | Effective Thickness (mm) | HCG (mm) | Available Forklift |
| 1800@500 | TC18G-A1 | II | 100-900 | 100 | 1018 | 135 | 63 | 50 | 1-1.8t |
| 2500@500 | TC25G-A1 | II | 100-970 | 100 | 1088 | 148 | 63 | 50 | 2-2.5t |
| 3000@500 | TC30G-B1 | III | 100-1125 | 125 | 1248 | 186 | 68 | 50 | 3-3.5t |
| 4500@500 | TC45G-B1 | III | 100-1300 | 150 | 1428 | 256 | 73 | 50 | 4-4.5t |
| 6800@600 | TC70G-C1 | IV | 120-1750 | 150 | 1905 | 553 | 75 | 57 | 5-7t |

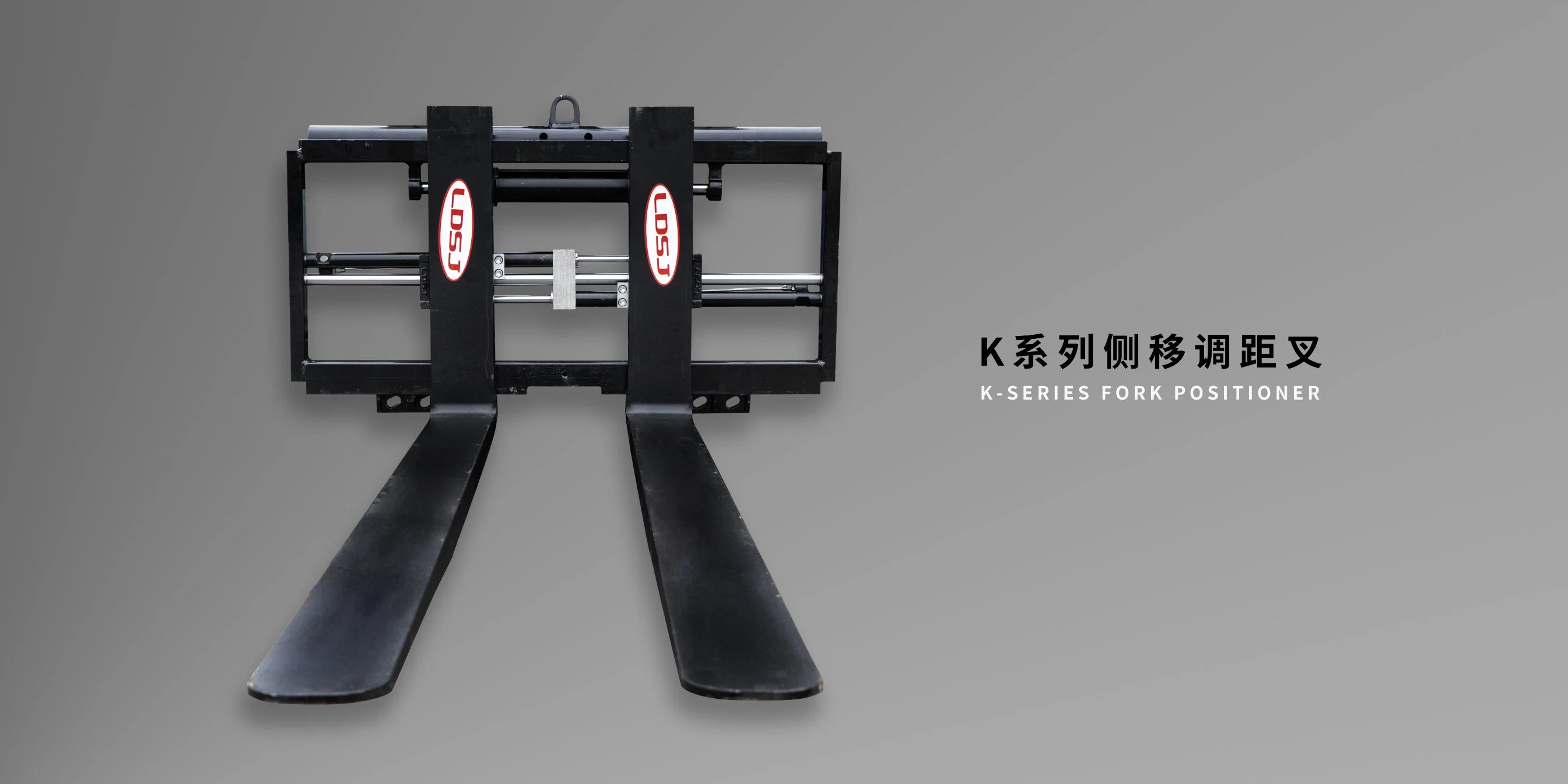

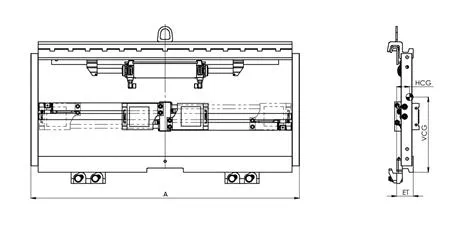

| K-Series Fork Positioners | |||||||||
| Capacity @ Load Center (Kg@mm) | Catalog Order NO. | Mounting Class | Opening Range (mm) | Total Side Shift (mm) | Overall Width (mm) | Weight (kg) | Effective Thickness (mm) | HCG (mm) | Available Forklift |
| 1800@500 | TY18G-A2 | II | 28-860 | ±100 | 970 | 72 | 68 | 31 | 1-1.8t |
| 2500@500 | TY25G-A4 | III | 28-930 | ±100 | 1040 | 78 | 68 | 31 | 2-2.5t |
| 3000@500 | TY30G-B3 | III | 28-990 | ±100 | 1100 | 90 | 68 | 31 | 3-4.5t |
The company was created in January 2011. It integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking and short-distance handling.
At present, the product type has reached more than 3000 kinds and key parts have been independently developed and manufactured. Many products have independent intellectual property rights and obtained national patents, and the company actively participates in and lead the formulation of industry standards for construction machinery attachments.

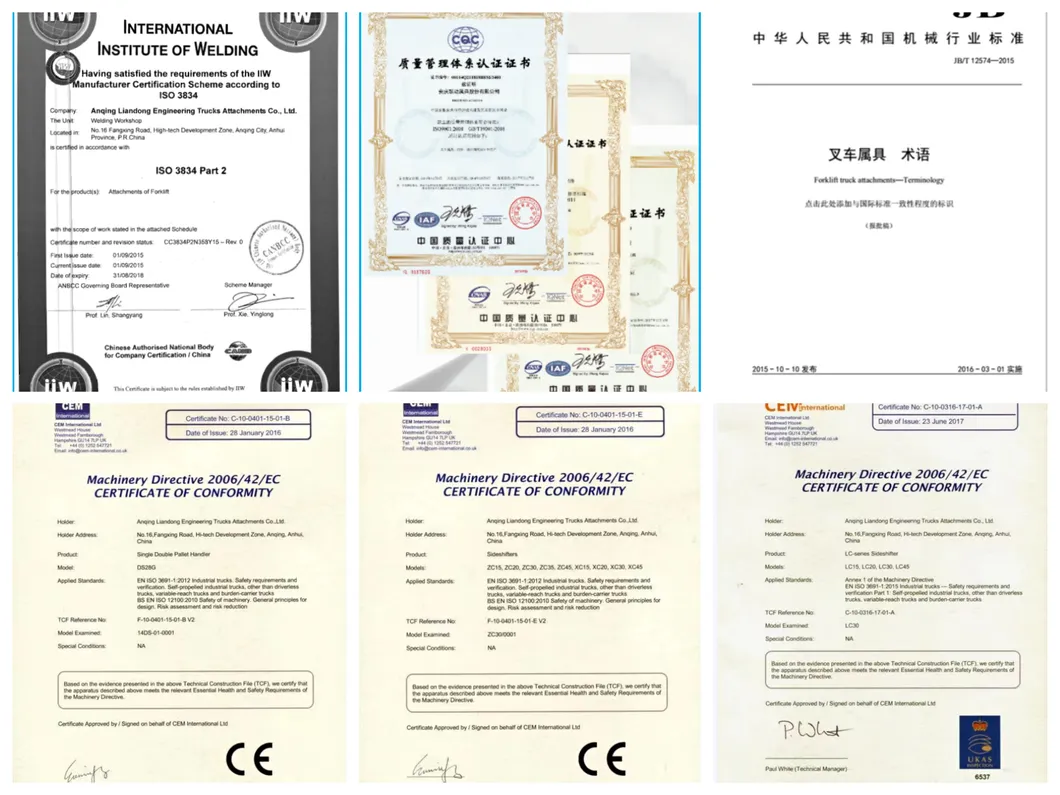

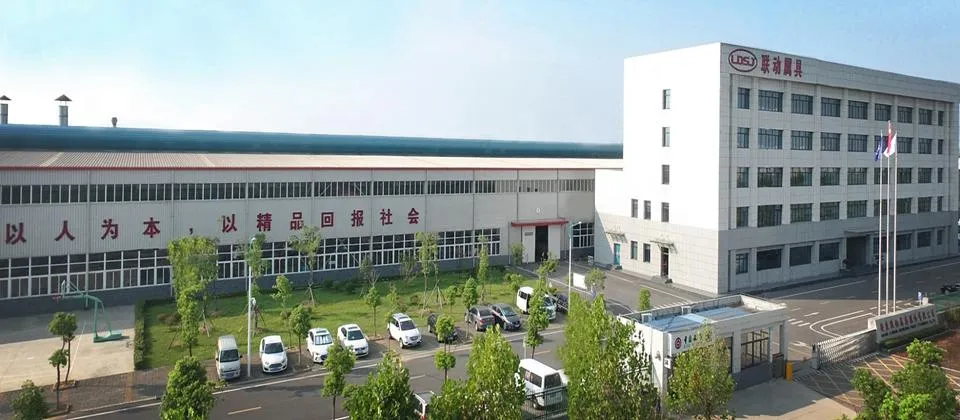

The company has high-efficiency digital intelligent equipment such as CNC cutting machine, welding robot, machining center, CNC lathe, shot blasting machine, washing machine and painting line. It has passed ISO9001, ISO14001, OHSAS18001 system certifications and ISO3834-2 international welding quality system certification.
