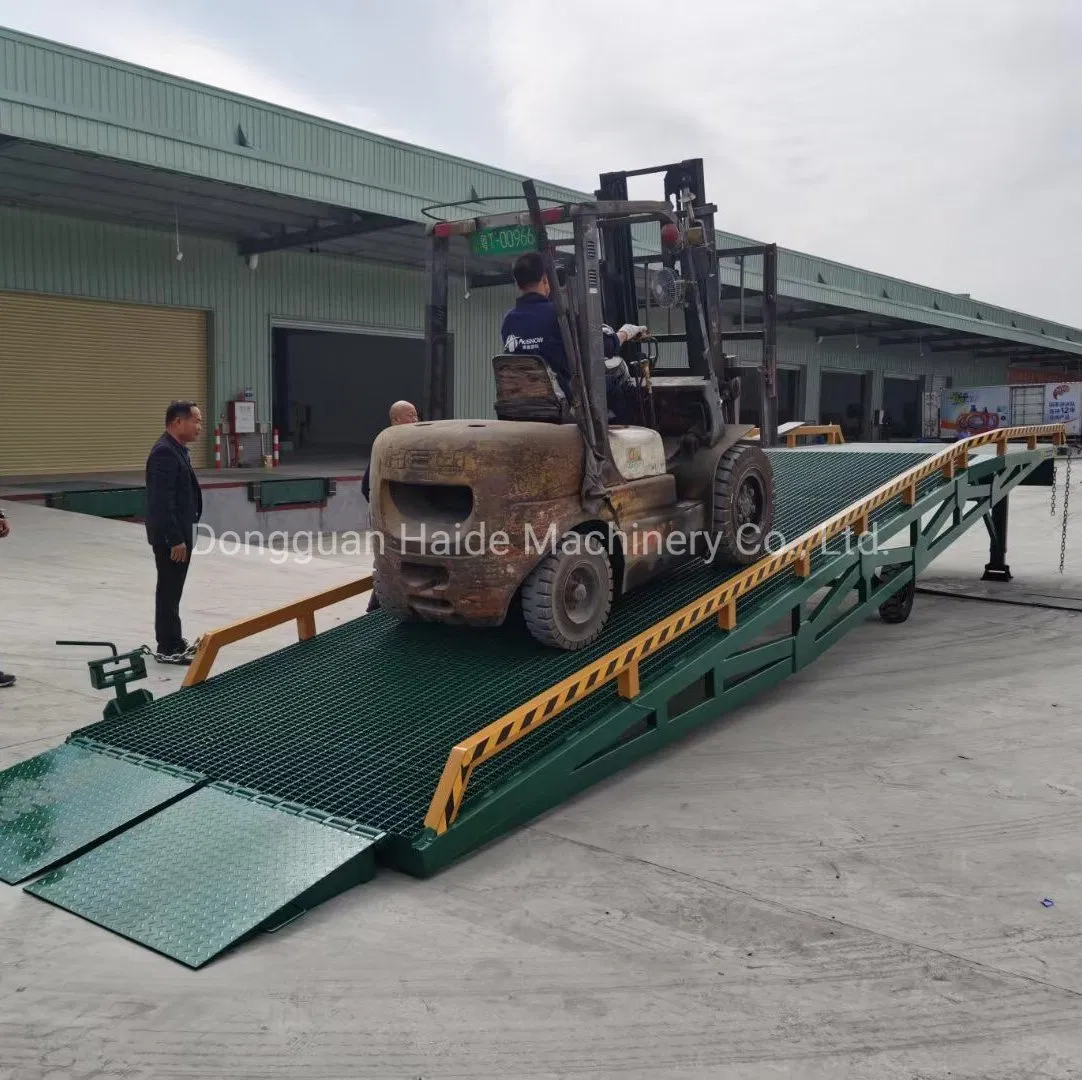

Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
1 / 5
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp
Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp

Ce-Approved 10ton/15ton/20ton Mobile Container Loading/Unloading Dock Yard Ramp

Customization: Available
Warranty: 5 Years for Steel Structure, 1 Year for Hydraulic
Width: 2000mm
Send Inquiry

Product Description

Basic Specifications

Model NO. HD-HYQ10
Dynamic Capacity 10ton / 15ton / 20ton
Platform Length 2800mm
Slope Length 8200mm
Adjust Range 1200~1650mm
Self-Weight 2850kg
Operate Manner Manual by Hydraulic Pump
Hydraulic Pump Italy Brand
Tyres Diameter 600mm (Solid)
Material Q235B + Zinc-Plated Steel Mesh
Safety Curb 250mm Height
HS Code 8428909090

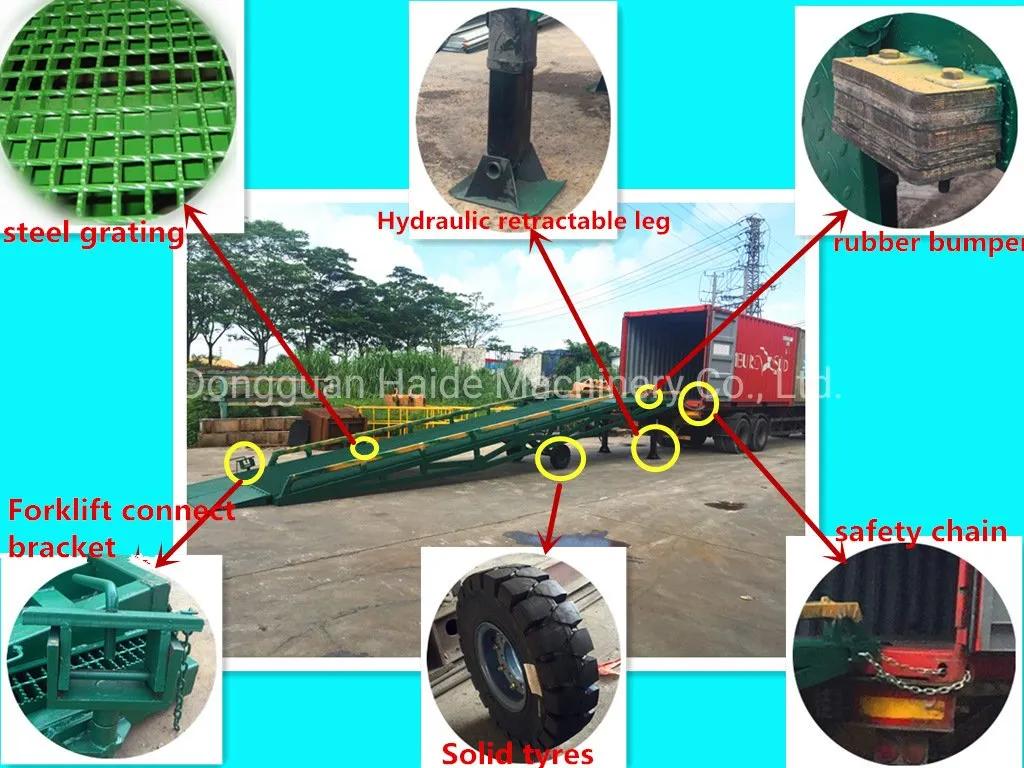

CE-Approved Mobile Container Loading Ramp

High-Performance Loading & Unloading Solution

Mobile Container Loading Ramp
Width2000mm
Total Length11050mm
Capacity10ton, 15ton, 20ton
Adjust Range1200~1700mm
MaterialQ235B (SGC490)
Manual PumpImported from Italy (Oiltec Brand)
Warranty1 year for hydraulic system, 5 years for steel structure
CE NumberDGS12082902

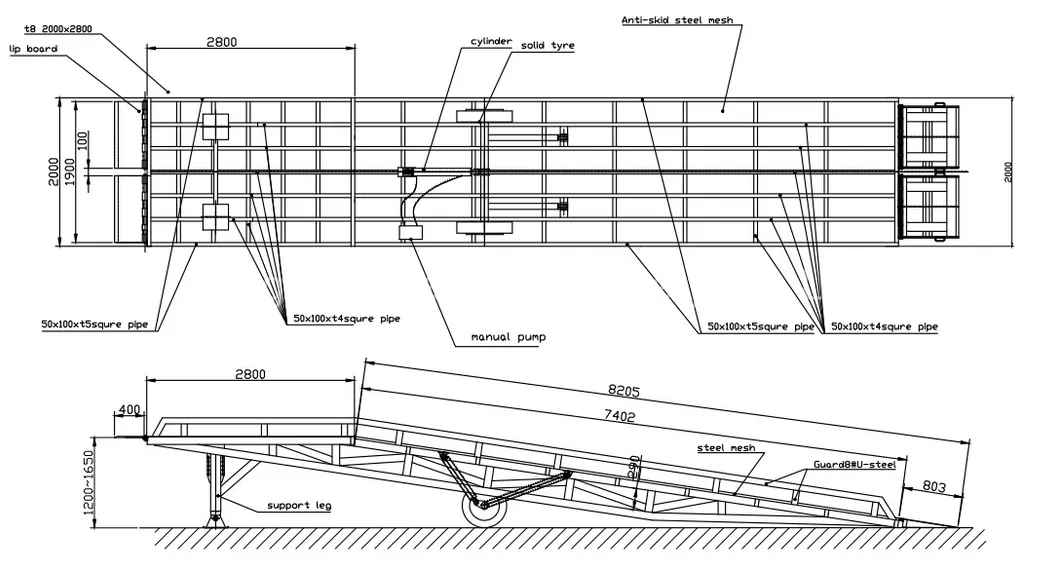

Ramp Dimensions

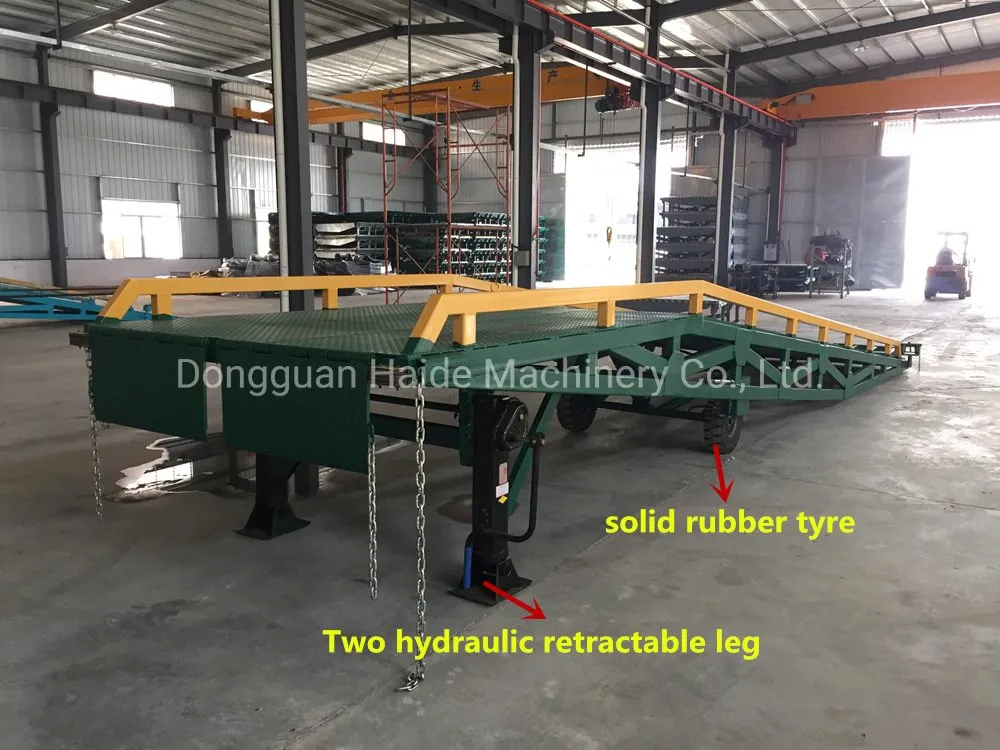

Hydraulic Legs

Key Features & Advantages

⚙️
Flexible Lip Design: Two movable lips facilitate free lateral floating as the truck floor moves up and down.
🏗️
Heavy-Duty Support: Two hydraulic retractable legs sustain heavy loads during operation.
🛞
Solid Tyres: Puncture-proof solid tyres provide excellent traction and durability.
🛡️
Rust Protection: Sand-blasted steel structure with baked paint (170ºC) for maximum adherence and rust resistance.
🚜
Forklift Towable: Integrated end bracket allows the ramp to be easily towed by a forklift.
🧊
Anti-Skid Surface: Steel grating on the slope prevents forklifts from slipping, even in wet conditions.
💧
Italy Oiltec Pump: High-quality manual hydraulic pump enables easy operation without electricity.
🔗
Safety First: Includes safety chains to secure the ramp to the truck and guard rails for direction.

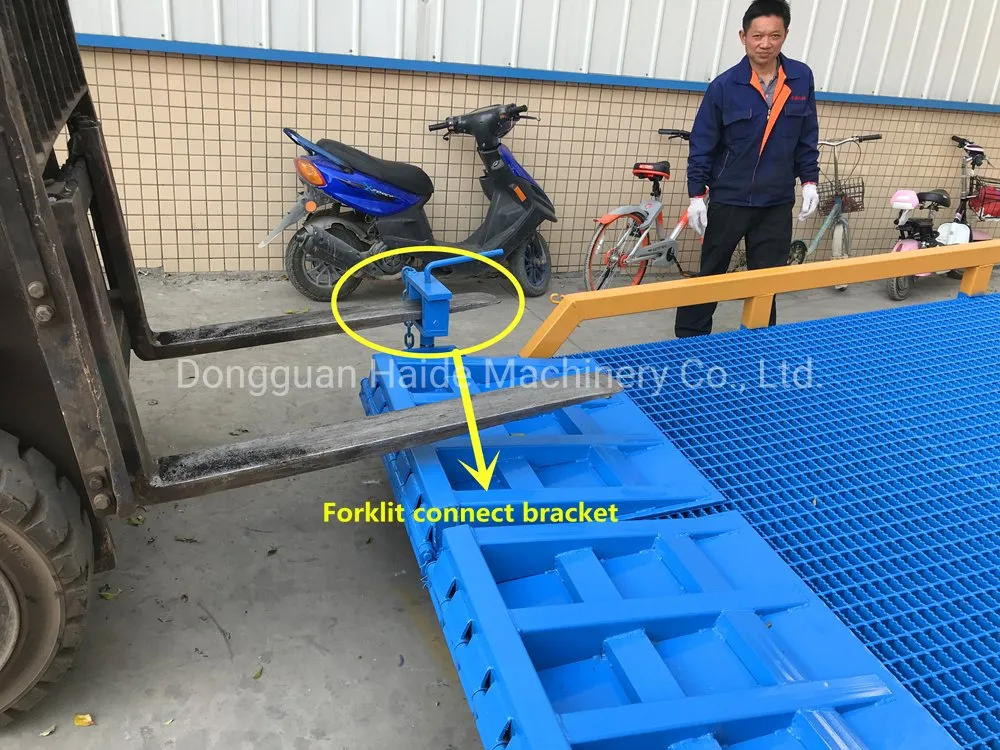

Towable Bracket

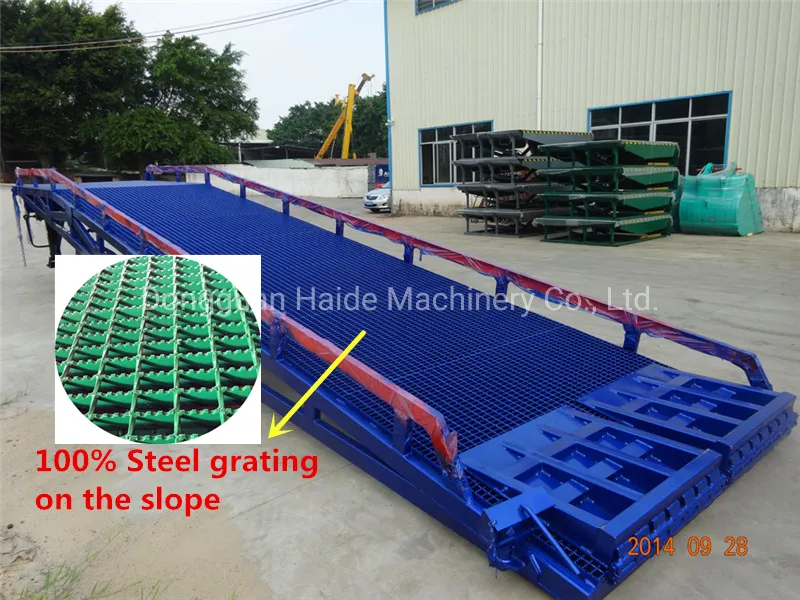

Steel Grating

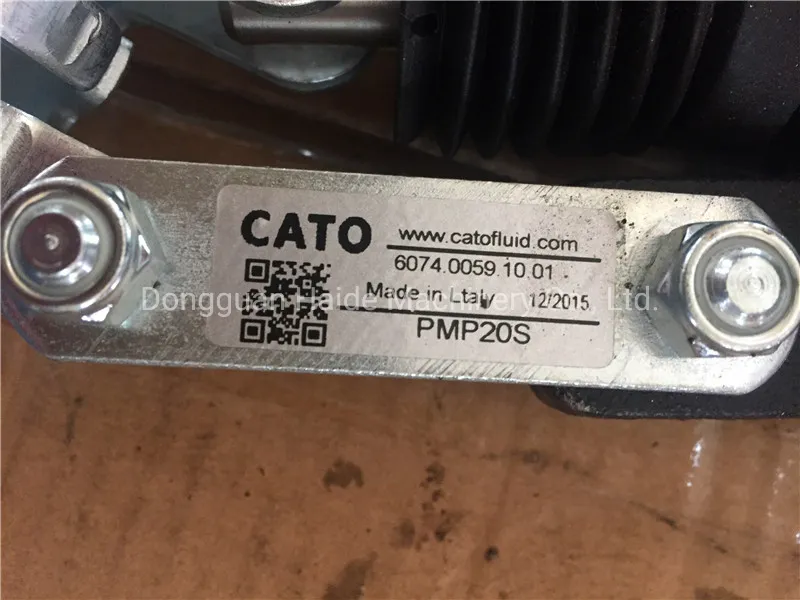

Hydraulic Pump
Safety Chain

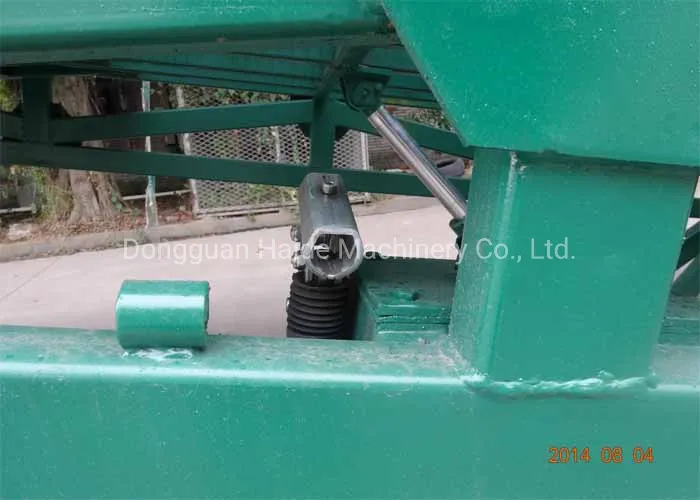

Height Adjustment

Frequently Asked Questions

What is the maximum load capacity of this mobile ramp?
The ramp is available in three standard dynamic capacities: 10 tons, 15 tons, and 20 tons, catering to various heavy-duty loading requirements.
Does the ramp require an electrical power source?
No, it utilizes a high-quality manual hydraulic pump (Italy Oiltec brand), allowing for easy height adjustment without the need for electricity.
How does the ramp ensure safety during forklift operation?
Safety is ensured through anti-skid steel grating on the slope, 250mm high safety curbs (guard rails), and safety chains that secure the ramp firmly to the truck.
Is the ramp durable for outdoor environments?
Yes, the steel structure undergoes sand-blasting and the paint is baked at 170ºC, providing excellent adherence and long-term resistance to rust and corrosion.
Can the ramp be moved easily between different loading bays?
Absolutely. The ramp is equipped with large solid tyres and a towable end bracket, making it easy for a forklift to move and reposition it as needed.
Can the dimensions of the ramp be customized?
Yes, we offer customization for every part of the ramp, including dimensions and colors, to suit your specific operational demands.
