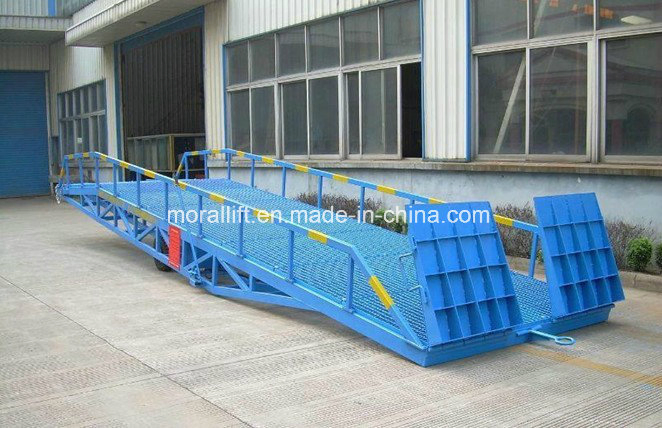

8t Mobile Warehouse Loading Ramp Yard Leveler

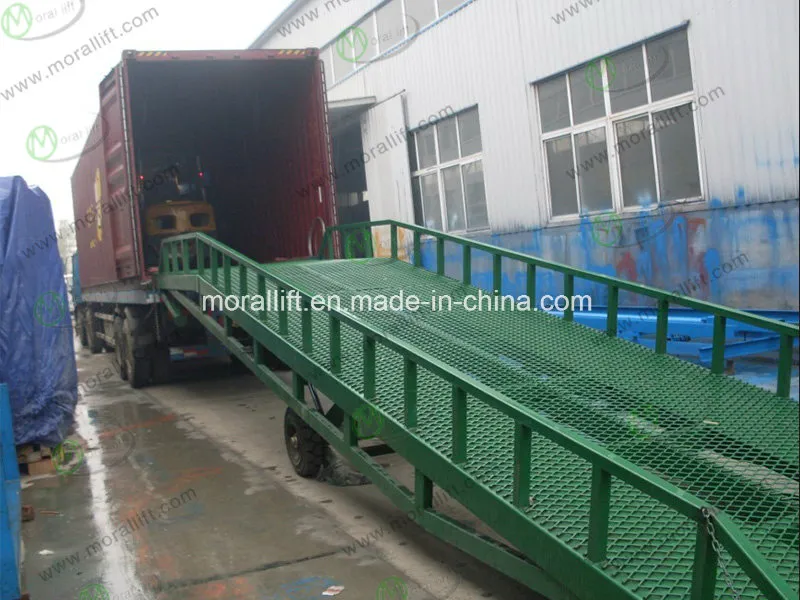

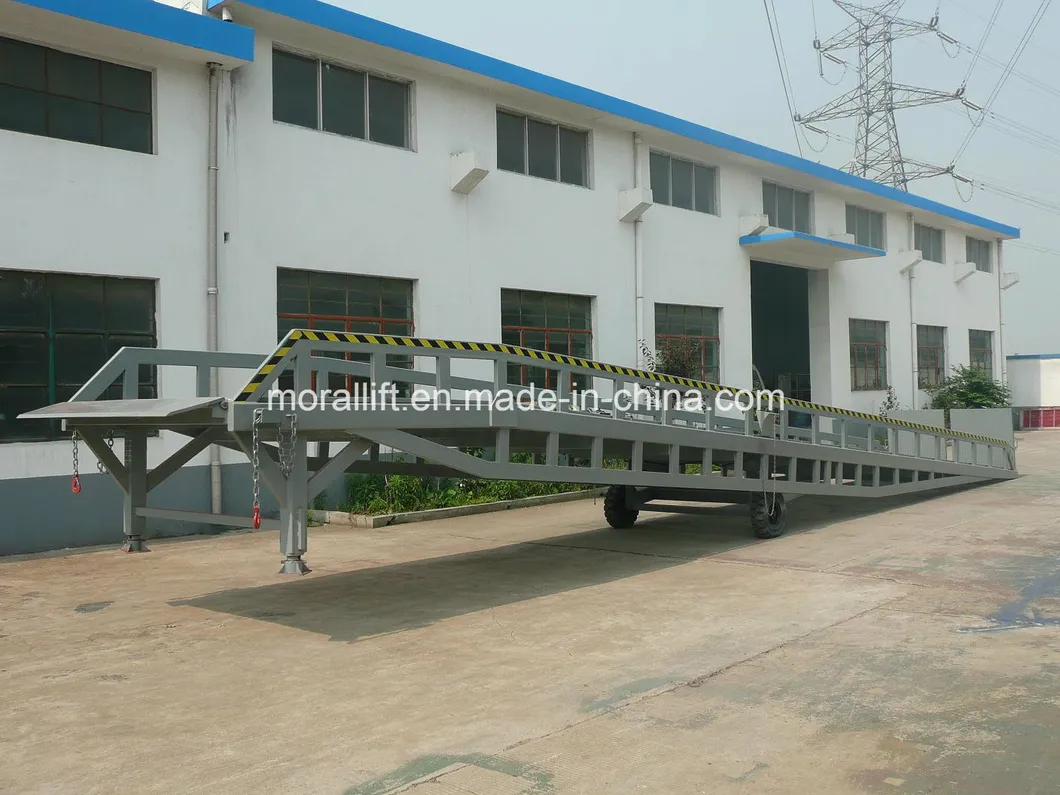

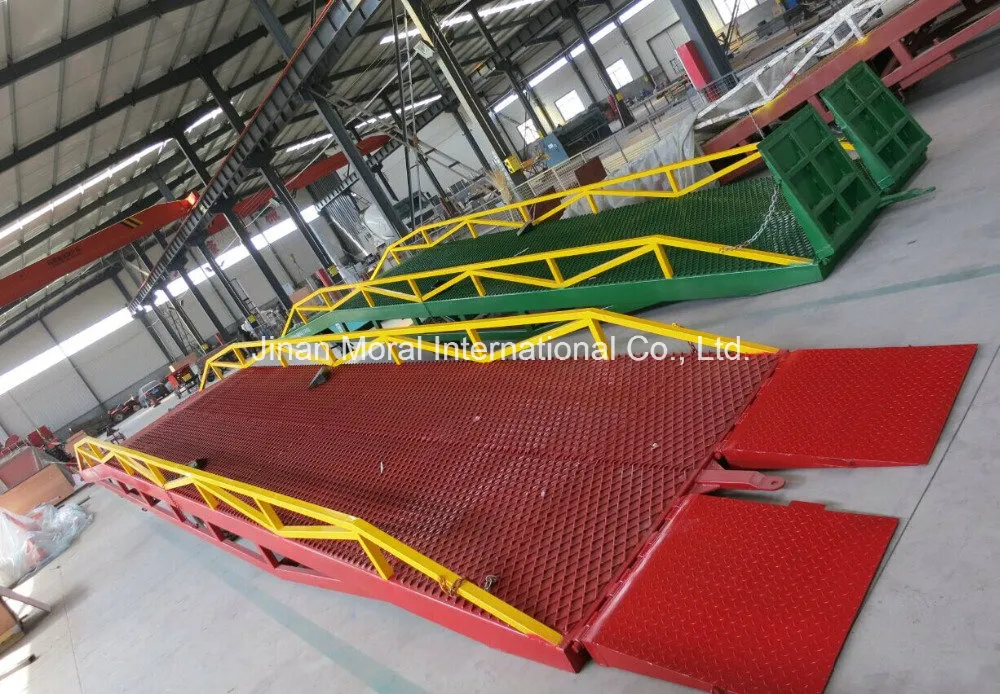

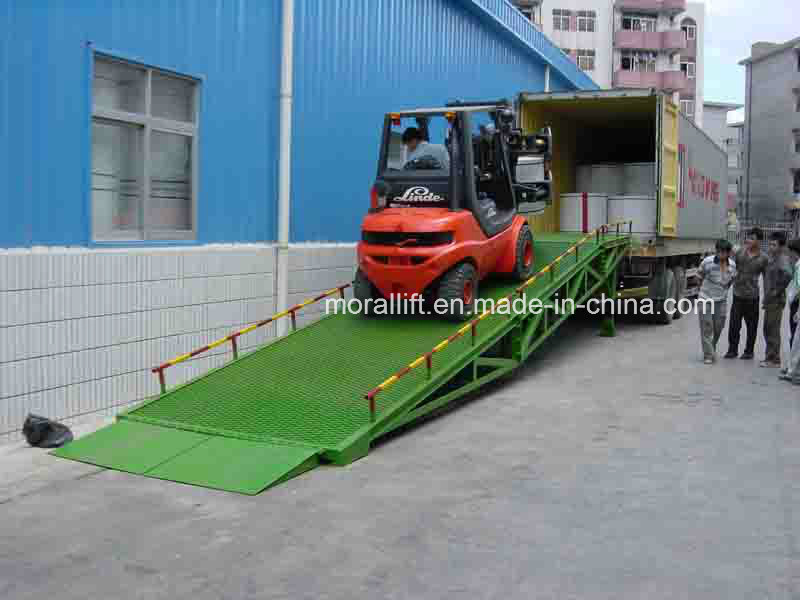

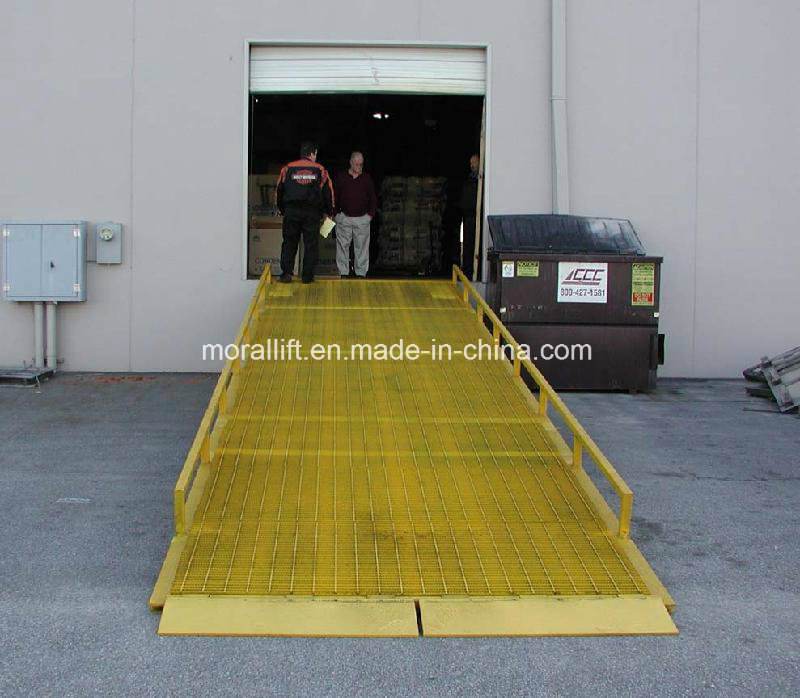

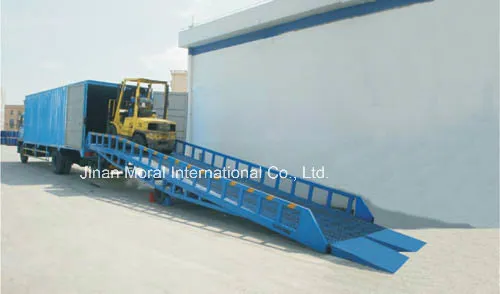

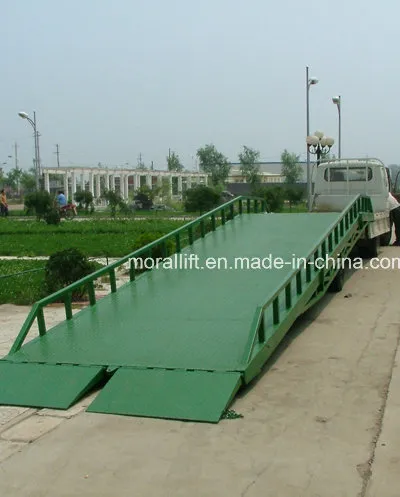

The Mobile Hydraulic Loading Ramp is a special auxiliary equipment designed for rapid loading and unloading of goods. Its height adjustment feature allows forklifts and other moving vehicles to enter trucks directly to handle cargo. Controlled by a manual hydraulic system, it enables a single operator to manage the process efficiently, reducing labor costs and raising productivity.
Equipped with a handle pump and return valve. Screw clockwise to lift and counterclockwise to lower using the ramp's own weight.
Solid tyres that do not require inflation, paired with brake pads to guarantee operational safety.
Prevents gravity concentration at the vehicle tail, ensuring stability and preventing overturning during forklift entry.
High-strength slippery anilox steel plates prevent grease, dirt, and ice accumulation while improving traction.
High-strength manganese steel skeleton in a truss structure provides exceptional carrying capacity.
Includes a relief valve and pipeline rupture protection that automatically locks if oil tubing fails.
| Model # | Load Capacity (T) | Working Height (m) | Max Elevation | Dimensions (m) | Operation |
|---|---|---|---|---|---|
| YDCQ-5 | 5 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-6 | 6 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-8 | 8 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-10 | 10 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-12 | 12 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-15 | 15 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
Warranty: 5 years for steel structure, 1 year for hydraulic and electrical systems. Spare parts like oil seals are provided free with container orders.
Technical Support: 24-hour support via email and phone. English manuals and operation videos are provided. Overseas engineering service is available.
